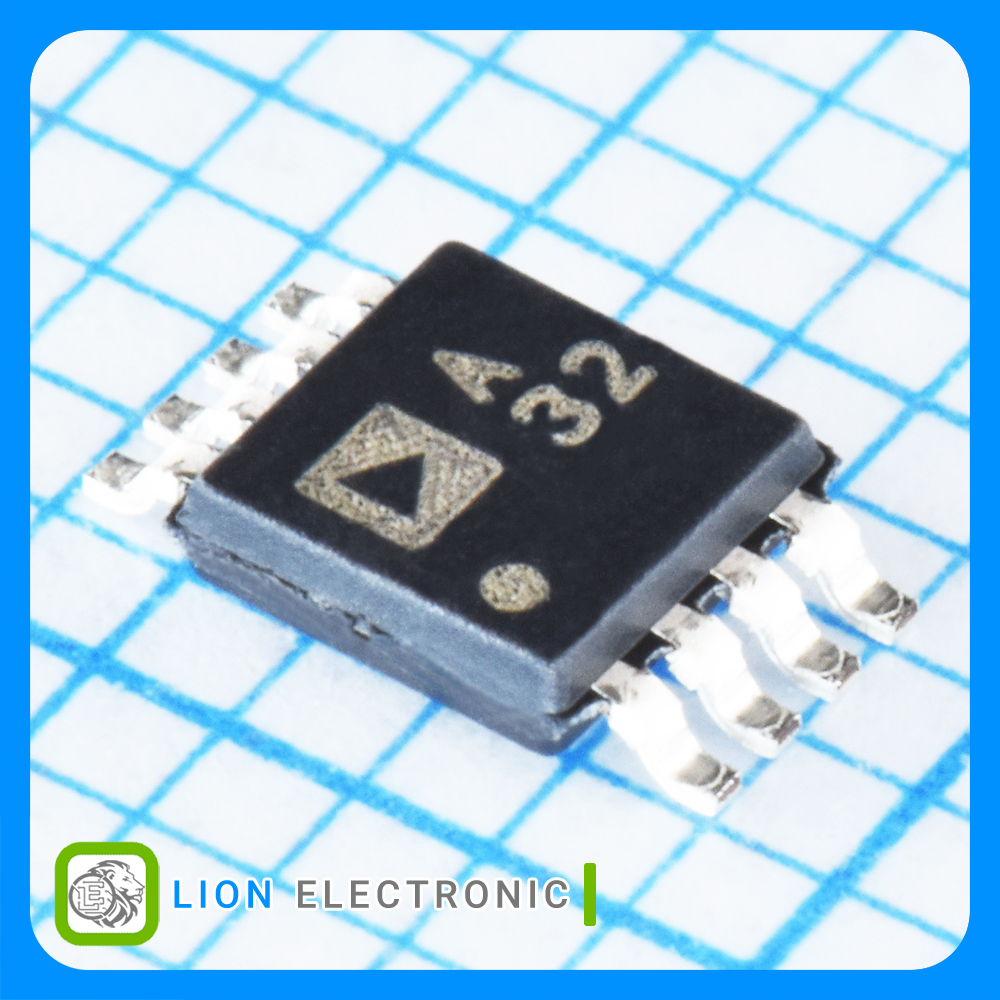

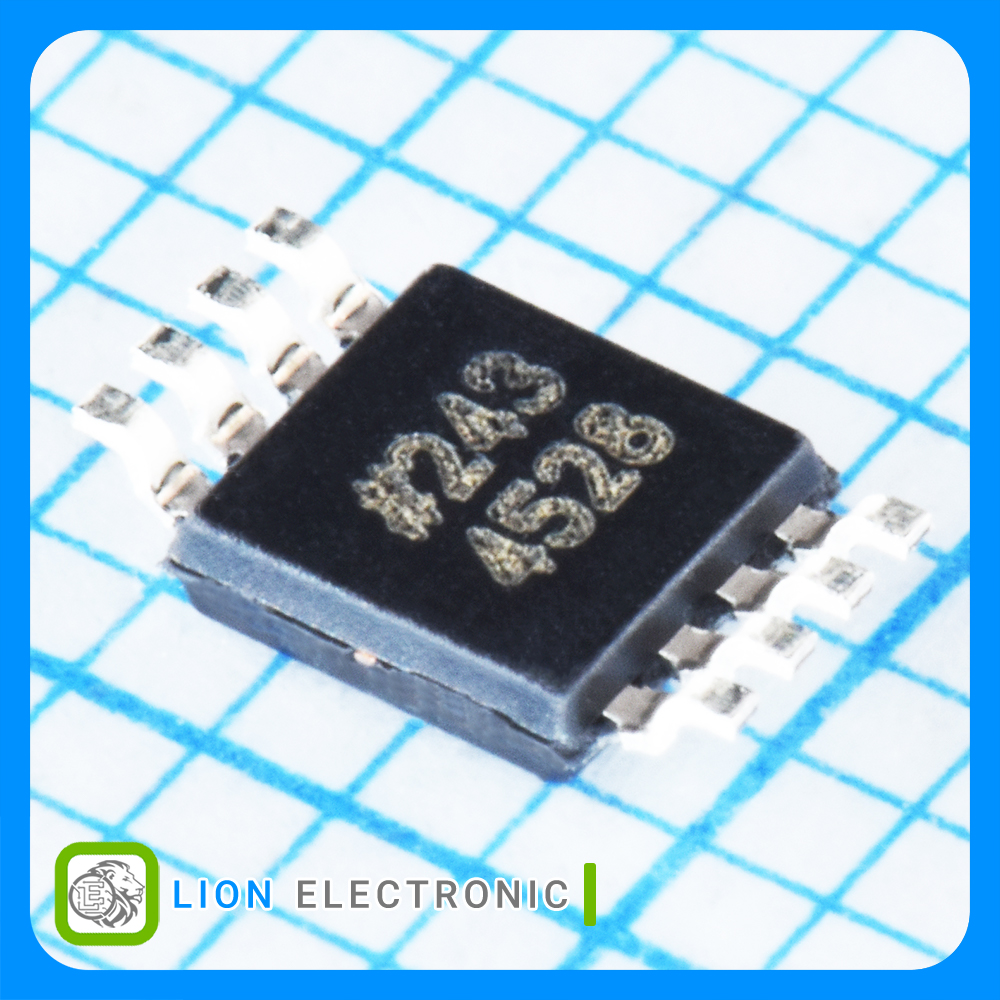

ADA4528-2ARMZ
ADA4528-2ARMZ
Part Number
469
Lion Part
Datasheet
Analog Devices Manufacture
آپامپ دقیق 2 کاناله با نویز بسیار پایین، دریفت صفر و RRIO، پهنای باند 3.4 مگاهرتز با پکیج MSOP-8
Precision, Ultralow Noise, RRIO, Zero-Drift Operational Amplifier 2-Channel, 3.4MHz with MSOP-8 Package
معرفی
آپامپ دقیق 2 کاناله با نویز بسیار پایین، دریفت صفر و RRIO، پهنای باند 3.4 مگاهرتز با پکیج MSOP-8
Precision, Ultralow Noise, RRIO, Zero-Drift Operational Amplifier 2-Channel, 3.4MHz with MSOP-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 40mA
- SR - Slew Rate: 500mV/us
- GBP - Gain Bandwidth Product: 3.4MHz
- CMRR - Common Mode Rejection Ratio: 160dB
- Ib - Input Bias Current: 350pA
- Vos - Input Offset Voltage: 300nV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.2V
- Operating Supply Current: 1.5mA
- Mounting Style: SMD/SMT
- Package/Case: MSOP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ ADA4528-2ARMZ

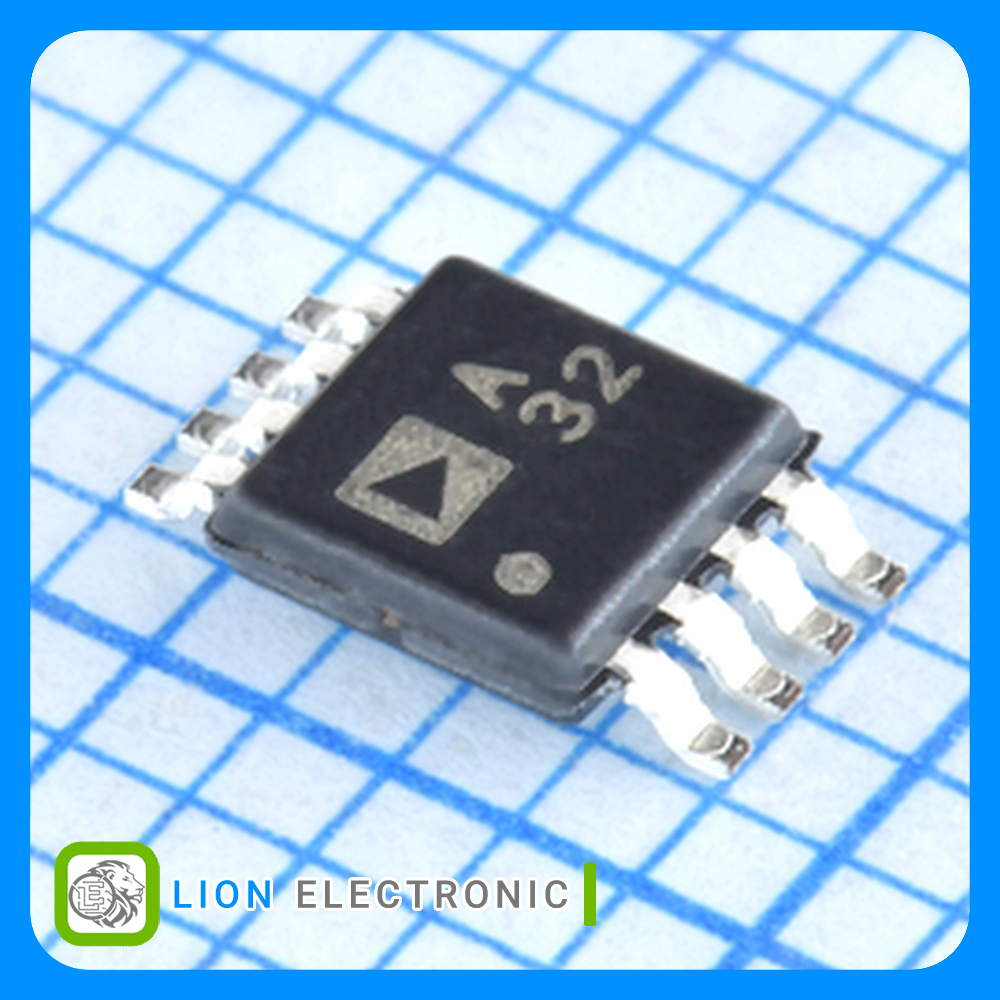

آپ امپ ADA4528-2ARMZ
Part Number
300nV
Vos - Input Offset Voltage
No Shutdown
Shutdown
2
Number of Channels
5.9nV/sqrt Hz
en - Input Voltage Noise Density
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
500mV/us
SR - Slew Rate
+125C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
40mA
Output Current per Channel
350pA
Ib - Input Bias Current
2.2V
Supply Voltage - Min
3.4MHz
GBP - Gain Bandwidth Product
160dB
CMRR - Common Mode Rejection Ratio
1.5mA
Operating Supply Current
MSOP-8
Package-Case
