WeEn/NXP
معرفی

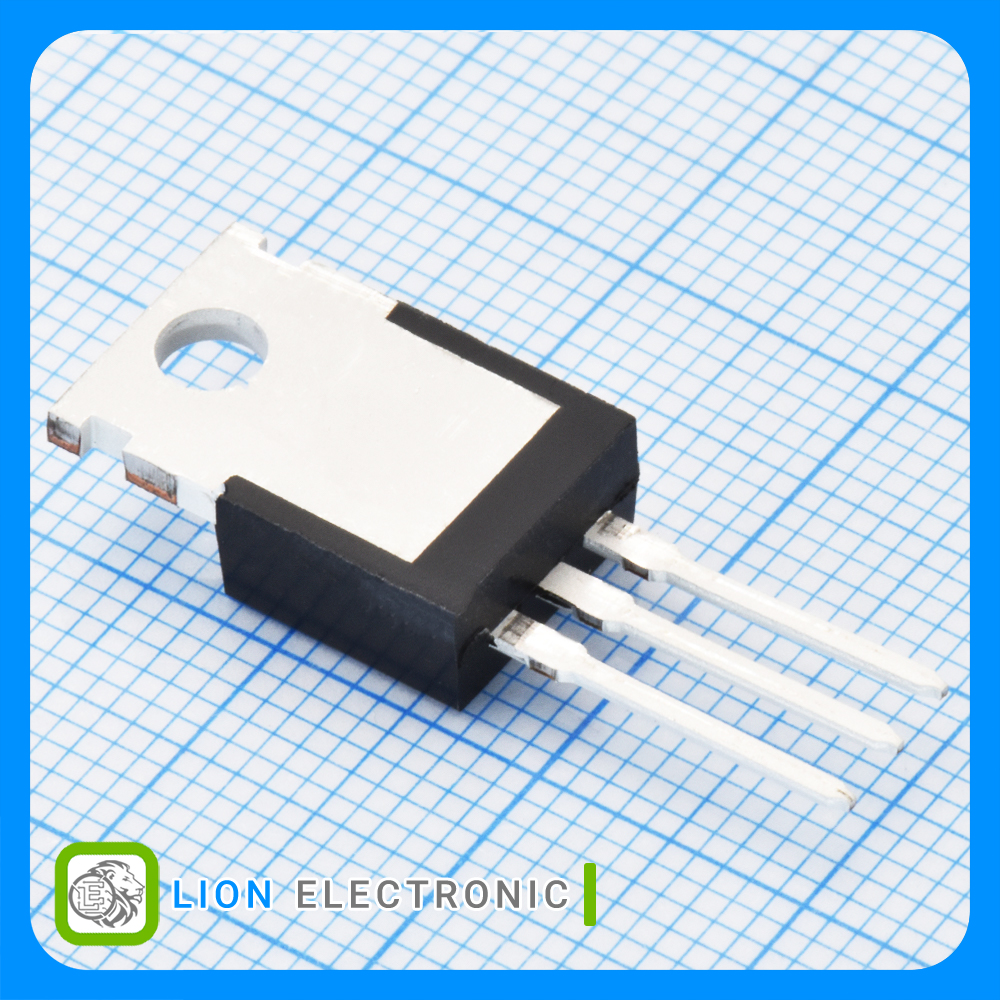

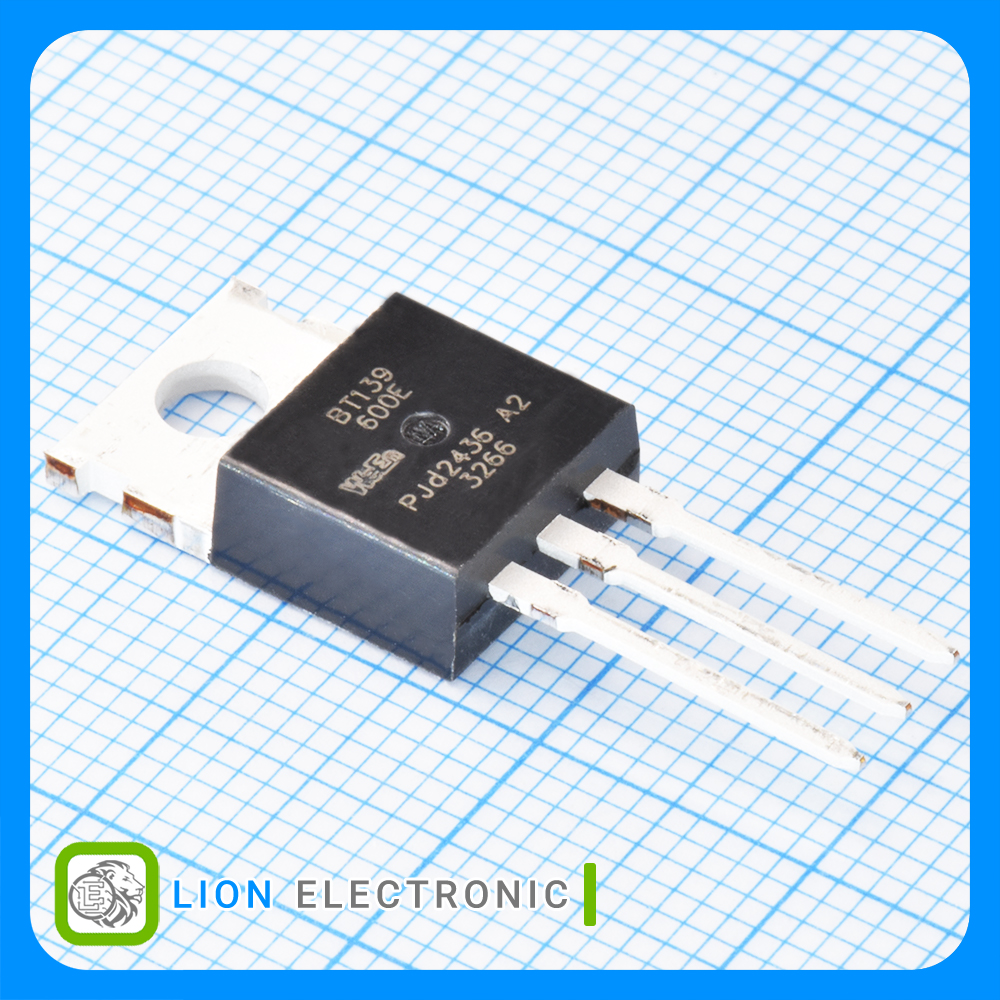

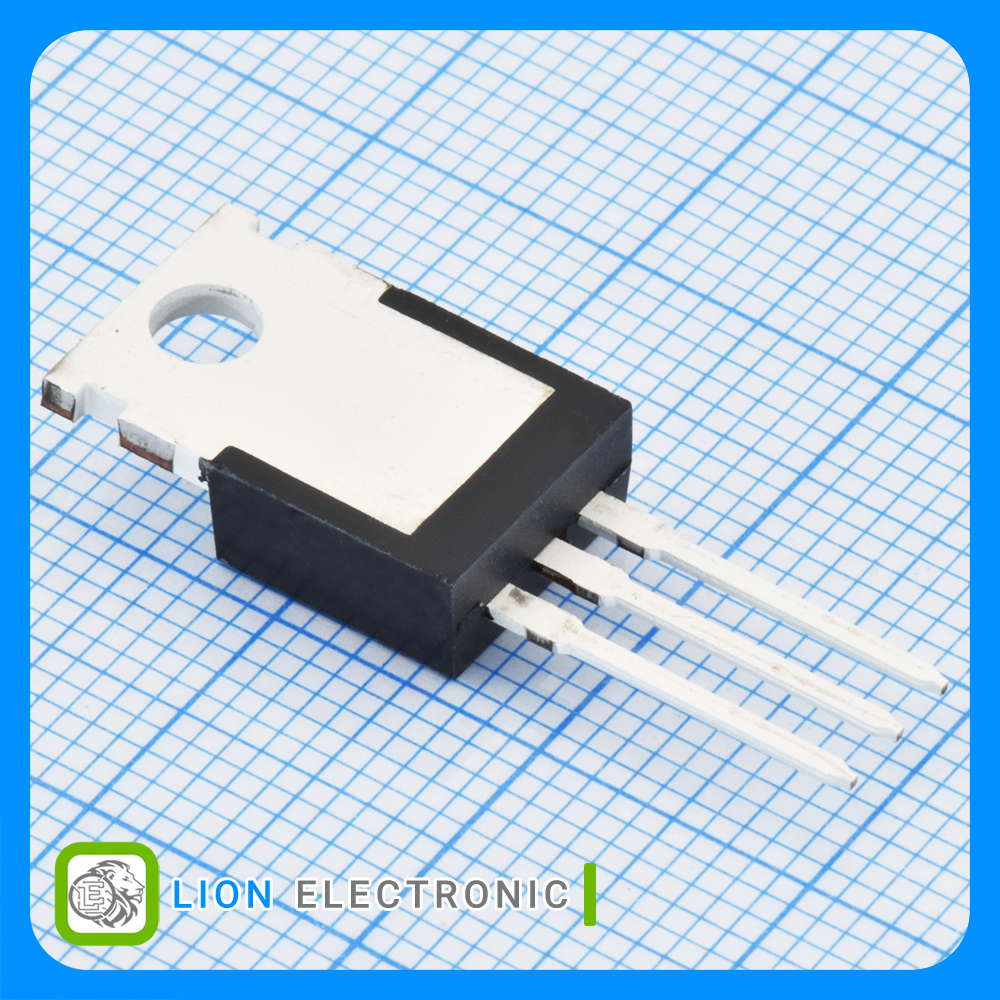

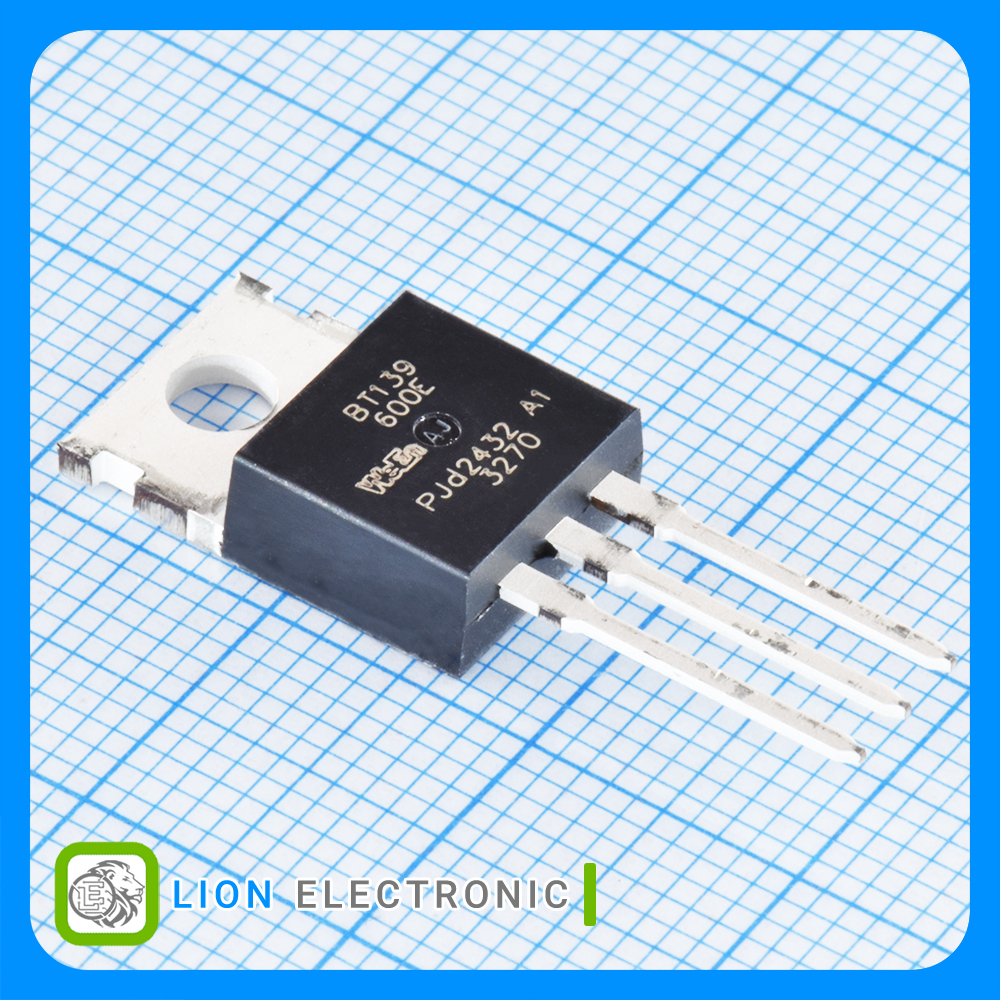

ترایاک 600 ولت 16 آمپر با پکیج TO-220-3
Triac 600V, 16A with TO-220-3 Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 600V
- On-State RMS Current - It RMS: 16A
- On-State Voltage: 1.6V
- Gate Trigger Voltage - Vgt: 1.5V
- Gate Trigger Current - Igt: 25mA
- Non Repetitive On-State Current: 170A
- Off-State Leakage Current @ VDRM IDRM: 100uA
- Holding Current Ih Max: 45mA
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات BT139-600E
BT139-600E
Part Number
100uA
Off-State Leakage Current @ VDRM IDRM
1.6V
On-State Voltage
600V
Rated Repetitive Off-State Voltage VDRM
16A
On-State RMS Current - It RMS
-40C
Minimum Operating Temperature
25mA
Gate Trigger Current - Igt
1.5V
Gate Trigger Voltage - Vgt
170A
Non Repetitive On-State Current
Tube
Packaging
45mA
Holding Current Ih Max
Through Hole
Mounting Style
+125C
Maximum Operating Temperature
TO-220
Package-Case
