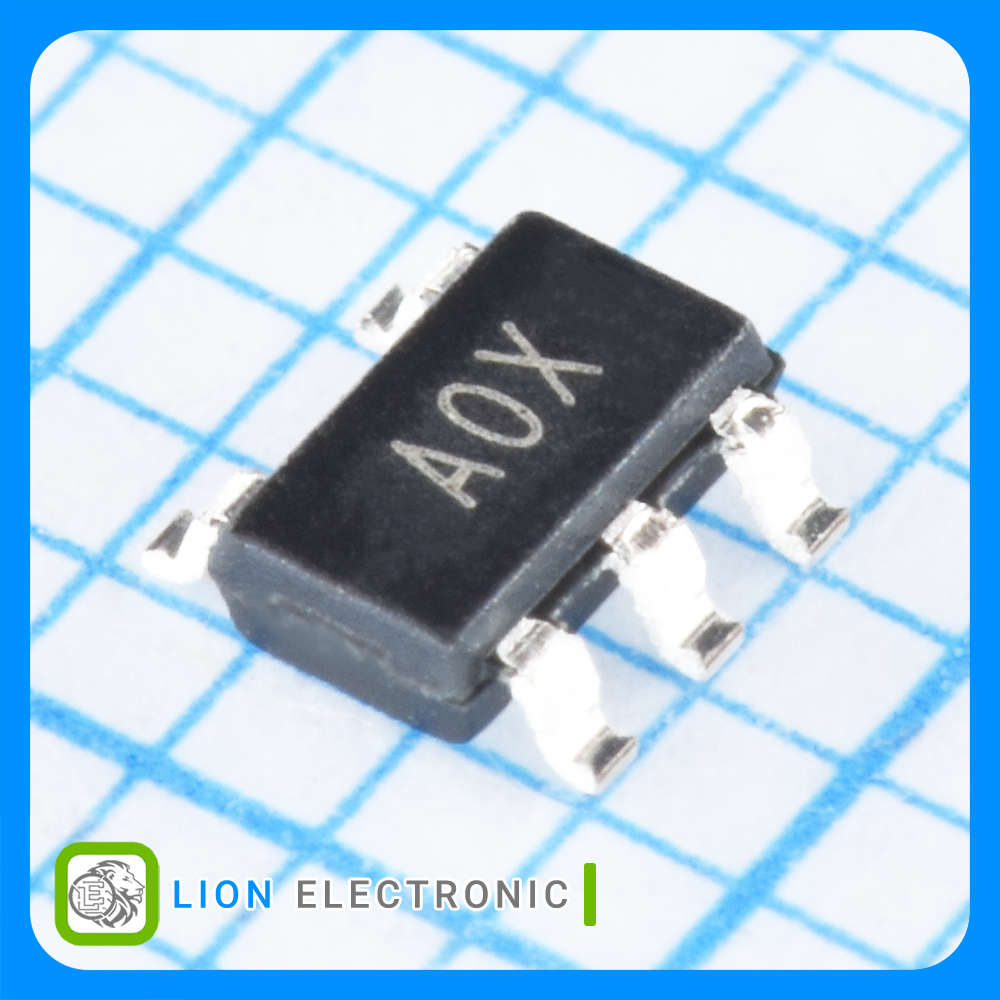

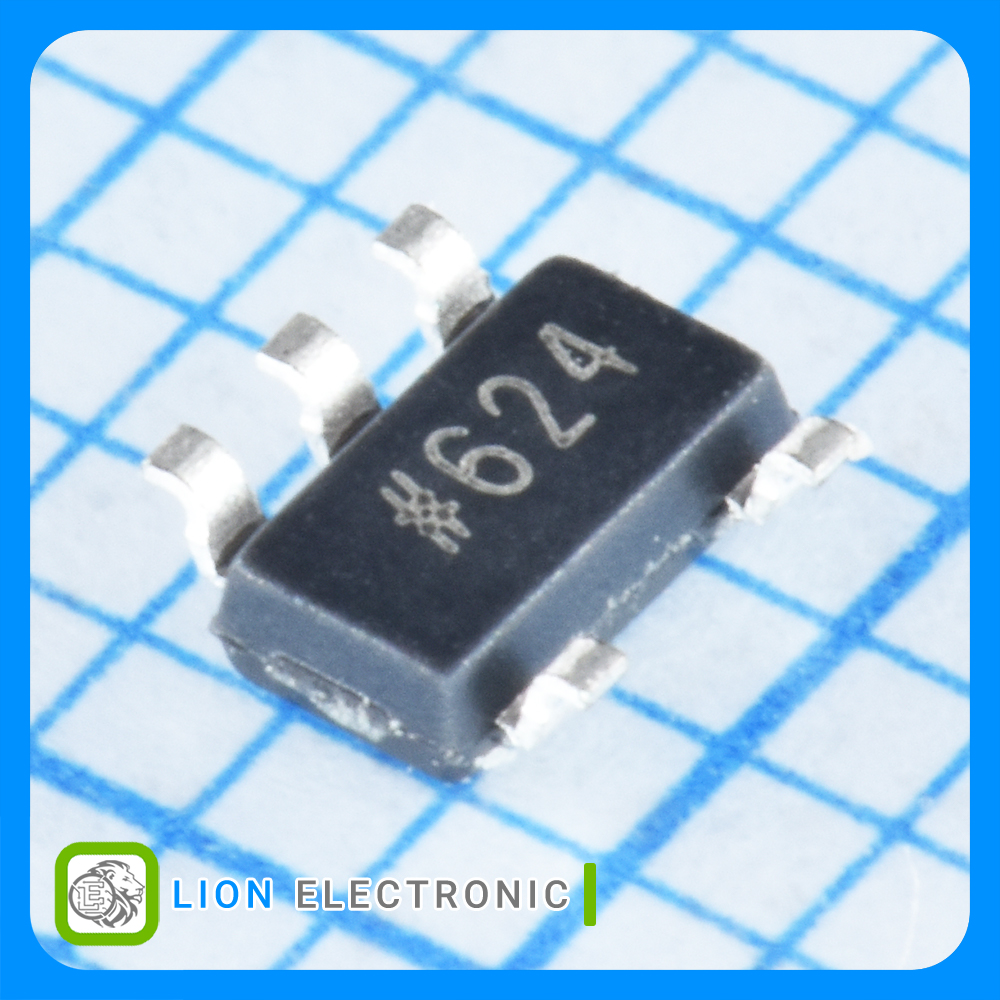

AD8603AUJZ
AD8603AUJZ
Part Number
470
Lion Part
Datasheet
Analog Devices Manufacture
آپامپ دقیق 1 کاناله کممصرف با نویز پایین CMOS و ورودی خروجی ریل تو ریل، پهنای باند 316 کیلوهرتز، پکیج TSOT-23-5
Precision Micropower, Low Noise CMOS, Rail-to-Rail Input/Output Operational Amplifier 1-Channel, 316KHz with TSOT-23-5 Package
معرفی
آپامپ دقیق 1 کاناله کممصرف با نویز پایین CMOS و ورودی خروجی ریل تو ریل، پهنای باند 316 کیلوهرتز، پکیج TSOT-23-5
Precision Micropower, Low Noise CMOS, Rail-to-Rail Input/Output Operational Amplifier 1-Channel, 316KHz with TSOT-23-5 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 70mA
- SR - Slew Rate: 100mV/us
- GBP - Gain Bandwidth Product: 316KHz
- CMRR - Common Mode Rejection Ratio: 100dB
- Ib - Input Bias Current: 500pA
- Vos - Input Offset Voltage: 12uV
- Supply Voltage - Max: 5V
- Supply Voltage - Min: 1.8V
- Operating Supply Current: 50uA
- Mounting Style: SMD/SMT
- Package/Case: TSOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ AD8603AUJZ

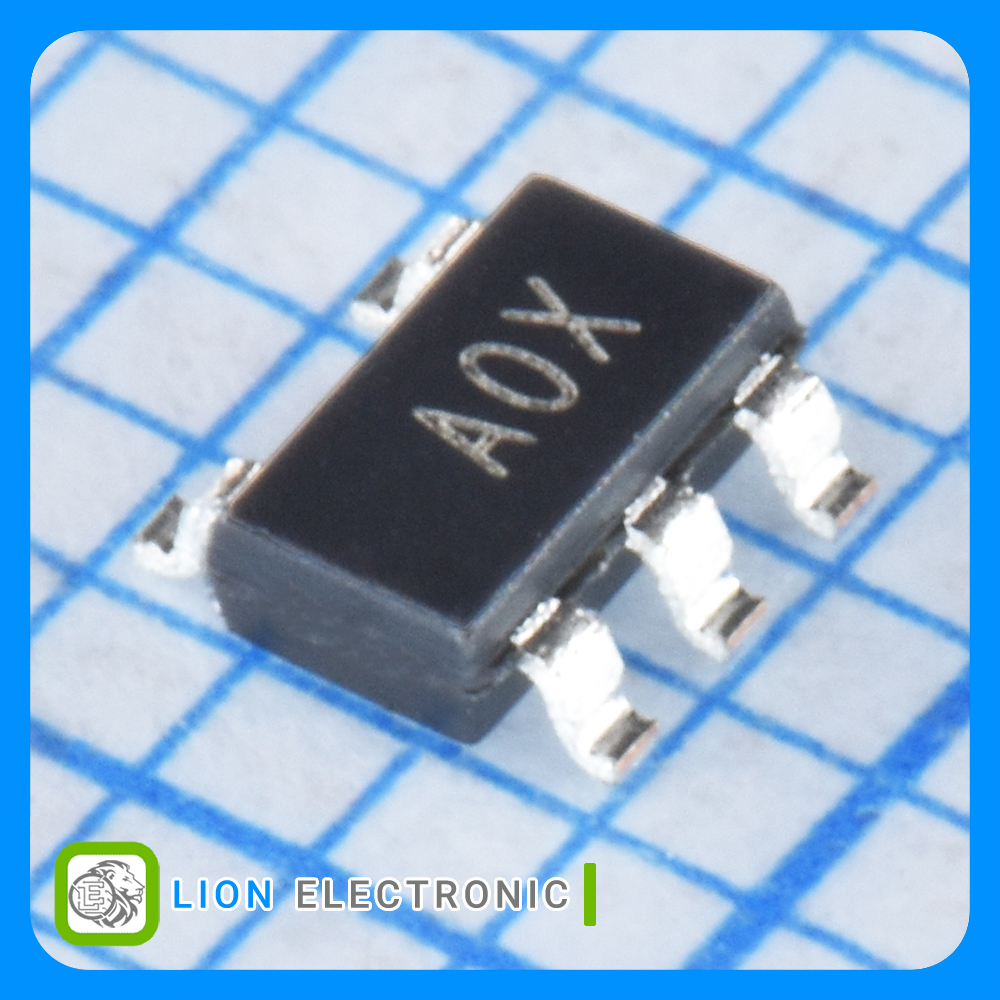

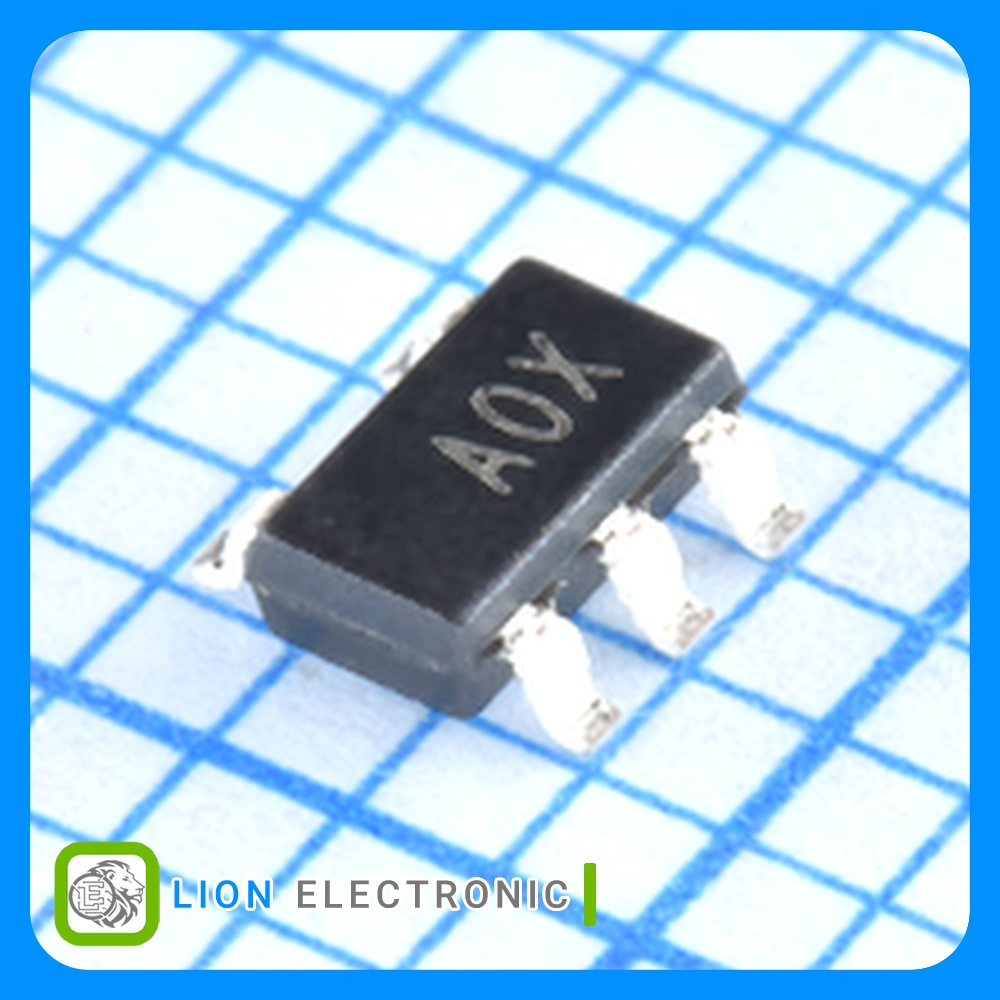

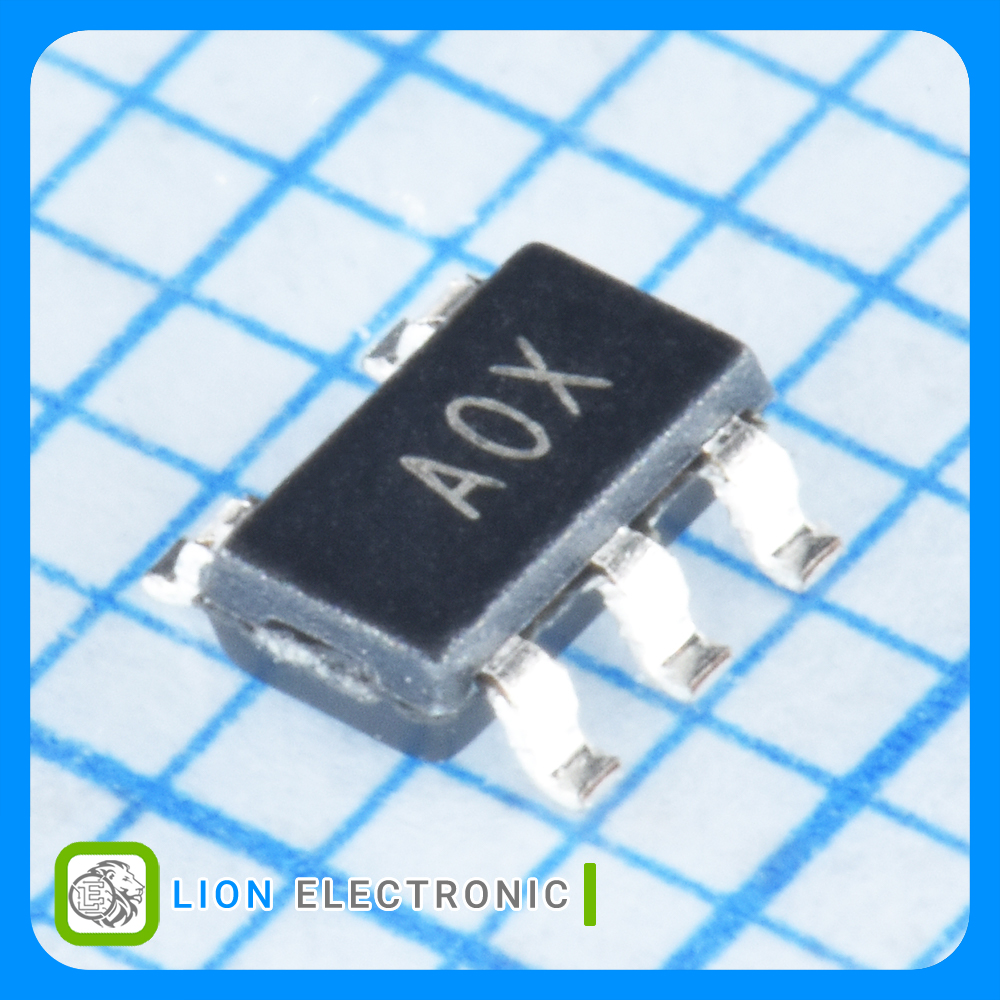

آپ امپ AD8603AUJZ
Part Number
No Shutdown
Shutdown
1
Number of Channels
100mV/us
SR - Slew Rate
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
25nV/sqrt Hz
en - Input Voltage Noise Density
12uV
Vos - Input Offset Voltage
316KHz
GBP - Gain Bandwidth Product
+125C
Maximum Operating Temperature
5V
Supply Voltage - Max
1.8V
Supply Voltage - Min
500pA
Ib - Input Bias Current
70mA
Output Current per Channel
50uA
Operating Supply Current
100dB
CMRR - Common Mode Rejection Ratio
SOT-23-5
Package-Case
