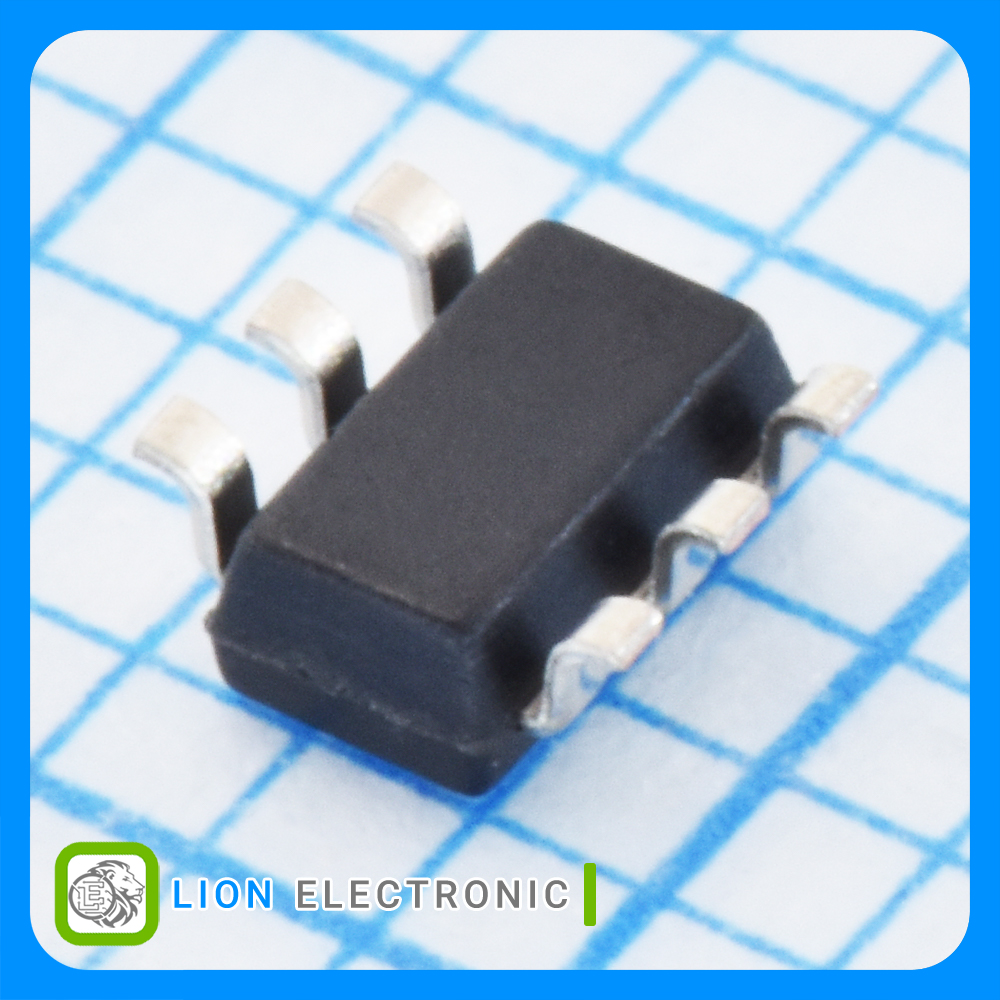

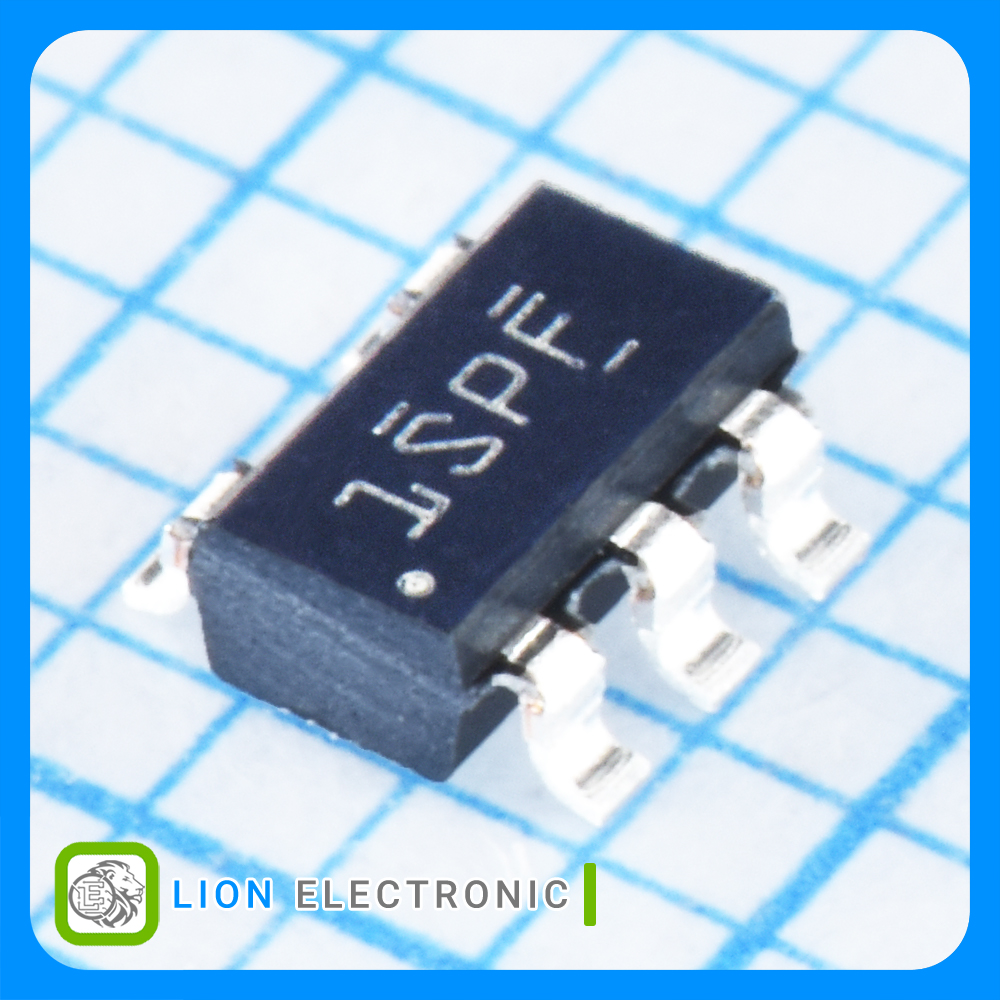

LM321LVIDBVR
LM321LVIDBVR
Part Number
4721
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ استاندارد صنعتی تک کاناله با پهنای باند 1 مگاهرتز، آفست 3 میلیولت، تغذیه 5.5 ولت و پکیج SOT-23-5
Industry Standard Single Operational Amplifier 1-Channel, 1MHz, 3mV Offset Voltage, 5.5V Supply, Stable Unity-gain, with SOT-23-5 Package
معرفی
آپامپ استاندارد صنعتی تک کاناله با پهنای باند 1 مگاهرتز، آفست 3 میلیولت، تغذیه 5.5 ولت و پکیج SOT-23-5
Industry Standard Single Operational Amplifier 1-Channel, 1MHz, 3mV Offset Voltage, 5.5V Supply, Stable Unity-gain, with SOT-23-5 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 40mA
- SR - Slew Rate: 1.5V/us
- GBP - Gain Bandwidth Product: 1MHz
- CMRR - Common Mode Rejection Ratio: 92dB
- Ib - Input Bias Current: 15pA
- Vos - Input Offset Voltage: ±1mV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.7V
- Operating Supply Current: 90uA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ LM321LVIDBVR

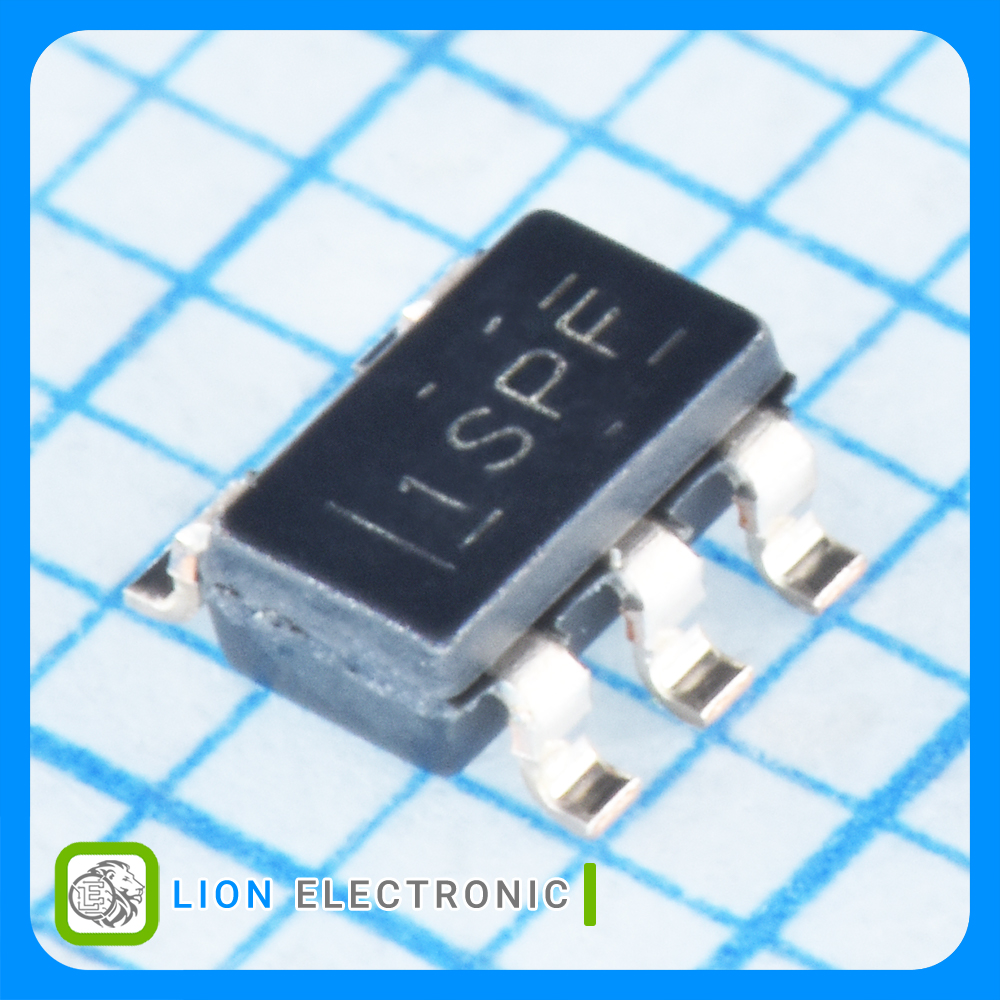

آپ امپ LM321LVIDBVR
Part Number
1
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
15pA
Ib - Input Bias Current
+125C
Maximum Operating Temperature
1MHz
GBP - Gain Bandwidth Product
1.5V/us
SR - Slew Rate
5.5V
Supply Voltage - Max
40mA
Output Current per Channel
92dB
CMRR - Common Mode Rejection Ratio
2.7V
Supply Voltage - Min
±1mV
Vos - Input Offset Voltage
90uA
Operating Supply Current
SOT-23-5
Package-Case
