BTA26-600BRG
BTA26-600BRG
Part Number
48
Lion Part
Datasheet
STMicroelectronics Manufacture
ترایاک استاندارد و اسنابرلس 600 ولت 25 آمپر با پکیج TOP-3

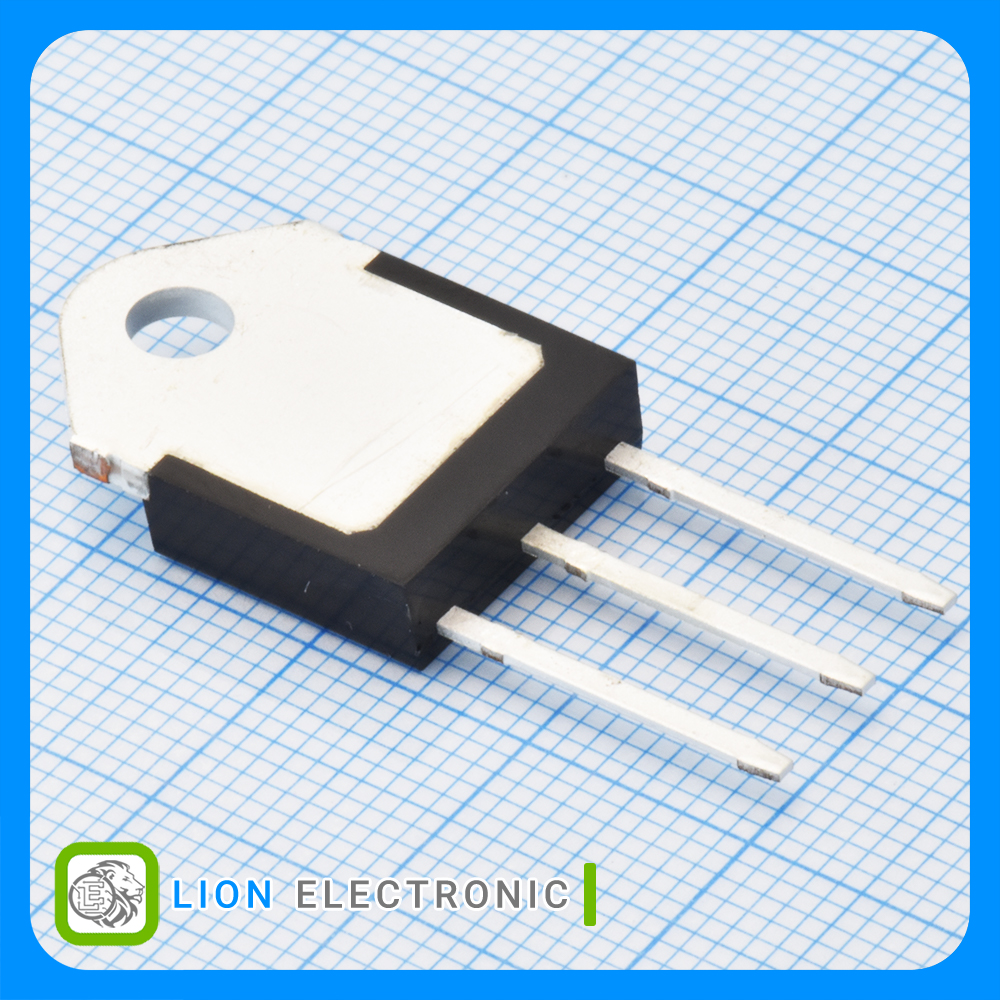

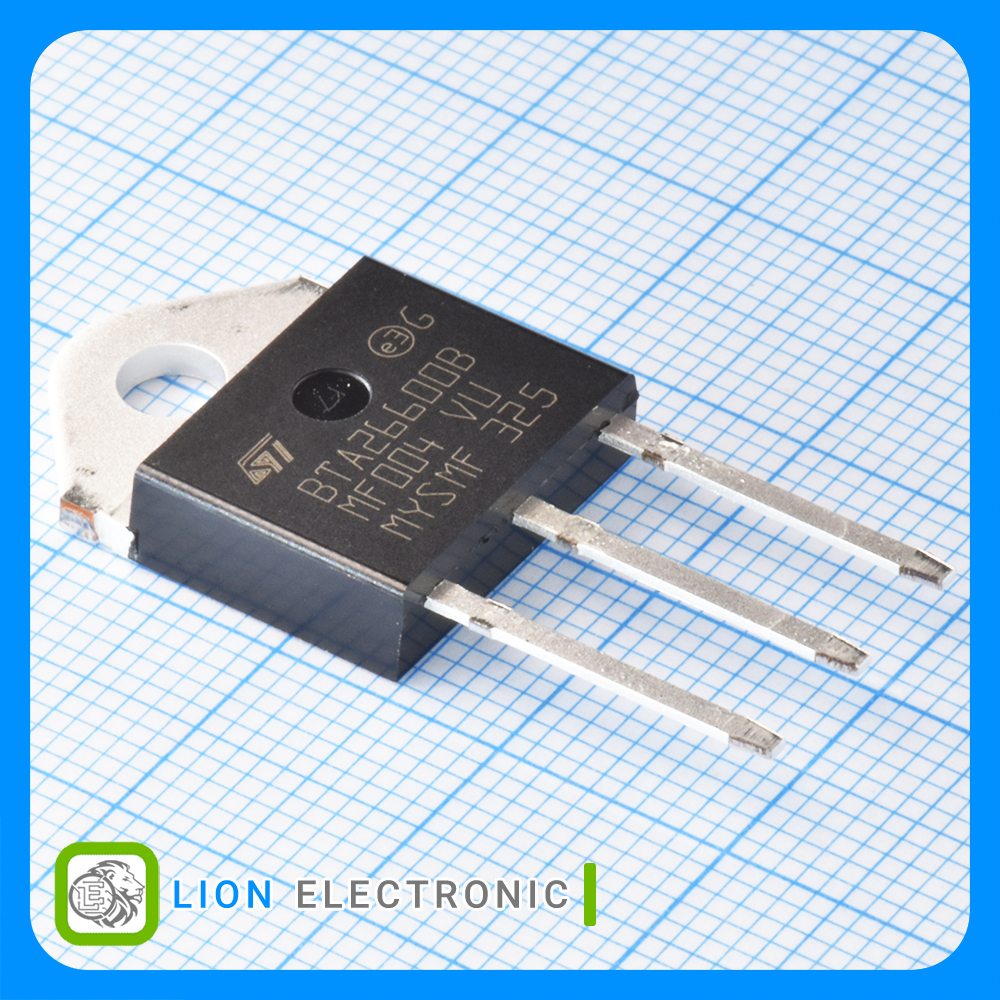

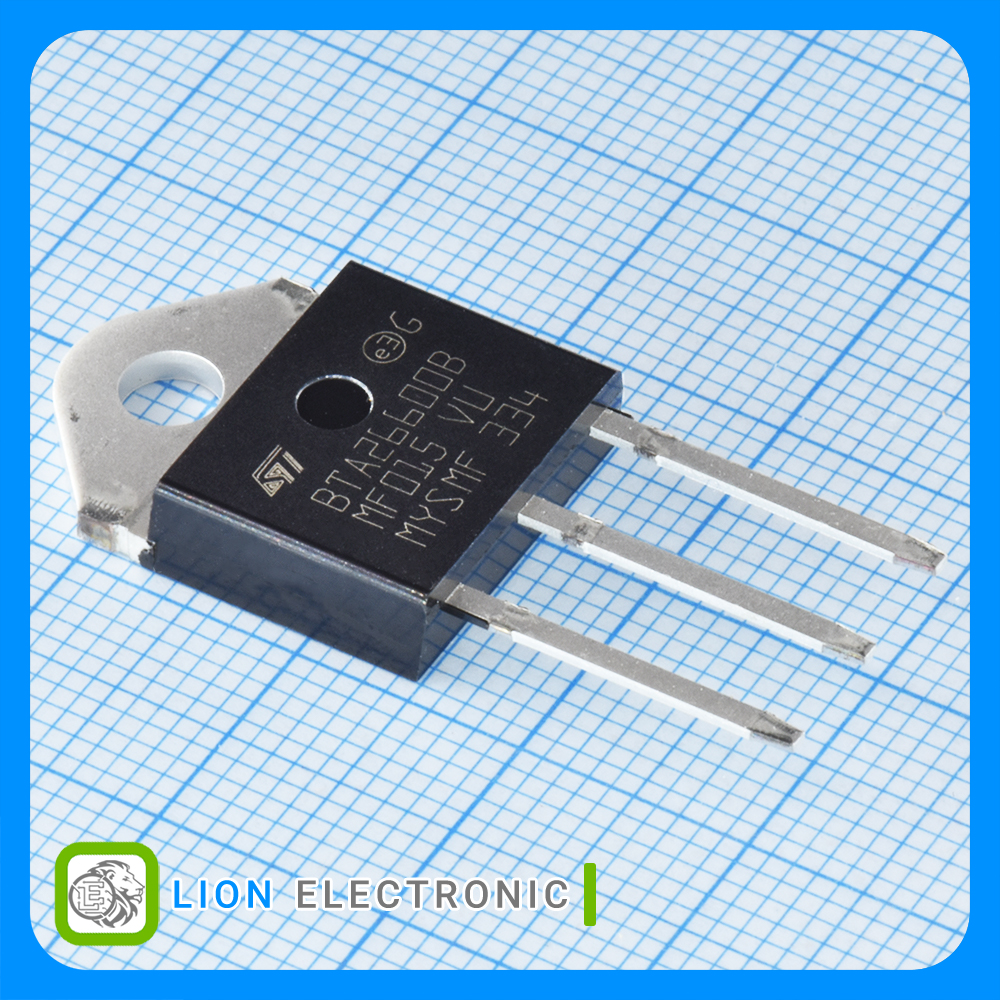

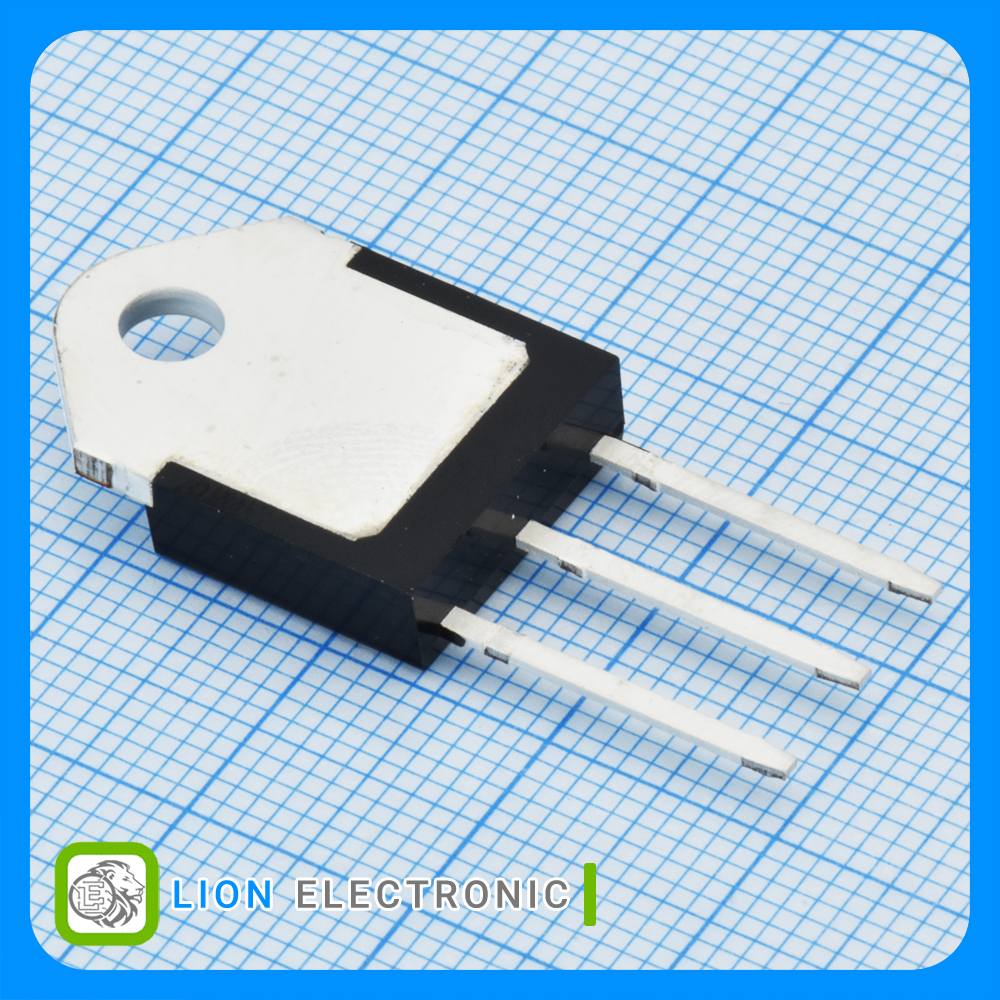

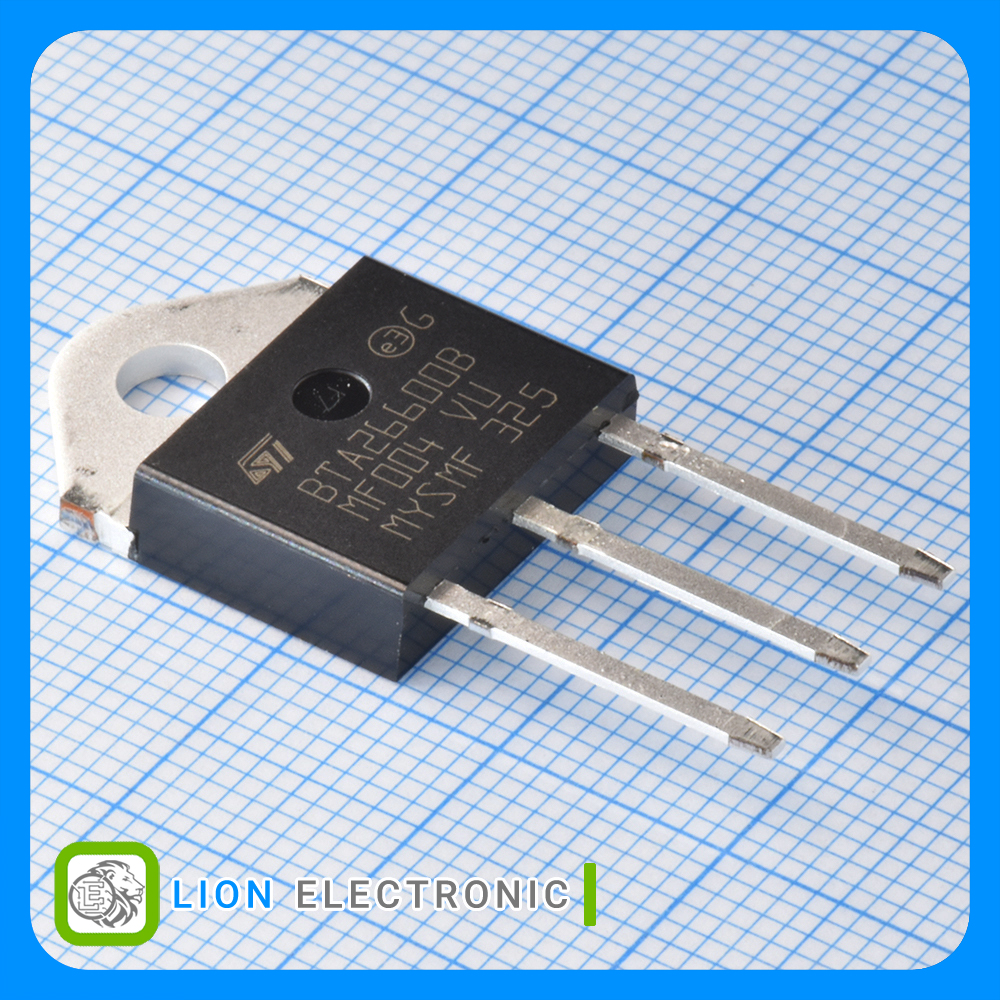

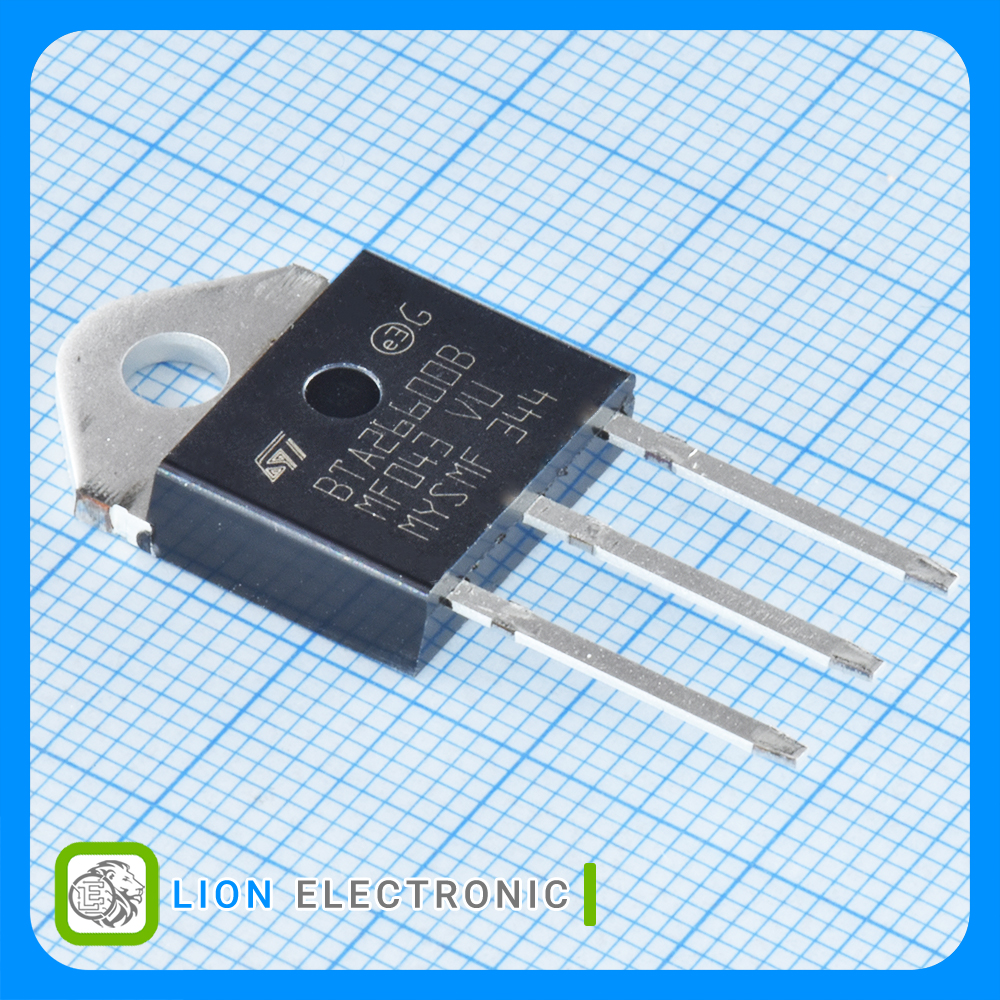

Standard and Snubberless Triac 600V, 25A with TOP-3 Package
معرفی
ترایاک استاندارد و اسنابرلس 600 ولت 25 آمپر با پکیج TOP-3
Standard and Snubberless Triac 600V, 25A with TOP-3 Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 600V
- On-State RMS Current - It RMS: 25A
- On-State Voltage: 1.55V
- Gate Trigger Voltage - Vgt: 1.3V
- Gate Trigger Current - Igt: 50mA
- Non Repetitive On-State Current: 260A
- Off-State Leakage Current @ VDRM IDRM: 5uA
- Holding Current Ih Max: 80mA
- Mounting Style: Through Hole
- Package/Case: TOP3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات BTA26-600BRG
BTA26-600BRG
Part Number
5uA
Off-State Leakage Current @ VDRM IDRM
1.55V
On-State Voltage
1.3V
Gate Trigger Voltage - Vgt
600V
Rated Repetitive Off-State Voltage VDRM
-40C
Minimum Operating Temperature
25A
On-State RMS Current - It RMS
Tube
Packaging
260A
Non Repetitive On-State Current
50mA
Gate Trigger Current - Igt
Through Hole
Mounting Style
80mA
Holding Current Ih Max
+125C
Maximum Operating Temperature
TOP3
Package-Case
