HS0J477M0608PC
HS0J477M0608PC
Part Number
4849
Lion Part
Datasheet
Honor Elec Manufacture
خازن الکترولیت جامد پلیمری 470 میکروفاراد 6.3 ولت تلرانس 20% سایز 6.3 میلیمتر در 8 میلیمتر

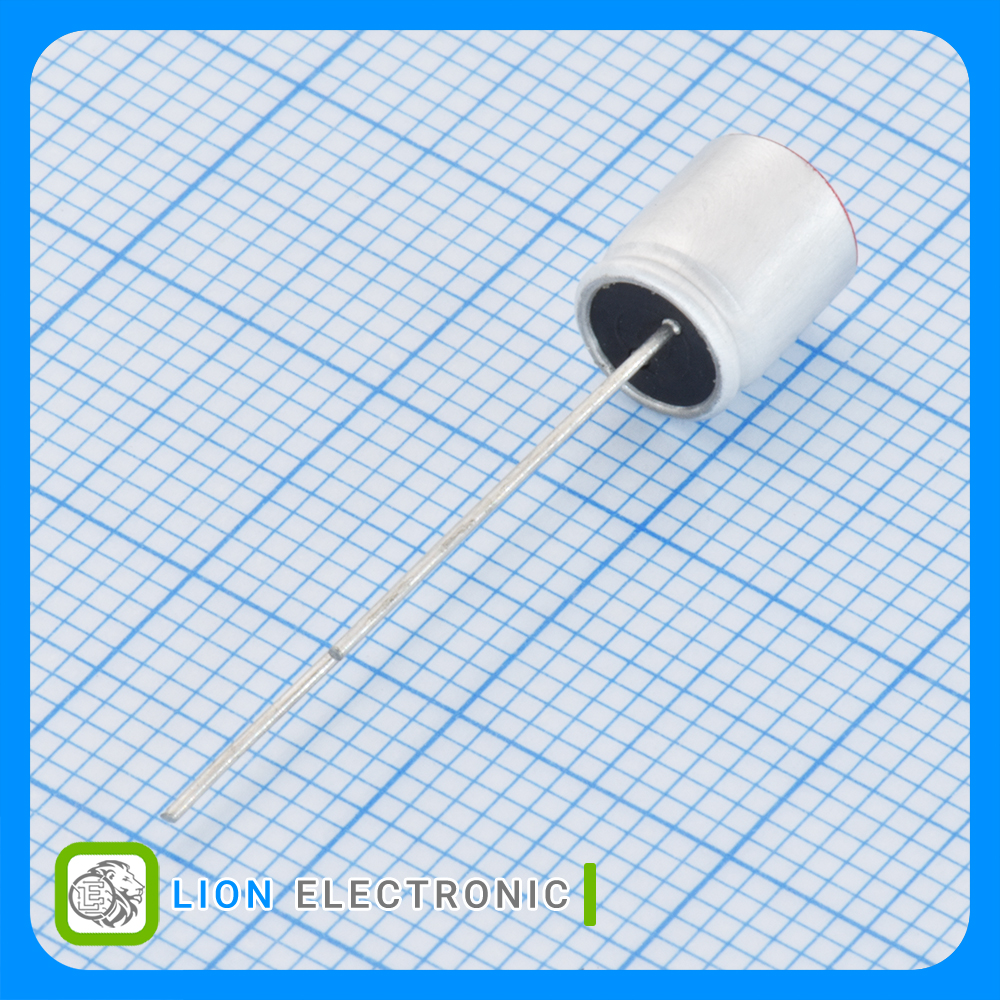

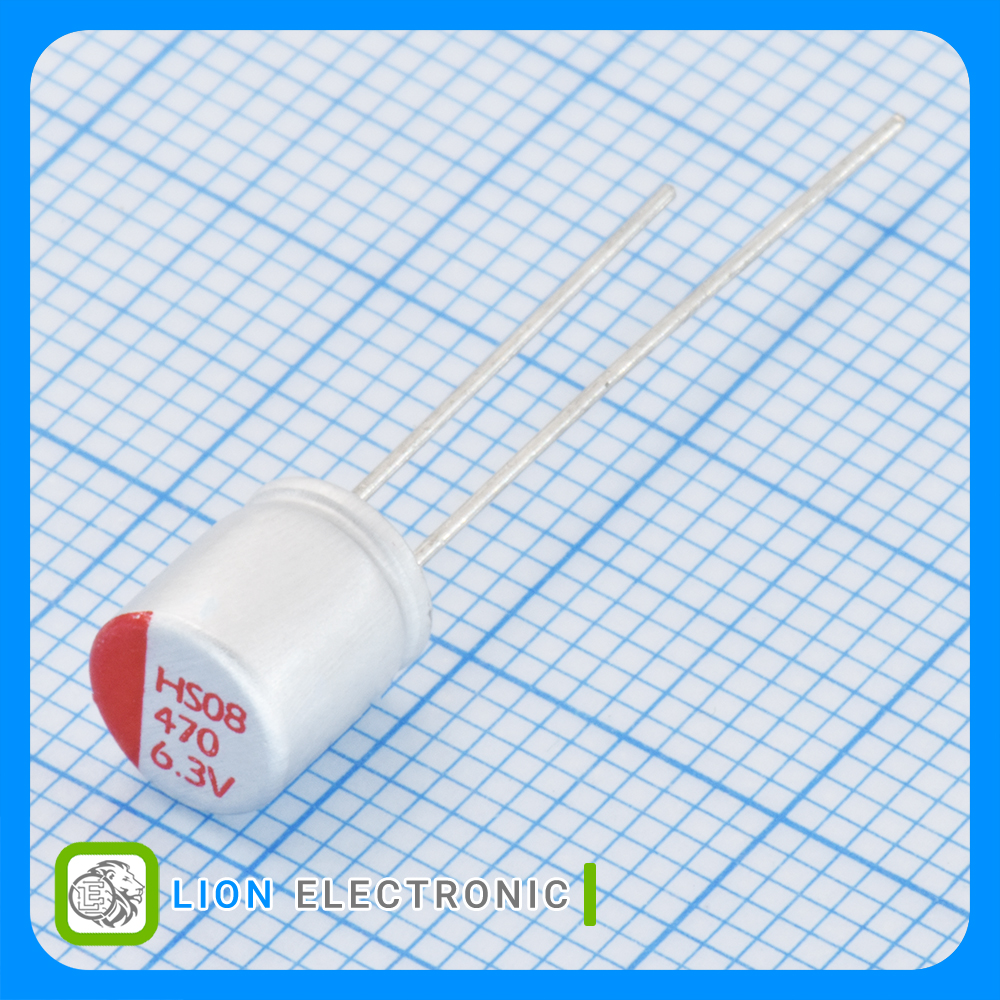

Solid Polymer Aluminum Electrolytic Capacitor 470uF 6.3V 20% 6.3mmx8mm, Plugin
معرفی
خازن الکترولیت جامد پلیمری 470 میکروفاراد 6.3 ولت تلرانس 20% سایز 6.3 میلیمتر در 8 میلیمتر
Solid Polymer Aluminum Electrolytic Capacitor 470uF 6.3V 20% 6.3mmx8mm, Plugin
Specifications
- Life: 2000 Hour
- Capacitance: 470uF
- Voltage Rating DC: 6.3VDC
- ESR: 16mΩ
- Ripple Current: 4.1A
- Tolerance: 20%
- Lead Spacing: 2.5mm
- Diameter: 6.3mm
- Height: 8mm
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +105C
- Packaging: Bulk
مشخصات خازن جامد HS0J477M0608PC
خازن جامد HS0J477M0608PC
Part Number
16mΩ
ESR
2.5mm
Lead Spacing
2000 Hour
Life
-55C
Minimum Operating Temperature
Bulk
Packaging
6.3VDC
Voltage Rating DC
Through Hole
Mounting Style
6.3mm
Diameter
20%
Tolerance
+105C
Maximum Operating Temperature
8mm
Height
4.1A
Ripple Current
470uF
Capacitance
