WeEn/NXP
معرفی

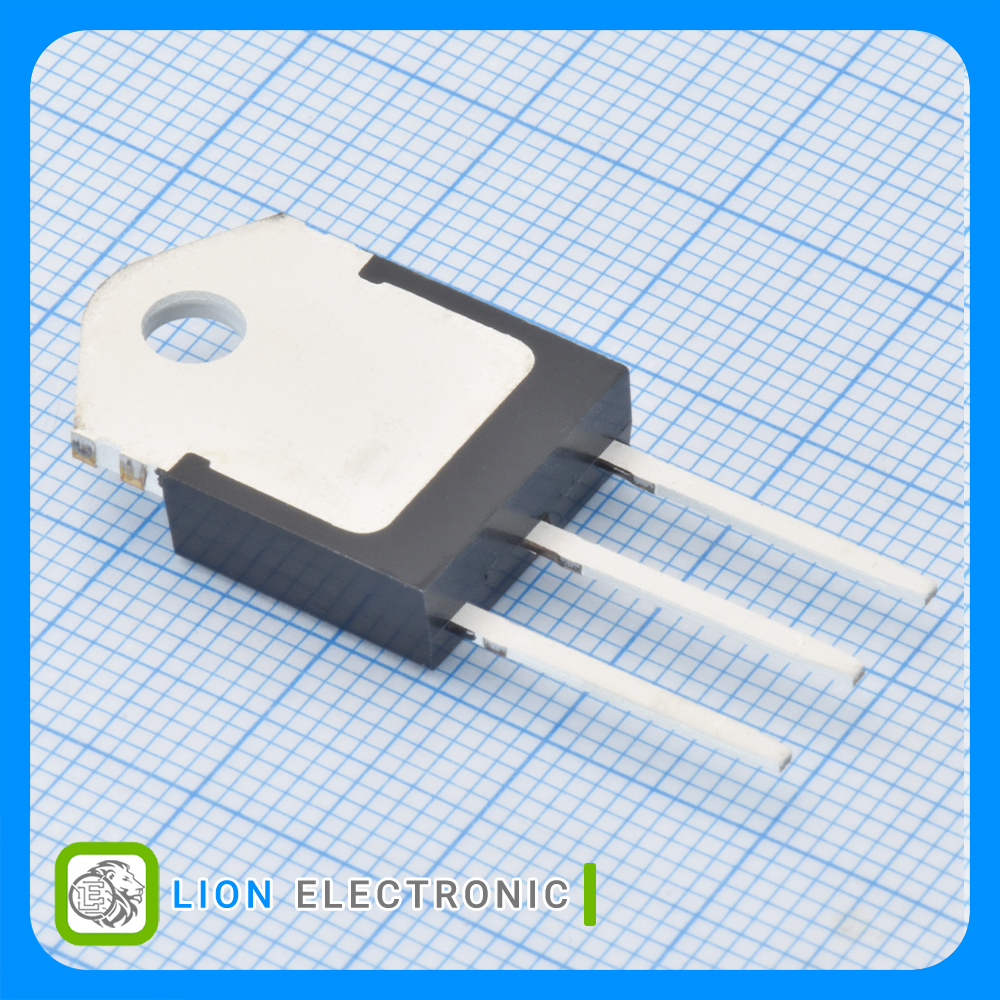

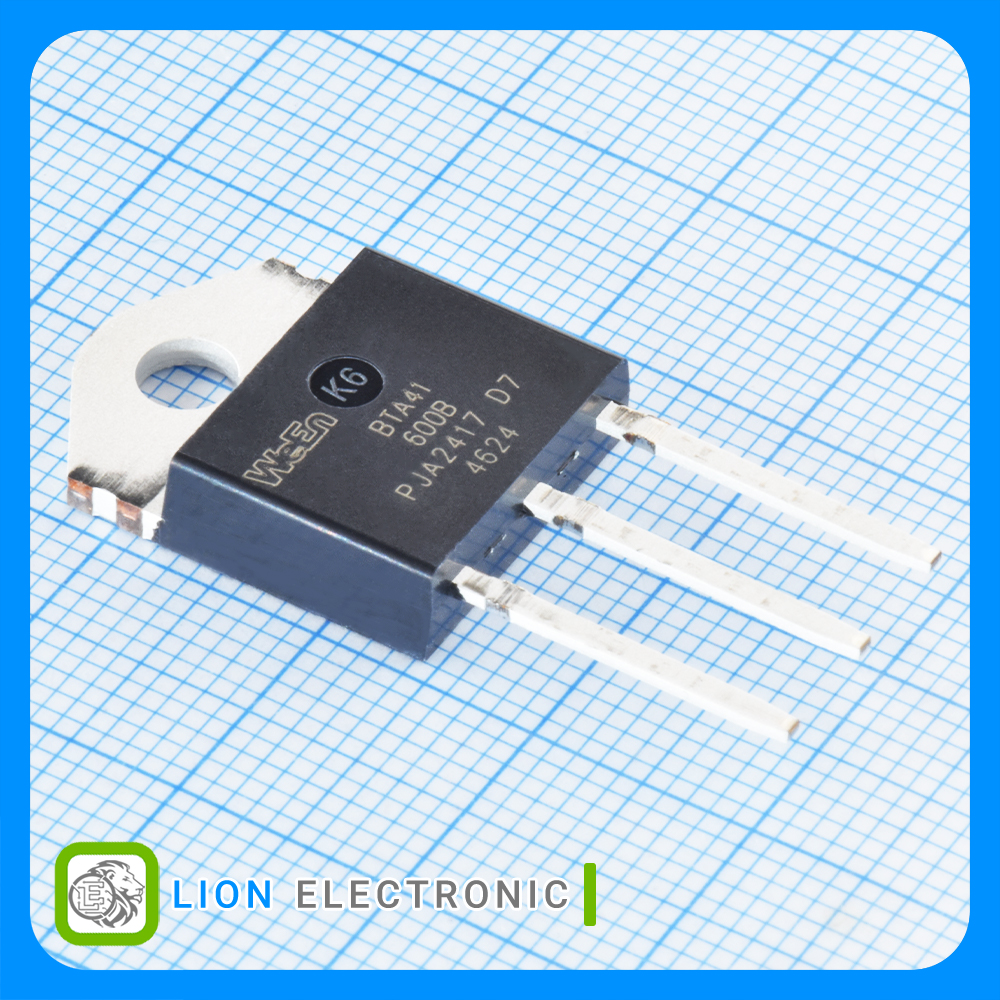

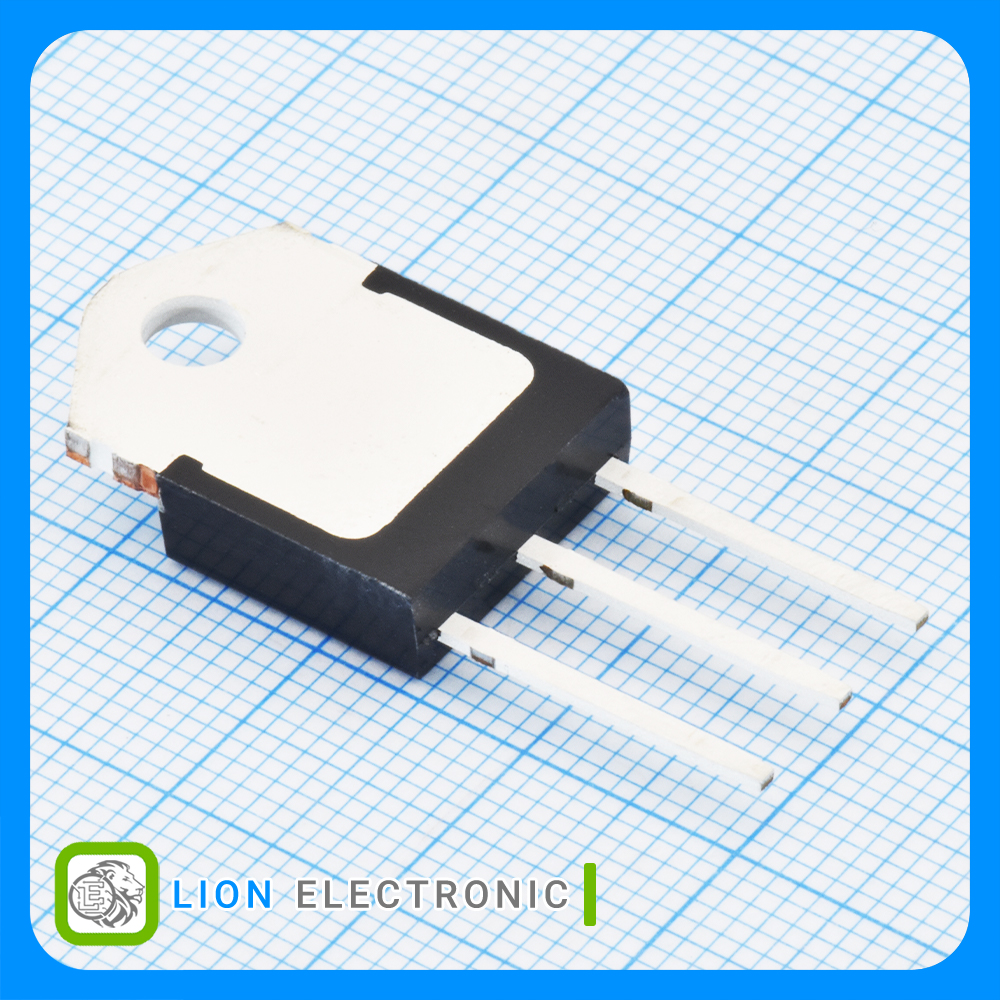

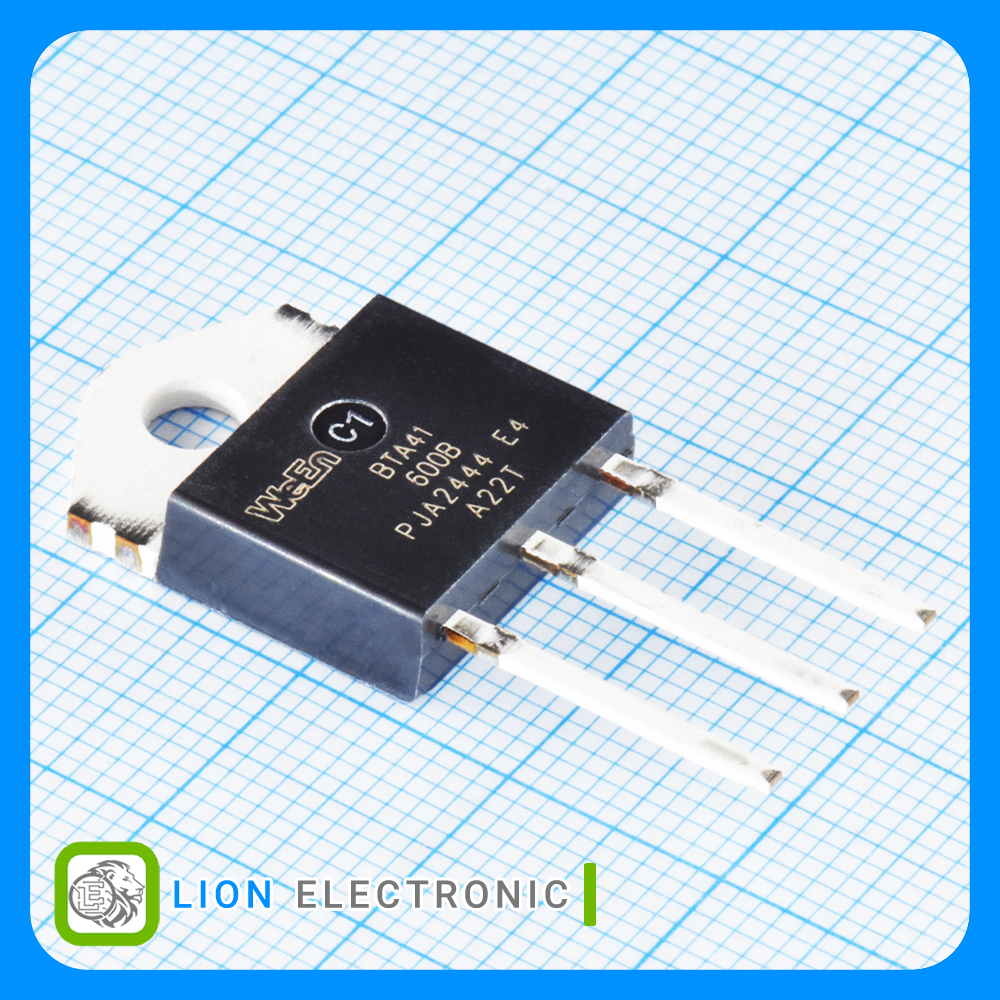

ترایاک 600 ولت 40 آمپر با پکیج TO-3P
Triac 600V, 40A with TO-3P Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 600V
- On-State RMS Current - It RMS: 40A
- On-State Voltage: 1.2V
- Gate Trigger Voltage - Vgt: 800mV
- Gate Trigger Current - Igt: 70mA
- Non Repetitive On-State Current: 440A
- Off-State Leakage Current @ VDRM IDRM: 10uA
- Holding Current Ih Max: 80mA
- Mounting Style: Through Hole
- Package/Case: TO-3P
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ترایاک BTA41-600BQ
ترایاک BTA41-600BQ
Part Number
1.2V
On-State Voltage
10uA
Off-State Leakage Current @ VDRM IDRM
800mV
Gate Trigger Voltage - Vgt
600V
Rated Repetitive Off-State Voltage VDRM
40A
On-State RMS Current - It RMS
Tube
Packaging
70mA
Gate Trigger Current - Igt
Through Hole
Mounting Style
80mA
Holding Current Ih Max
440A
Non Repetitive On-State Current
N/A
Minimum Operating Temperature
+150C
Maximum Operating Temperature
TO-3P
Package-Case
