AT24C02C-SSHM
AT24C02C-SSHM
Part Number
497
Lion Part
Datasheet
Microchip Technology Manufacture
حافظه EEPROM 2 کیلوبیت با رابط 2 سیمه، I2C، سریال، سازماندهی 256 x 8 و پکیج SOIC-8

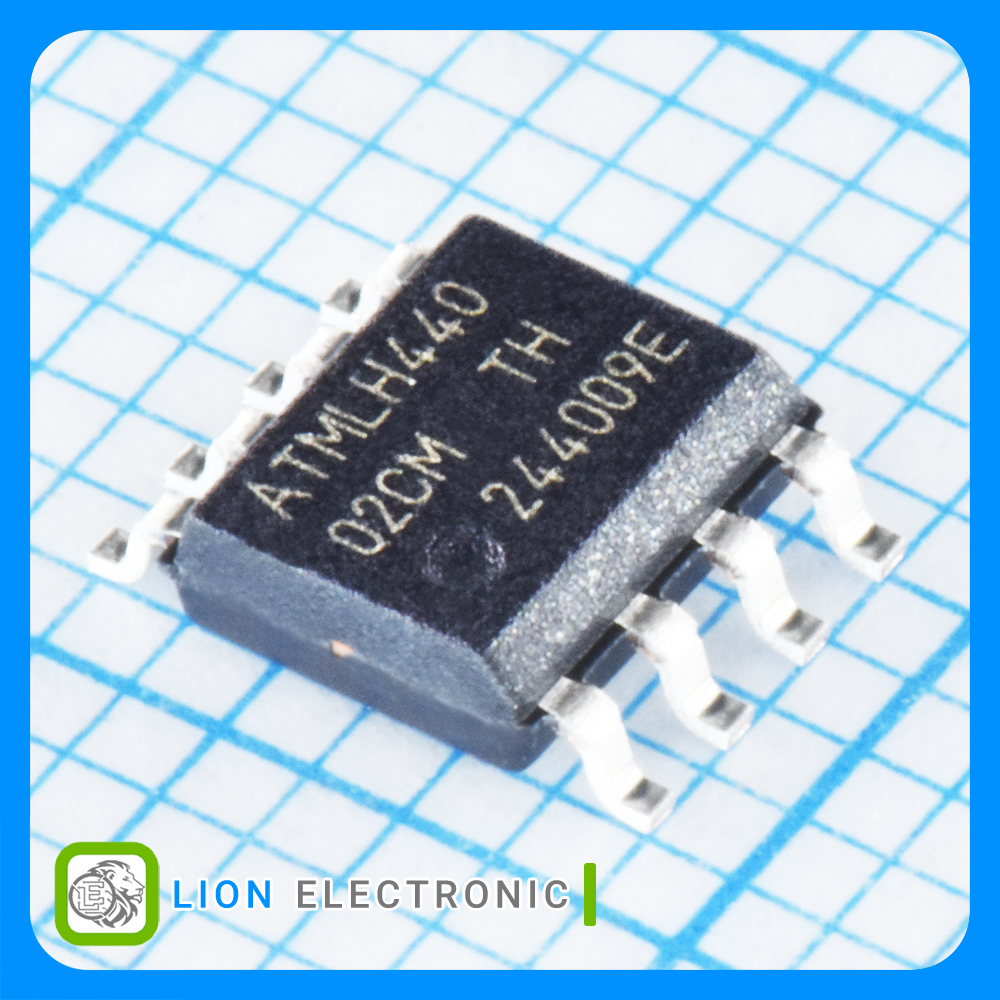

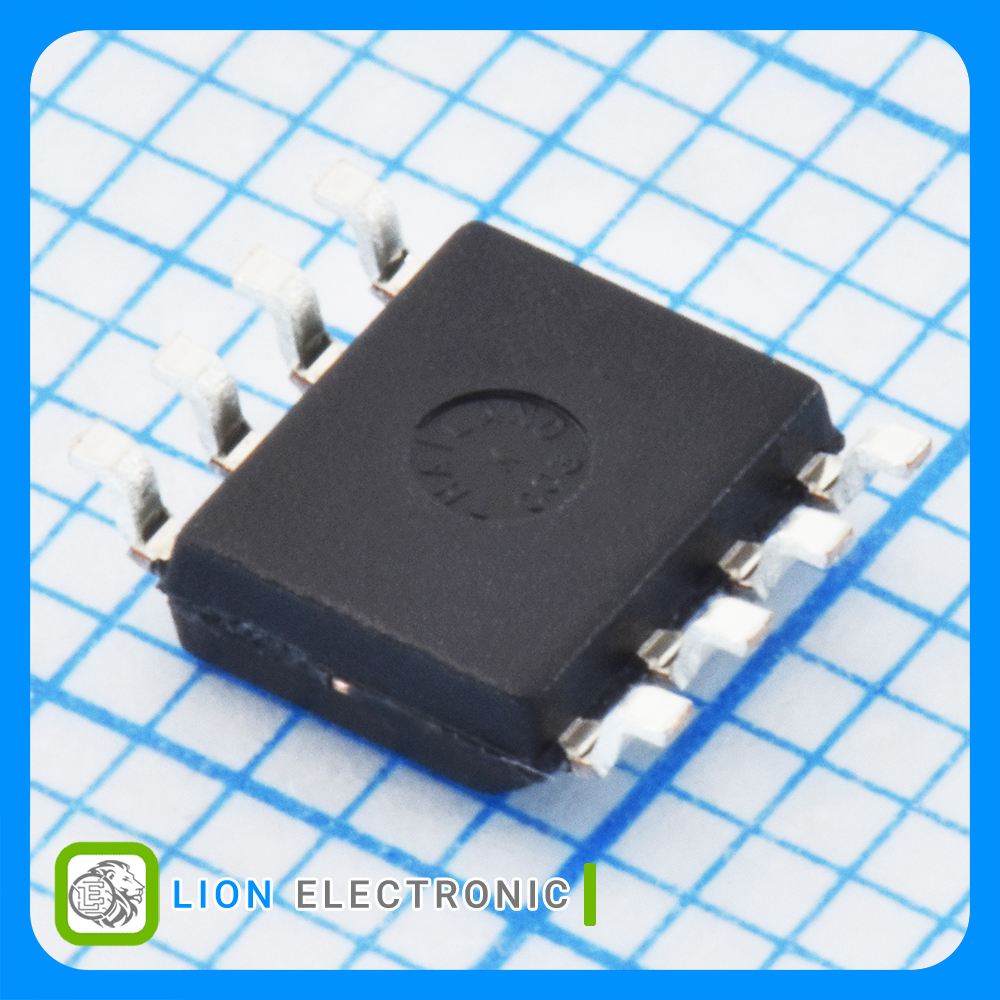

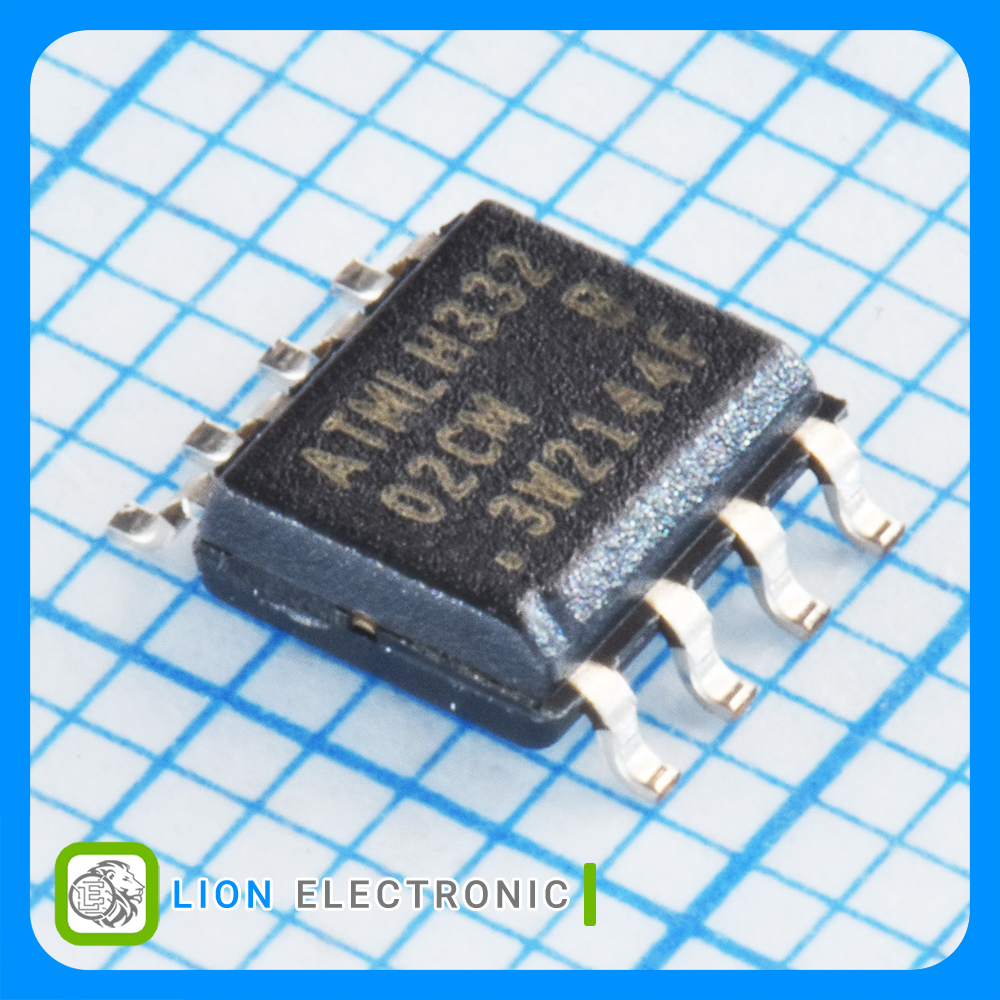

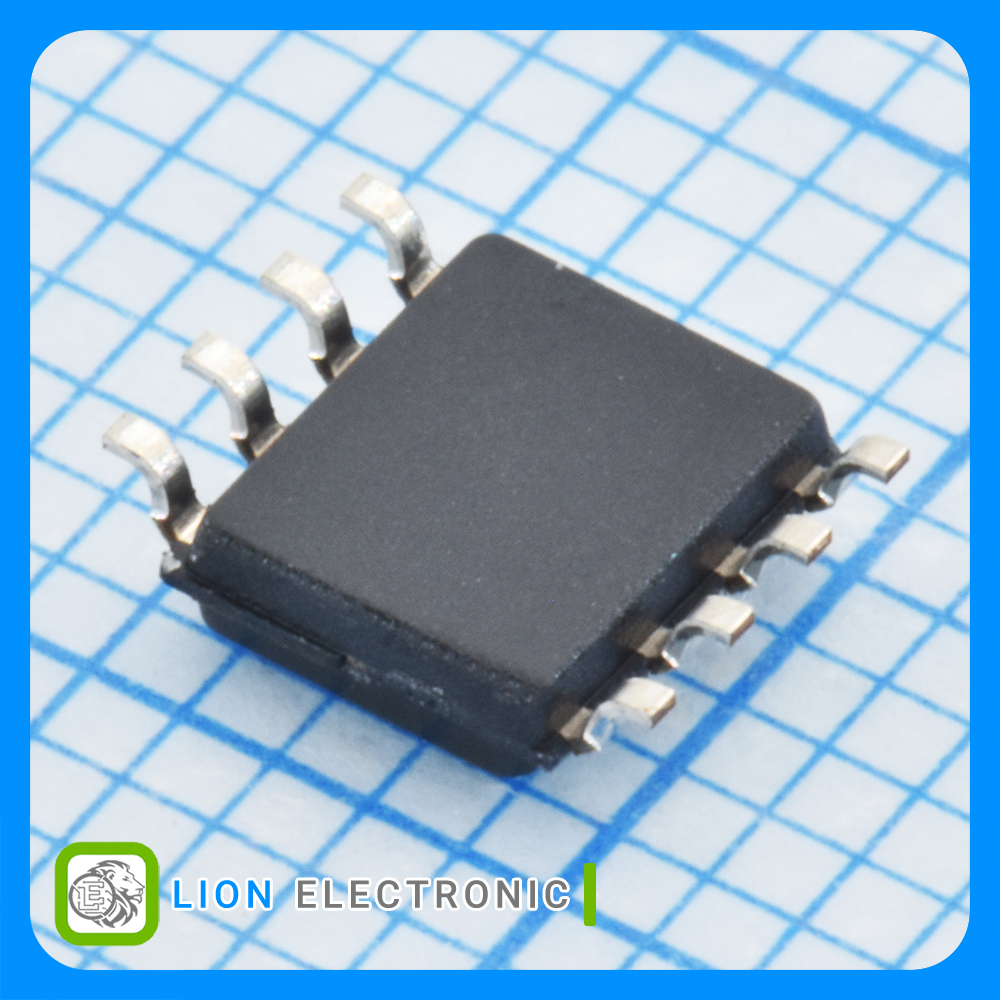

EEPROM 2kbit (256 x 8) with 2-Wire, I2C-Compatible, Serial Interface and SOIC-8 Package
معرفی
حافظه EEPROM 2 کیلوبیت با رابط 2 سیمه، I2C، سریال، سازماندهی 256 x 8 و پکیج SOIC-8
EEPROM 2kbit (256 x 8) with 2-Wire, I2C-Compatible, Serial Interface and SOIC-8 Package
Specifications
- Interface Type: 2-Wire, I2C, Serial
- Memory Size: 2kbit
- Organization: 256 x 8
- Access Time: 550ns
- Data Retention: 100Year
- Supply Voltage - Min: 1.7V
- Supply Voltage - Max: 5.5V
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات AT24C02C-SSHM
AT24C02C-SSHM
Part Number
100Year
Data Retention
2kbit
Memory Size
1MHz
Maximum Clock Frequency
256 x 8
Organization
2-Wire, I2C, Serial
Interface Type
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
3mA
Supply Current - Max
550ns
Access Time
EEPROM
Product Type
1.7V
Supply Voltage - Min
5.5V
Supply Voltage - Max
1.7 - 5.5V
Operating Supply Voltage
SOIC-8
Package-Case
