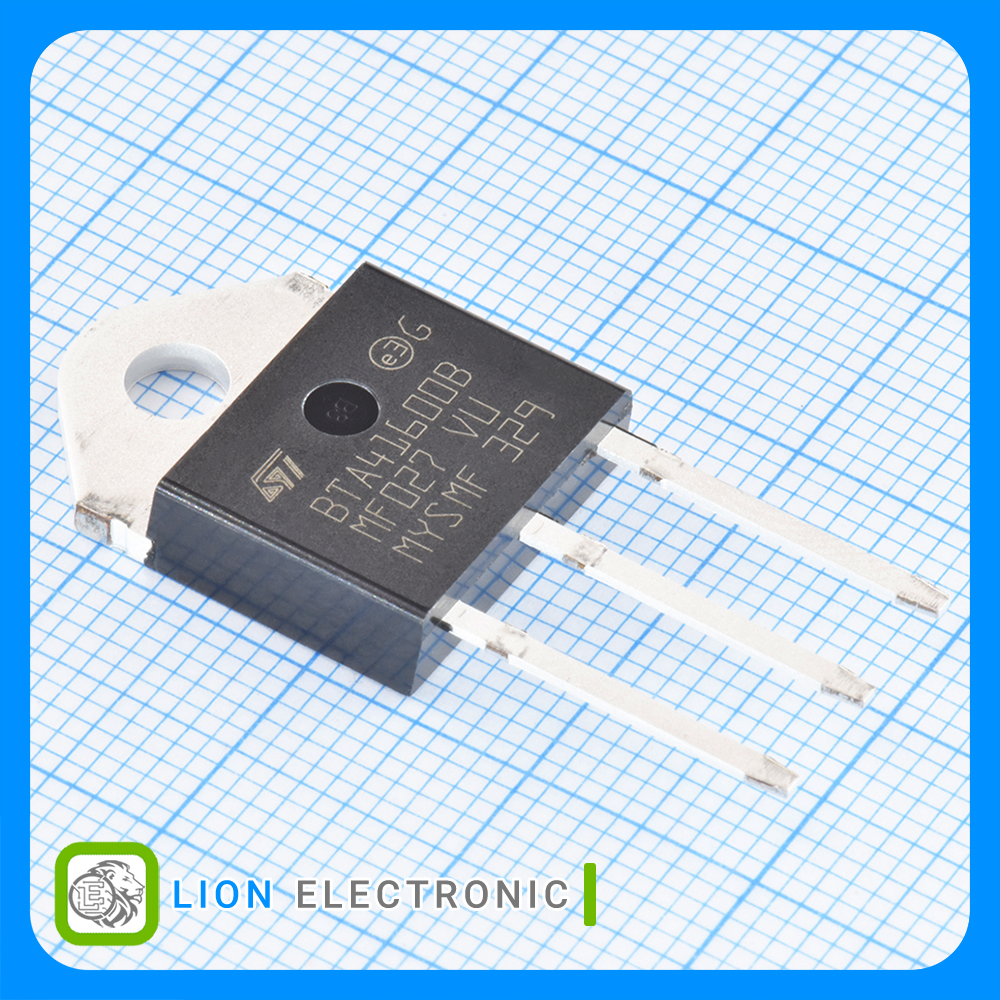

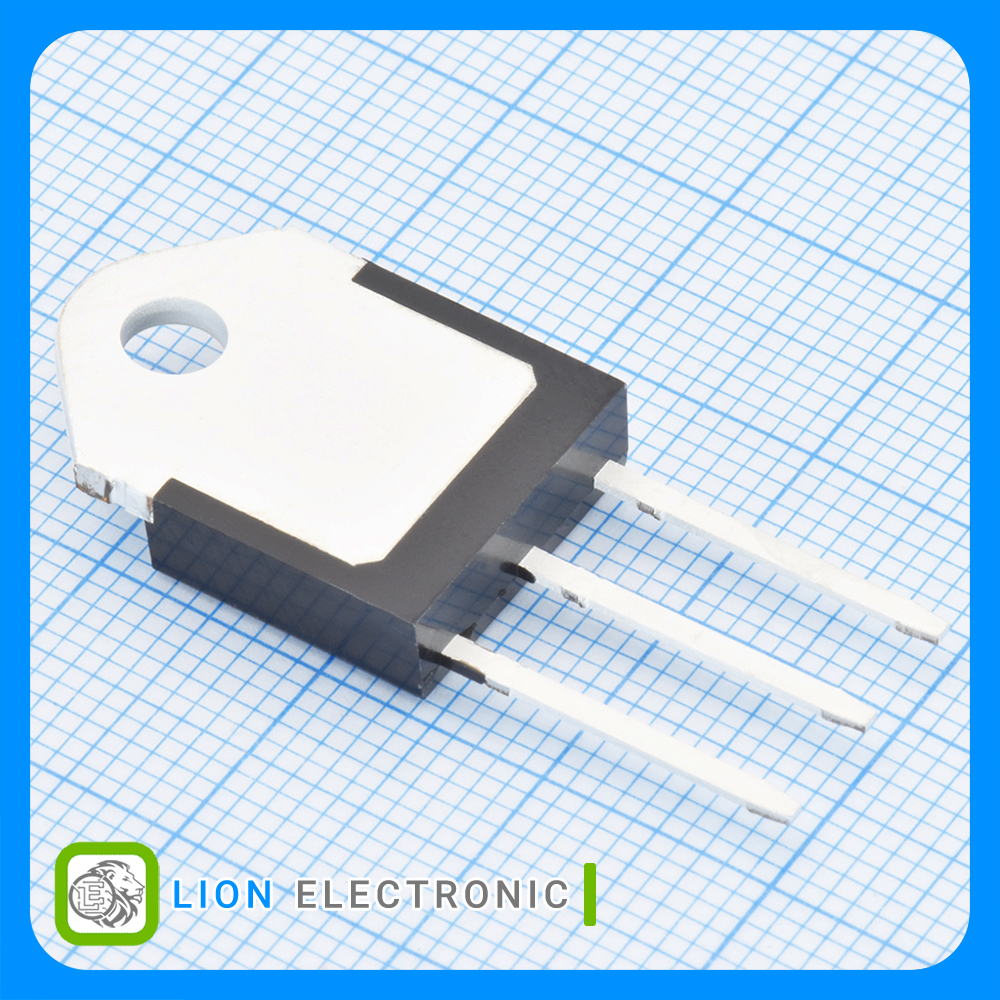

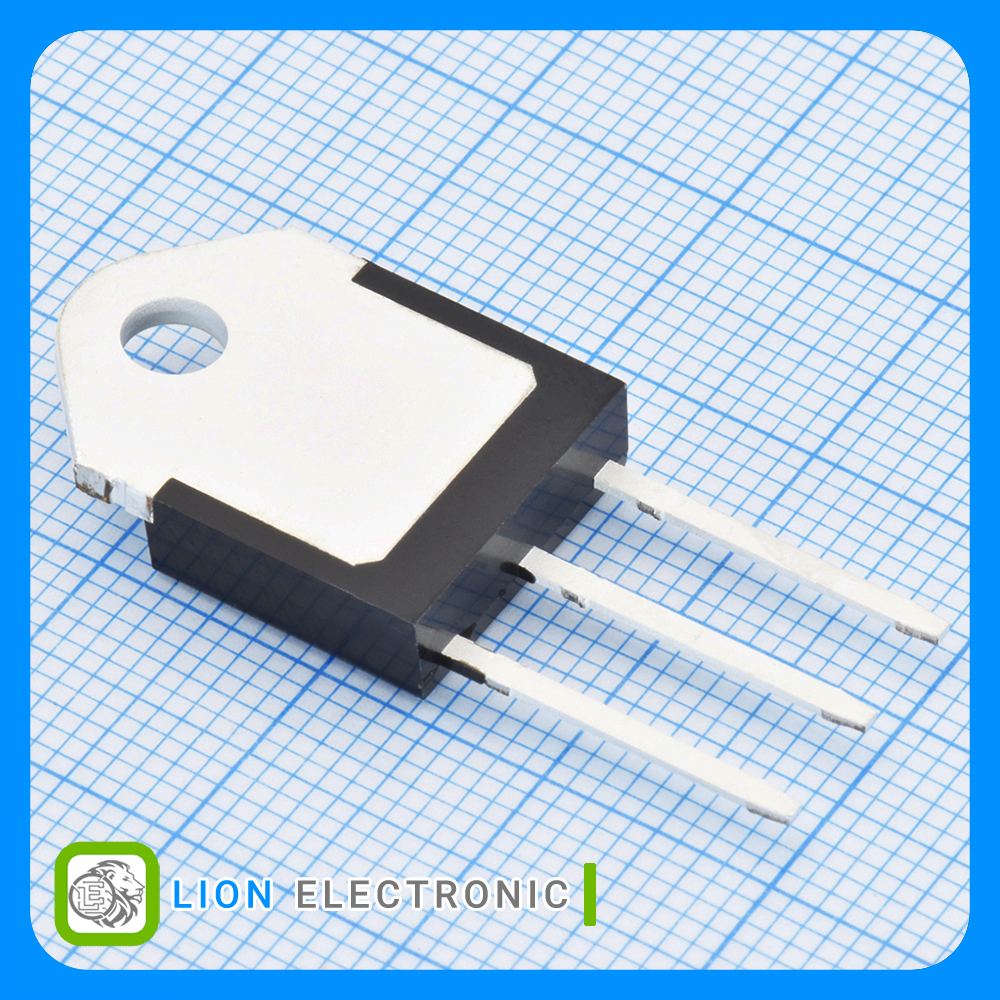

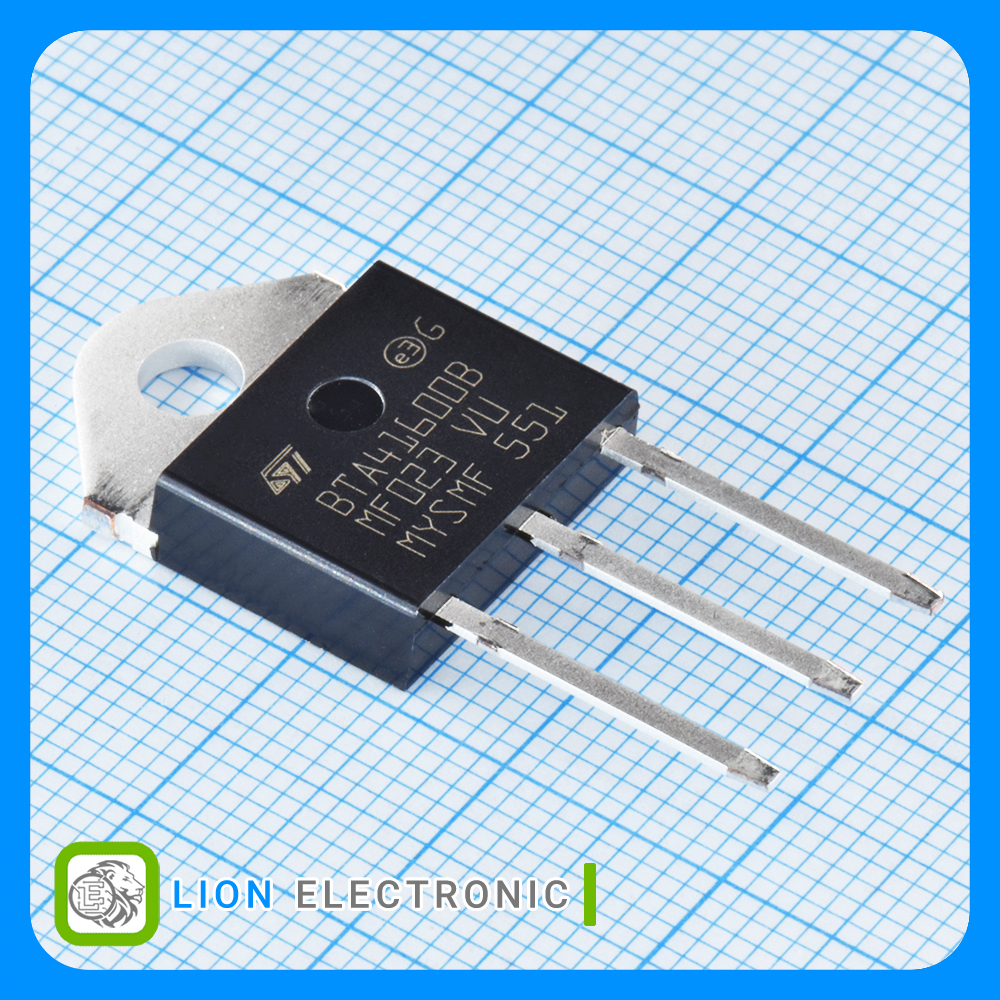

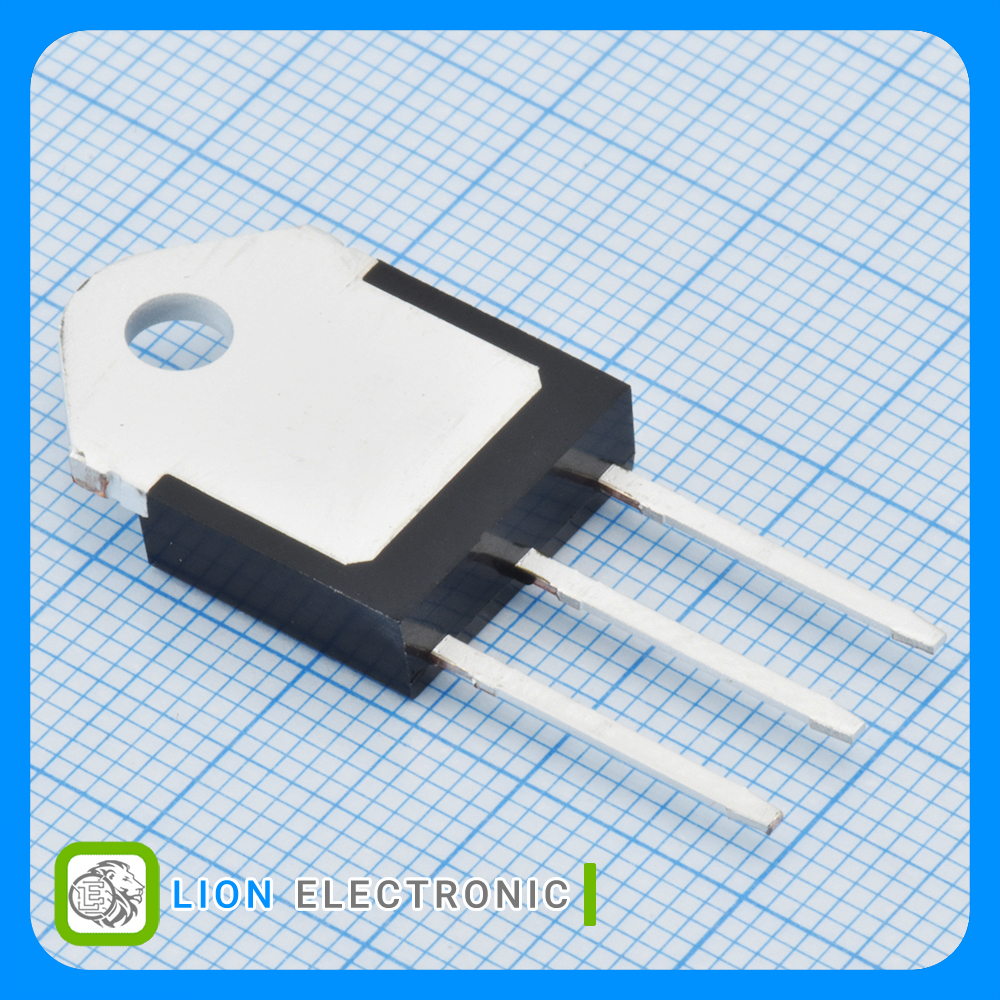

BTA41-600BRG
BTA41-600BRG
Part Number
50
Lion Part
Datasheet
STMicroelectronics Manufacture
ترایاک 600 ولت با جریان RMS 40 آمپر، جریان 41 آمپر با پکیج TOP3
Triac 600V, 40A It RMS, 41A with TOP3 Package
معرفی
ترایاک 600 ولت با جریان RMS 40 آمپر، جریان 41 آمپر با پکیج TOP3
Triac 600V, 40A It RMS, 41A with TOP3 Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 600V
- On-State RMS Current - It RMS: 40A
- On-State Voltage: 1.55V
- Gate Trigger Voltage - Vgt: 1.3V
- Gate Trigger Current - Igt: 50mA
- Non Repetitive On-State Current: 420A
- Off-State Leakage Current @ VDRM IDRM: 5uA
- Holding Current Ih Max: 80mA
- Mounting Style: Through Hole
- Package/Case: TOP3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات BTA41-600BRG
BTA41-600BRG
Part Number
5uA
Off-State Leakage Current @ VDRM IDRM
1.55V
On-State Voltage
1.3V
Gate Trigger Voltage - Vgt
600V
Rated Repetitive Off-State Voltage VDRM
-40C
Minimum Operating Temperature
40A
On-State RMS Current - It RMS
Tube
Packaging
50mA
Gate Trigger Current - Igt
Through Hole
Mounting Style
80mA
Holding Current Ih Max
420A
Non Repetitive On-State Current
+125C
Maximum Operating Temperature
TOP3
Package-Case
