AT24C08C-SSHM
AT24C08C-SSHM
Part Number
500
Lion Part
Datasheet
Microchip Technology Manufacture
حافظه EEPROM با ظرفیت 8 کیلوبیت با رابط دو سیمه (2-Wire)، I2C، سریال، سازماندهی 1,024x8 و پکیج SOIC-8

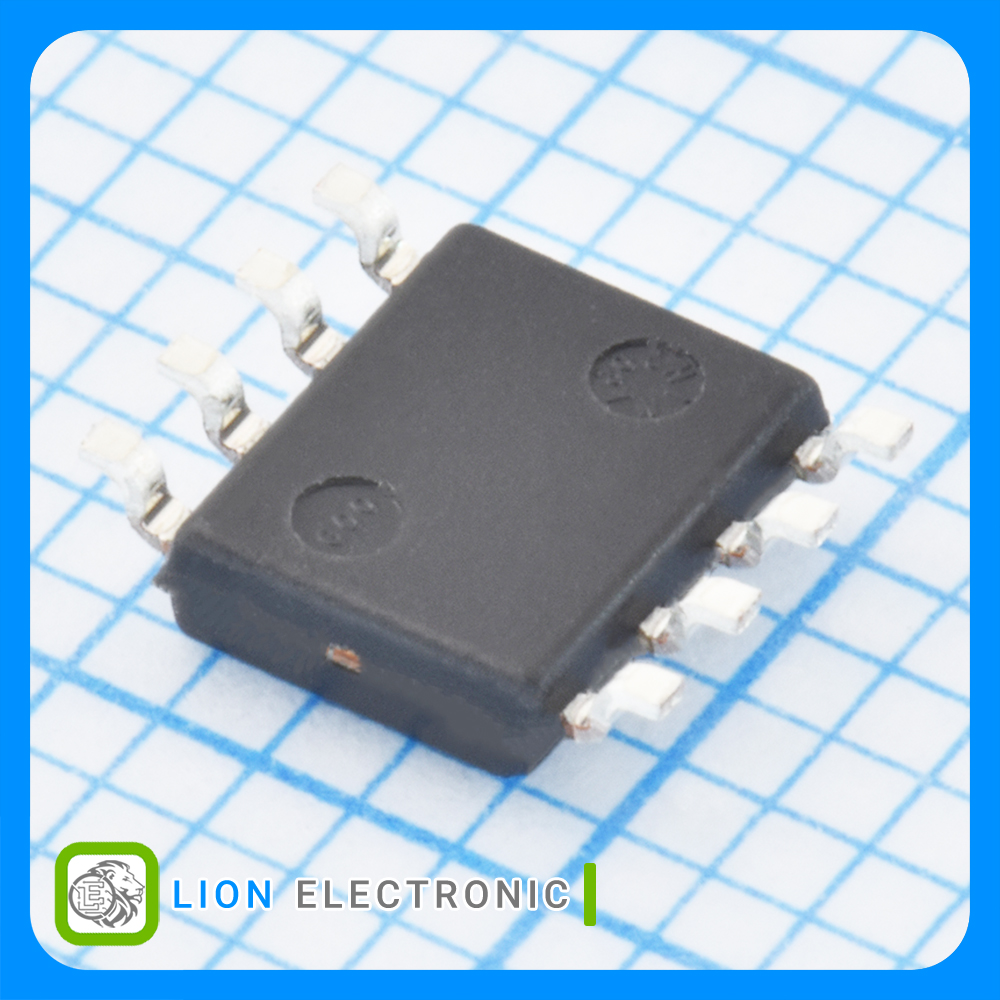

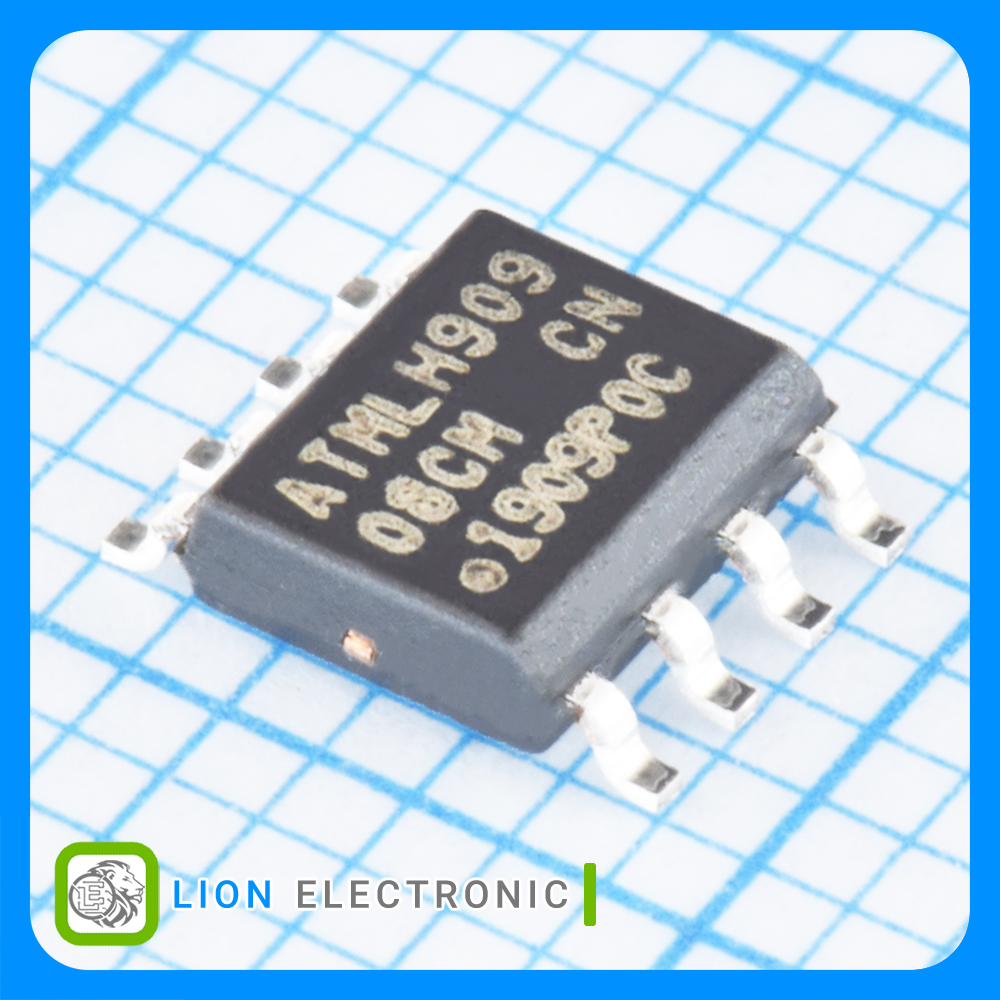

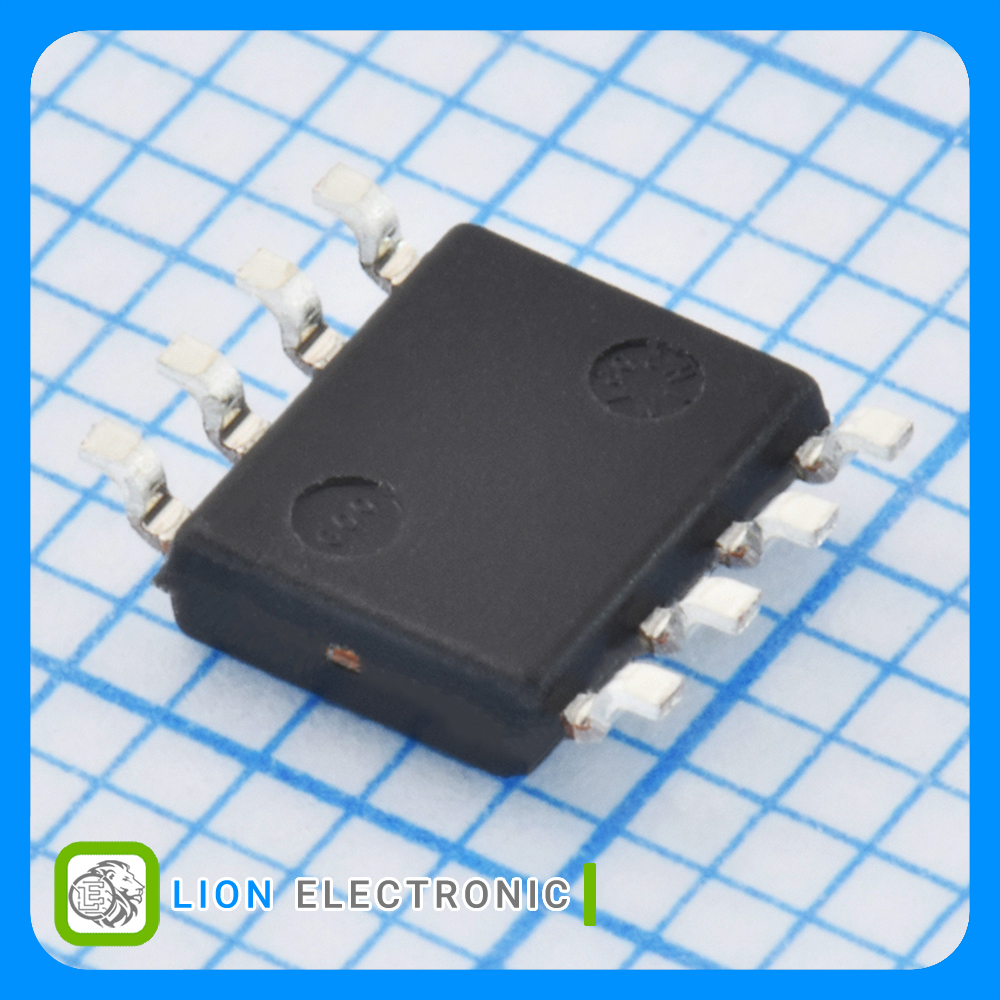

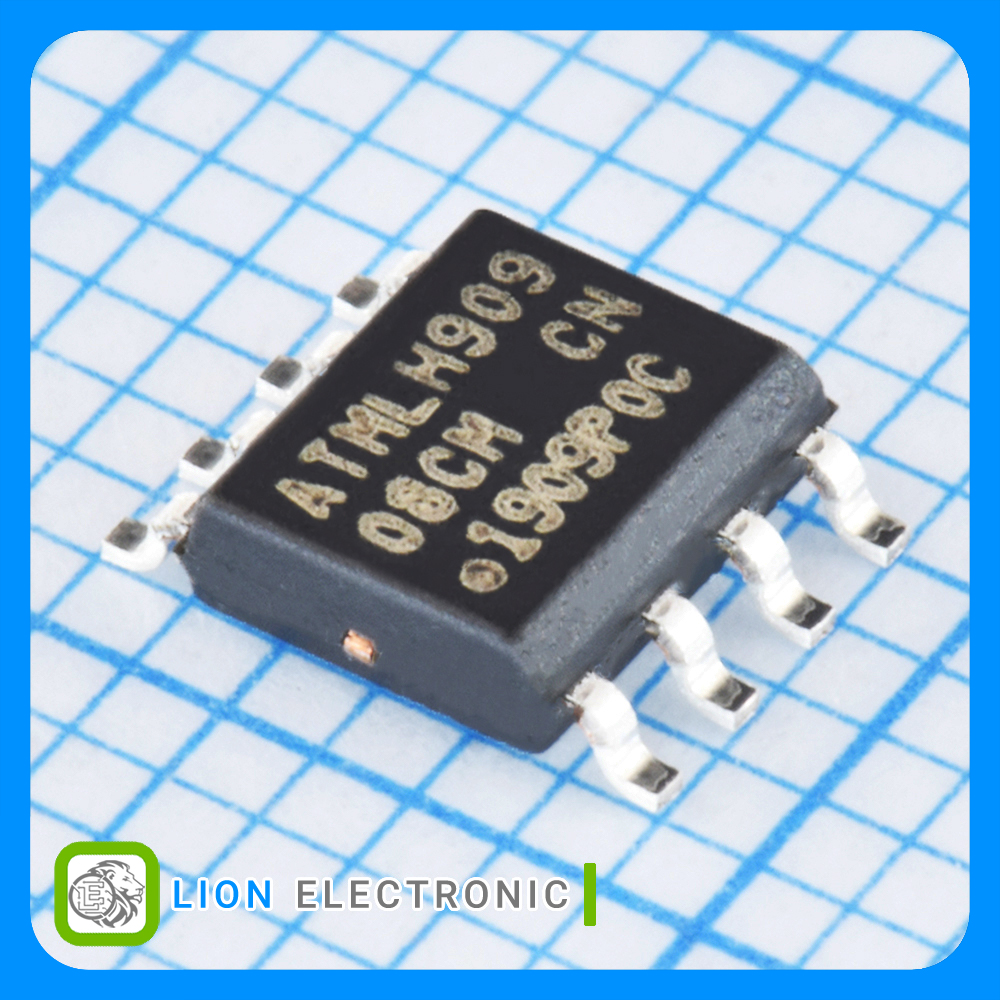

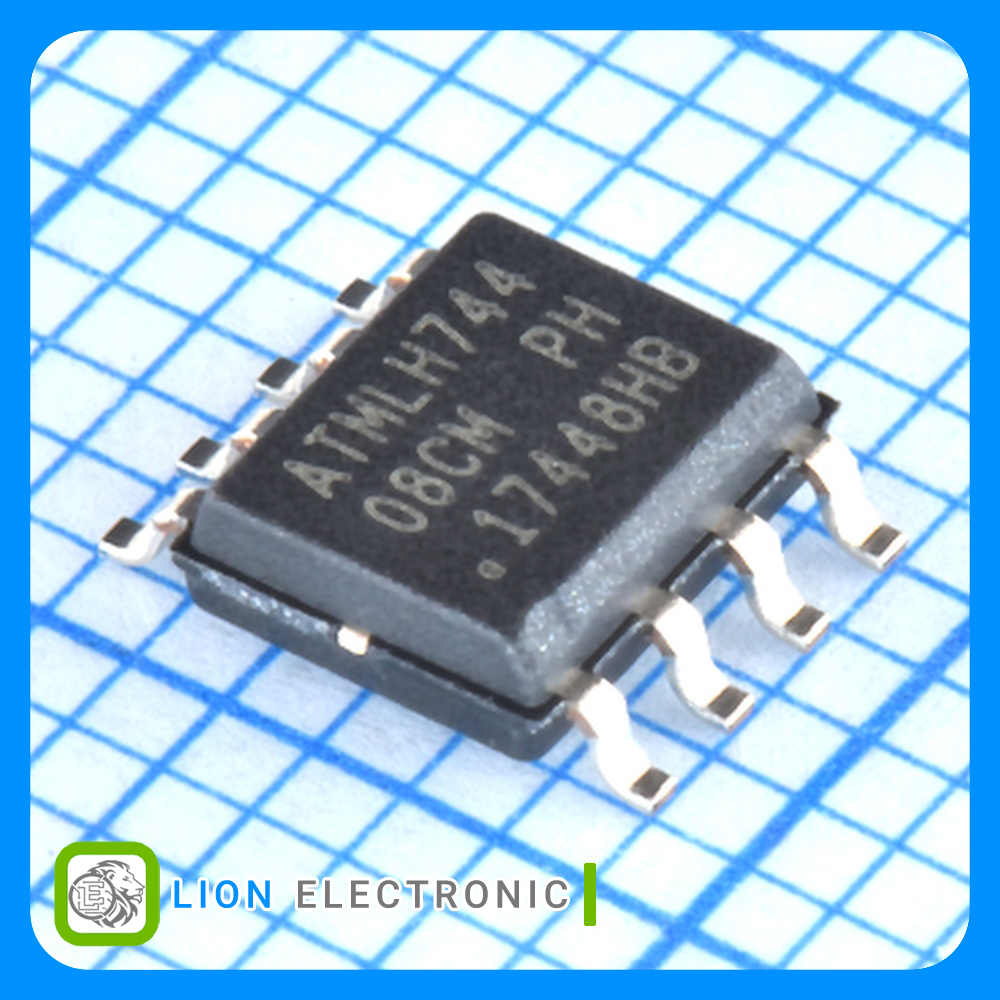

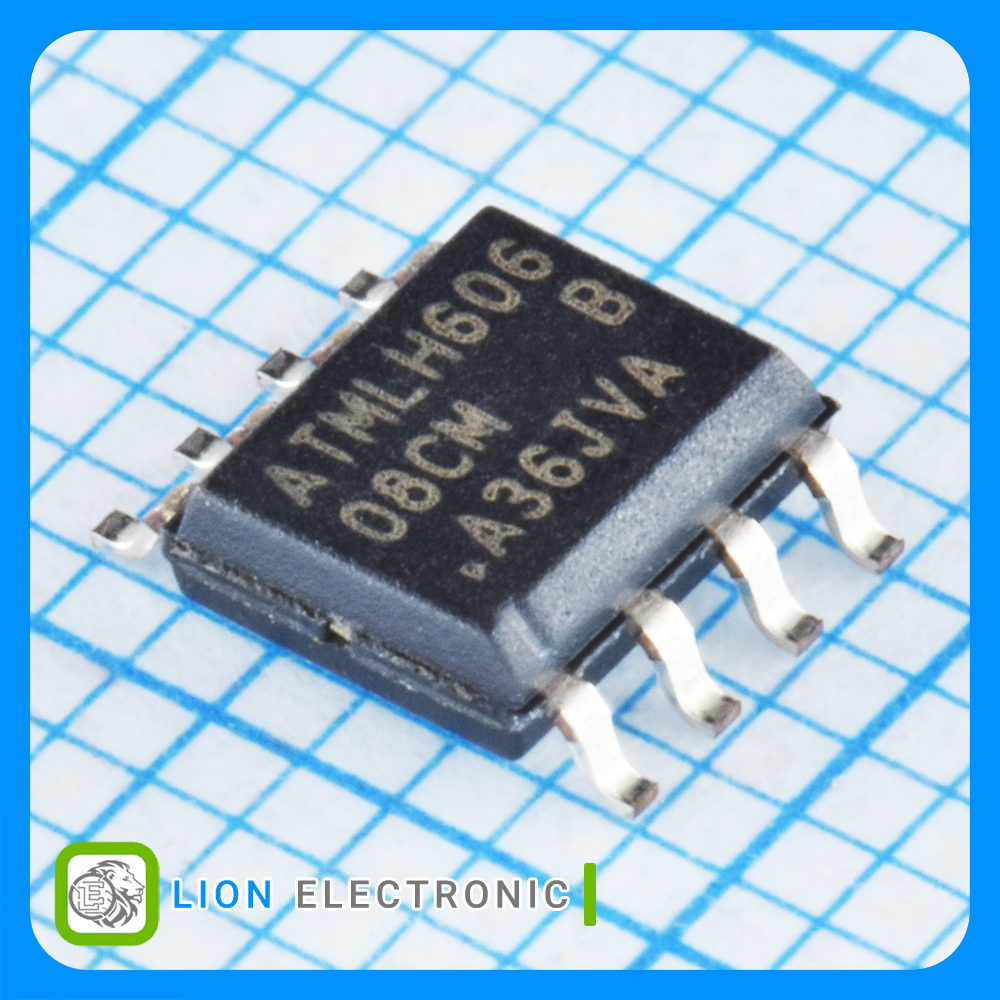

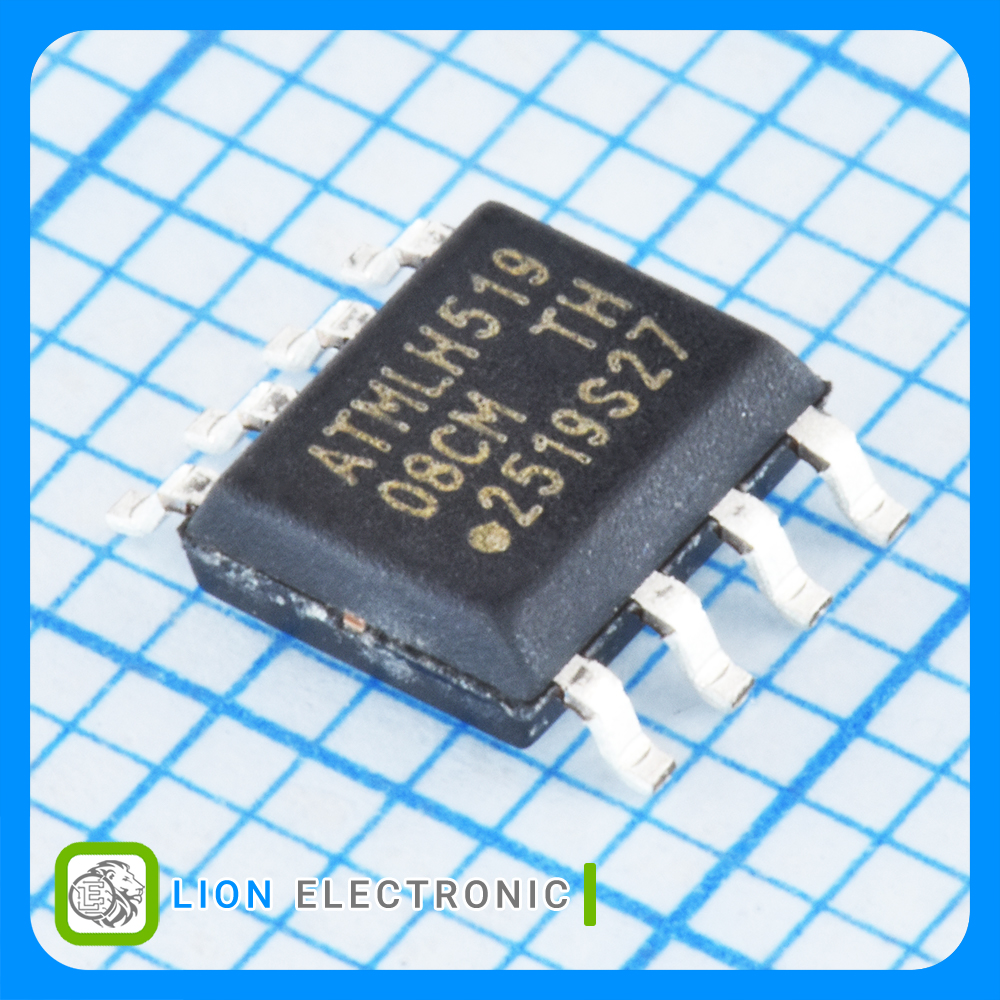

EEPROM 8kbit (1,024 x 8) with 2-Wire, I2C-Compatible, Serial Interface and SOIC-8 Package
معرفی
حافظه EEPROM با ظرفیت 8 کیلوبیت با رابط دو سیمه (2-Wire)، I2C، سریال، سازماندهی 1,024x8 و پکیج SOIC-8
EEPROM 8kbit (1,024 x 8) with 2-Wire, I2C-Compatible, Serial Interface and SOIC-8 Package
Specifications
- Interface Type: 2-Wire, I2C, Serial
- Memory Size: 8kbit
- Organization: 1k x 8
- Access Time: 550ns
- Data Retention: 100Year
- Supply Voltage - Min: 1.8V
- Supply Voltage - Max: 5.5V
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات AT24C08C-SSHM
AT24C08C-SSHM
Part Number
400kHz
Maximum Clock Frequency
100Year
Data Retention
8kbit
Memory Size
2-Wire, I2C, Serial
Interface Type
Reel
Packaging
-40C
Minimum Operating Temperature
1k x 8
Organization
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
3mA
Supply Current - Max
550ns
Access Time
EEPROM
Product Type
1.8V
Supply Voltage - Min
5.5V
Supply Voltage - Max
1.8 - 5.5V
Operating Supply Voltage
SOIC-8
Package-Case
