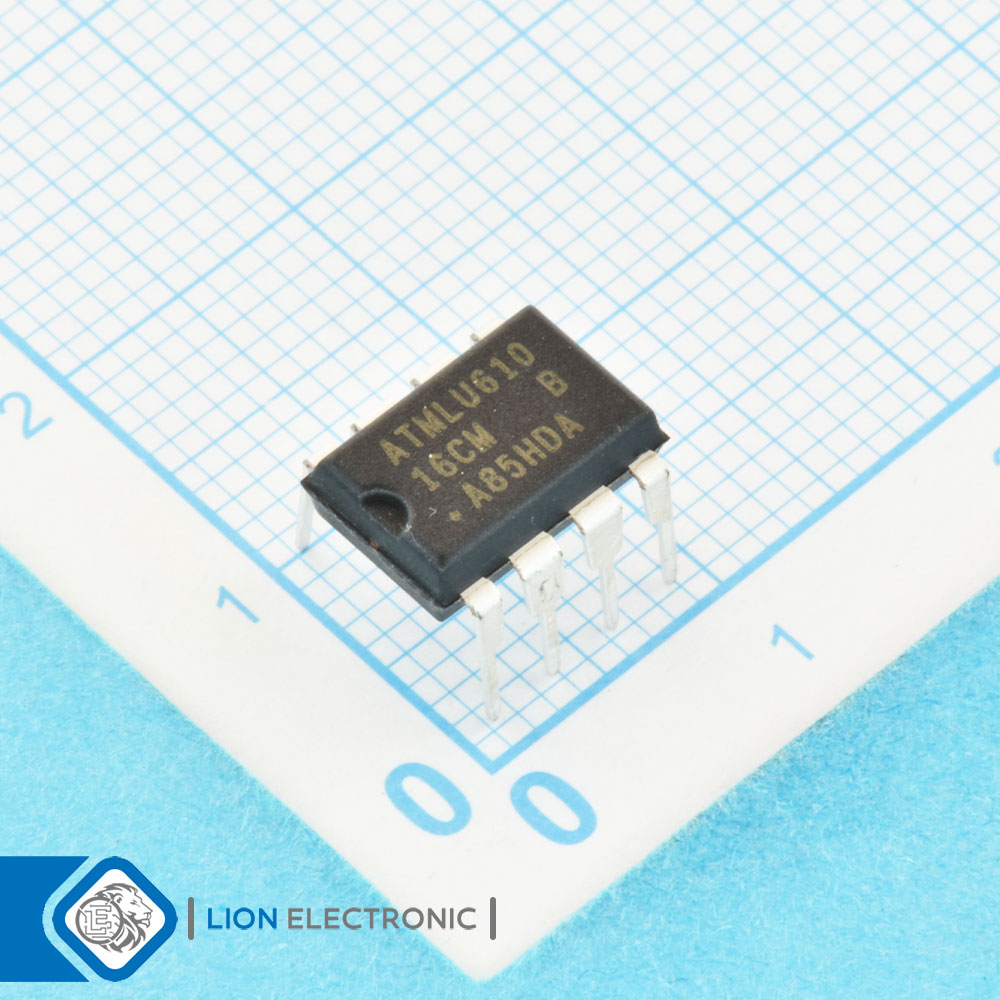

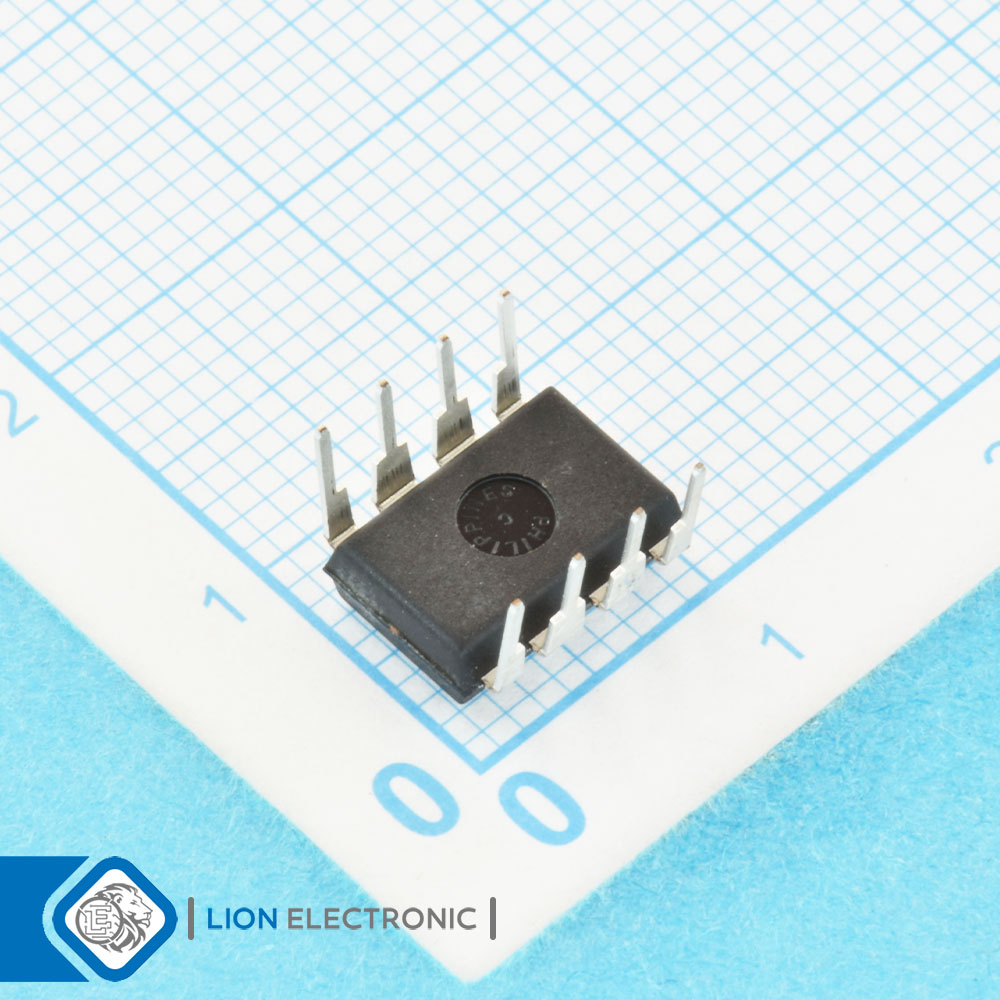

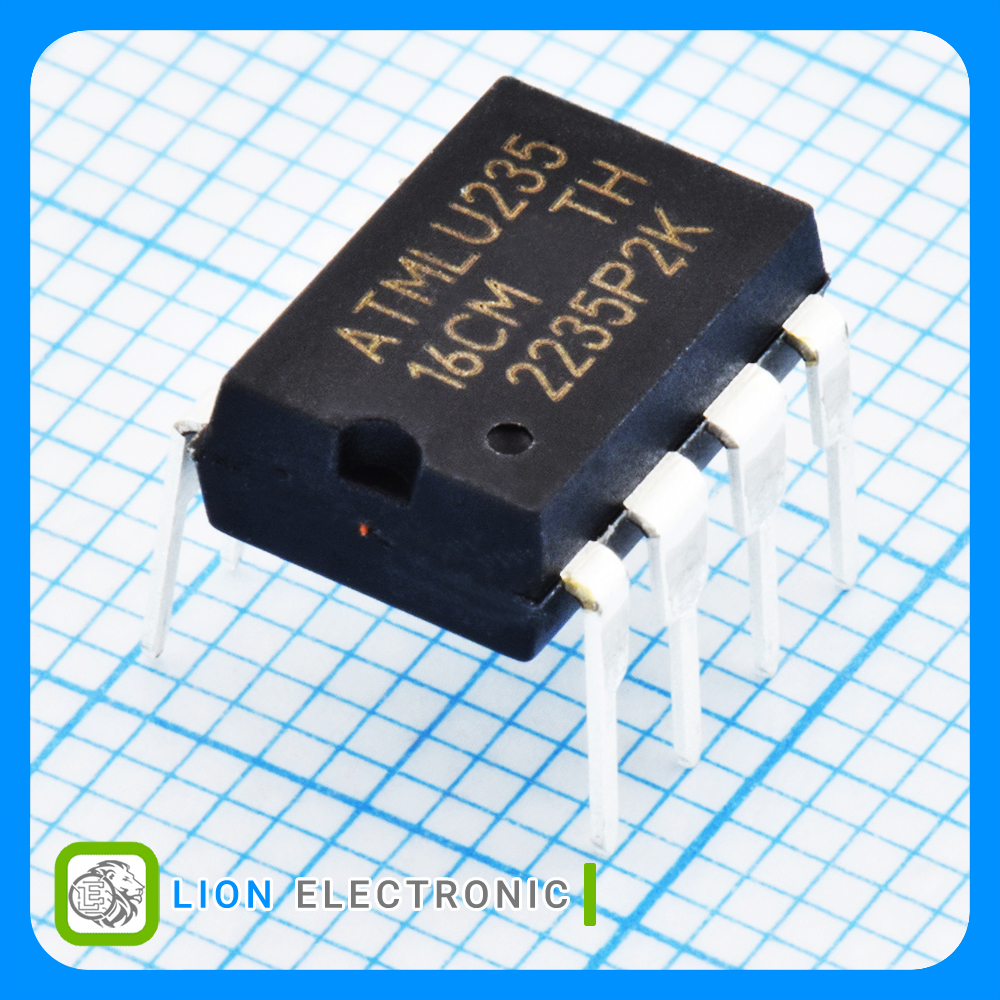

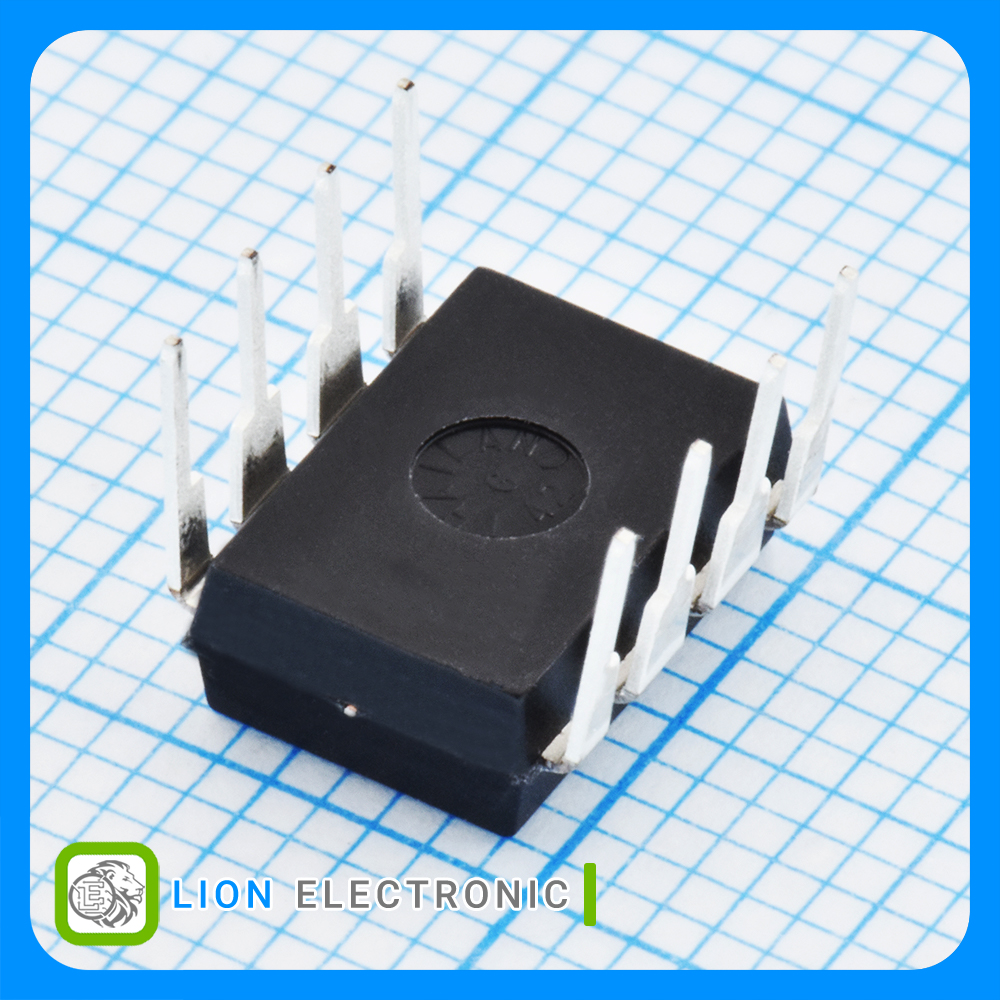

AT24C16C-PUM
AT24C16C-PUM
Part Number
502
Lion Part
Datasheet
Microchip Technology Manufacture
حافظه EEPROM با ظرفیت 16 کیلوبیت (2048x8) با رابط دو سیمه (2-Wire)، سازگار با I2C، سریال و پکیج DIP-8
EEPROM 16kbit (2048 x 8) with 2-Wire, I2C-Compatible, Serial Interface and DIP-8 Package
معرفی
حافظه EEPROM با ظرفیت 16 کیلوبیت (2048x8) با رابط دو سیمه (2-Wire)، سازگار با I2C، سریال و پکیج DIP-8
EEPROM 16kbit (2048 x 8) with 2-Wire, I2C-Compatible, Serial Interface and DIP-8 Package
Specifications
- Interface Type: 2-Wire, I2C, Serial
- Memory Size: 16kbit
- Organization: 2k x 8
- Access Time: 450ns
- Data Retention: 100Year
- Supply Voltage - Min: 1.7V
- Supply Voltage - Max: 5.5V
- Mounting Style: Through Hole
- Package/Case: DIP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات AT24C16C-PUM
AT24C16C-PUM
Part Number
100Year
Data Retention
1MHz
Maximum Clock Frequency
16kbit
Memory Size
2-Wire, I2C, Serial
Interface Type
-40C
Minimum Operating Temperature
Tube
Packaging
2k x 8
Organization
+85C
Maximum Operating Temperature
Through Hole
Mounting Style
450ns
Access Time
3mA
Supply Current - Max
1.7V
Supply Voltage - Min
EEPROM
Product Type
5.5V
Supply Voltage - Max
1.7 - 5.5V
Operating Supply Voltage
DIP-8
Package-Case
2mA
Operating Supply Current
