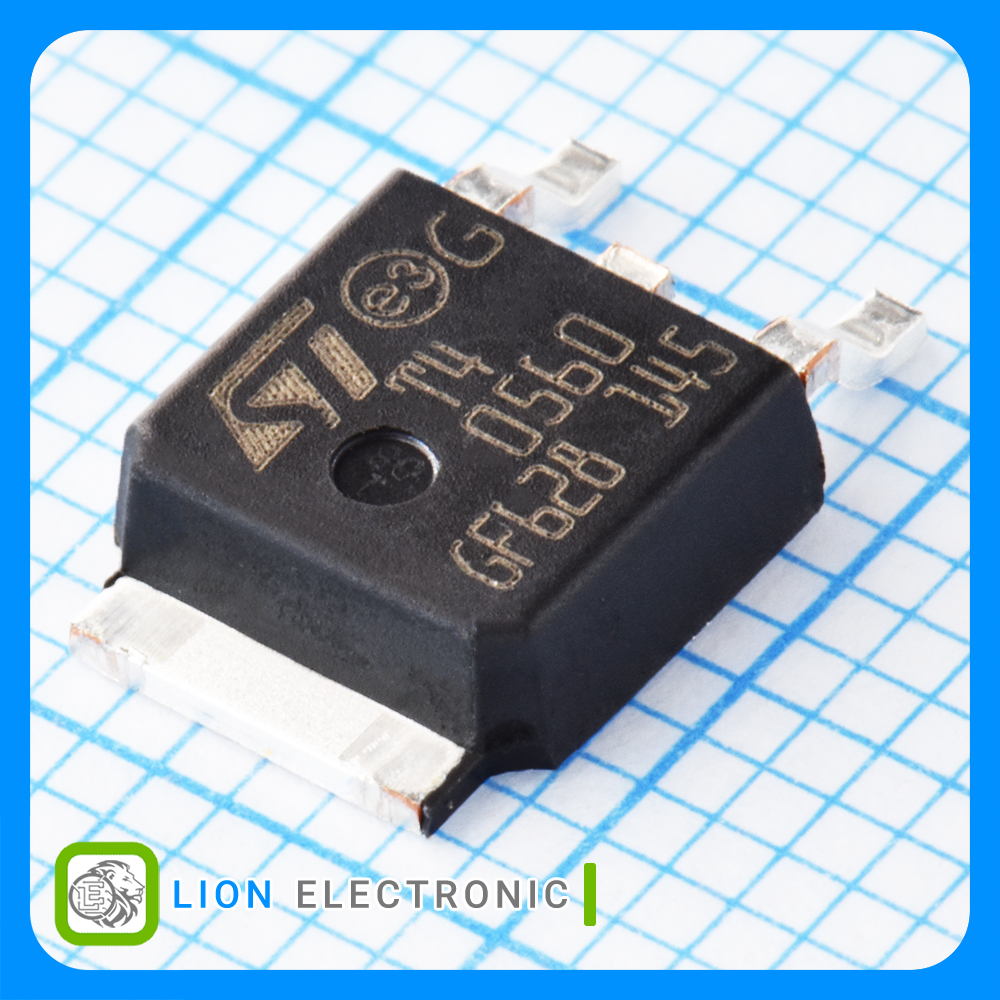

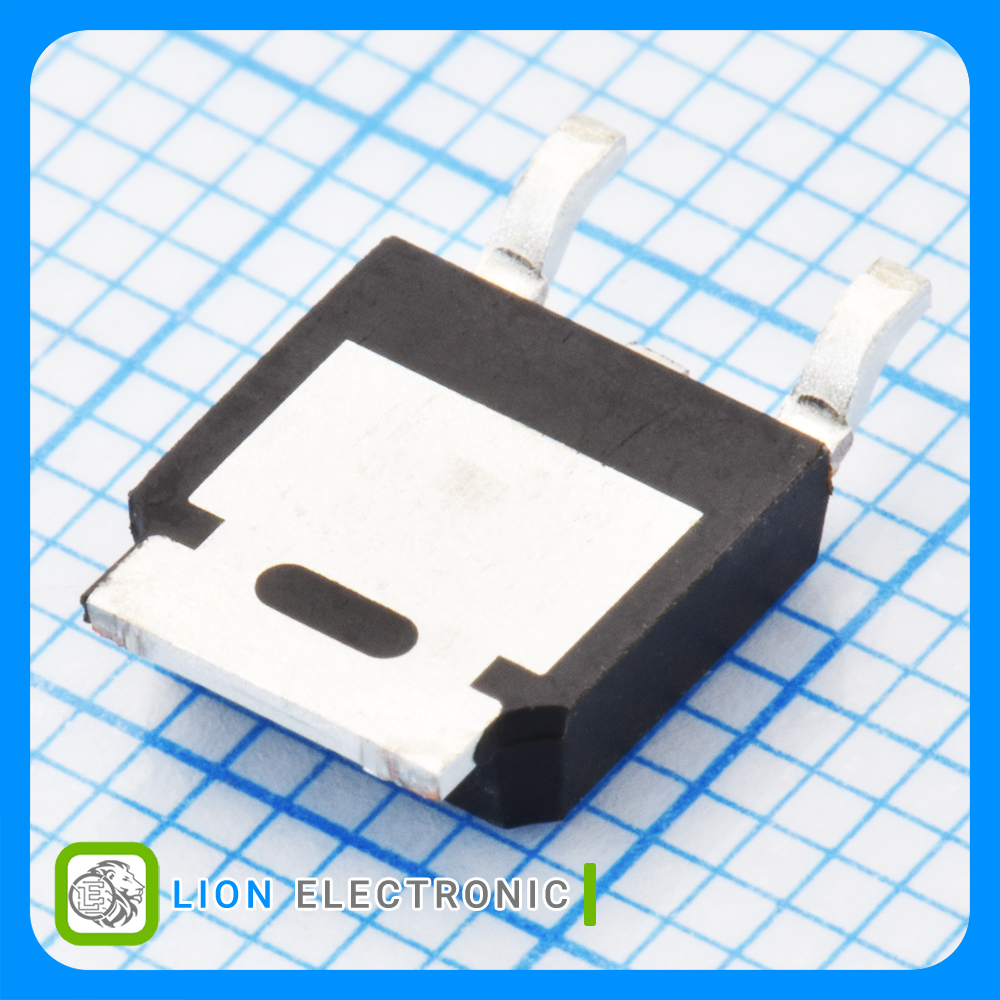

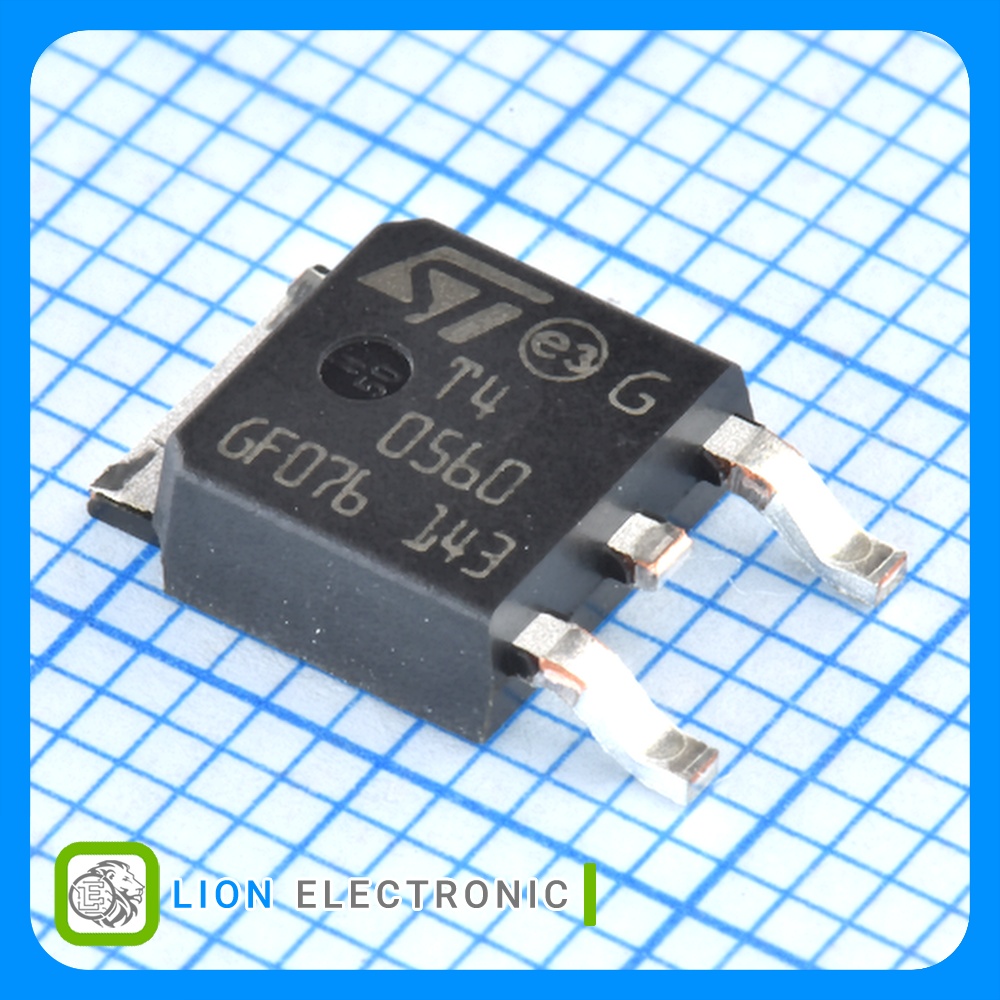

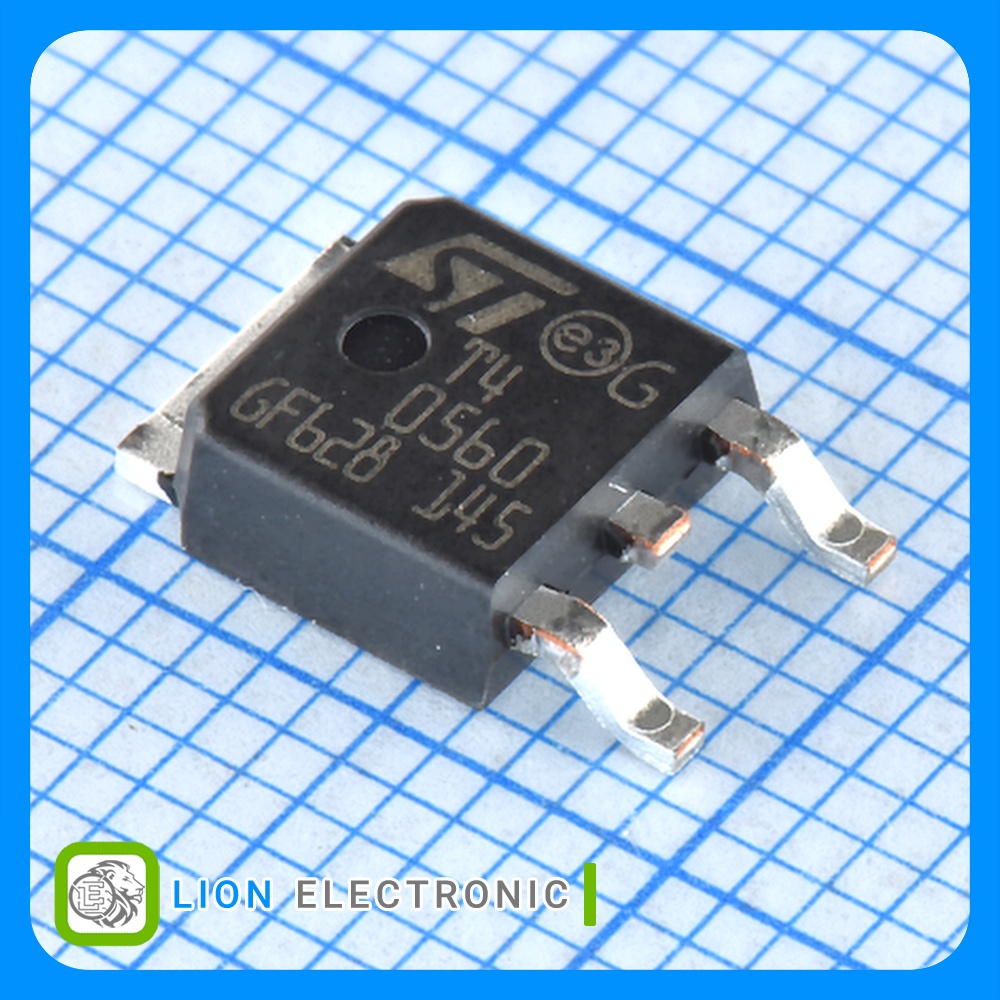

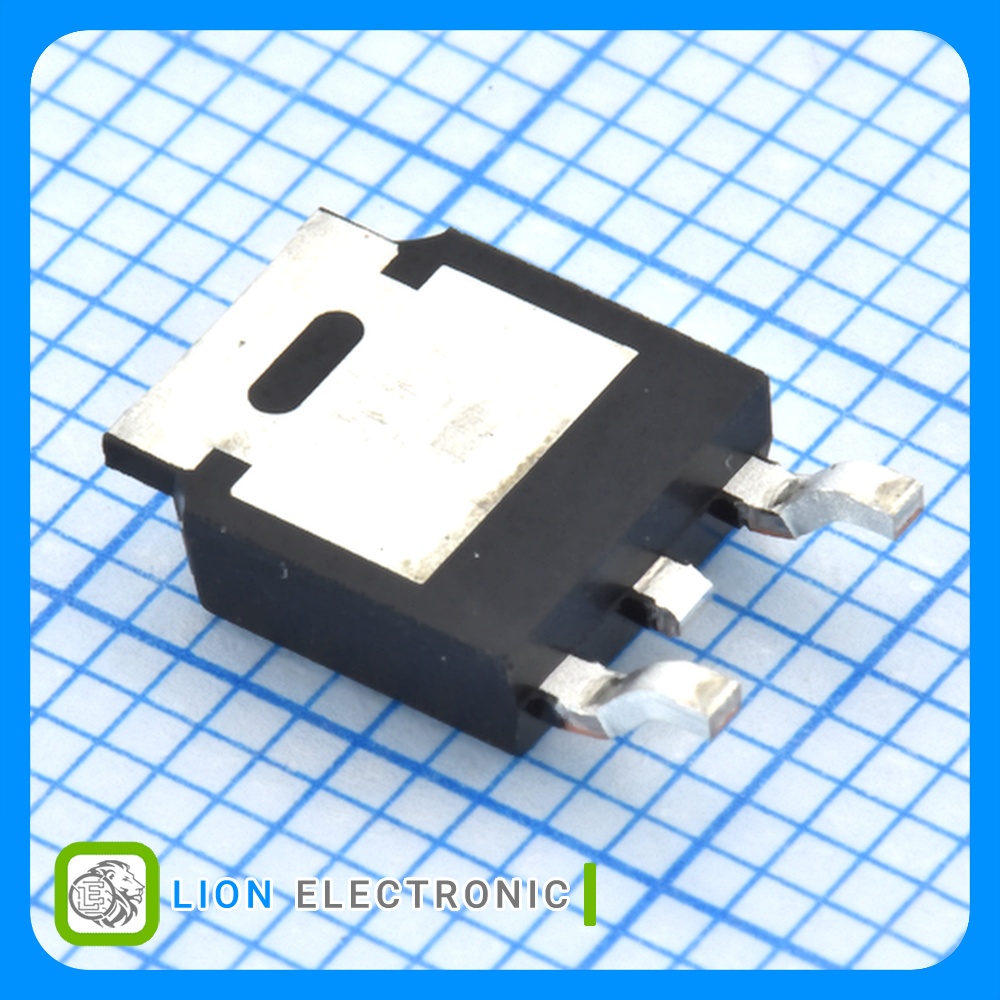

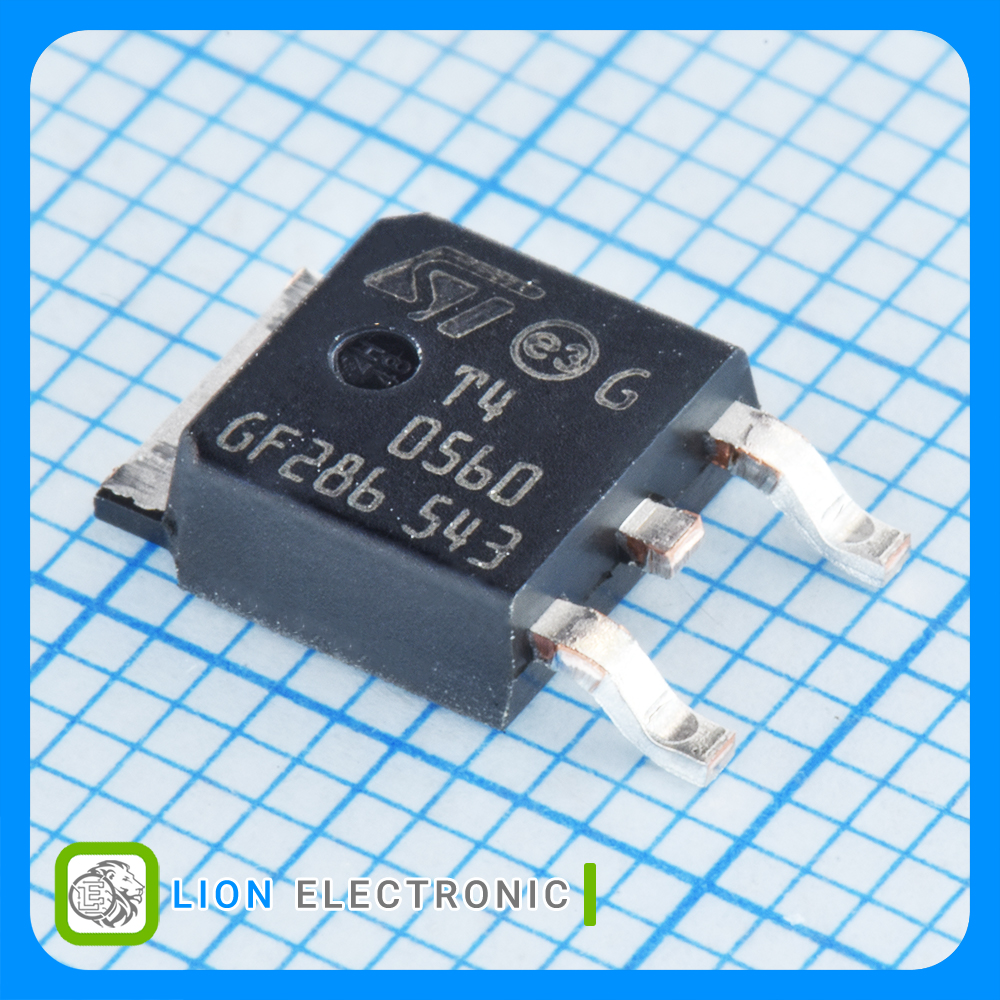

T405-600B
T405-600B
Part Number
51
Lion Part
Datasheet
STMicroelectronics Manufacture
ترایاک 600 ولت 4 آمپر با پکیج DPAK
Triac 600V, 4A with DPAK Package
معرفی
ترایاک 600 ولت 4 آمپر با پکیج DPAK
Triac 600V, 4A with DPAK Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 600V
- On-State RMS Current - It RMS: 4A
- On-State Voltage: 1.56V
- Gate Trigger Voltage - Vgt: 1.3V
- Gate Trigger Current - Igt: 5mA
- Non Repetitive On-State Current: 31A
- Off-State Leakage Current @ VDRM IDRM: 5uA
- Holding Current Ih Max: 10mA
- Mounting Style: SMD/SMT
- Package/Case: DPAK
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات T405-600B
T405-600B
Part Number
5uA
Off-State Leakage Current @ VDRM IDRM
10mA
Holding Current Ih Max
4A
On-State RMS Current - It RMS
31A
Non Repetitive On-State Current
5mA
Gate Trigger Current - Igt
1.56V
On-State Voltage
600V
Rated Repetitive Off-State Voltage VDRM
Reel
Packaging
1.3V
Gate Trigger Voltage - Vgt
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
DPAK
Package-Case
