OMRON
معرفی
رله 1 Form A (SPST-NO) ولتاژ کویل 5 ولت جریان کنتاکت 16 آمپر با نصب پایهدار

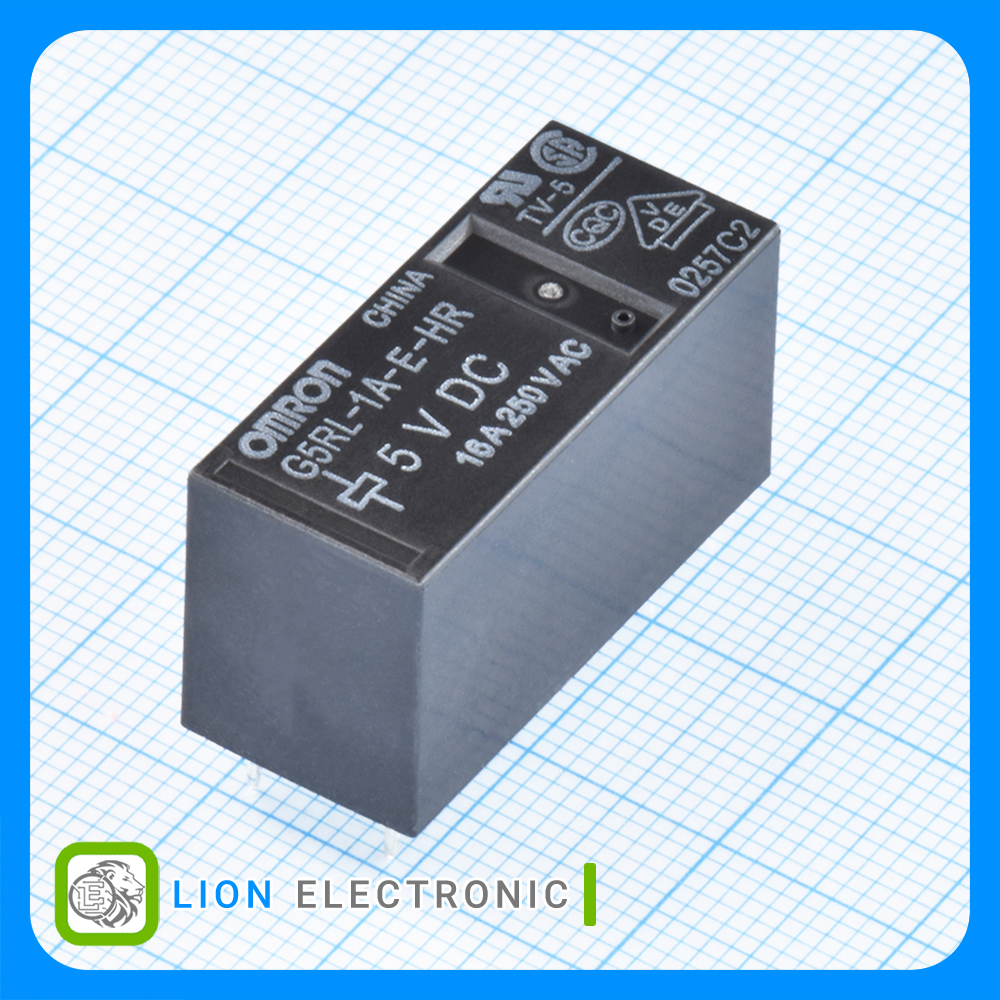

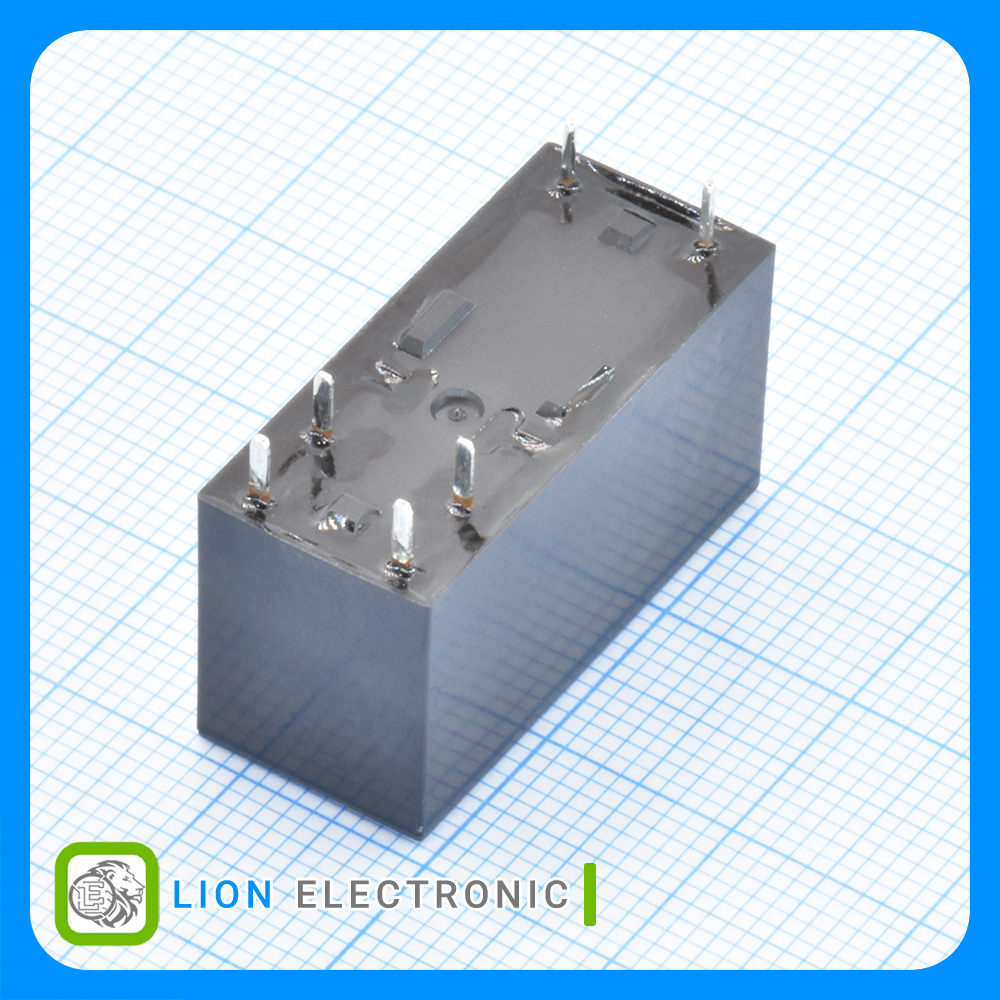

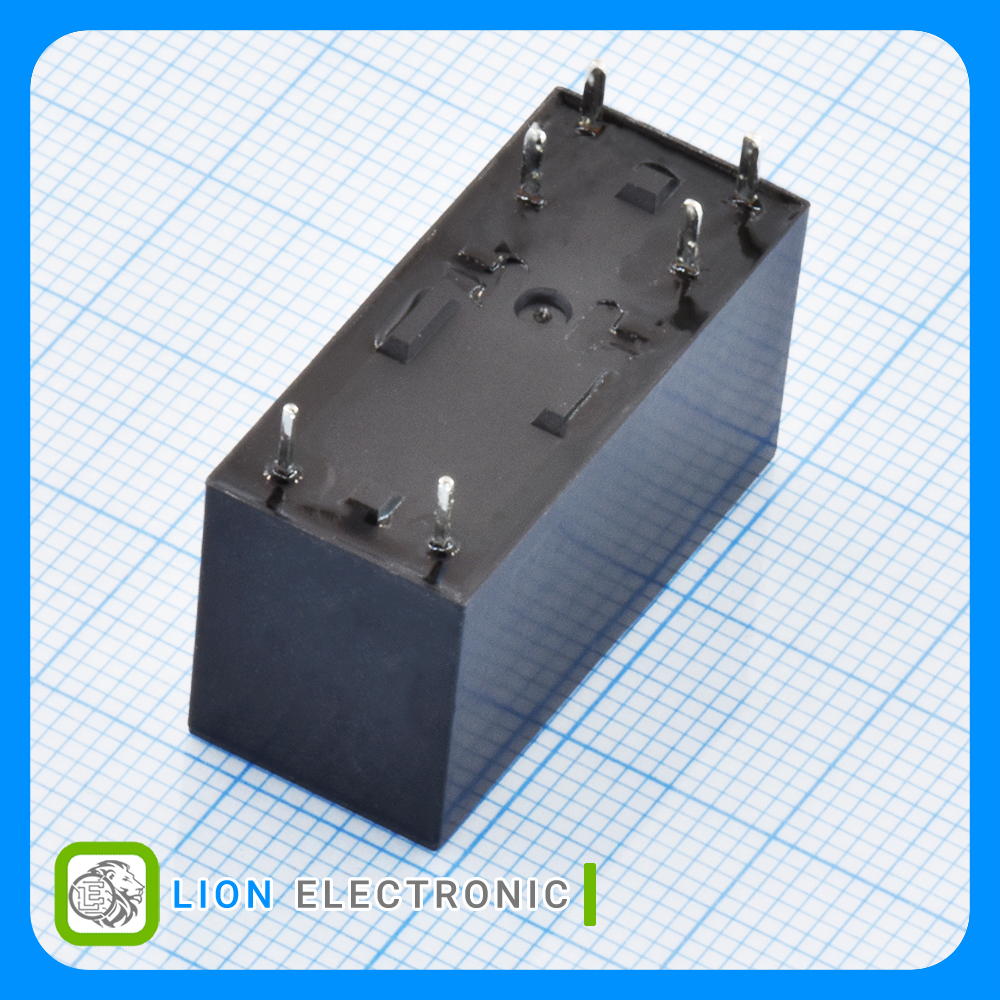

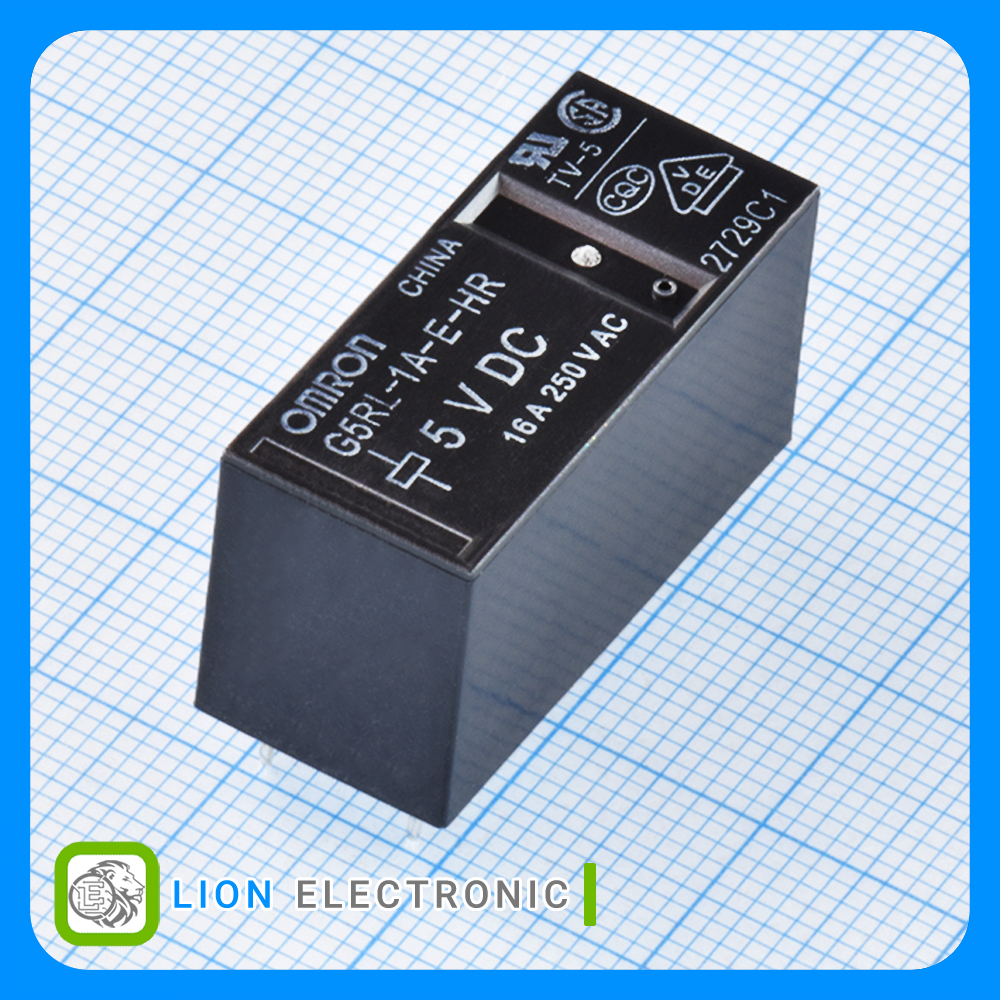

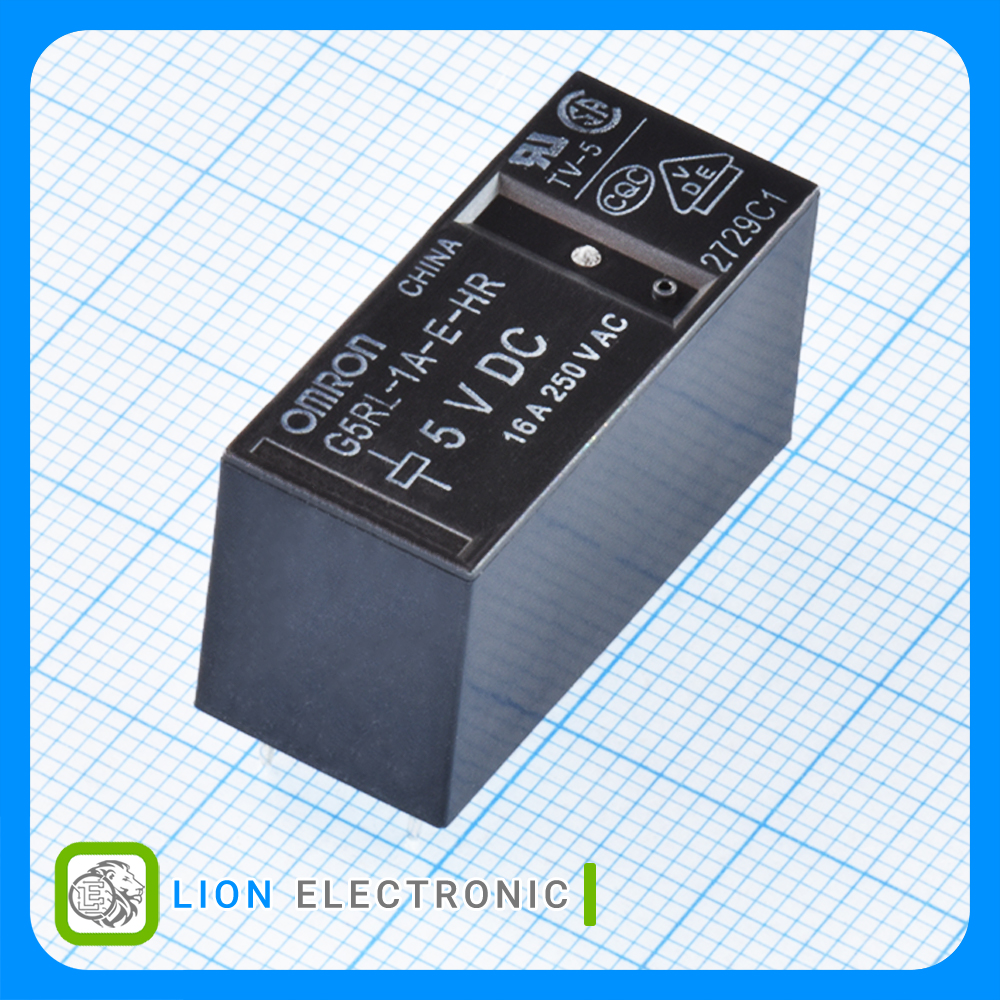

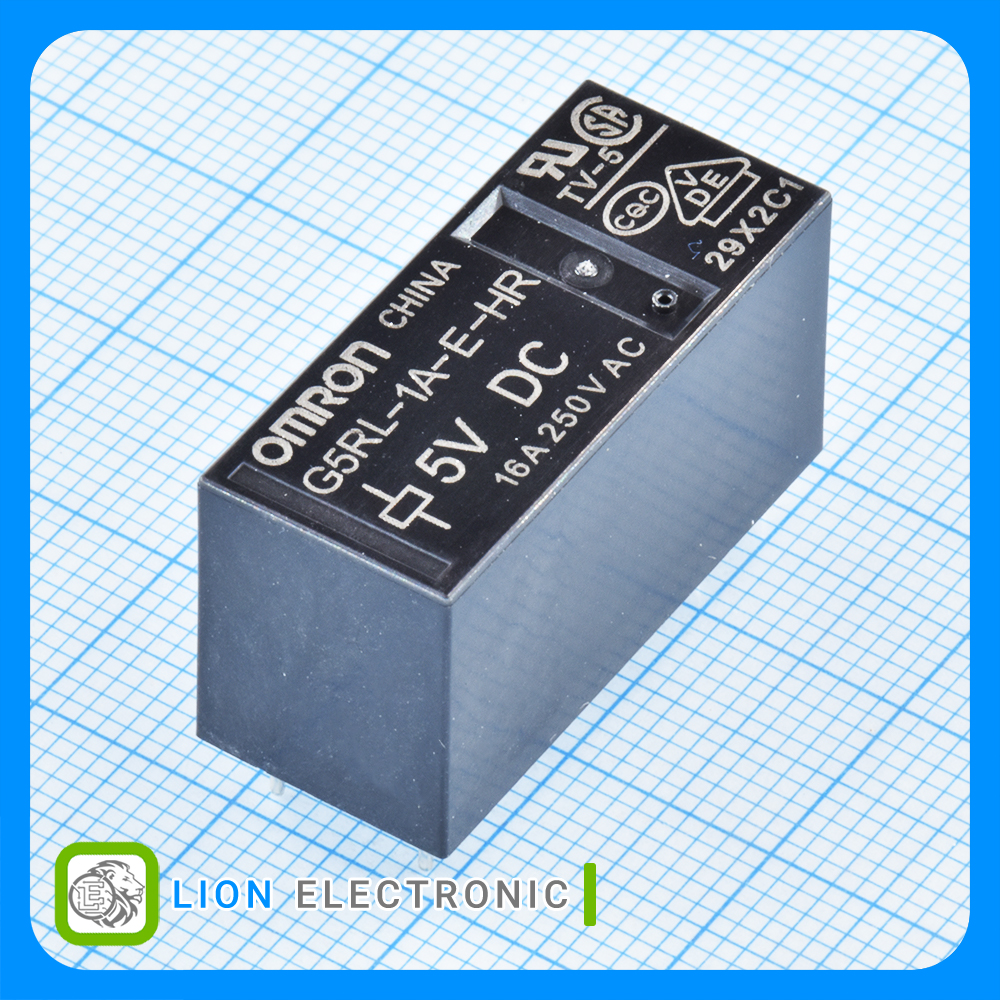

General Purpose Power Relay 1 Form A (SPST-NO), 5V with 16A Contact Current
Specifications
- Relay Contact Form: 1 Form A (SPST-NO)
- Coil Voltage: 5VDC
- Contact Current Rating: 16A
- Coil Resistance: 62.5Ω
- Coil Current: 80mA
- Power Consumption: 400mW
- Height: 15.7mm
- Length: 29mm
- Width: 12.7mm
- Coil Type: Non-Latching
- Mounting Style: Through Hole
- Packaging: Tube
- Max Switching Voltage: 250VAC 24VDC
مشخصات G5RL-1A-E-HR-DC5
G5RL-1A-E-HR-DC5
Part Number
Non-Latching
Coil Type
1 Form A (SPST-NO)
Relay Contact Form
5VDC
Coil Voltage
62.5Ω
Coil Resistance
400mW
Power Consumption
N/A
insulation class
16A
Contact Current Rating
250VAC 24VDC
Max Switching Voltage
Tube
Packaging
Through Hole
Mounting Style
80mA
Coil Current
12.7mm
Width
29mm
Length
15.7mm
Height
