OMRON
معرفی
رله 1 Form A (SPST-NO) ولتاژ کویل 12 ولت جریان کنتاکت 15 آمپر با نصب پایهدار
General Purpose PCB Power Relay 1 Form A (SPST-NO), 12V with 15A Contact Current
Specifications
- Relay Contact Form: 1 Form A (SPST-NO)
- Coil Voltage: 12VDC
- Contact Current Rating: 15A
- Coil Resistance: 720Ω
- Coil Current: 16.7mA
- Power Consumption: 200mW
- Height: 11mm
- Length: 22mm
- Width: 16mm
- Coil Type: Non-Latching
- Mounting Style: Through Hole
- Packaging: Tube
- Max Switching Voltage: 250VAC 125VDC
مشخصات رله G5CA-1A-E DC12

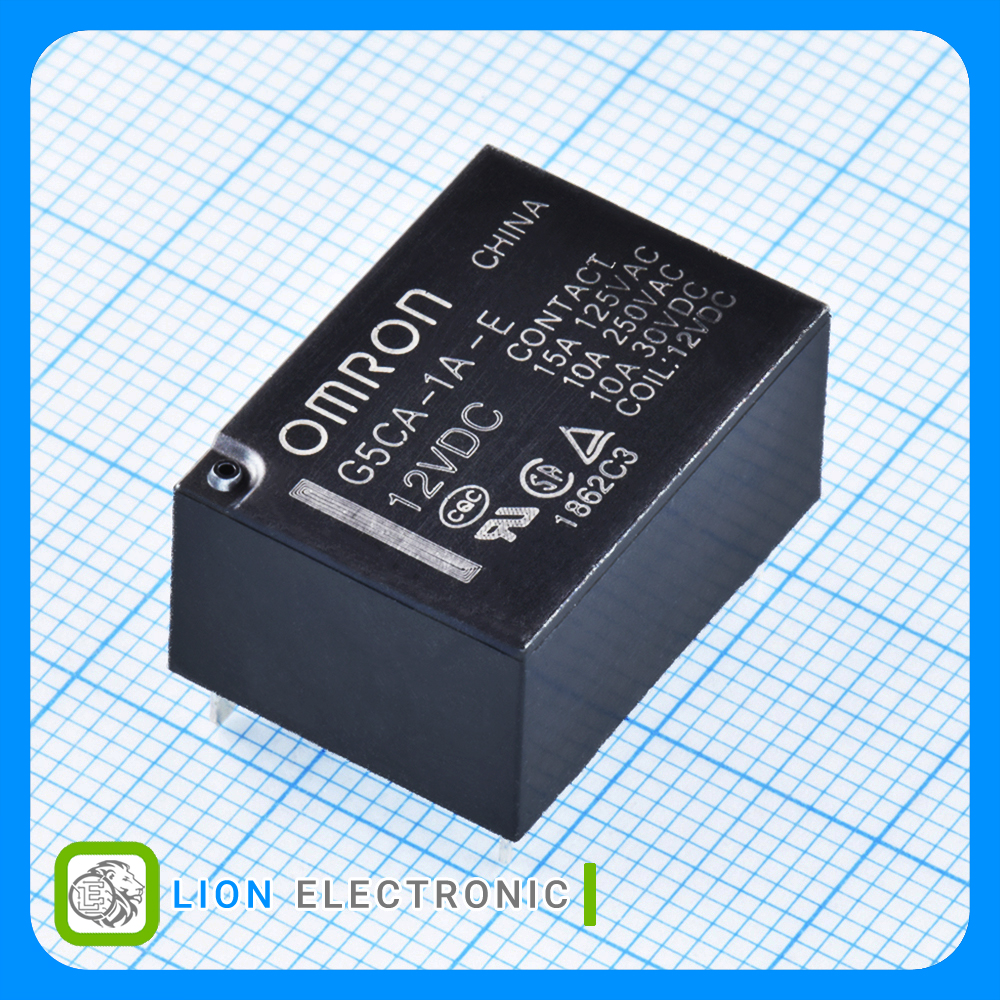

رله G5CA-1A-E DC12
Part Number
1 Form A (SPST-NO)
Relay Contact Form
Non-Latching
Coil Type
200mW
Power Consumption
12VDC
Coil Voltage
N/A
insulation class
15A
Contact Current Rating
250VAC 125VDC
Max Switching Voltage
16.7mA
Coil Current
Tube
Packaging
Through Hole
Mounting Style
720Ω
Coil Resistance
16mm
Width
22mm
Length
11mm
Height
