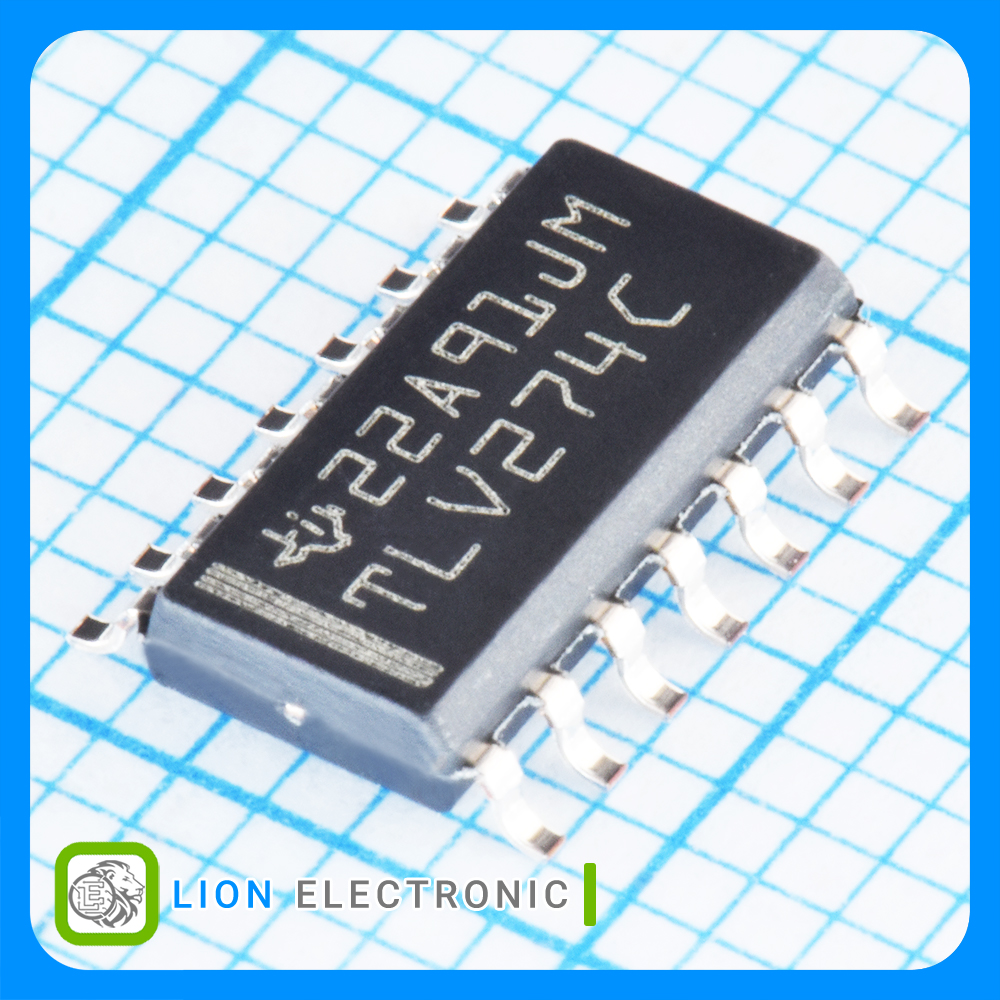

TLV274CDR
TLV274CDR
Part Number
5134
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 4 کاناله با پهنای باند 3 مگاهرتز و جریان تغذیه 550 میکروآمپر بر کانال، خروجی ریل تو ریل، با پکیج SOIC-14
Quad OP-AMP, Supply Current 550µA/Ch, 3MHz, Rail-to-Rail Output Operational Amplifier with SOIC-14 Package
معرفی
آپامپ 4 کاناله با پهنای باند 3 مگاهرتز و جریان تغذیه 550 میکروآمپر بر کانال، خروجی ریل تو ریل، با پکیج SOIC-14
Quad OP-AMP, Supply Current 550µA/Ch, 3MHz, Rail-to-Rail Output Operational Amplifier with SOIC-14 Package
Specifications
- Number of Channels: 4
- Output Current per Channel: 13mA
- SR - Slew Rate: 2.4V/us
- GBP - Gain Bandwidth Product: 3MHz
- CMRR - Common Mode Rejection Ratio: 85dB
- Ib - Input Bias Current: 1pA
- Vos - Input Offset Voltage: 500uV
- Supply Voltage - Max: 16V
- Supply Voltage - Min: 2.7V
- Operating Supply Current: 625uA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-14
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ TLV274CDR

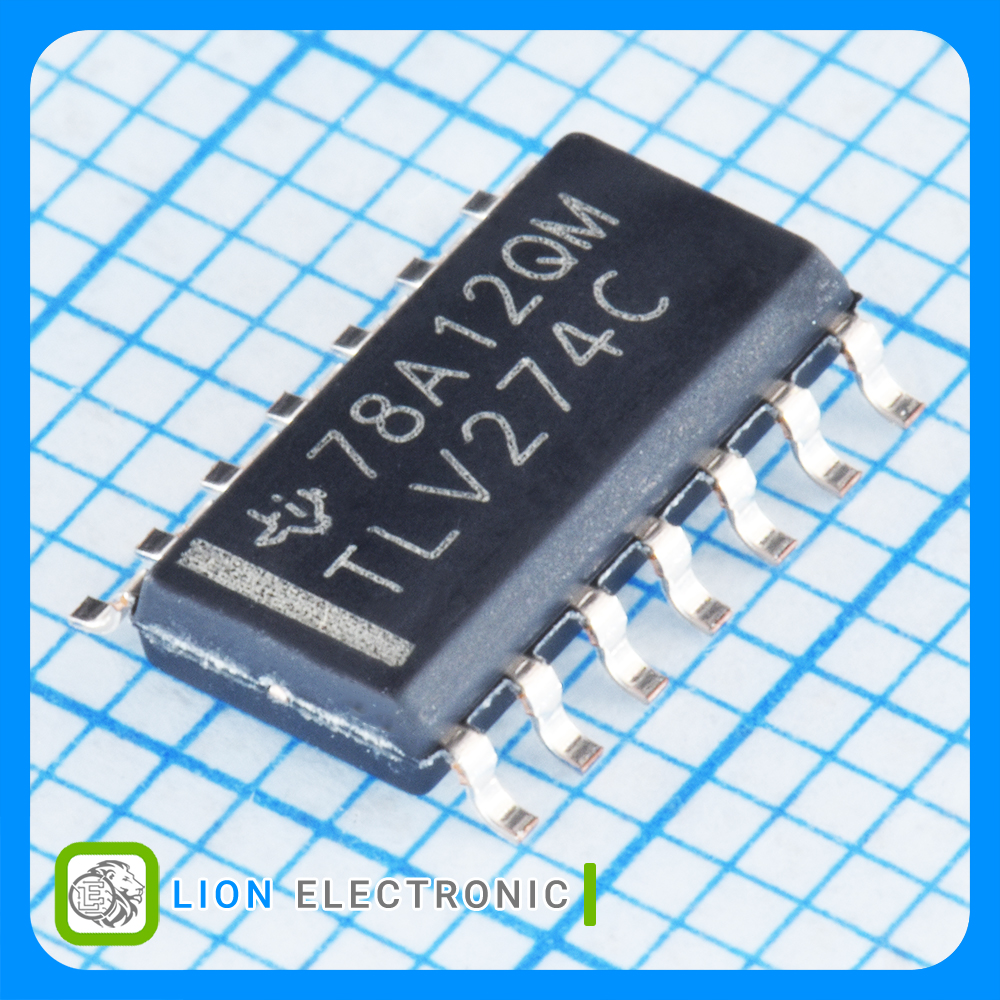

آپ امپ TLV274CDR
Part Number
4
Number of Channels
1pA
Ib - Input Bias Current
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
13mA
Output Current per Channel
+125C
Maximum Operating Temperature
2.4V/us
SR - Slew Rate
85dB
CMRR - Common Mode Rejection Ratio
3MHz
GBP - Gain Bandwidth Product
2.7V
Supply Voltage - Min
500uV
Vos - Input Offset Voltage
16V
Supply Voltage - Max
625uA
Operating Supply Current
SOIC-14
Package-Case
