HT1V477M1012PC
HT1V477M1012PC
Part Number
5311
Lion Part
Datasheet
Honor Elec Manufacture
خازن جامد پلیمری 470 میکروفاراد 35 ولت تلرانس 20% سایز 10 میلیمتر در 12 میلیمتر

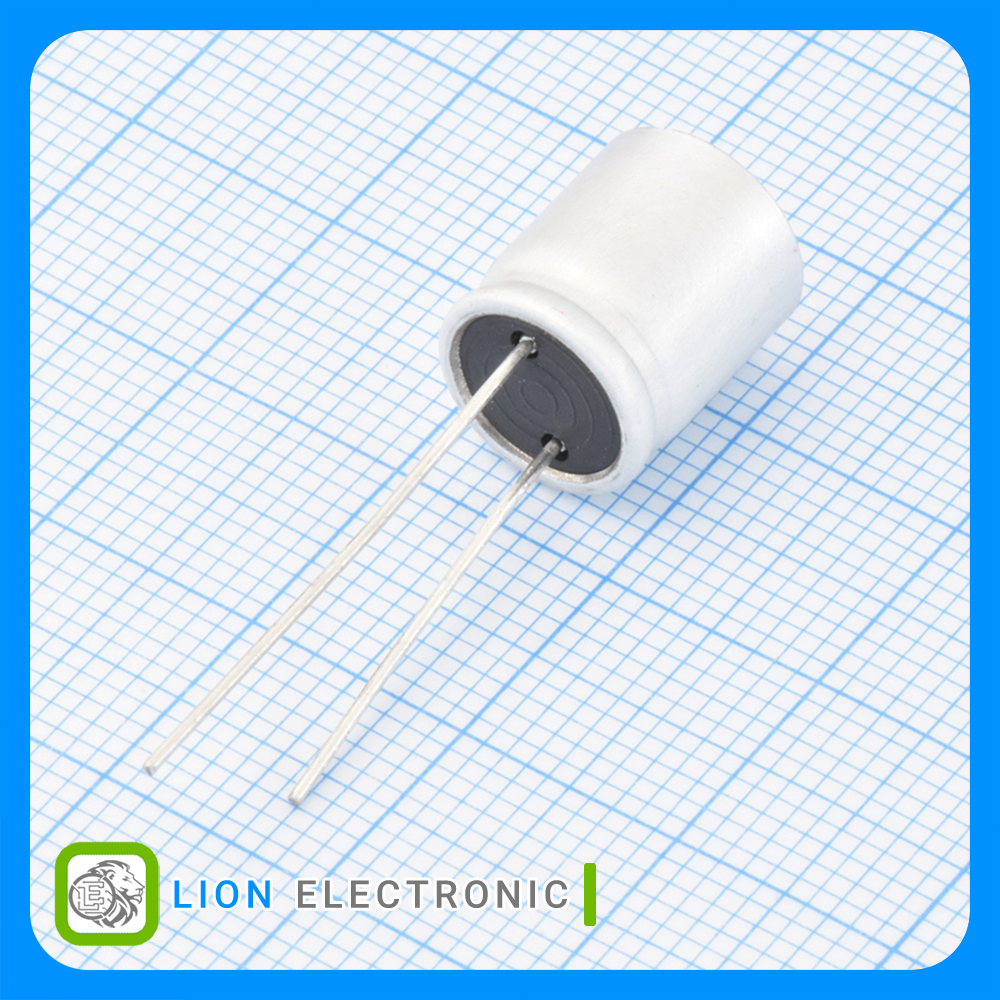

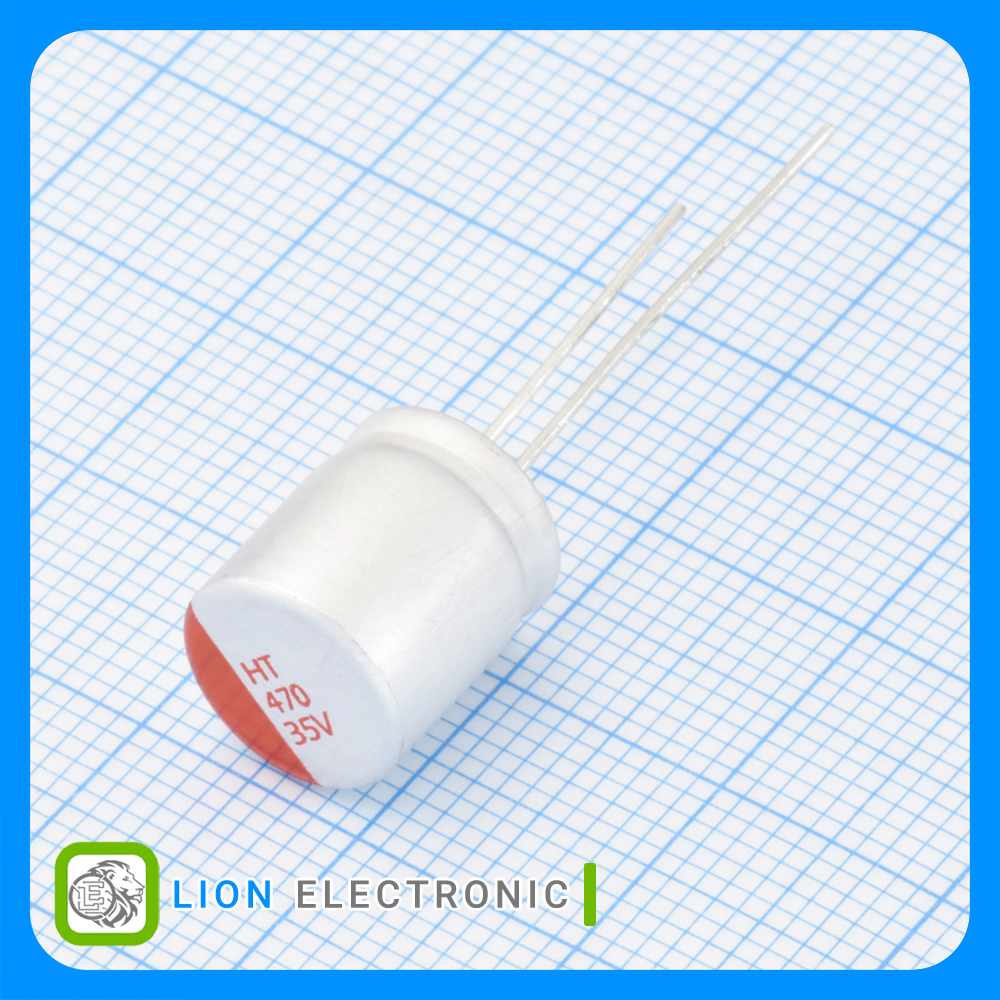

Solid Polymer Electrolytic Capacitor 470uF 35V 20% 10mmx12mm
معرفی
خازن جامد پلیمری 470 میکروفاراد 35 ولت تلرانس 20% سایز 10 میلیمتر در 12 میلیمتر
Solid Polymer Electrolytic Capacitor 470uF 35V 20% 10mmx12mm
Specifications
- Life: 2000 Hour
- Capacitance: 470uF
- Voltage Rating DC: 35VDC
- ESR: 28mΩ
- Ripple Current: 2.15A
- Tolerance: 20%
- Lead Spacing: 5mm
- Diameter: 10mm
- Height: 12mm
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Bulk
مشخصات HT1V477M1012PC
HT1V477M1012PC
Part Number
2000 Hour
Life
-55C
Minimum Operating Temperature
Bulk
Packaging
5mm
Lead Spacing
28mΩ
ESR
Through Hole
Mounting Style
35VDC
Voltage Rating DC
20%
Tolerance
10mm
Diameter
+125C
Maximum Operating Temperature
2.15A
Ripple Current
12mm
Height
470uF
Capacitance
