HT1V476M0507PC
HT1V476M0507PC
Part Number
5312
Lion Part
Datasheet
Honor Elec Manufacture
خازن جامد پلیمری 47 میکروفاراد 35 ولت تلرانس 20% سایز 5 میلیمتر در 7 میلیمتر

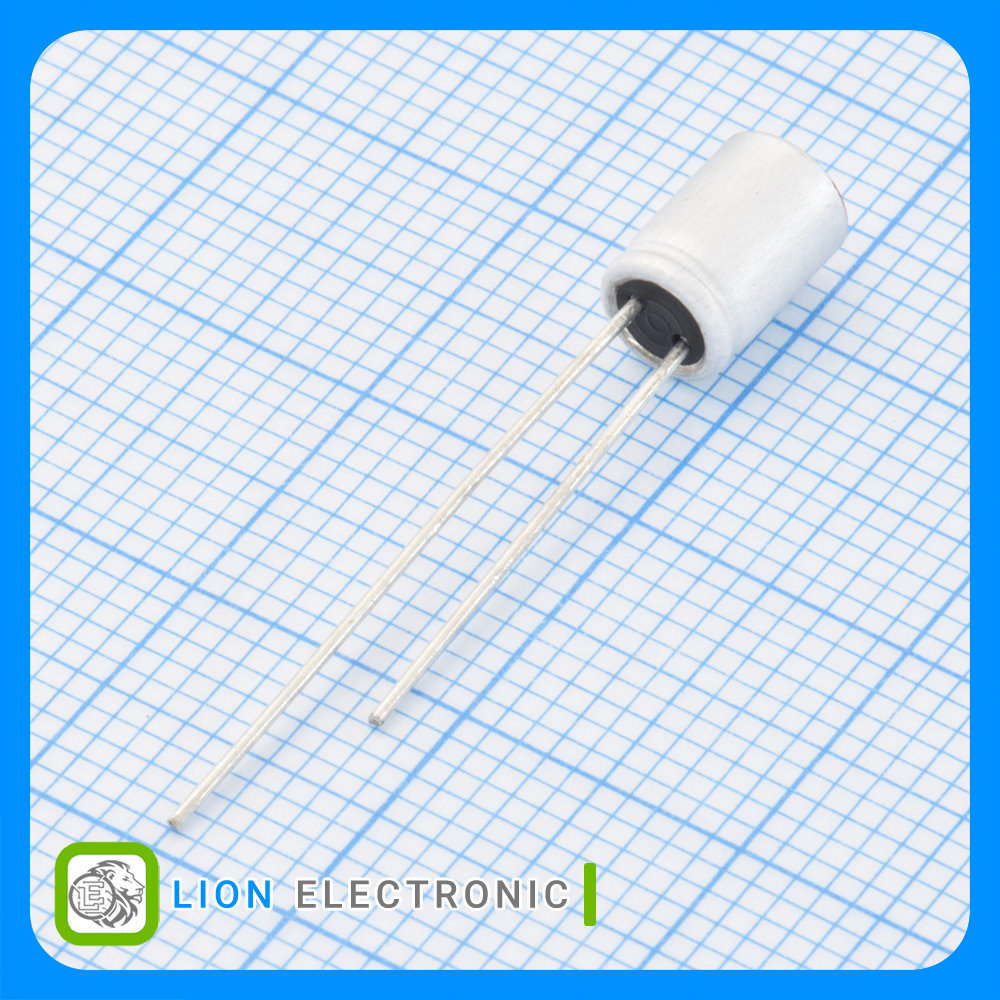

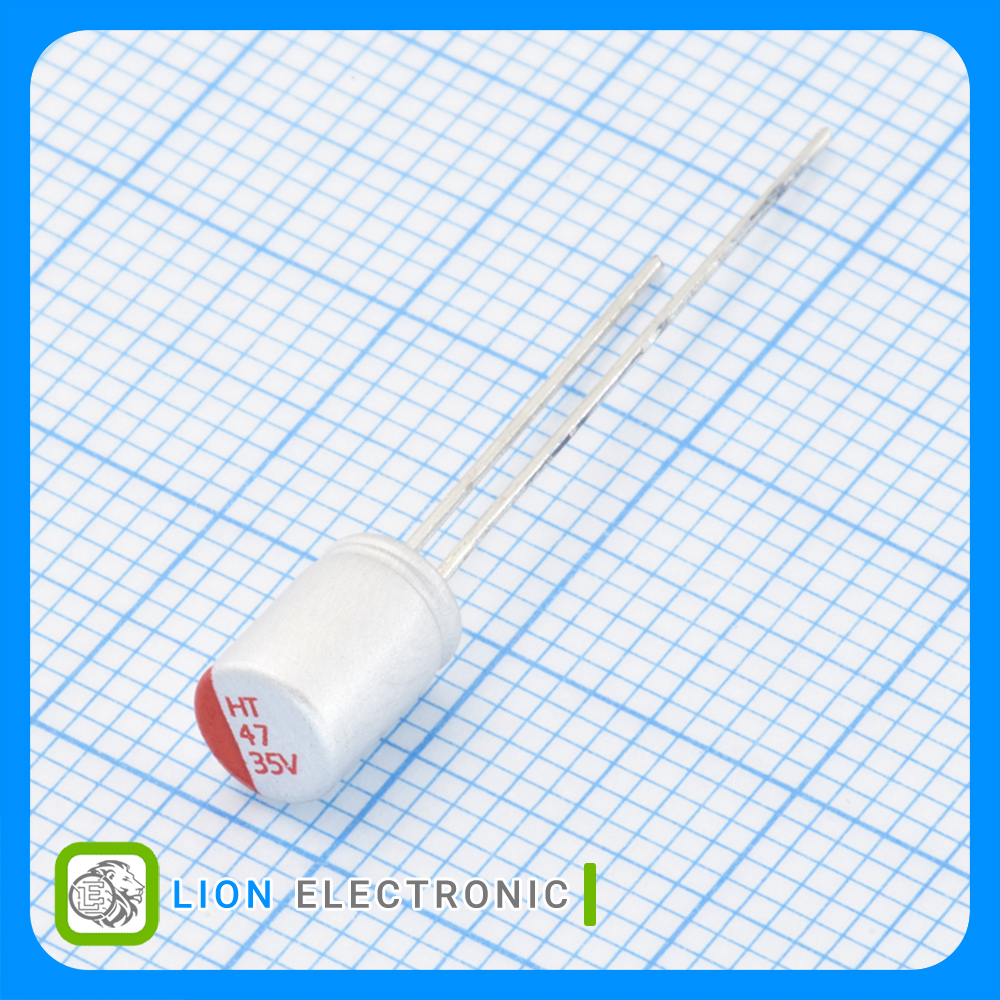

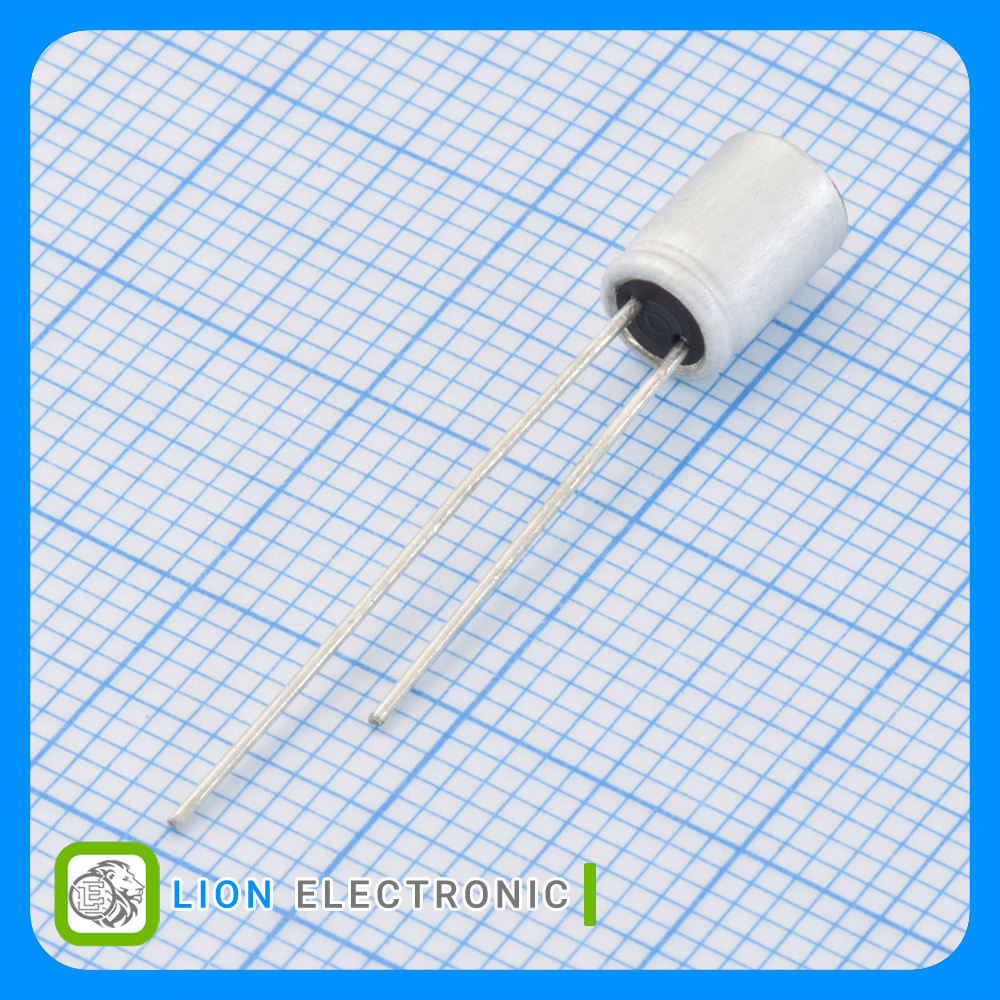

Solid Polymer Electrolytic Capacitor 47uF 35V 20% 5mmx7mm
معرفی
خازن جامد پلیمری 47 میکروفاراد 35 ولت تلرانس 20% سایز 5 میلیمتر در 7 میلیمتر
Solid Polymer Electrolytic Capacitor 47uF 35V 20% 5mmx7mm
Specifications
- Life: 2000 Hour
- Capacitance: 47uF
- Voltage Rating DC: 35VDC
- ESR: 55mΩ
- Ripple Current: 850mA
- Tolerance: 20%
- Lead Spacing: 2mm
- Diameter: 5mm
- Height: 7mm
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Bulk
مشخصات HT1V476M0507PC
HT1V476M0507PC
Part Number
2mm
Lead Spacing
2000 Hour
Life
-55C
Minimum Operating Temperature
Bulk
Packaging
5mm
Diameter
Through Hole
Mounting Style
35VDC
Voltage Rating DC
20%
Tolerance
55mΩ
ESR
+125C
Maximum Operating Temperature
850mA
Ripple Current
7mm
Height
47uF
Capacitance
