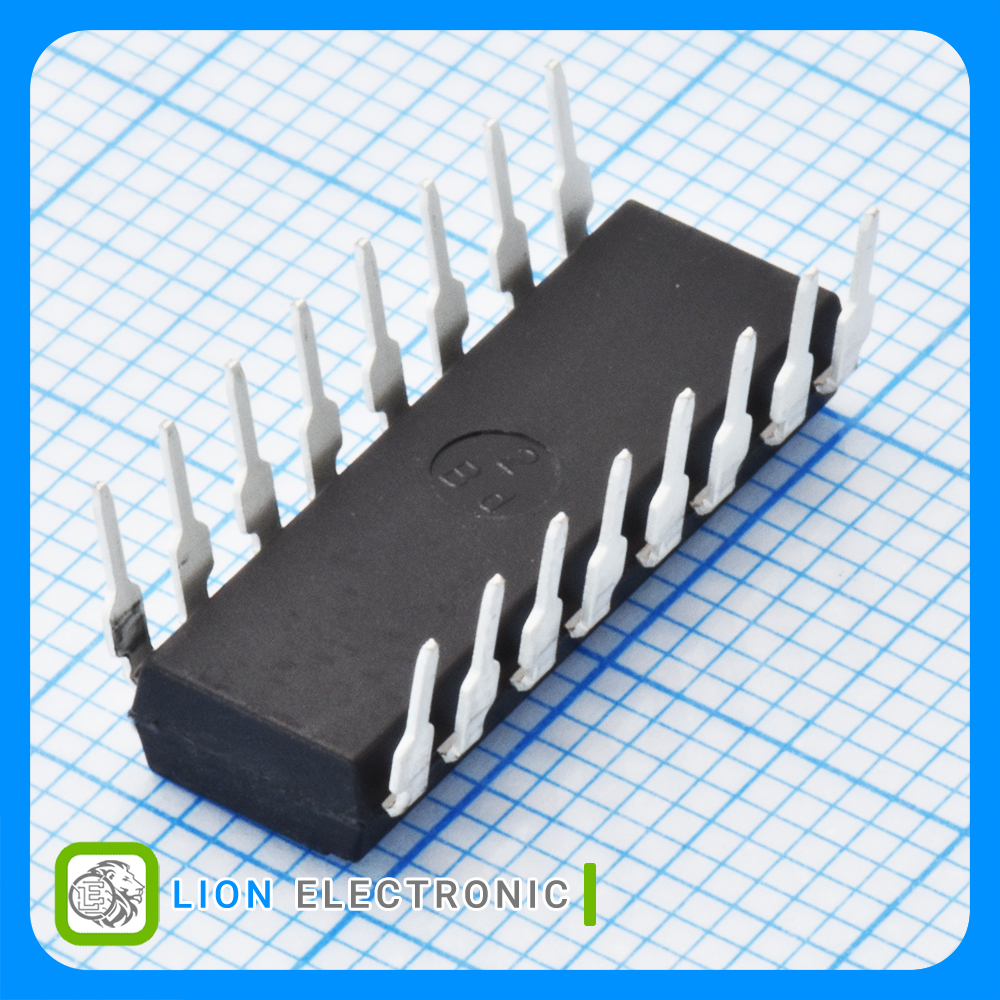

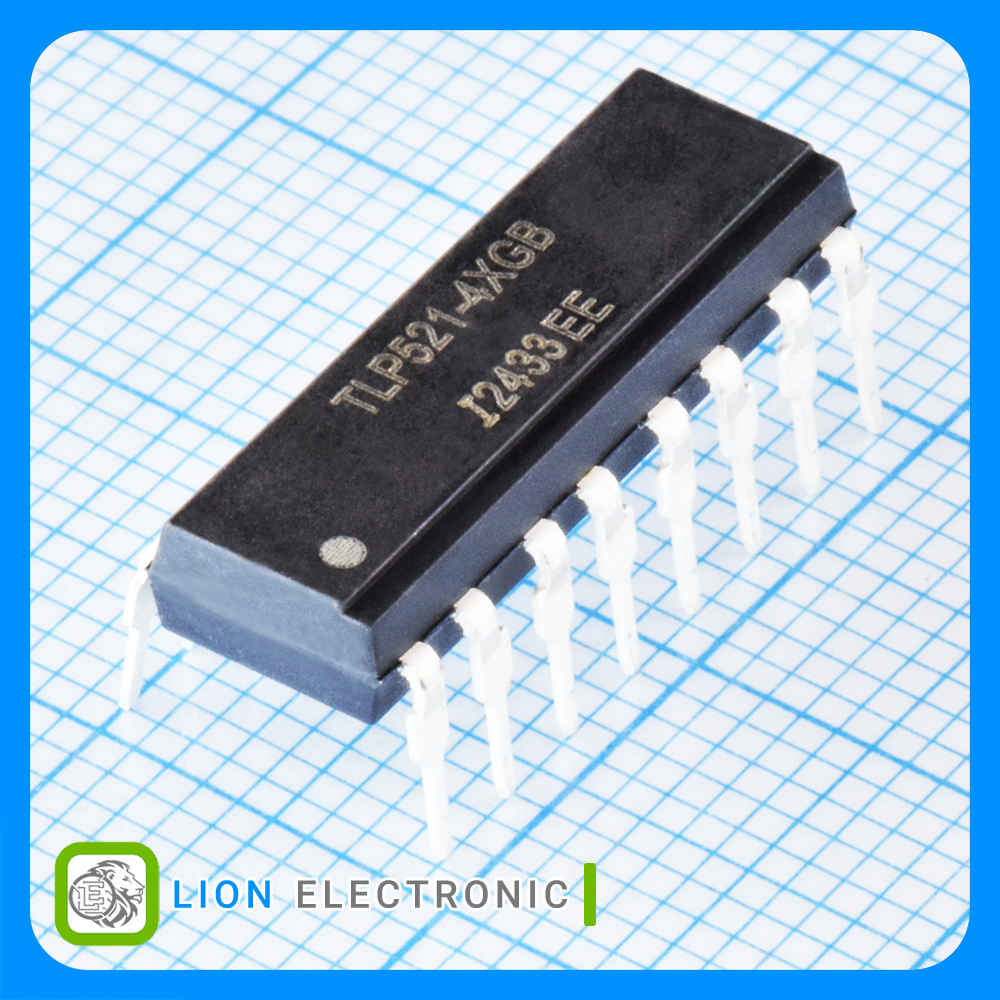

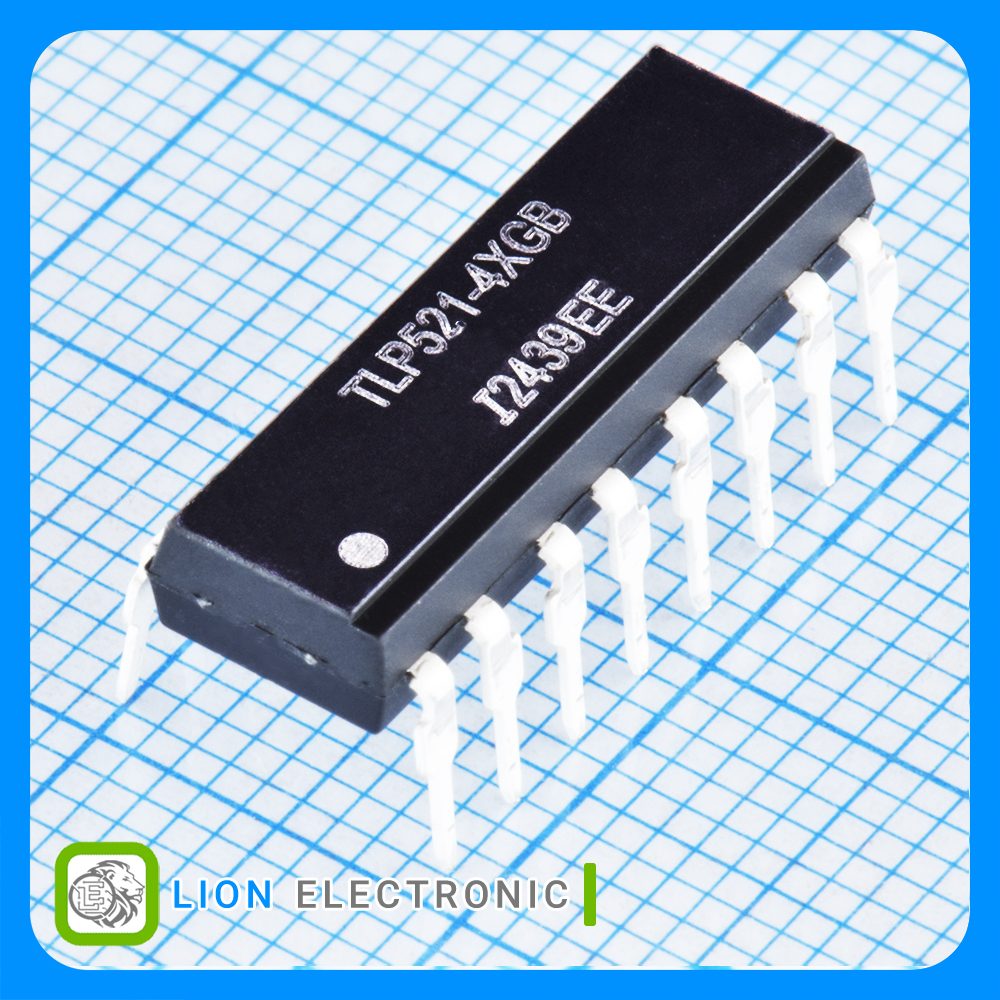

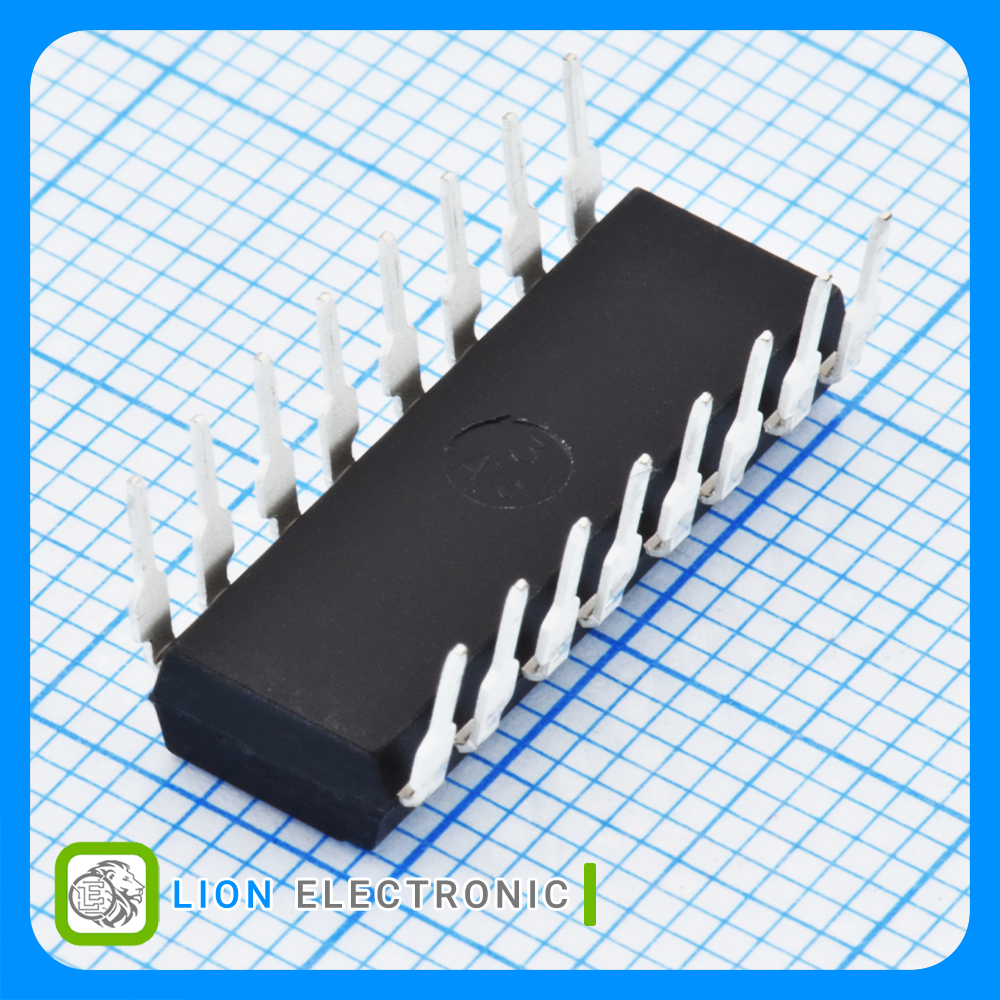

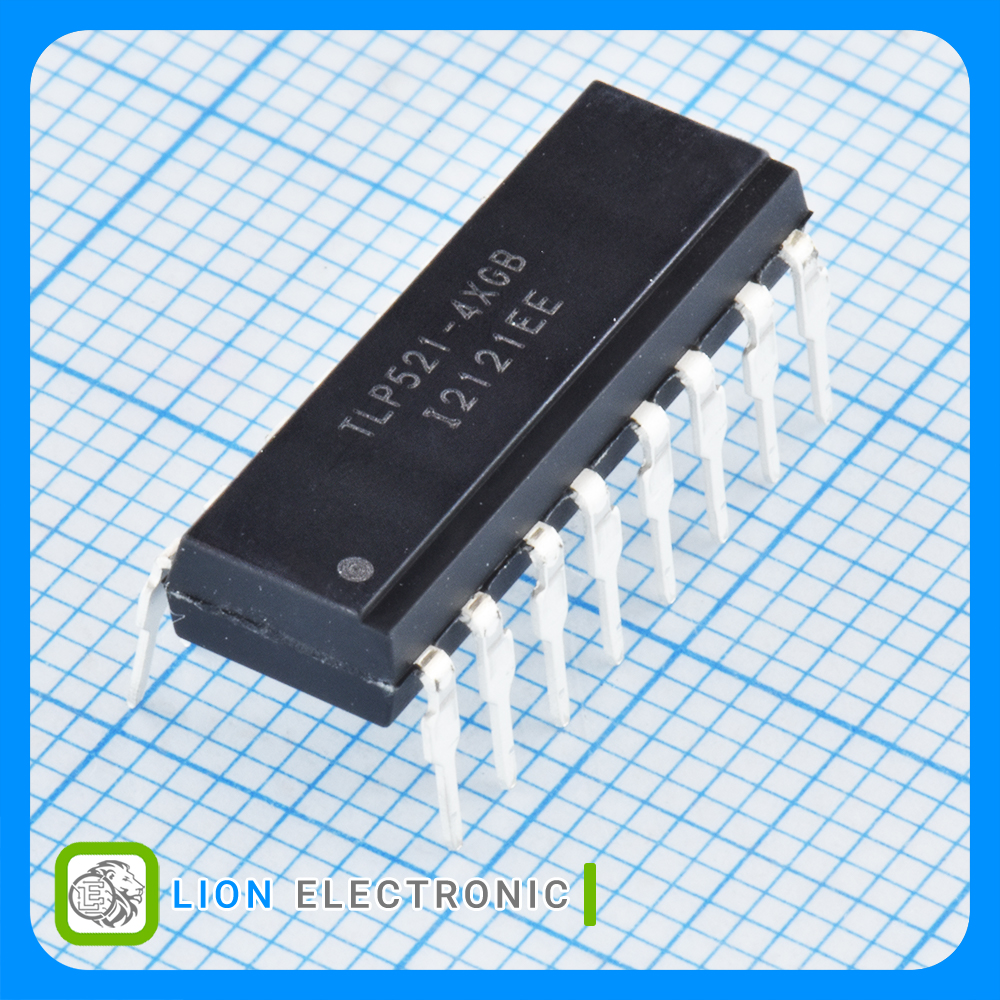

اپتوکوپلر TLP521-4XGB
TLP521-4XGB
Part Number
533
Lion Part
Datasheet
Isocom Components Manufacture
اپتوکوپلر- فتوکوپلر 1.15 ولت 50 میلیآمپر 200 میلیوات با پکیج DIP-16
High Density Mounting Phototransistor Optically Coupled Isolators
مشخصات اپتوکوپلر TLP521-4XGB
اپتوکوپلر TLP521-4XGB
Part Number
DC
Input Type
4
Number of Channels
Tube
Packaging
-30C
Minimum Operating Temperature
Through Hole
Mounting Style
600%
Maximum CTR
+100C
Maximum Operating Temperature
5.3kVrms
Isolation Voltage
50mA
If - Forward Current
200mW
Pd - Power Dissipation
55V
Collector - Emitter Voltage VCEO Max
Phototransistor
Output Type
1.15V
Vf - Forward Voltage
Transistor Output Optocouplers
Product Type
DIP-16
Package-Case
