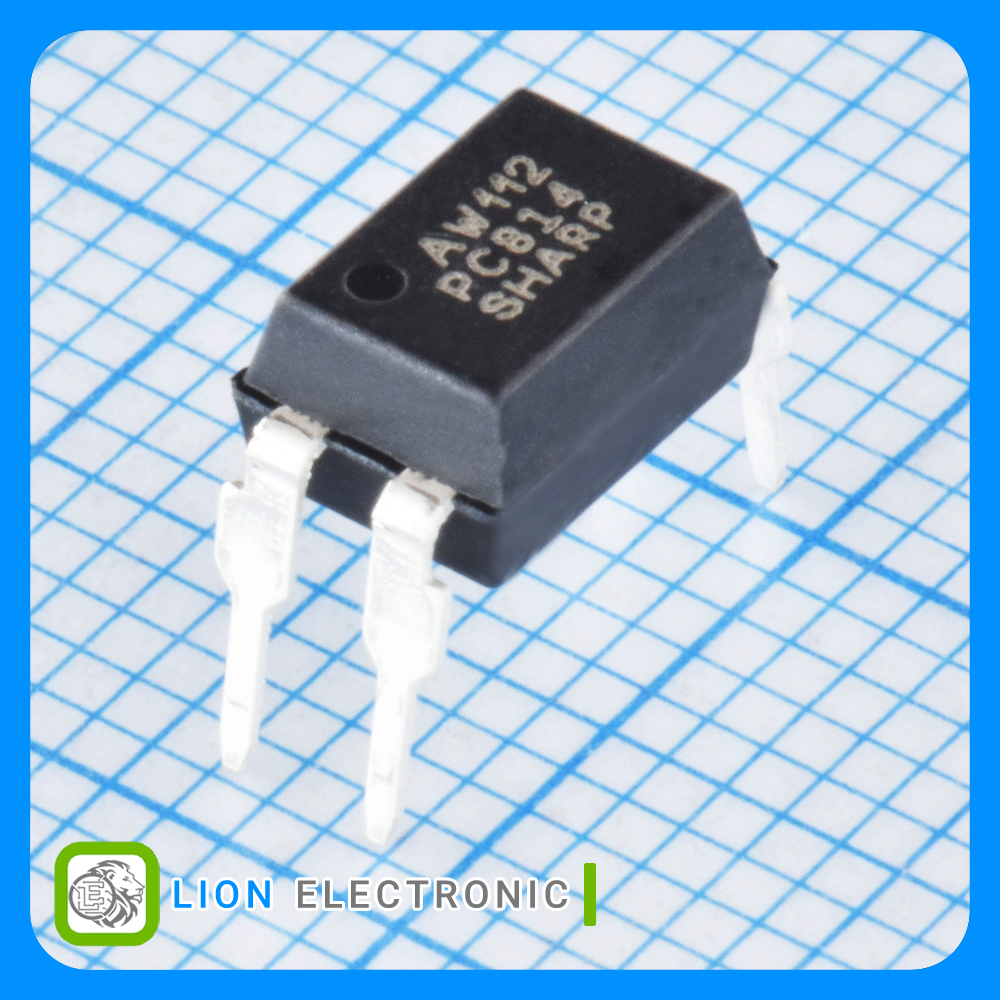

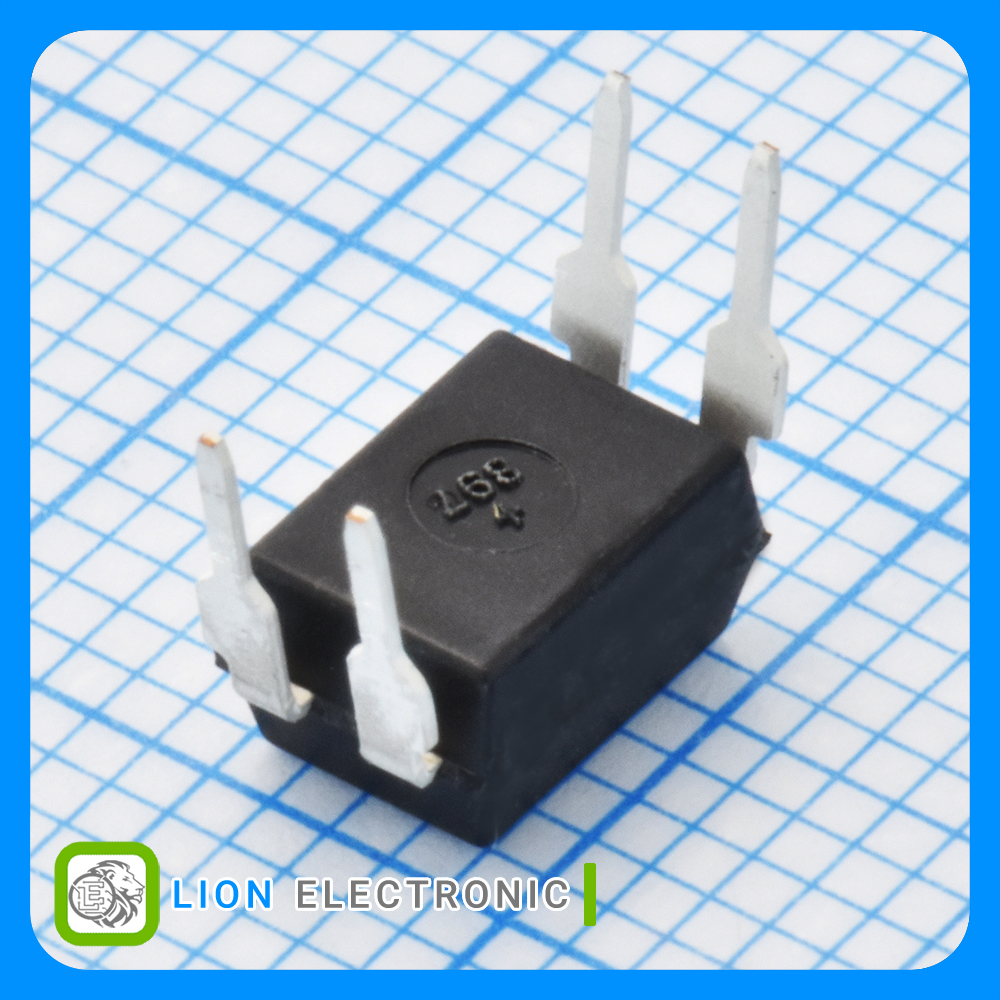

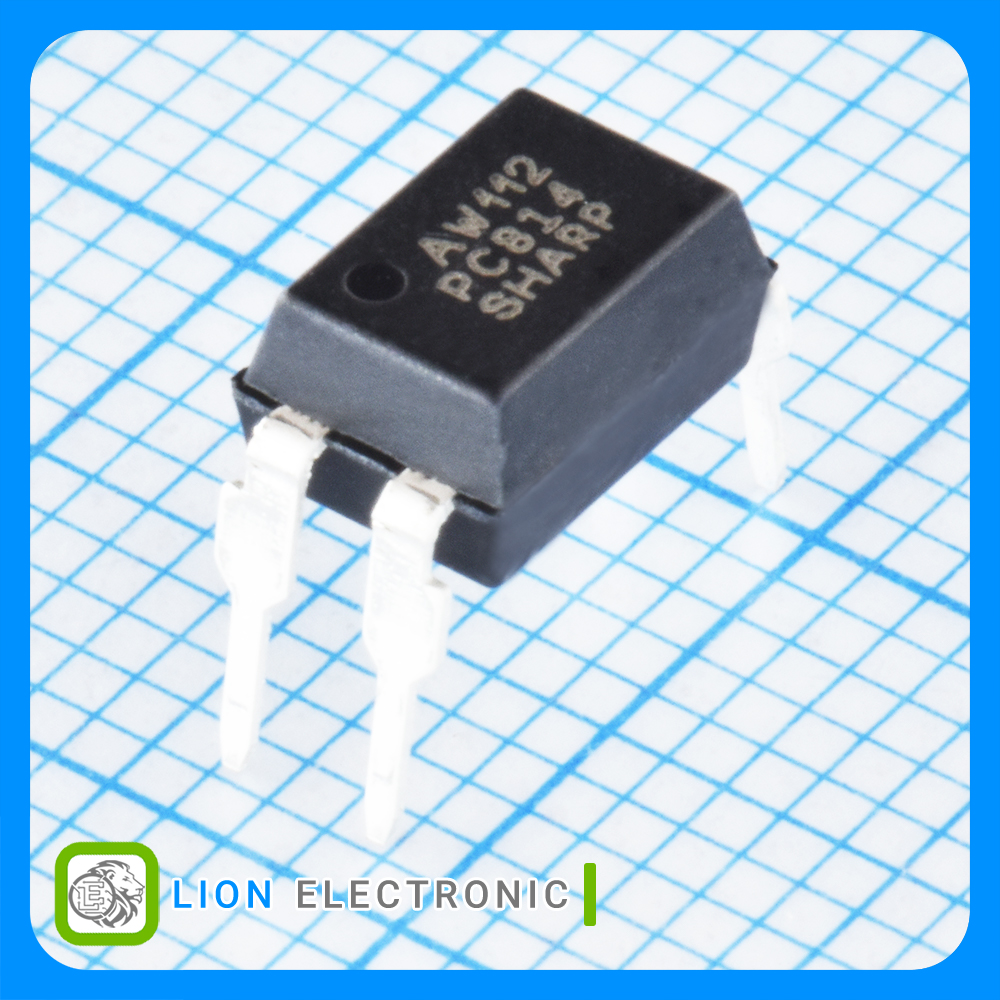

PC814X1CSZ9F
PC814X1CSZ9F
Part Number
538
Lion Part
Datasheet
Sharp Microelectronics Manufacture
اپتوکوپلر فتوکوپلر با ورودی AC، خروجی کلکتور باز 1 کاناله 35 ولت با ولتاژ ایزولاسیون 5 کیلوولت RMS و پکیج DIP-4
Open Collector Output AC Input Photocoupler 1 Channel, 35V, High Isolation Voltage 5000Vrms with DIP-4 Package
معرفی
اپتوکوپلر فتوکوپلر با ورودی AC، خروجی کلکتور باز 1 کاناله 35 ولت با ولتاژ ایزولاسیون 5 کیلوولت RMS و پکیج DIP-4
Open Collector Output AC Input Photocoupler 1 Channel, 35V, High Isolation Voltage 5000Vrms with DIP-4 Package
Specifications
- Output Type: Open Collector
- Number of Channels: 1
- Input Type: AC
- Vf - Forward Voltage: 1.2V
- Maximum CTR: 300%
- If - Forward Current: 50mA
- Pd - Power Dissipation: 70mW
- Collector - Emitter Voltage VCEO Max: 35V
- Isolation Voltage: 5kVrms
- Mounting Style: Through Hole
- Package/Case: DIP-4
- Minimum Operating Temperature: -30C
- Maximum Operating Temperature: +100C
- Packaging: Tube
مشخصات اپتوکوپلر PC814X1CSZ9F

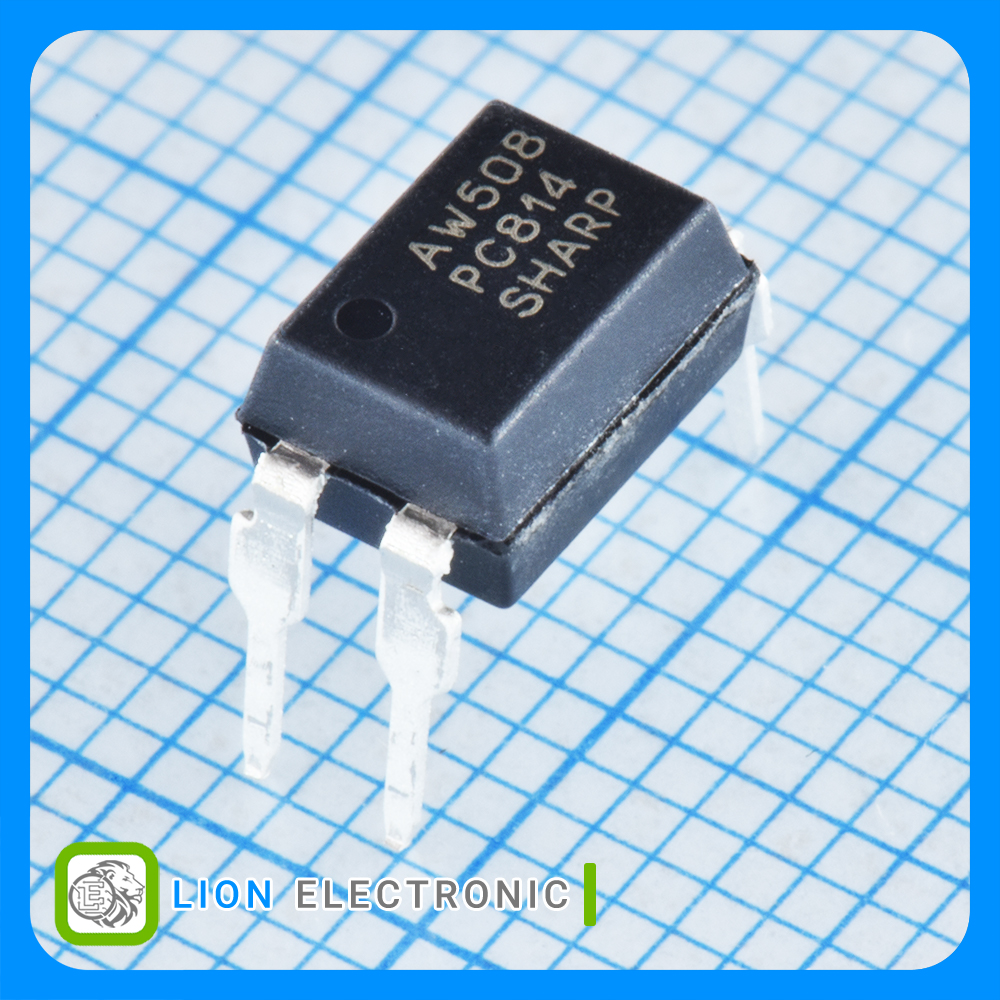

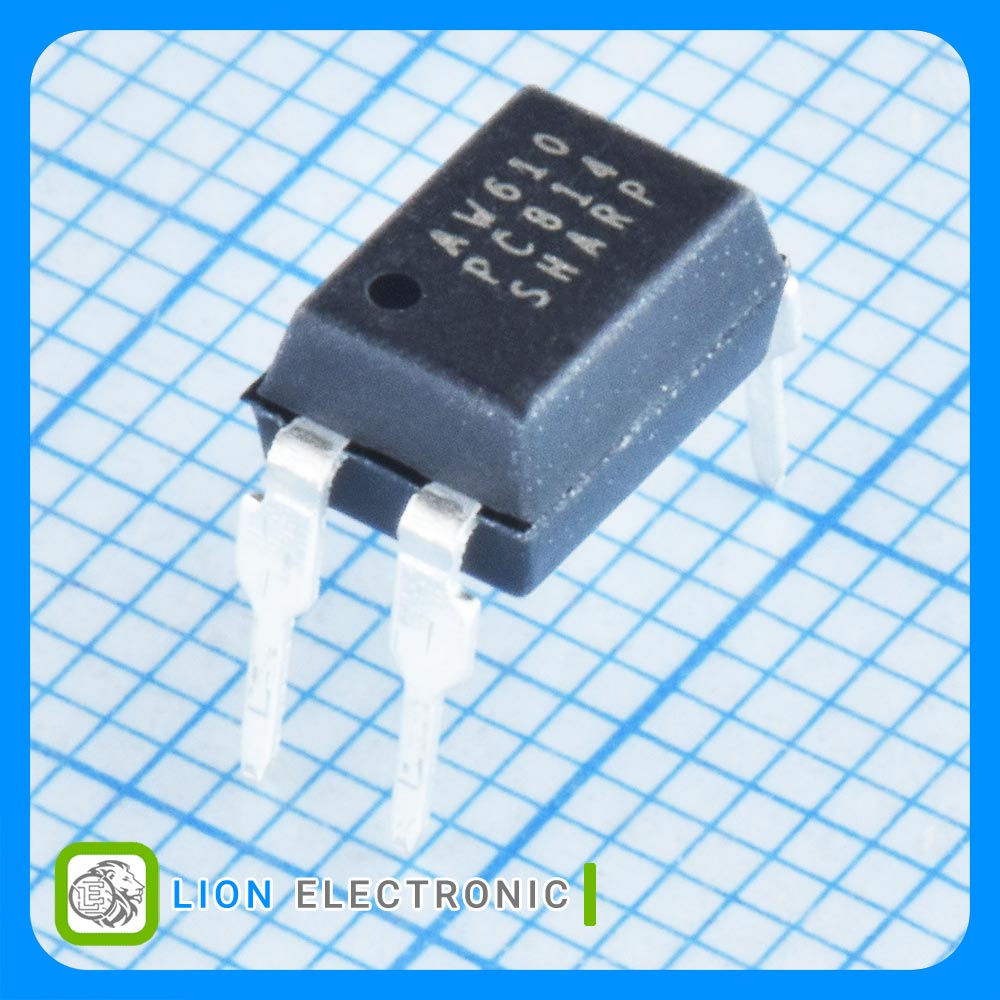

اپتوکوپلر PC814X1CSZ9F
Part Number
1
Number of Channels
AC
Input Type
70mW
Pd - Power Dissipation
300%
Maximum CTR
-30C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
+100C
Maximum Operating Temperature
5kVrms
Isolation Voltage
50mA
If - Forward Current
35V
Collector - Emitter Voltage VCEO Max
Open Collector
Output Type
1.2V
Vf - Forward Voltage
DIP-4
Package-Case
Transistor Output Optocouplers
Product Type
