WeEn/NXP
معرفی
ترایاک 600 ولت 12 آمپر با پکیج D2PAK-3
Triac 600V, 12A with D2PAK-3 Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 600V
- On-State RMS Current - It RMS: 12A
- On-State Voltage: 1.4V
- Gate Trigger Voltage - Vgt: 700mV
- Gate Trigger Current - Igt: 11mA
- Non Repetitive On-State Current: 105A
- Off-State Leakage Current @ VDRM IDRM: 100uA
- Holding Current Ih Max: 30mA
- Mounting Style: SMD/SMT
- Package/Case: D2PAK
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات BT138B-600E,118

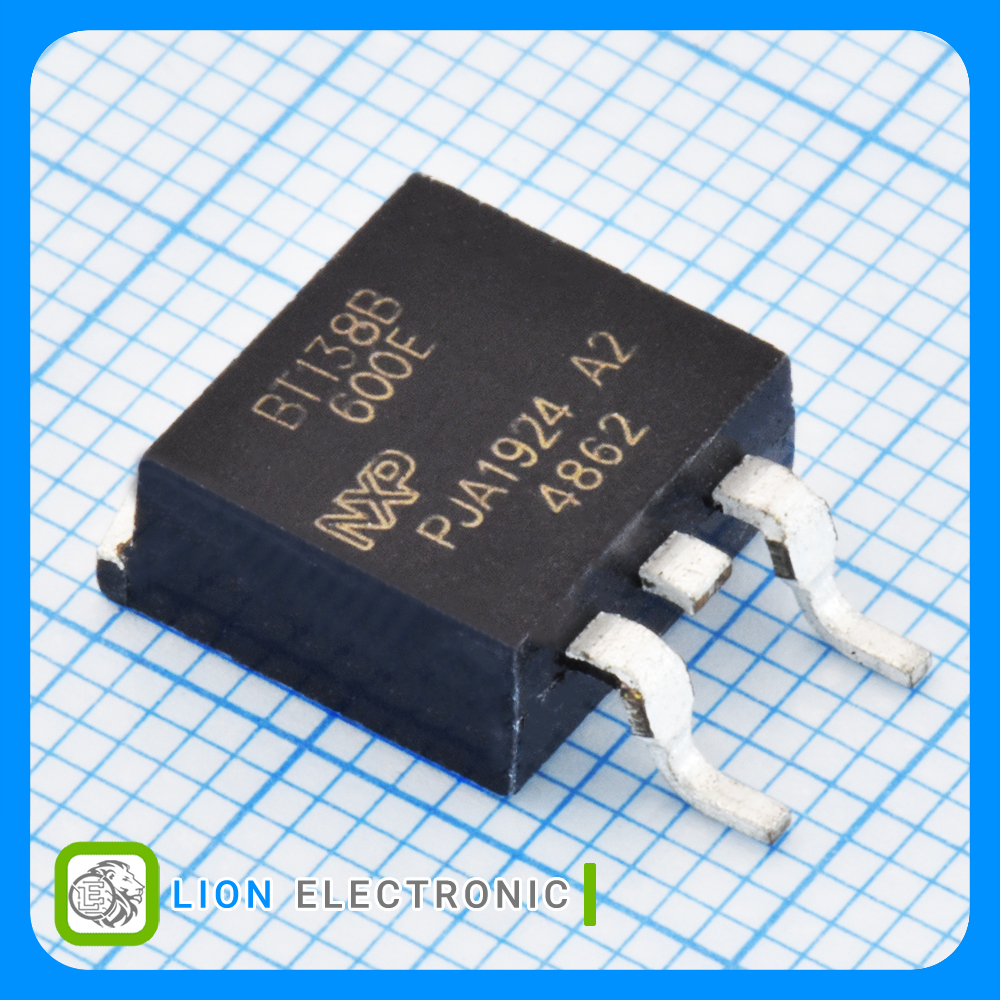

BT138B-600E,118
Part Number
700mV
Gate Trigger Voltage - Vgt
1.4V
On-State Voltage
100uA
Off-State Leakage Current @ VDRM IDRM
12A
On-State RMS Current - It RMS
11mA
Gate Trigger Current - Igt
600V
Rated Repetitive Off-State Voltage VDRM
Reel
Packaging
105A
Non Repetitive On-State Current
-40C
Minimum Operating Temperature
30mA
Holding Current Ih Max
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
D2PAK
Package-Case
