4N28M
4N28M
Part Number
542
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
اپتوکوپلر- فتوکوپلر 1.5 ولت 60 میلیآمپر 250 میلیوات با پکیج PDIP-6

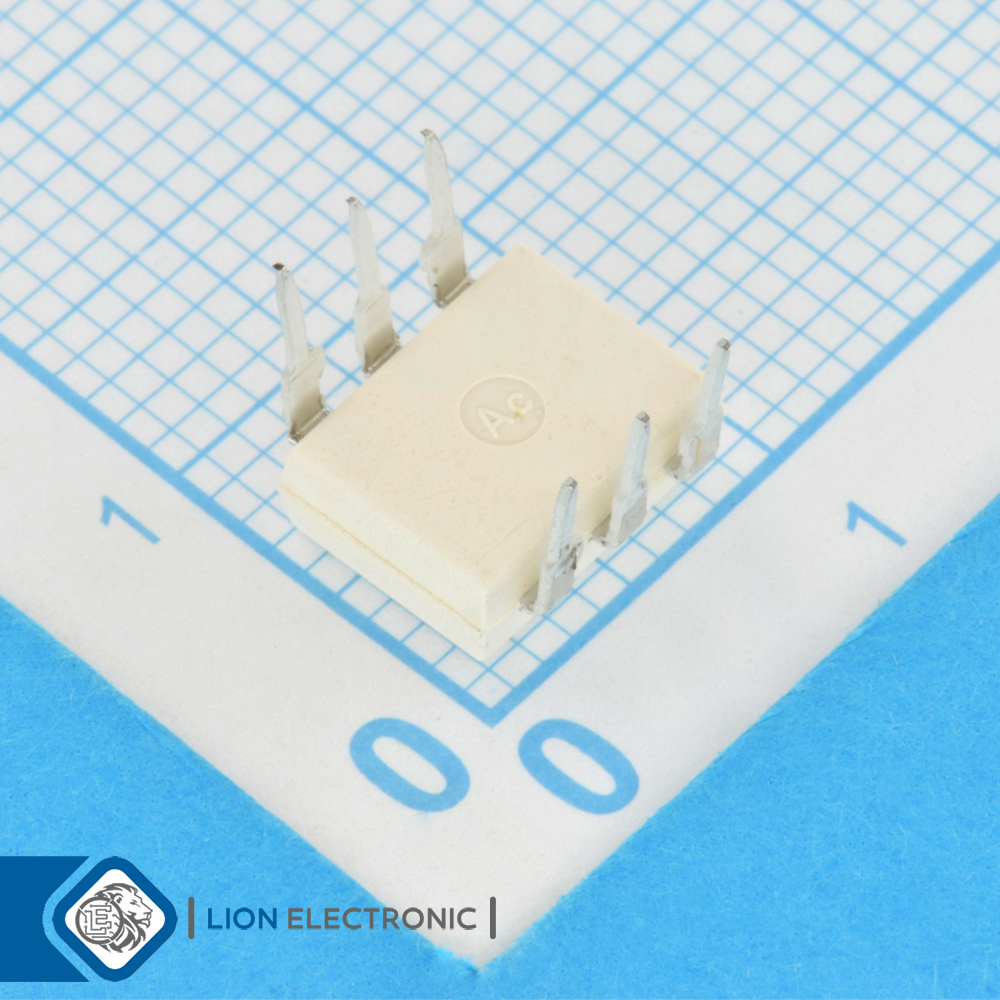

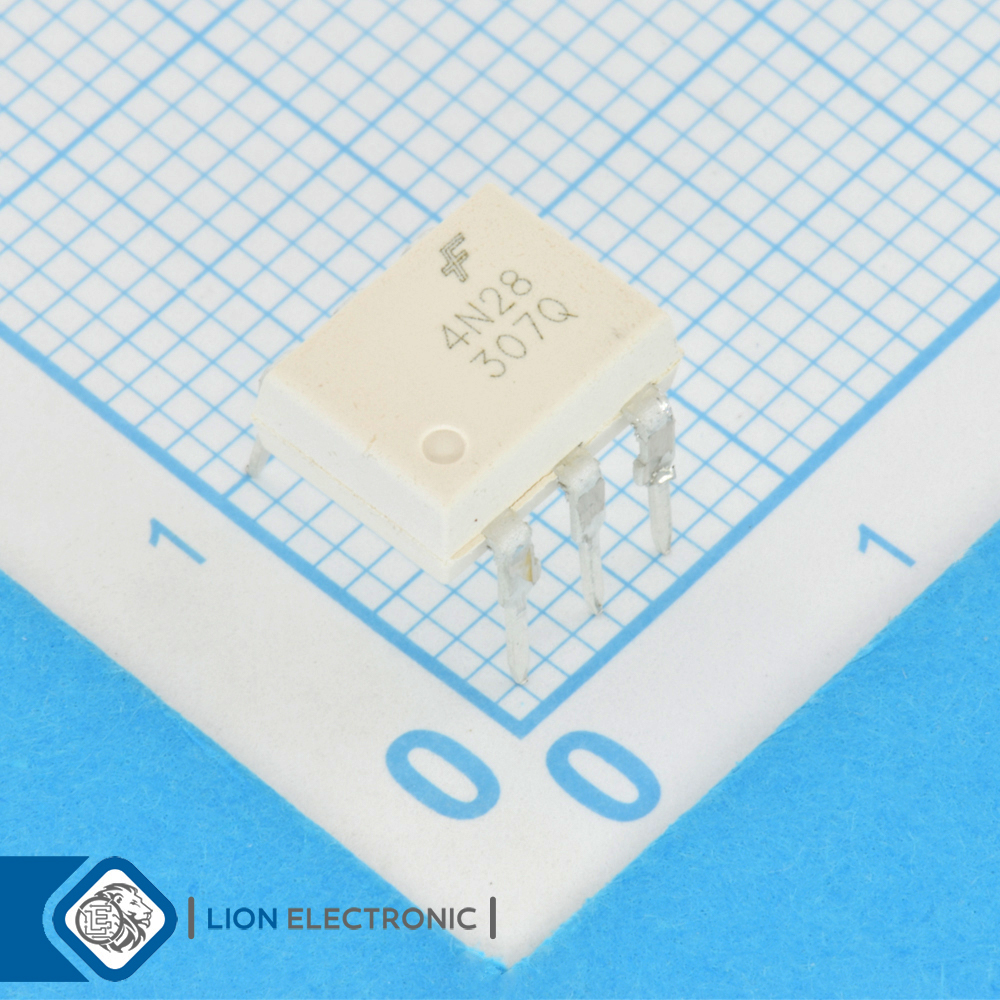

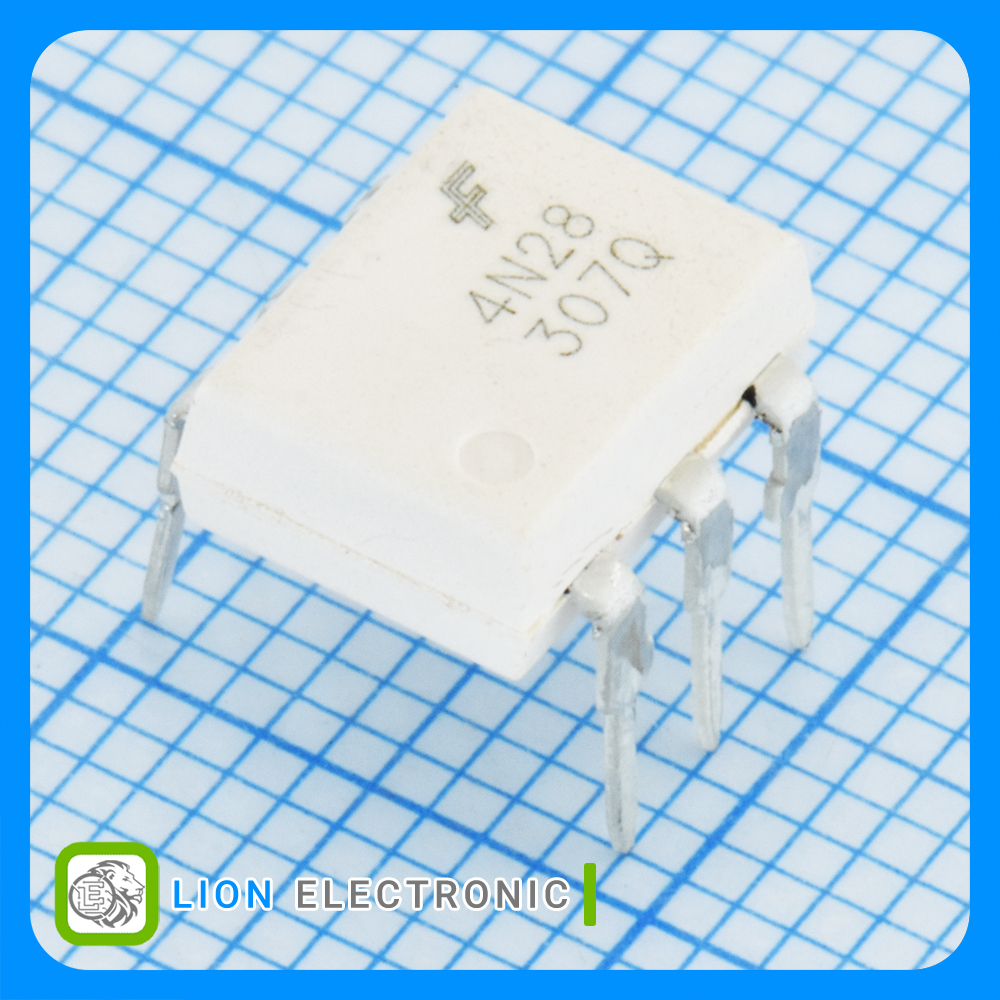

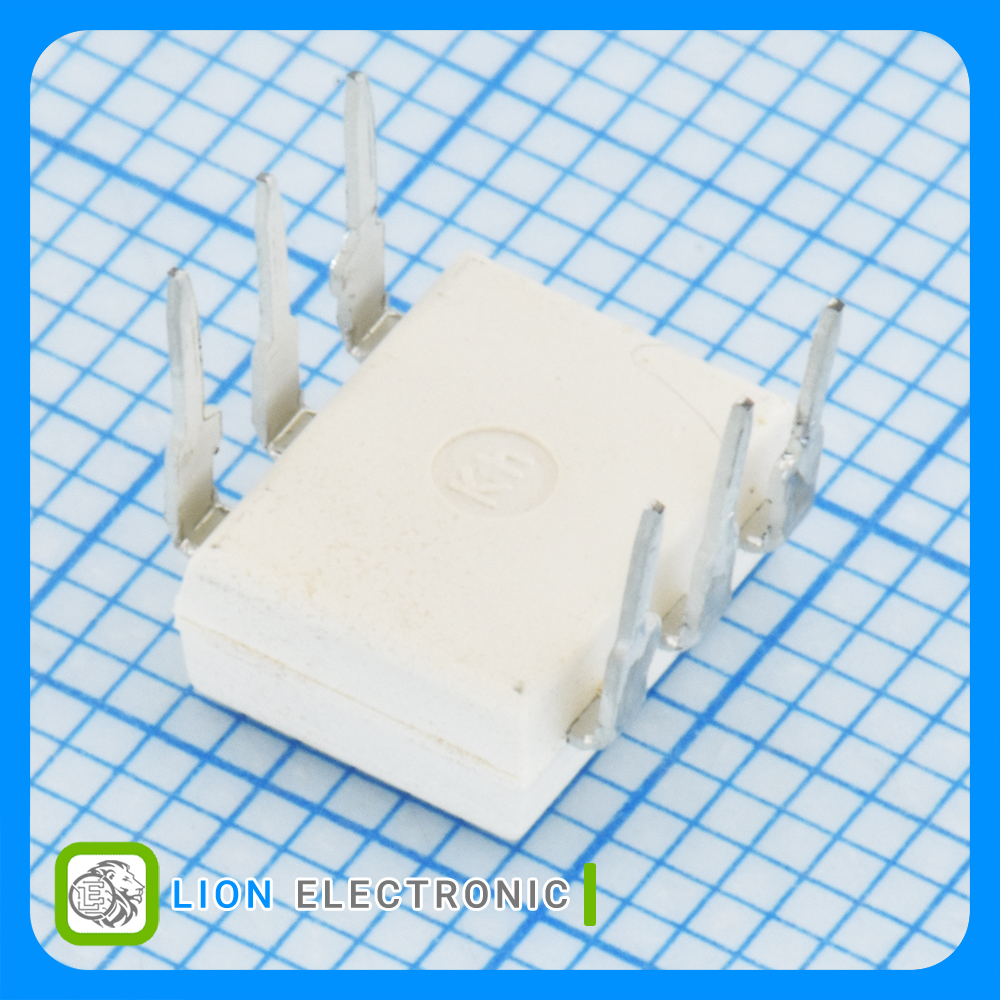

6Pin General Purpose Phototransistor Optocouplers
مشخصات 4N28M
4N28M
Part Number
1
Number of Channels
-55C
Minimum Operating Temperature
108%
Maximum CTR
DC
Input Type
Tube
Packaging
Through Hole
Mounting Style
+100C
Maximum Operating Temperature
30V
Collector - Emitter Voltage VCEO Max
60mA
If - Forward Current
7.5kVrms
Isolation Voltage
NPN Phototransistor
Output Type
250mW
Pd - Power Dissipation
1.5V
Vf - Forward Voltage
DIP-6
Package-Case
Transistor Output Optocouplers
Product Type
