Hongfa
معرفی
رله 1 Form A (SPST-NO) ولتاژ کویل 12 ولت جریان کنتاکت 50 آمپر با نصب پایهدار

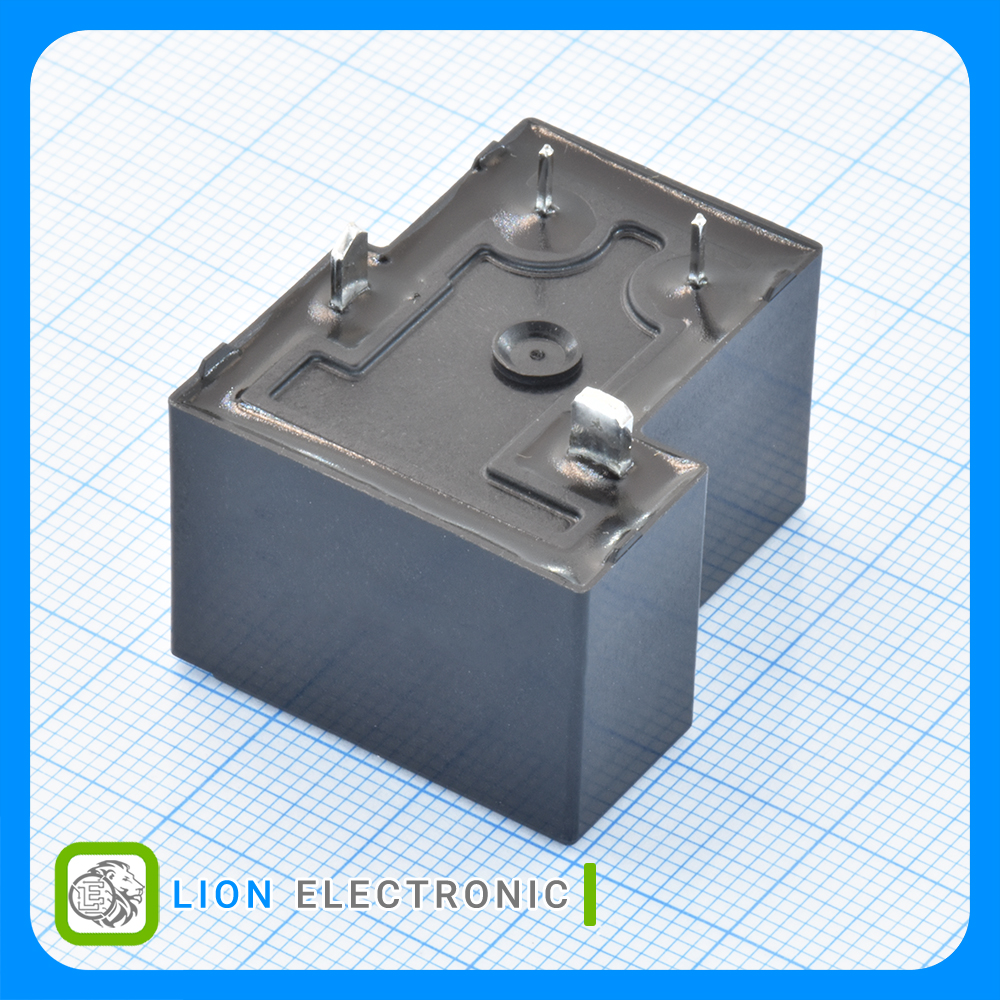

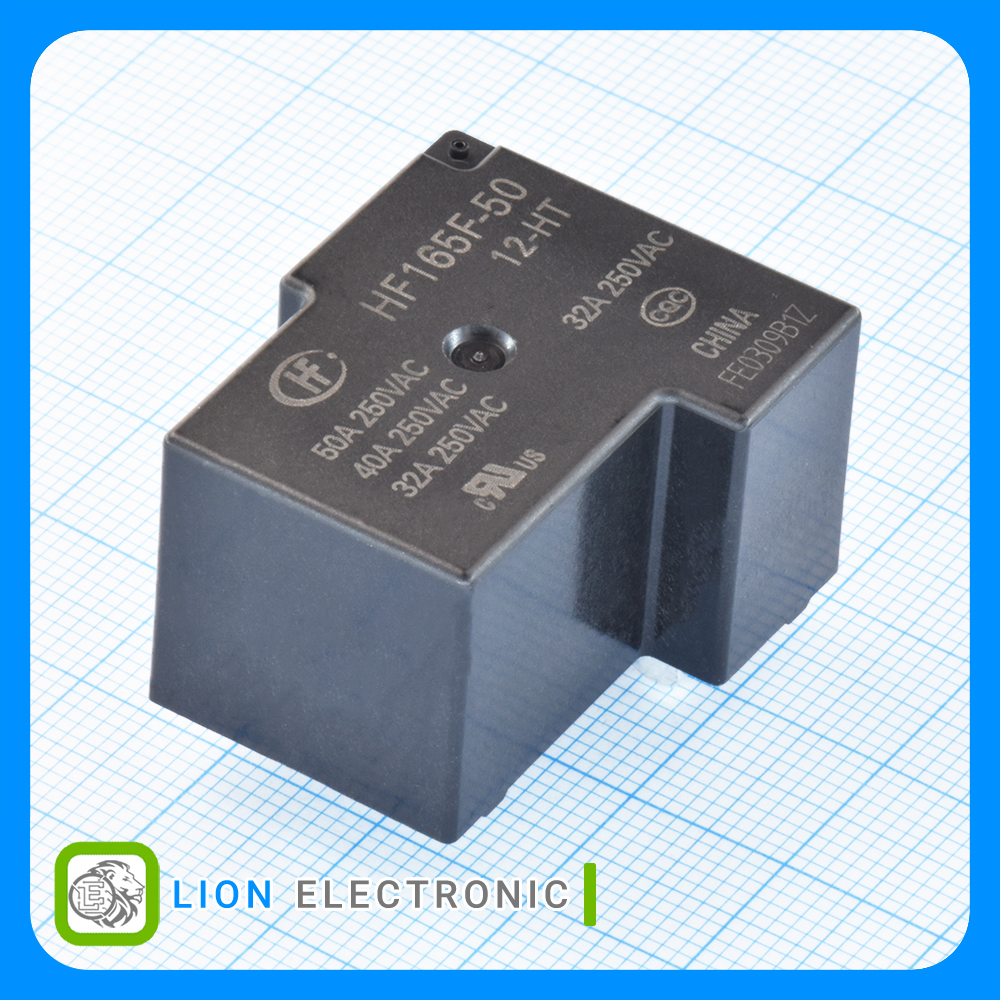

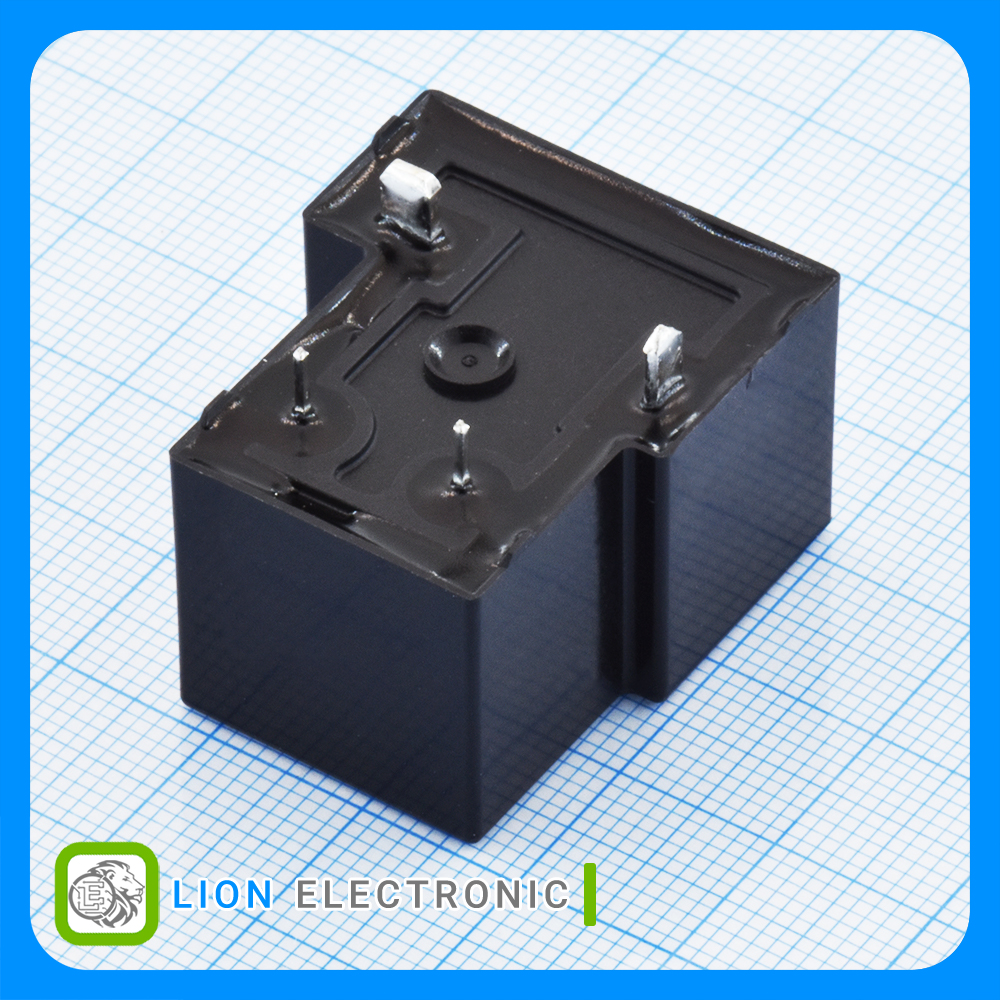

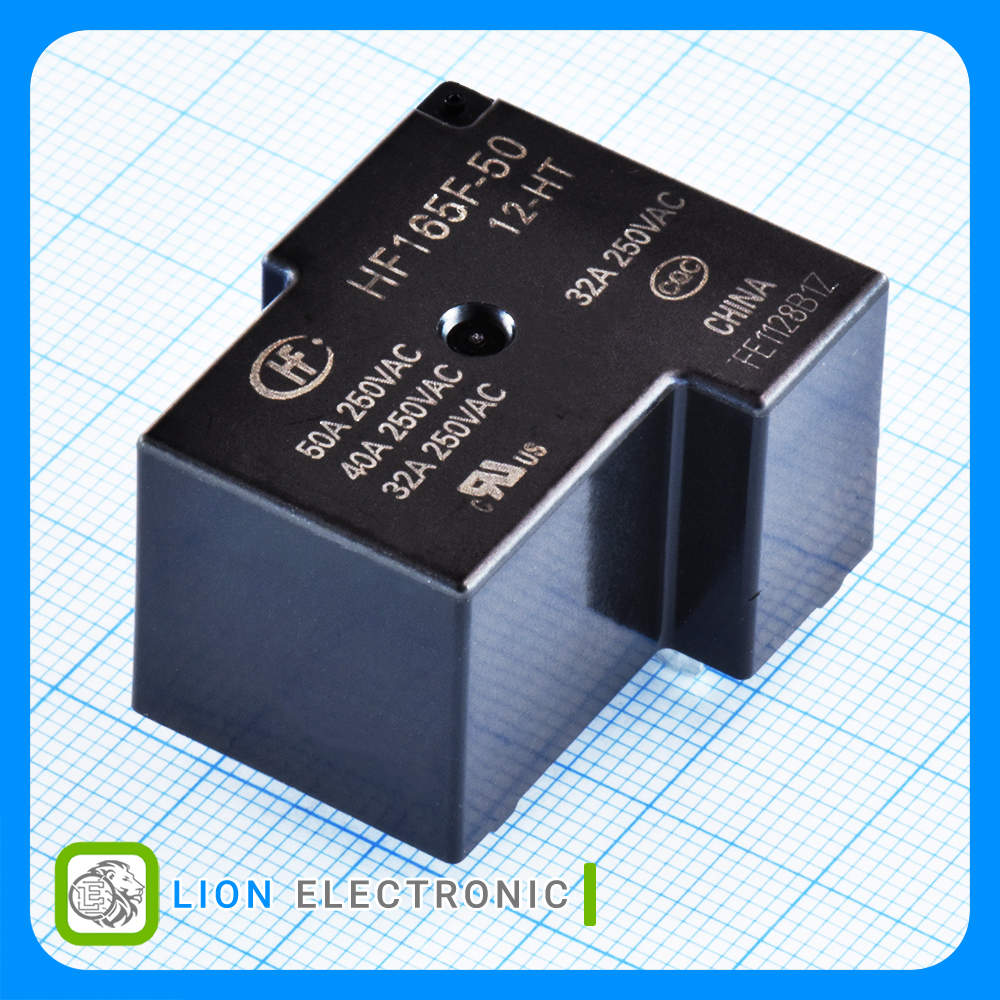

General Purpose Relay 1 Form A (SPST-NO), 12VDC with 50A Contact Current, PCB type
Specifications
- Relay Contact Form: 1 Form A (SPST-NO)
- insulation class: Class F
- Coil Voltage: 12VDC
- Contact Current Rating: 50A
- Coil Resistance: 120Ω
- Coil Current: 100mA
- Power Consumption: 1.2W
- Height: 19.4mm
- Length: 32.2mm
- Width: 27.4mm
- Coil Type: Non-Latching
- Mounting Style: Through Hole
- Packaging: Tray
- Max Switching Voltage: 250VAC
مشخصات رله HF165F-50/12-HT

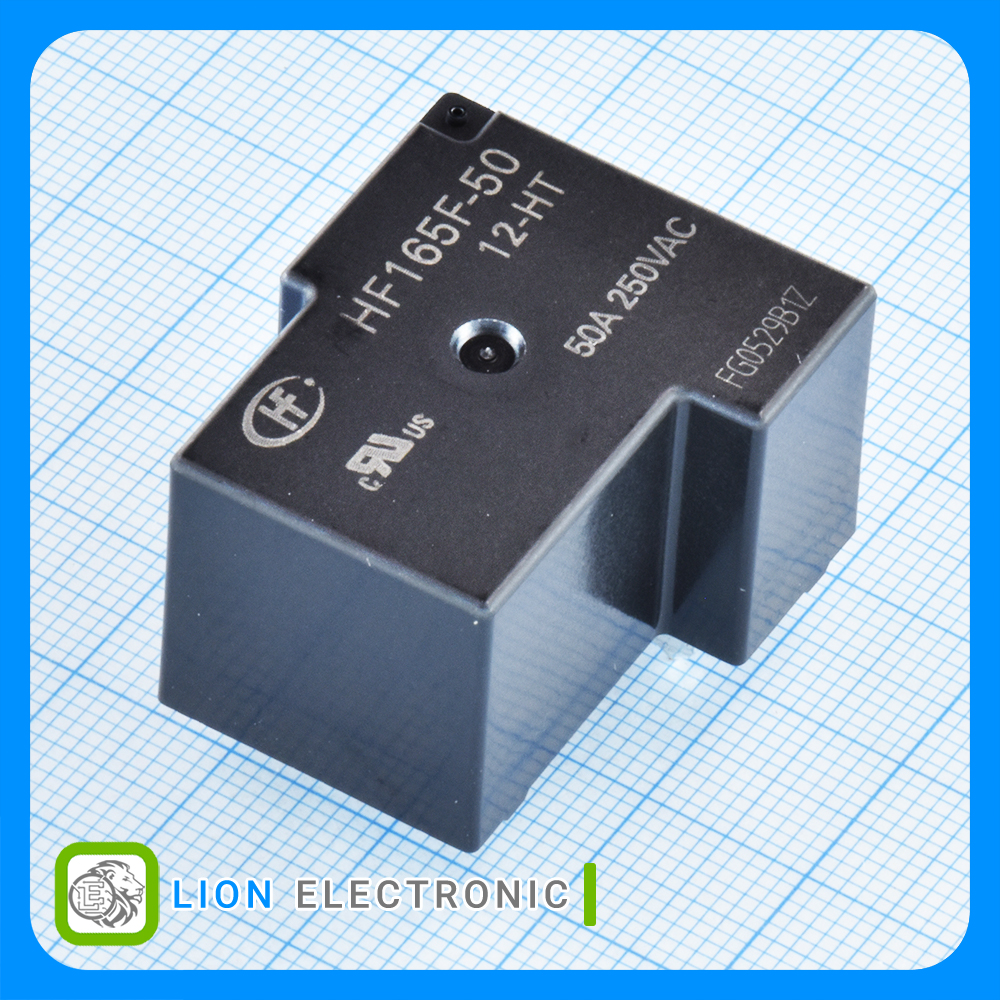

رله HF165F-50/12-HT
Part Number
1 Form A (SPST-NO)
Relay Contact Form
Non-Latching
Coil Type
12VDC
Coil Voltage
Class F
insulation class
120Ω
Coil Resistance
250VAC
Max Switching Voltage
50A
Contact Current Rating
Tray
Packaging
1.2W
Power Consumption
Through Hole
Mounting Style
100mA
Coil Current
27.4mm
Width
32.2mm
Length
19.4mm
Height
