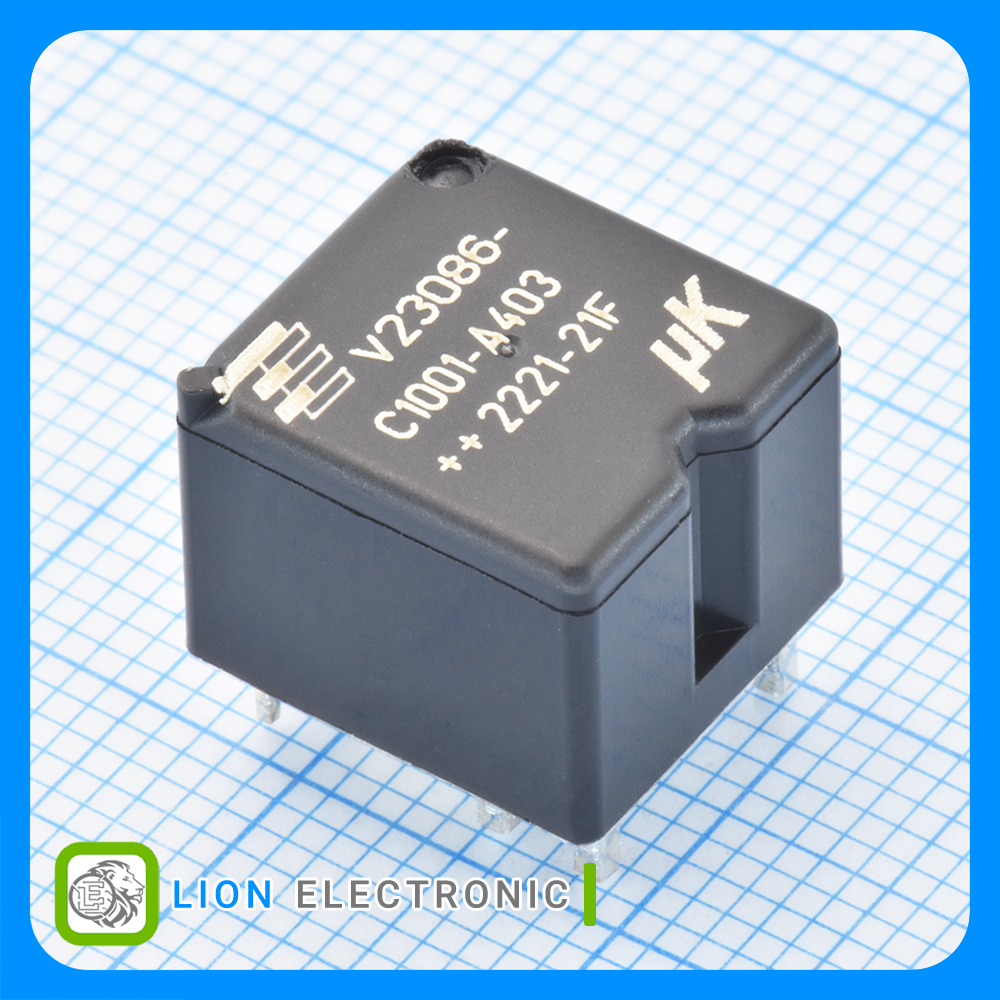

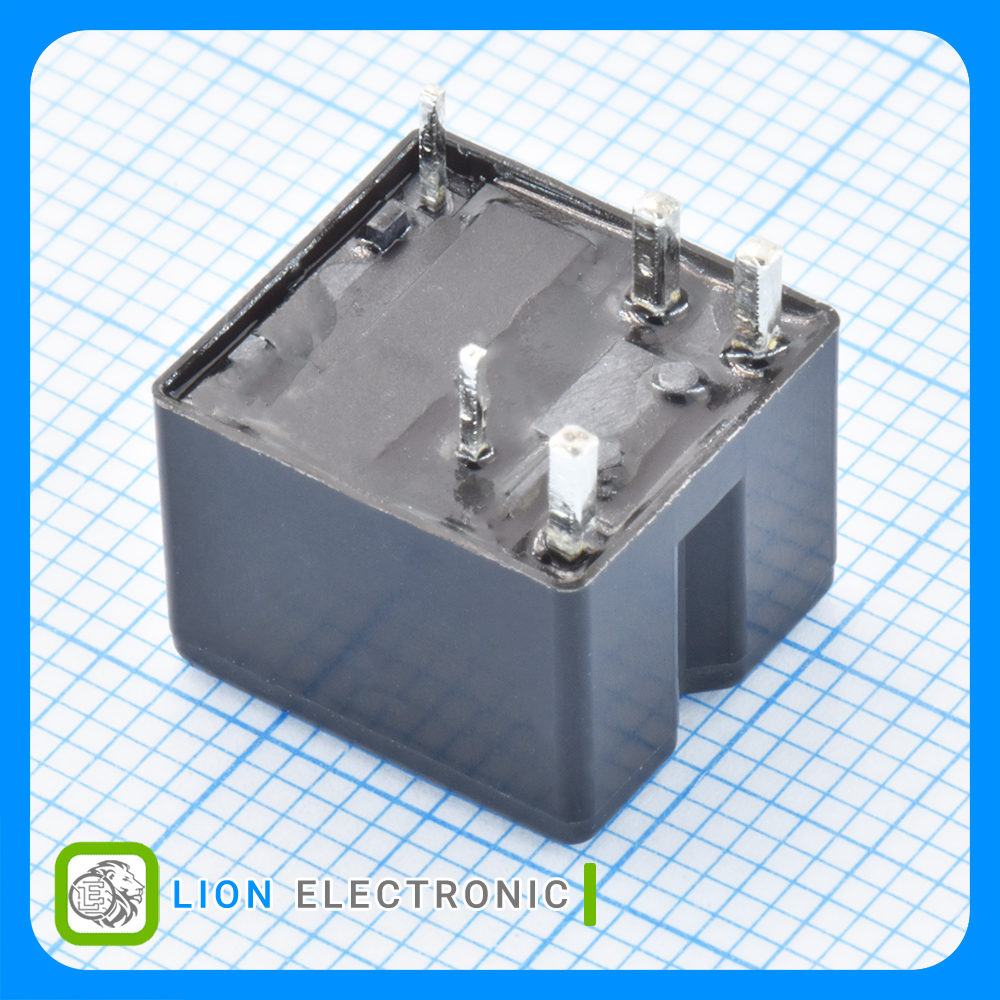

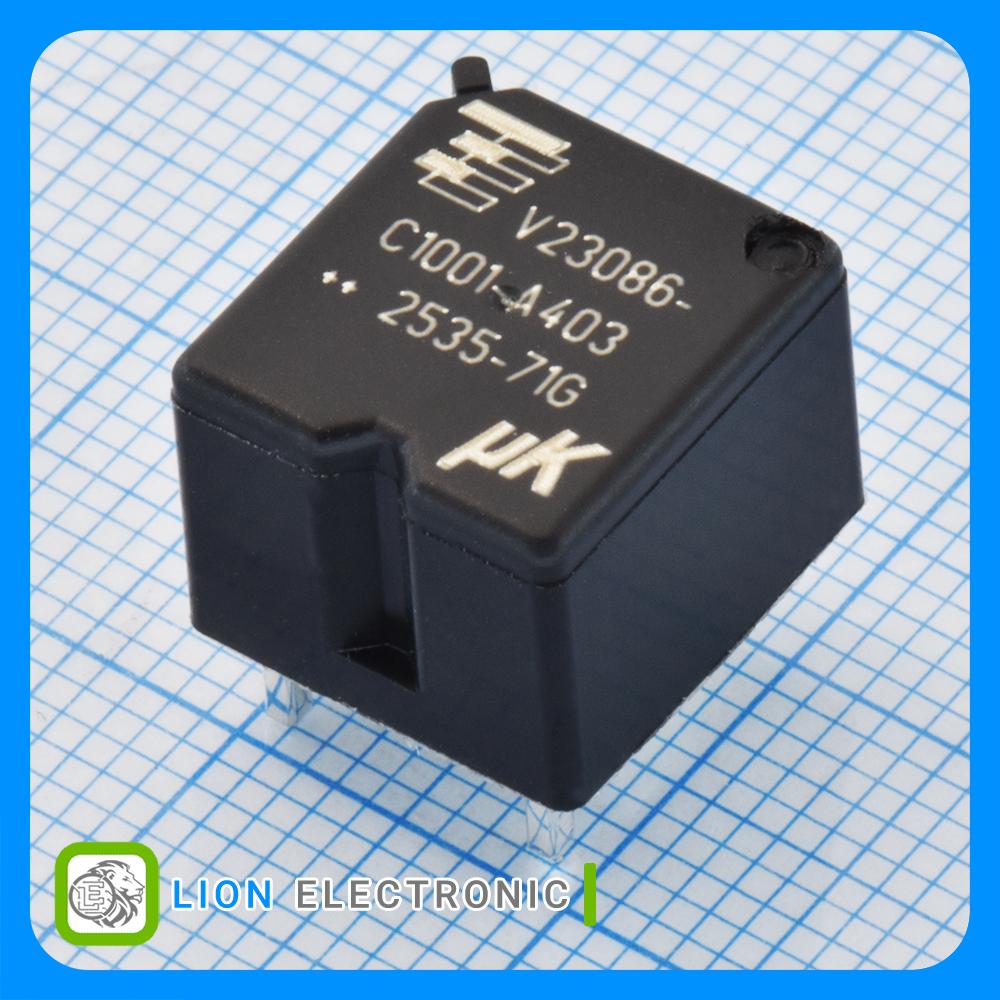

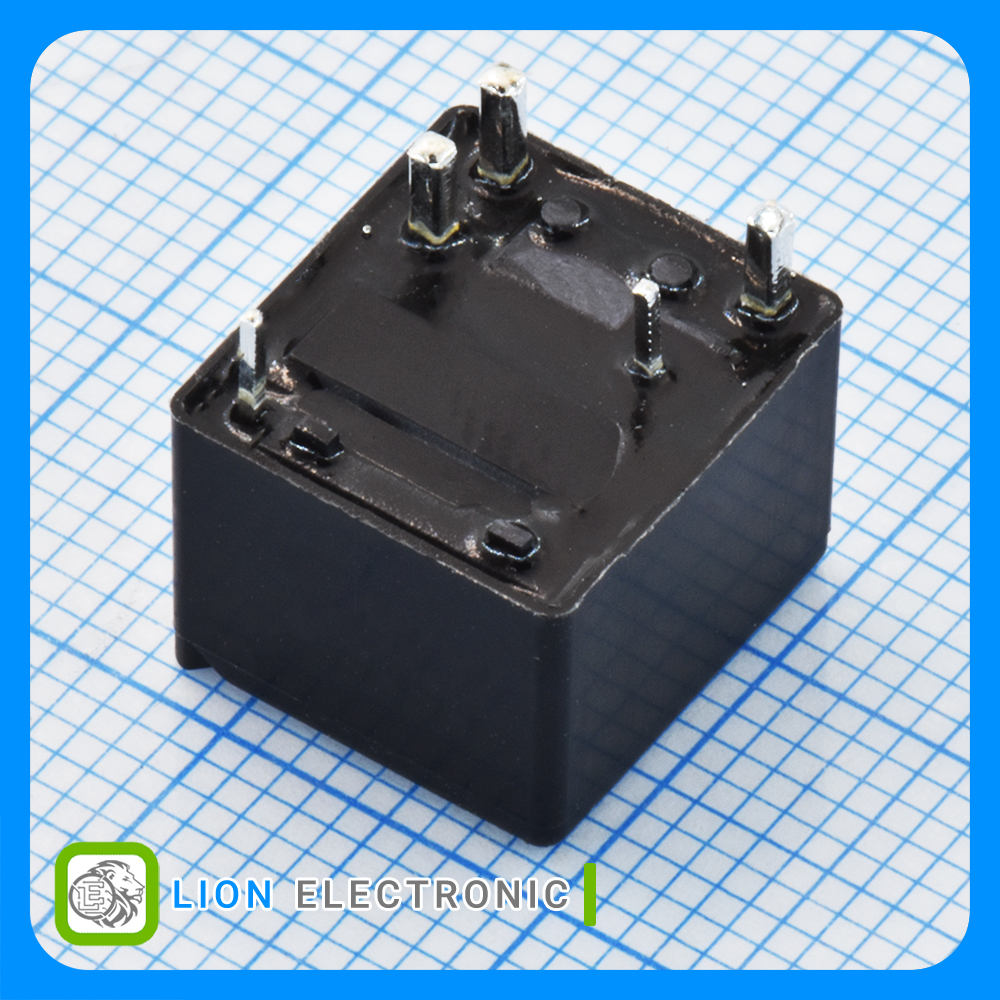

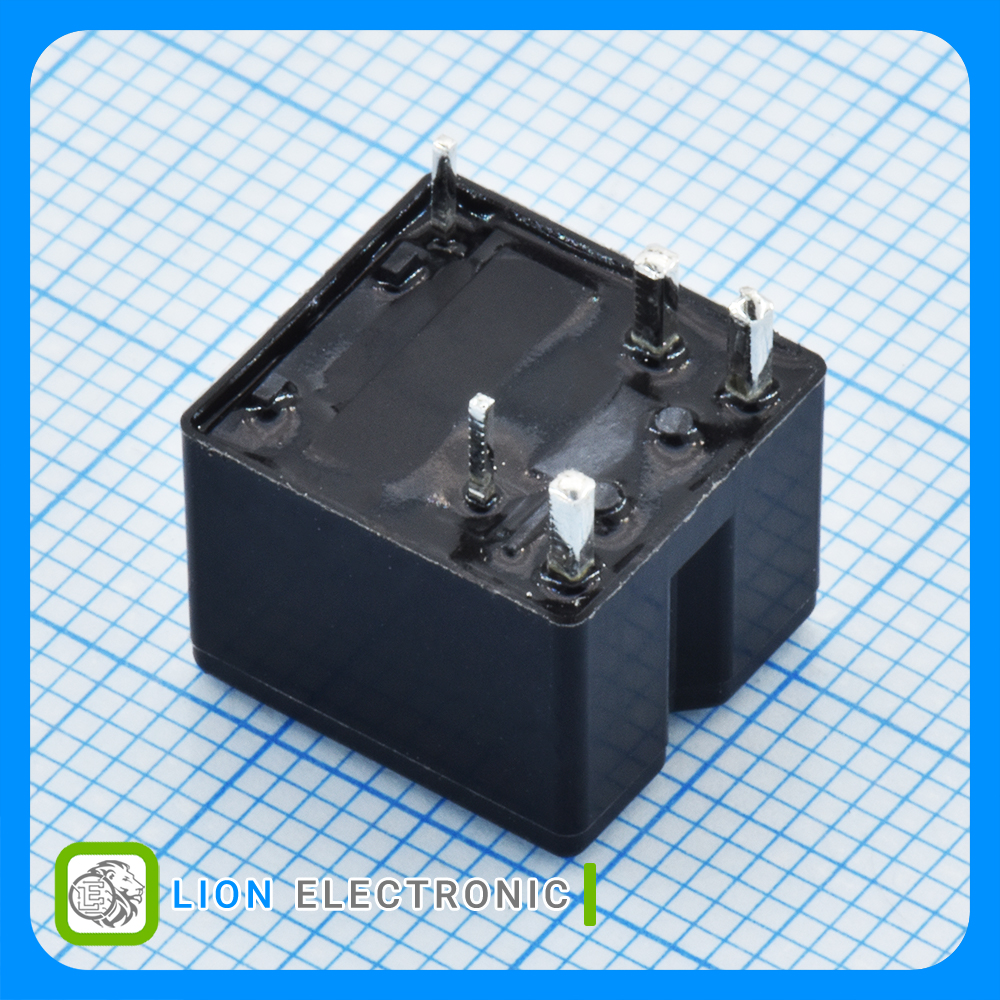

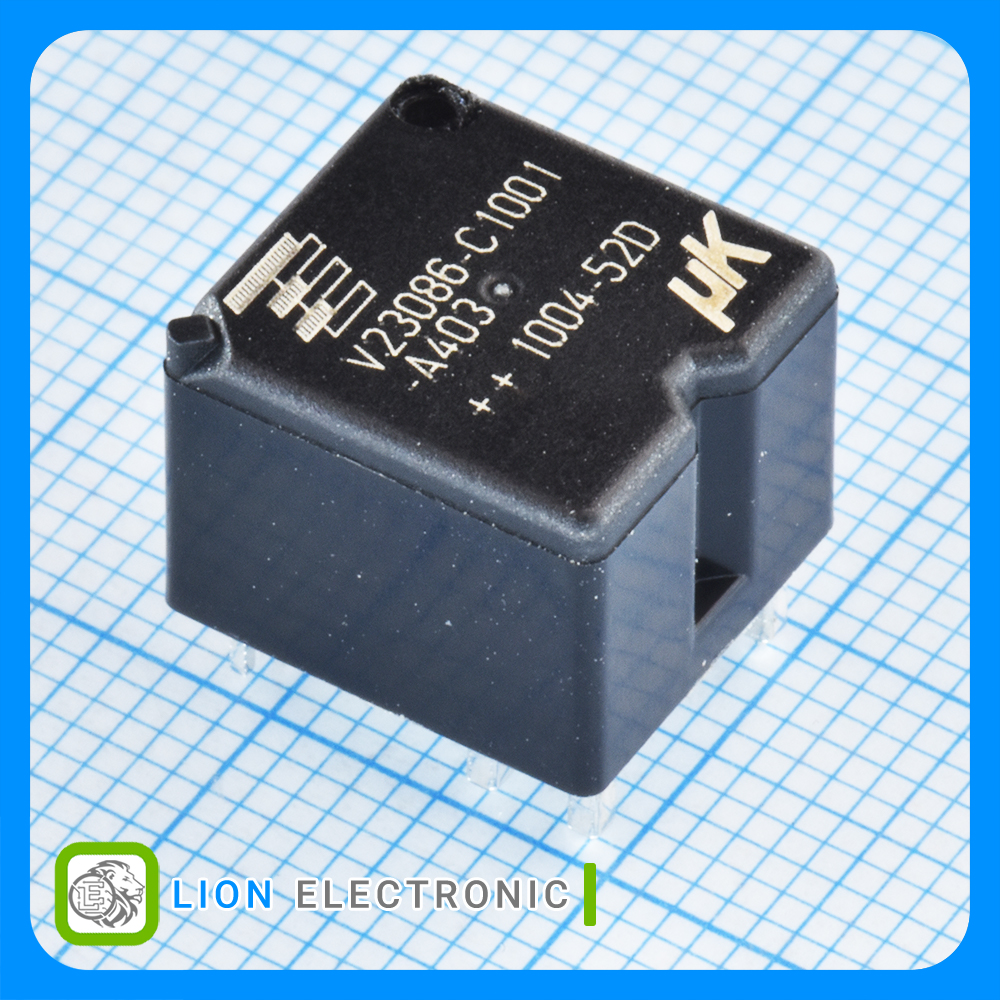

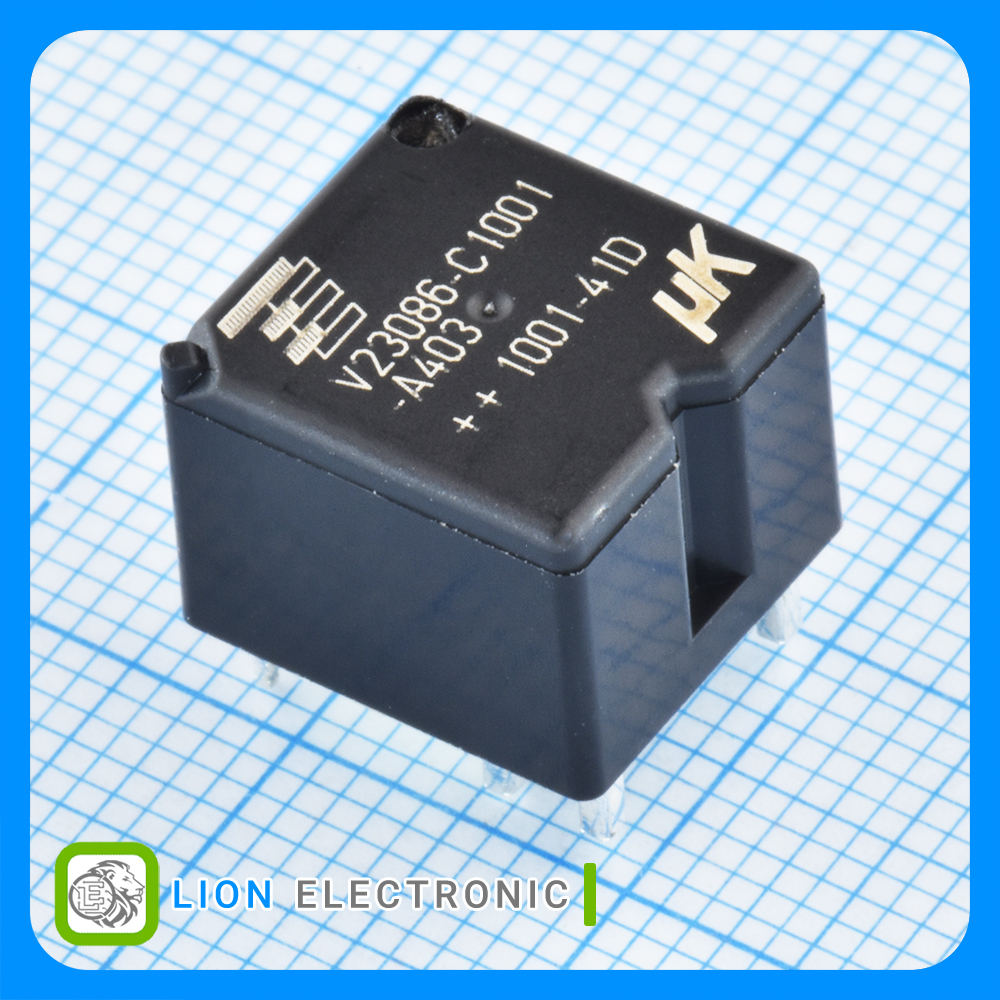

V23086C1001A403
V23086C1001A403
Part Number
5432
Lion Part
Datasheet
TE Connectivity Manufacture
رله 1 Form C (SPDT-NO, NC) ولتاژ کویل 12 ولت جریان کنتاکت 30/25 آمپر
Power Relay 1 Form C (SPDT-NO, NC), 12V with 30/25A Contact Current
معرفی
رله 1 Form C (SPDT-NO, NC) ولتاژ کویل 12 ولت جریان کنتاکت 30/25 آمپر
Power Relay 1 Form C (SPDT-NO, NC), 12V with 30/25A Contact Current
Specifications
- Relay Contact Form: 1 Form C (SPDT-NO, NC)
- Coil Voltage: 12VDC
- Contact Current Rating: 30A
- Coil Resistance: 254Ω
- Coil Current: 47.2mA
- Power Consumption: 567mW
- Height: 10.1mm
- Length: 13.2mm
- Width: 12.2mm
- Coil Type: Non-Latching
- Mounting Style: Through Hole
- Packaging: Tube
- Max Switching Voltage: 14VDC
مشخصات رله V23086C1001A403
رله V23086C1001A403
Part Number
Non-Latching
Coil Type
1 Form C (SPDT-NO, NC)
Relay Contact Form
12VDC
Coil Voltage
N/A
insulation class
567mW
Power Consumption
30A
Contact Current Rating
Tube
Packaging
254Ω
Coil Resistance
Through Hole
Mounting Style
14VDC
Max Switching Voltage
47.2mA
Coil Current
13.2mm
Length
12.2mm
Width
10.1mm
Height
