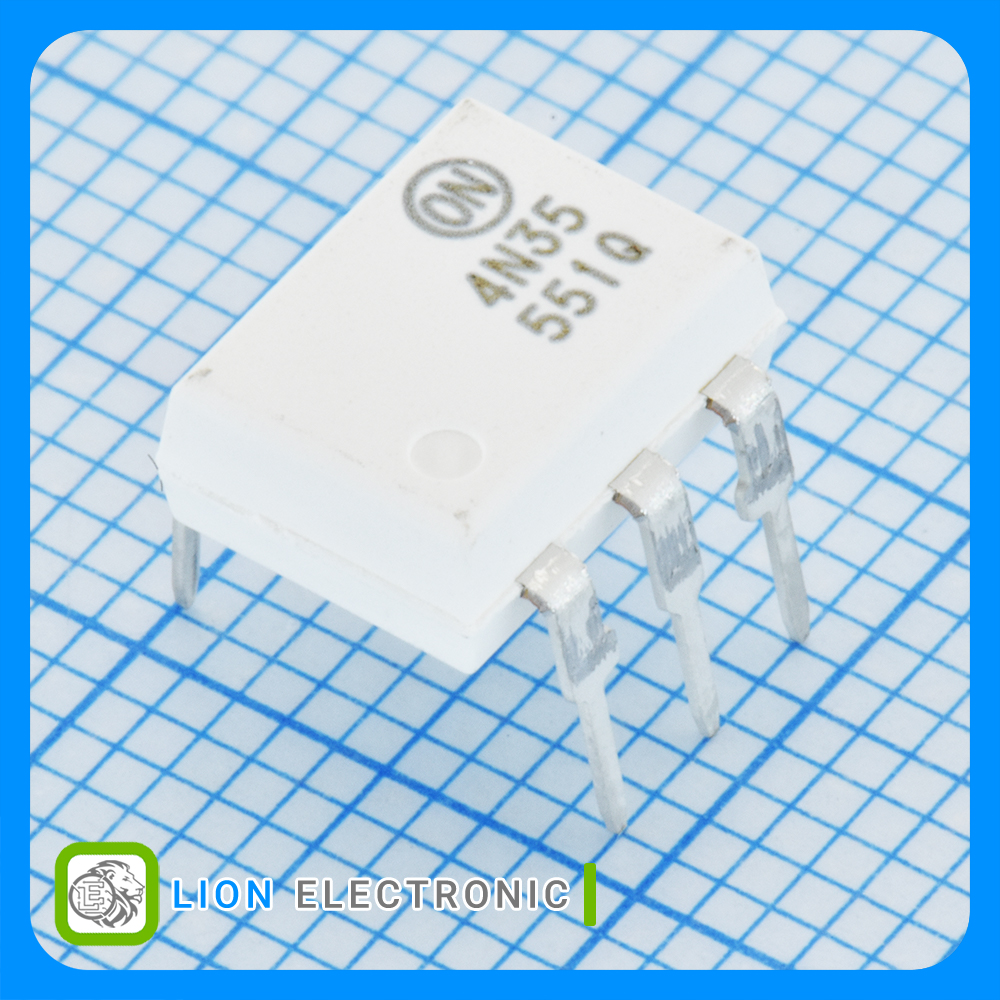

4N35M
4N35M
Part Number
544
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
اپتوکوپلر خروجی NPN فتوترانزیستور 1 کاناله 30 ولت 1.5 ولت 60 میلیآمپر 250 میلیوات ایزولاسیون 7.5 کیلوولت RMS با پکیج DIP-6، عمومی 6 پایه
NPN Phototransistor Output Optocoupler 1 Channel, 30V, 1.5V, 60mA, 250mW, 7.5kVrms Isolation with DIP-6 Package, 6Pin General Purpose
معرفی
اپتوکوپلر خروجی NPN فتوترانزیستور 1 کاناله 30 ولت 1.5 ولت 60 میلیآمپر 250 میلیوات ایزولاسیون 7.5 کیلوولت RMS با پکیج DIP-6، عمومی 6 پایه
NPN Phototransistor Output Optocoupler 1 Channel, 30V, 1.5V, 60mA, 250mW, 7.5kVrms Isolation with DIP-6 Package, 6Pin General Purpose
Specifications
- Output Type: NPN Phototransistor
- Number of Channels: 1
- Input Type: DC
- Vf - Forward Voltage: 1.5V
- Maximum CTR: 100%
- If - Forward Current: 60mA
- Pd - Power Dissipation: 250mW
- Collector - Emitter Voltage VCEO Max: 30V
- Isolation Voltage: 7.5kVrms
- Mounting Style: Through Hole
- Package/Case: DIP-6
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +100C
- Packaging: Tube
مشخصات 4N35M
4N35M
Part Number
1
Number of Channels
100%
Maximum CTR
-55C
Minimum Operating Temperature
DC
Input Type
Tube
Packaging
Through Hole
Mounting Style
+100C
Maximum Operating Temperature
30V
Collector - Emitter Voltage VCEO Max
60mA
If - Forward Current
7.5kVrms
Isolation Voltage
NPN Phototransistor
Output Type
250mW
Pd - Power Dissipation
1.5V
Vf - Forward Voltage
DIP-6
Package-Case
Transistor Output Optocouplers
Product Type
