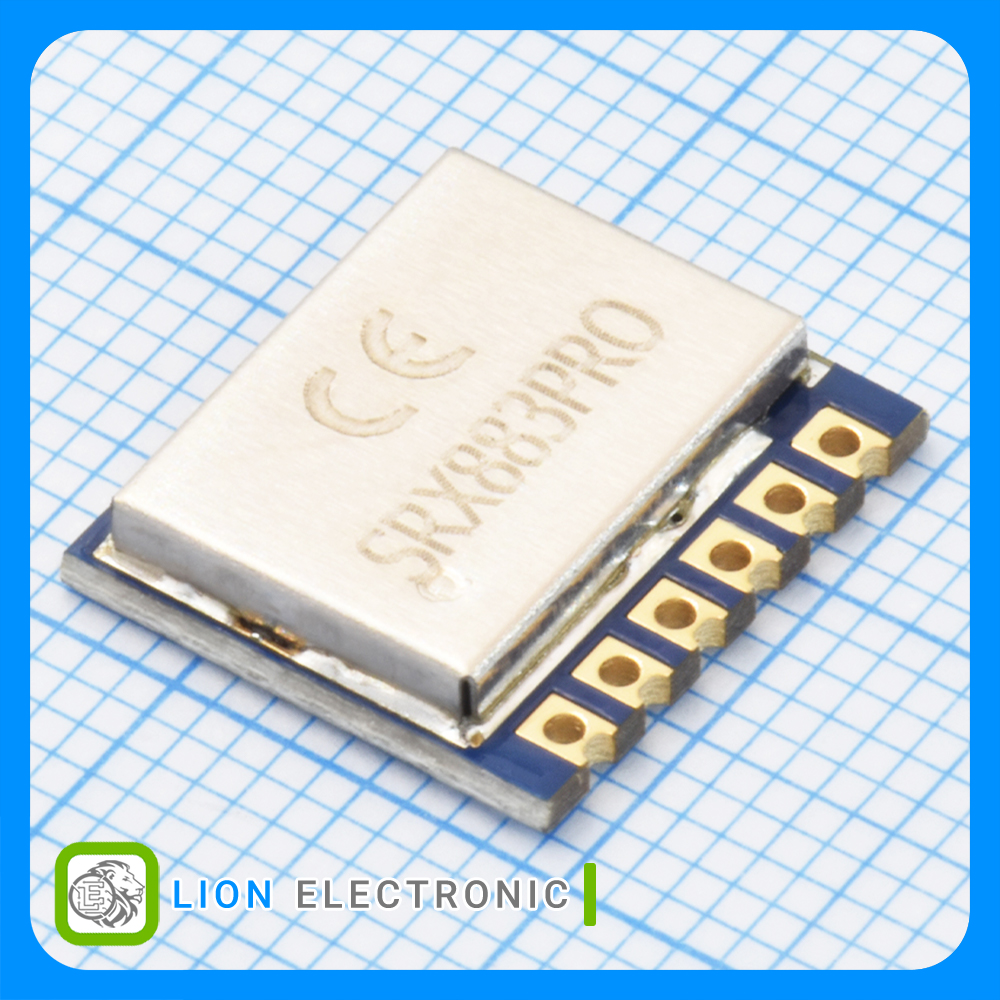

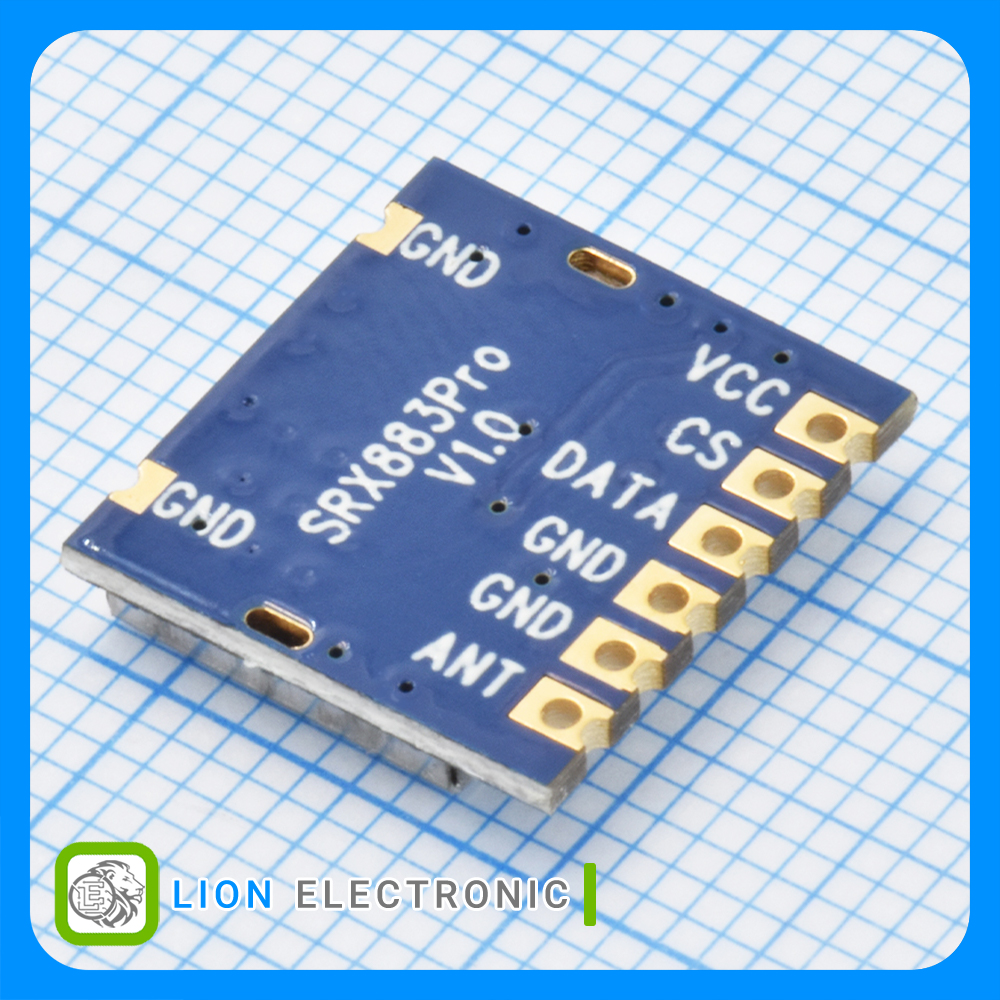

SRX883PRO-433MHz
SRX883PRO-433MHz
Part Number
5510
Lion Part
Datasheet
G-NiceRF Manufacture
ماژول گیرنده ASK سوپرهترودین SRX883Pro با فرکانس 433.72 تا 434.12 مگاهرتز با رابط سریال و تغذیه 2 تا 5.5 ولت، با تأخیر بسیار کم، پاسخ‌دهی سریع و مصرف توان پایین
ASK Receiver 433.72MHz to 434.12MHz with Serial Interface and 2 - 5.5V Supply Voltage, SRX883Pro Superheterodyne Receiver with Low Latency, Fast Response and Micro Power Consumption
معرفی
ماژول گیرنده ASK سوپرهترودین SRX883Pro با فرکانس 433.72 تا 434.12 مگاهرتز با رابط سریال و تغذیه 2 تا 5.5 ولت، با تأخیر بسیار کم، پاسخ‌دهی سریع و مصرف توان پایین
ASK Receiver 433.72MHz to 434.12MHz with Serial Interface and 2 - 5.5V Supply Voltage, SRX883Pro Superheterodyne Receiver with Low Latency, Fast Response and Micro Power Consumption
Specifications
- Product: ASK Receiver
- Interface Type: Serial
- Frequency: 433.72MHz to 434.12MHz
- Operating Supply Voltage: 2 - 5.5V
- Supply Current Receiving: 3mA
- Dimensions: 13.9mm x 12.8mm x 2.4mm
- Minimum Operating Temperature: -30C
- Maximum Operating Temperature: +80C
- Packaging: Tray
مشخصات SRX883PRO-433MHz
SRX883PRO-433MHz
Part Number
3mA
Supply Current Receiving
ASK Receiver
Product
Tray
Packaging
+80C
Maximum Operating Temperature
-30C
Minimum Operating Temperature
-
Antenna Connector Type
13.9mm x 12.8mm x 2.4mm
Dimensions
433.72MHz to 434.12MHz
Frequency
2 - 5.5V
Operating Supply Voltage
N/A
Supply Current Transmitting
N/A
Output Power
Serial
Interface Type
