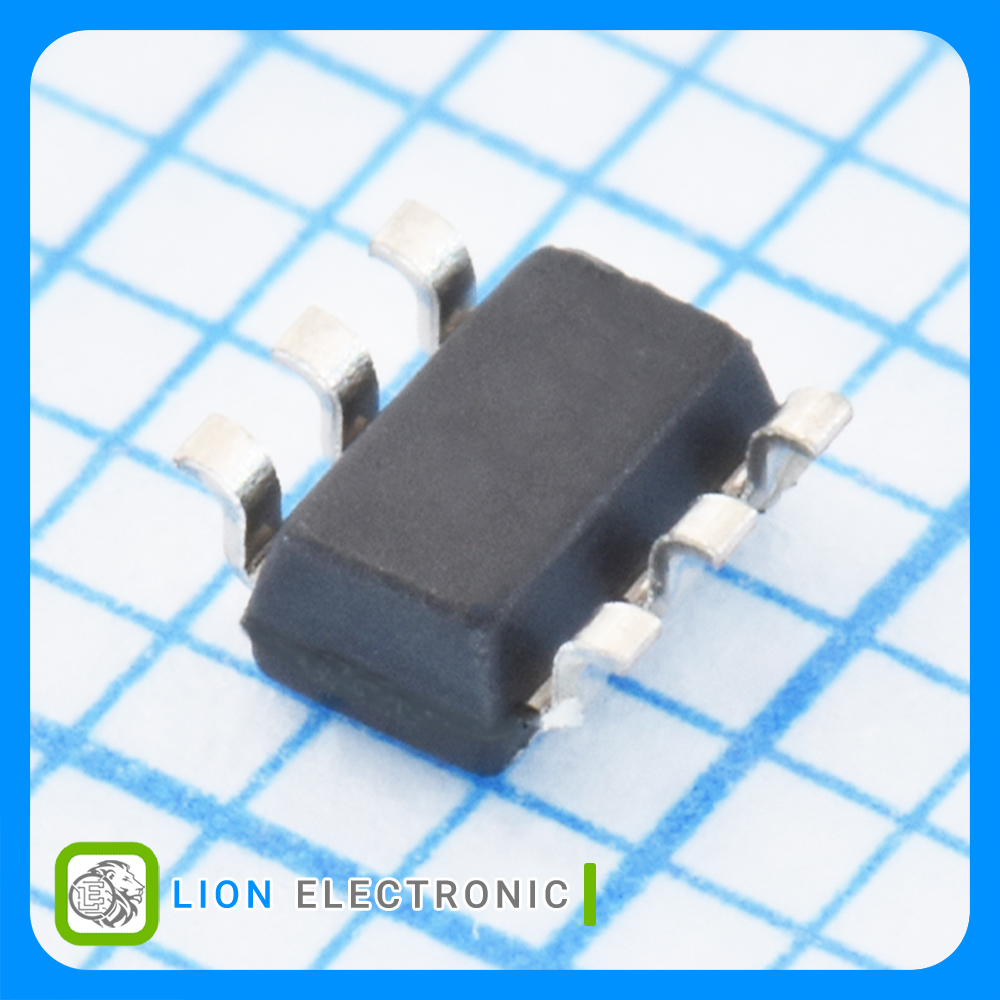

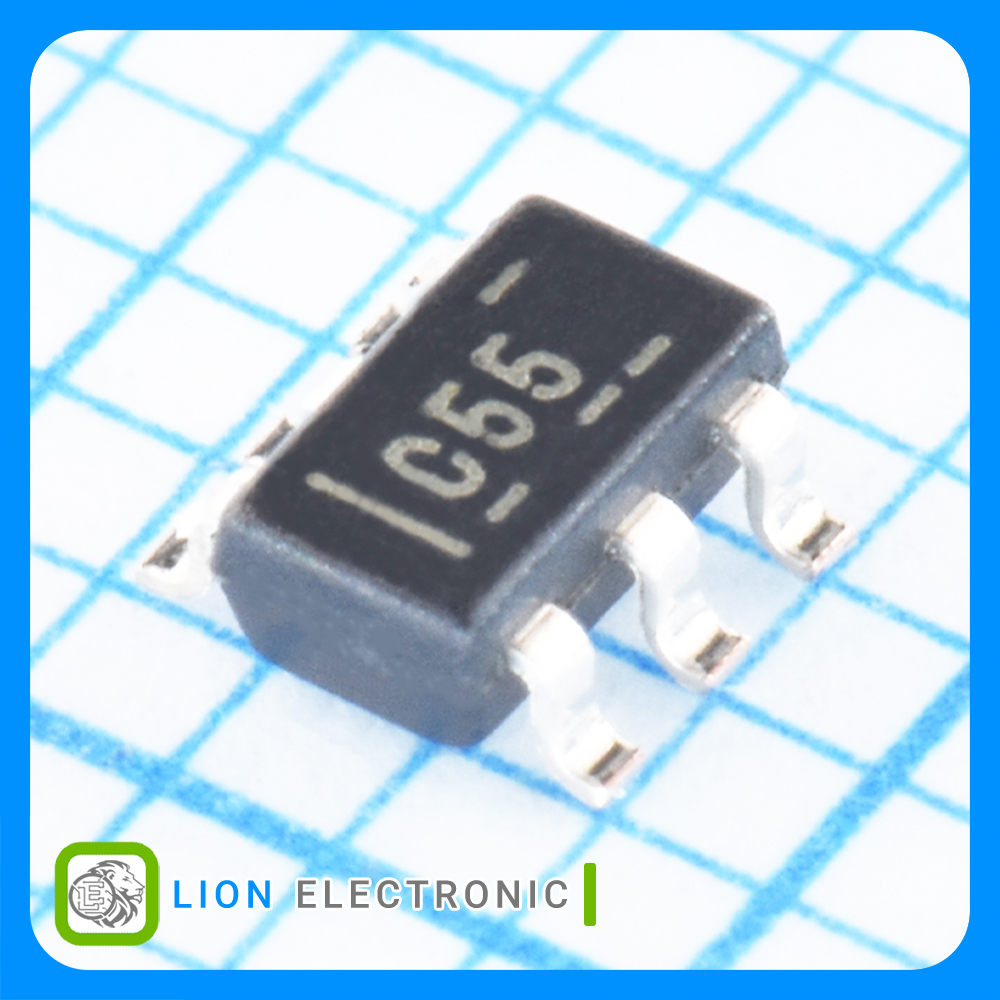

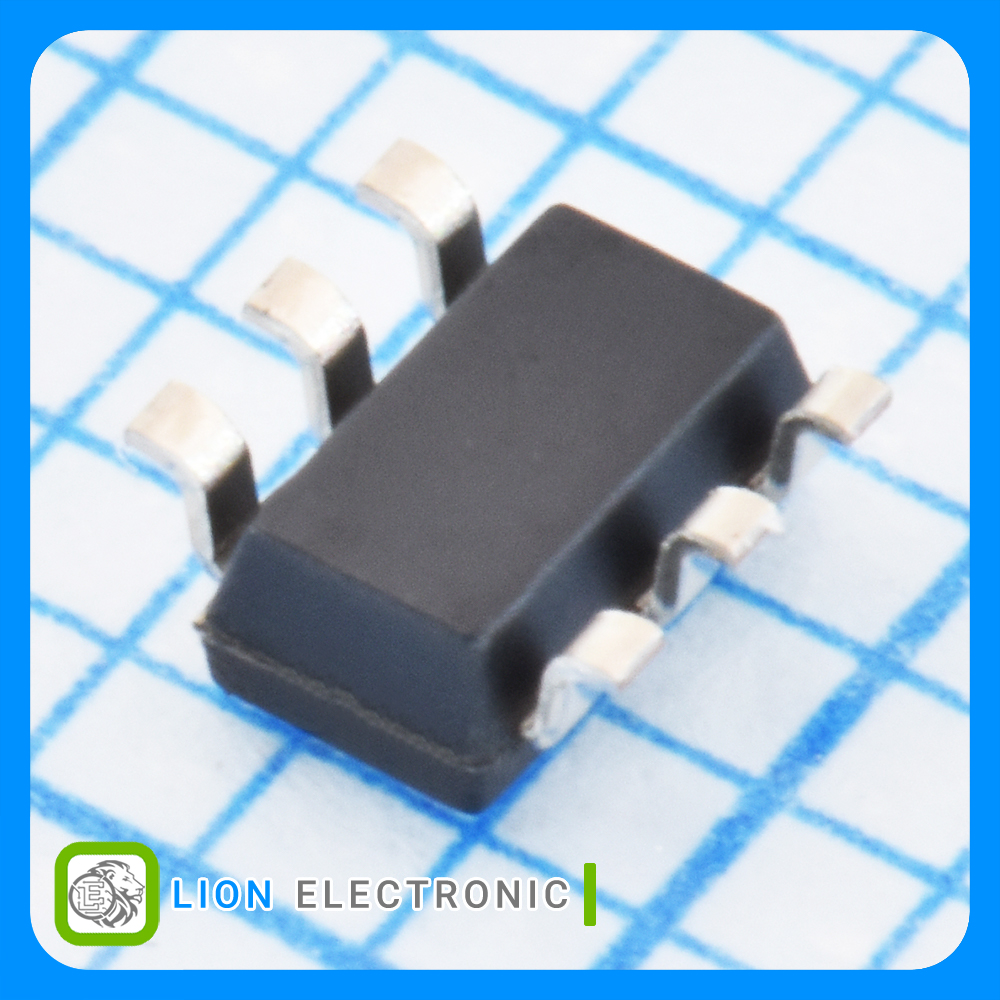

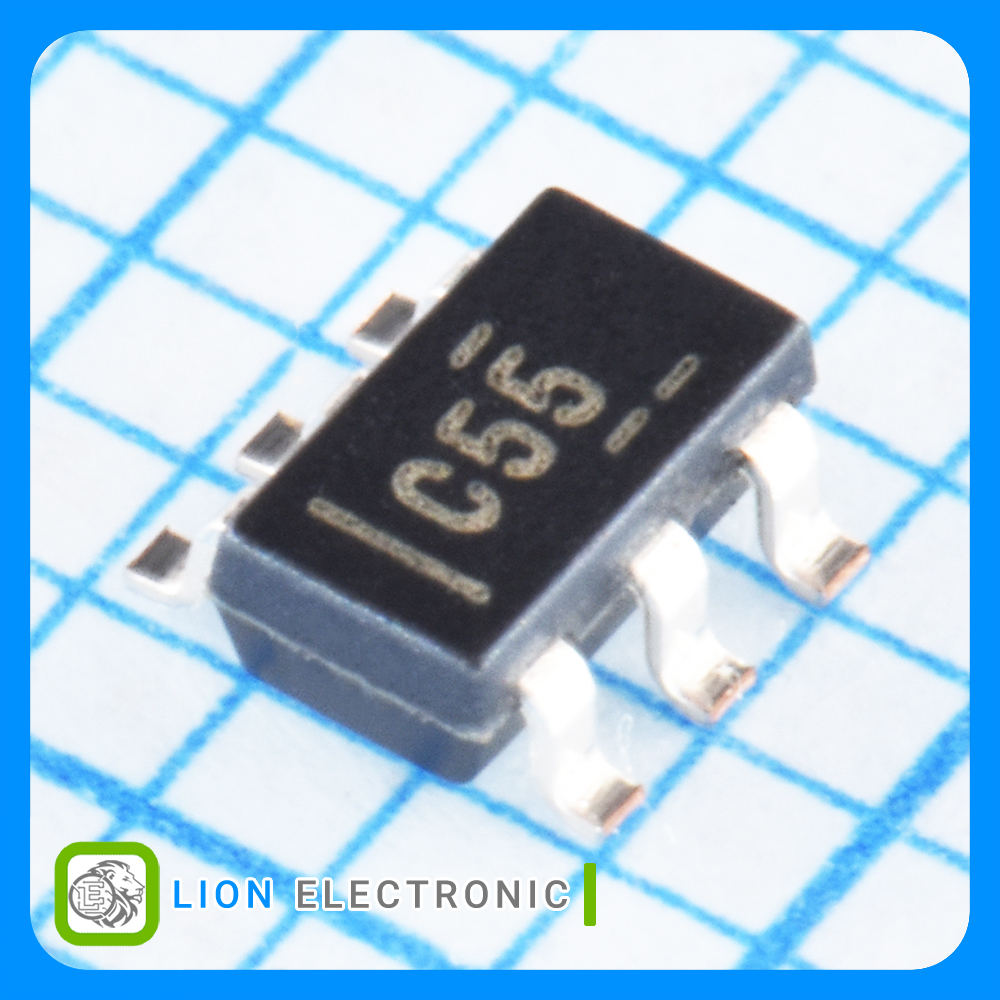

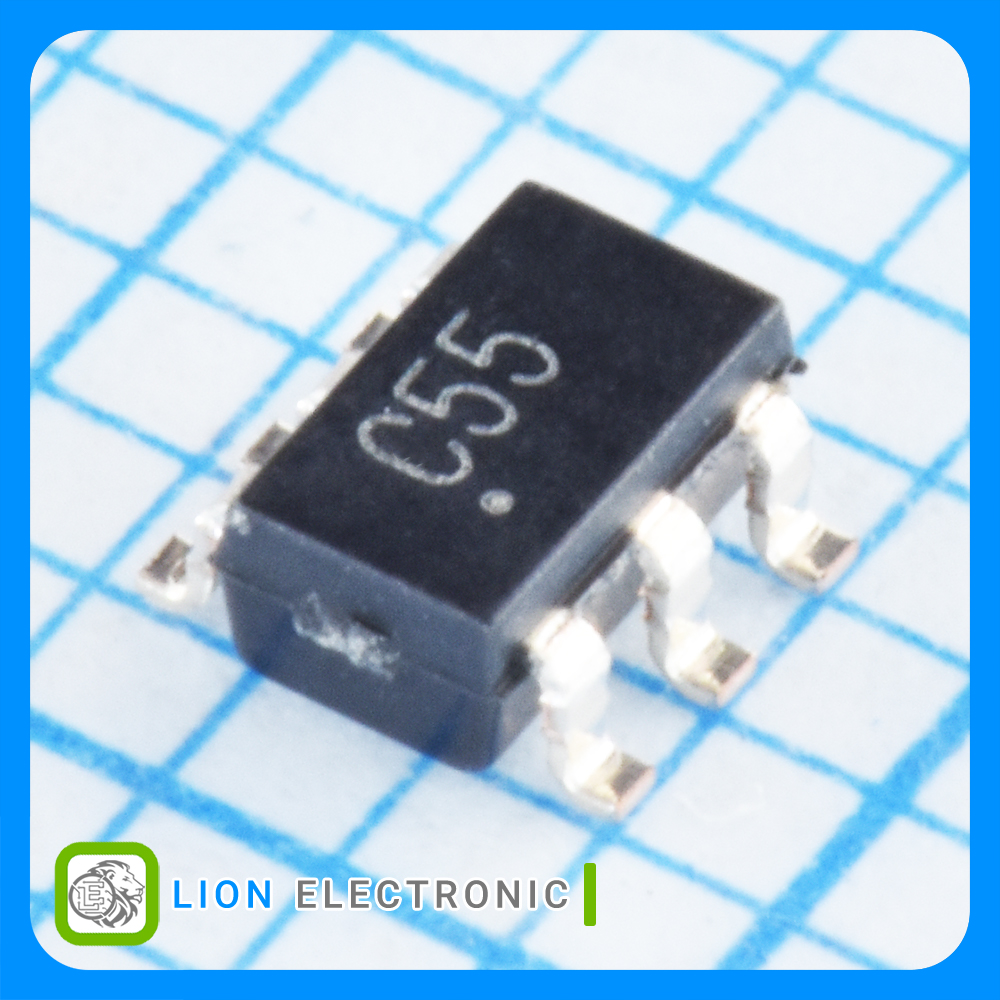

OPA355NA/3K
OPA355NA/3K
Part Number
5541
Lion Part
Datasheet
Texas Instruments Manufacture
آپ‌امپ 1 کاناله CMOS با فیدبک ولتاژی و سرعت بالا، پهنای باند 200 مگاهرتز، پکیج SOT-23-6، مناسب ویدیو و کاربردهای نیازمند پهنای باند وسیع
Operational Amplifier 1-Channel, 200MHZ with SOT-23-6 Package, high-speed voltage-feedback CMOS designed for video and other applications requiring wide bandwidth
معرفی
آپ‌امپ 1 کاناله CMOS با فیدبک ولتاژی و سرعت بالا، پهنای باند 200 مگاهرتز، پکیج SOT-23-6، مناسب ویدیو و کاربردهای نیازمند پهنای باند وسیع
Operational Amplifier 1-Channel, 200MHZ with SOT-23-6 Package, high-speed voltage-feedback CMOS designed for video and other applications requiring wide bandwidth
Specifications
- Number of Channels: 1
- Output Current per Channel: 60mA
- SR - Slew Rate: 300V/us
- GBP - Gain Bandwidth Product: 200MHZ
- CMRR - Common Mode Rejection Ratio: 80dB
- Ib - Input Bias Current: 3pA
- Vos - Input Offset Voltage: ±2mV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.7V
- Operating Supply Current: 8.3mA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-6
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آپ امپ OPA355NA/3K
آپ امپ OPA355NA/3K
Part Number
1
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
3pA
Ib - Input Bias Current
+125C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
80dB
CMRR - Common Mode Rejection Ratio
60mA
Output Current per Channel
2.7V
Supply Voltage - Min
±2mV
Vos - Input Offset Voltage
300V/us
SR - Slew Rate
200MHZ
GBP - Gain Bandwidth Product
8.3mA
Operating Supply Current
SOT-23-6
Package-Case
