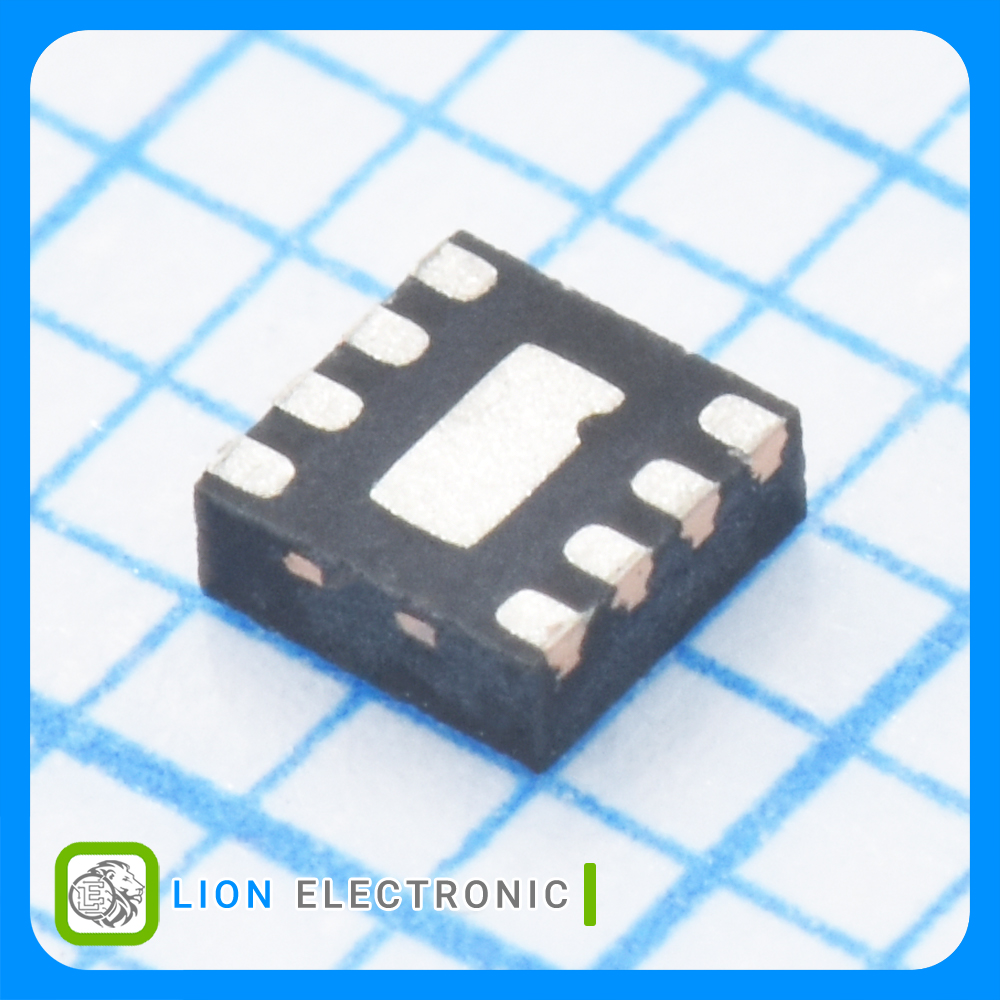

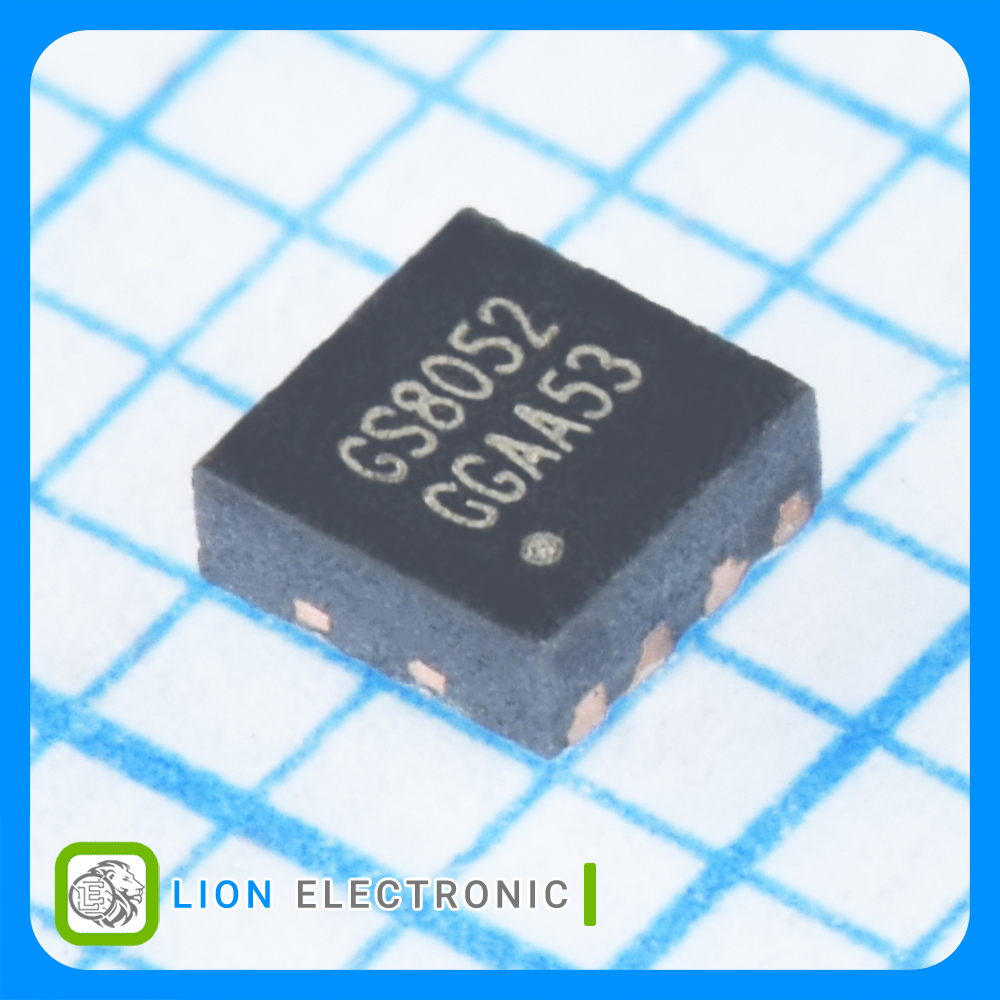

GS8052-FR
GS8052-FR
Part Number
5543
Lion Part
Datasheet
GainSil Manufacture
آپامپ 2 کاناله با فیدبک ولتاژ و خروجی ریل تو ریل، پهنای باند 115 مگاهرتز، پکیج DFN-8، با سهولت استفاده و هزینه کم
Operational Amplifier 2-Channel, 115MHz with DFN-8 Package, rail-to-rail output voltage feedback offering ease of use and low cost
معرفی
آپامپ 2 کاناله با فیدبک ولتاژ و خروجی ریل تو ریل، پهنای باند 115 مگاهرتز، پکیج DFN-8، با سهولت استفاده و هزینه کم
Operational Amplifier 2-Channel, 115MHz with DFN-8 Package, rail-to-rail output voltage feedback offering ease of use and low cost
Specifications
- Number of Channels: 2
- Output Current per Channel: 80mA
- SR - Slew Rate: 77V/us
- GBP - Gain Bandwidth Product: 115MHz
- CMRR - Common Mode Rejection Ratio: 80dB
- Ib - Input Bias Current: 1pA
- Vos - Input Offset Voltage: ±2mV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.5V
- Operating Supply Current: 2.8mA
- Mounting Style: SMD/SMT
- Package/Case: DFN-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات GS8052-FR
GS8052-FR
Part Number
2
Number of Channels
1pA
Ib - Input Bias Current
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
80dB
CMRR - Common Mode Rejection Ratio
80mA
Output Current per Channel
2.5V
Supply Voltage - Min
±2mV
Vos - Input Offset Voltage
77V/us
SR - Slew Rate
115MHz
GBP - Gain Bandwidth Product
DFN-8
Package-Case
2.8mA
Operating Supply Current
