GainSil
معرفی

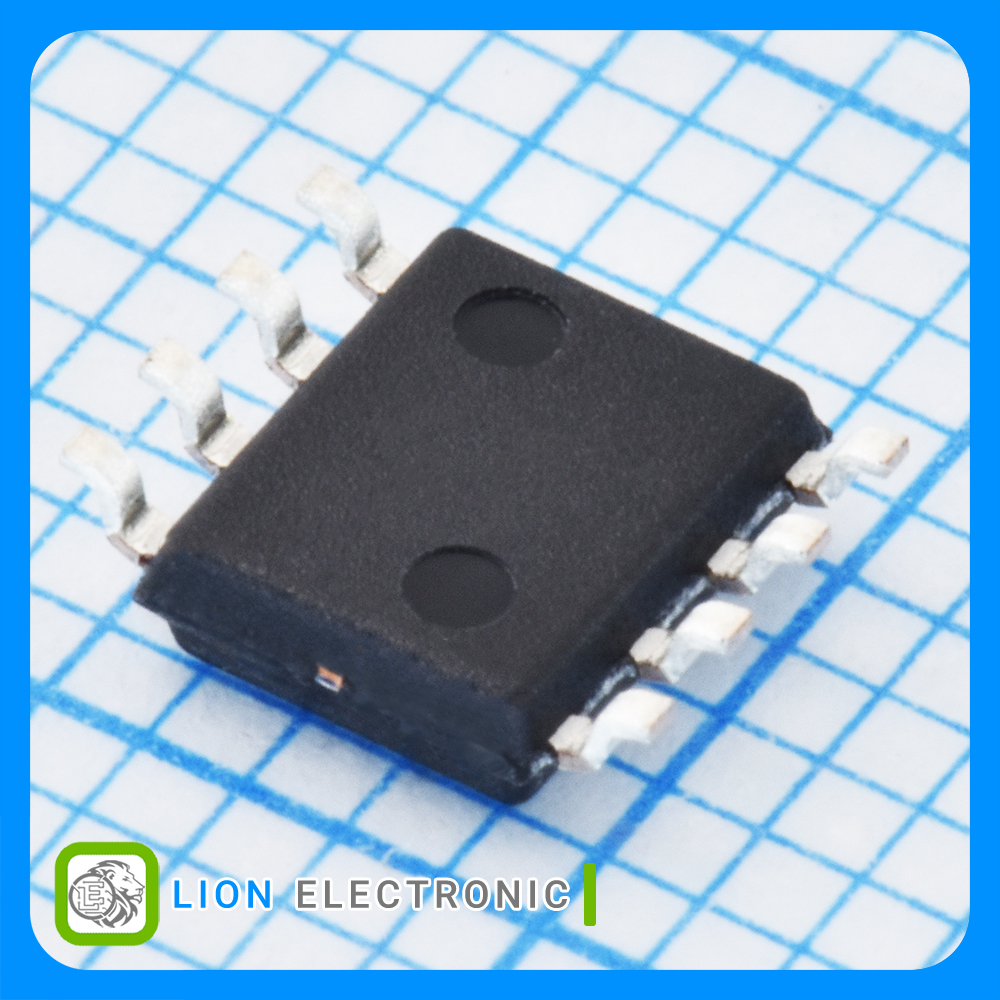

آپامپ 2 کاناله CMOS با خروجی ریل تو ریل، پهنای باند 350 مگاهرتز و ولتاژ تغذیه ۲.۵ تا ۵.۵ ولت، پکیج SOP-8
Opamp 2-Channel, 350MHZ 2CH CMOS Rail-to-Rail Output, +2.5V ~ +5.5V with SOP-8 Package
Specifications
- Number of Channels: 2
- Output Current per Channel: 120mA
- SR - Slew Rate: 119V/us
- GBP - Gain Bandwidth Product: 180MHz
- CMRR - Common Mode Rejection Ratio: 80dB
- Ib - Input Bias Current: 1pA
- Vos - Input Offset Voltage: ±2mV
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.5V
- Operating Supply Current: 4.2mA
- Mounting Style: SMD/SMT
- Package/Case: MSOP-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات GS8092-SR

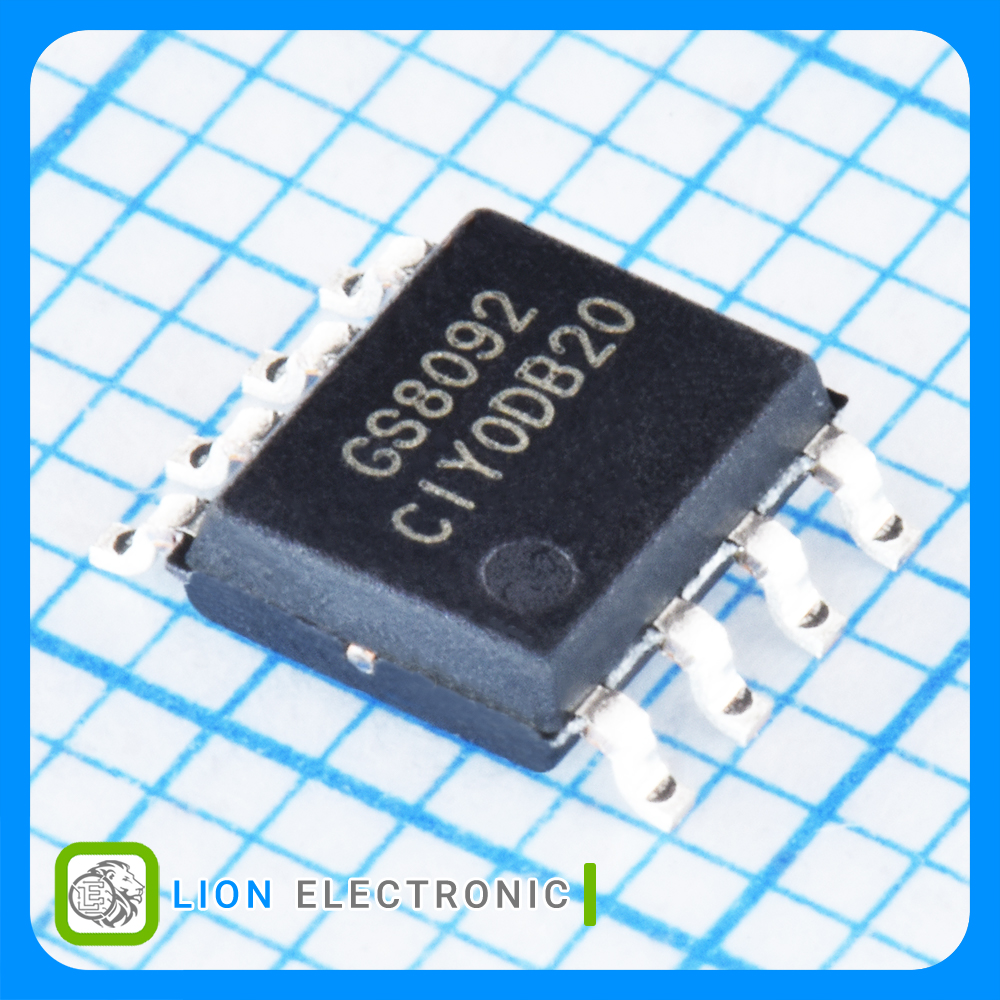

GS8092-SR
Part Number
2
Number of Channels
1pA
Ib - Input Bias Current
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
80dB
CMRR - Common Mode Rejection Ratio
2.5V
Supply Voltage - Min
120mA
Output Current per Channel
±2mV
Vos - Input Offset Voltage
119V/us
SR - Slew Rate
180MHz
GBP - Gain Bandwidth Product
4.2mA
Operating Supply Current
MSOP-8
Package-Case
