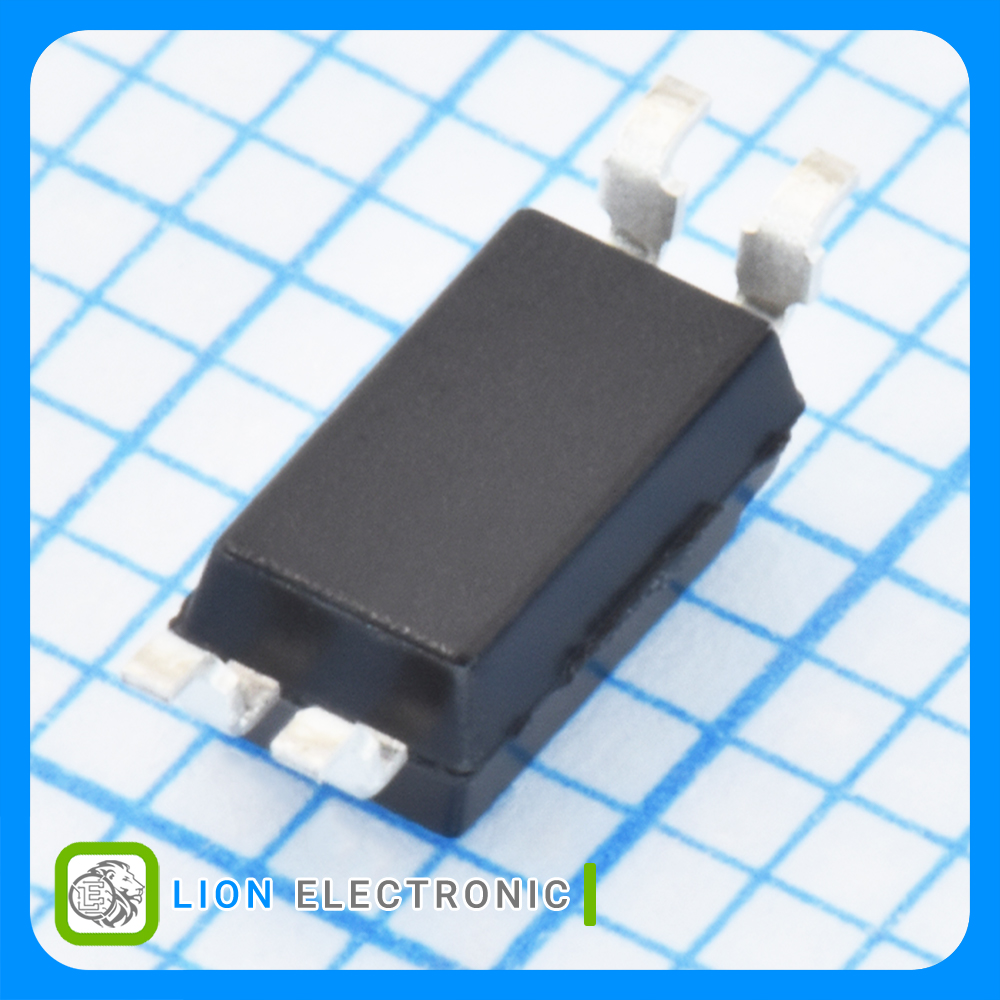

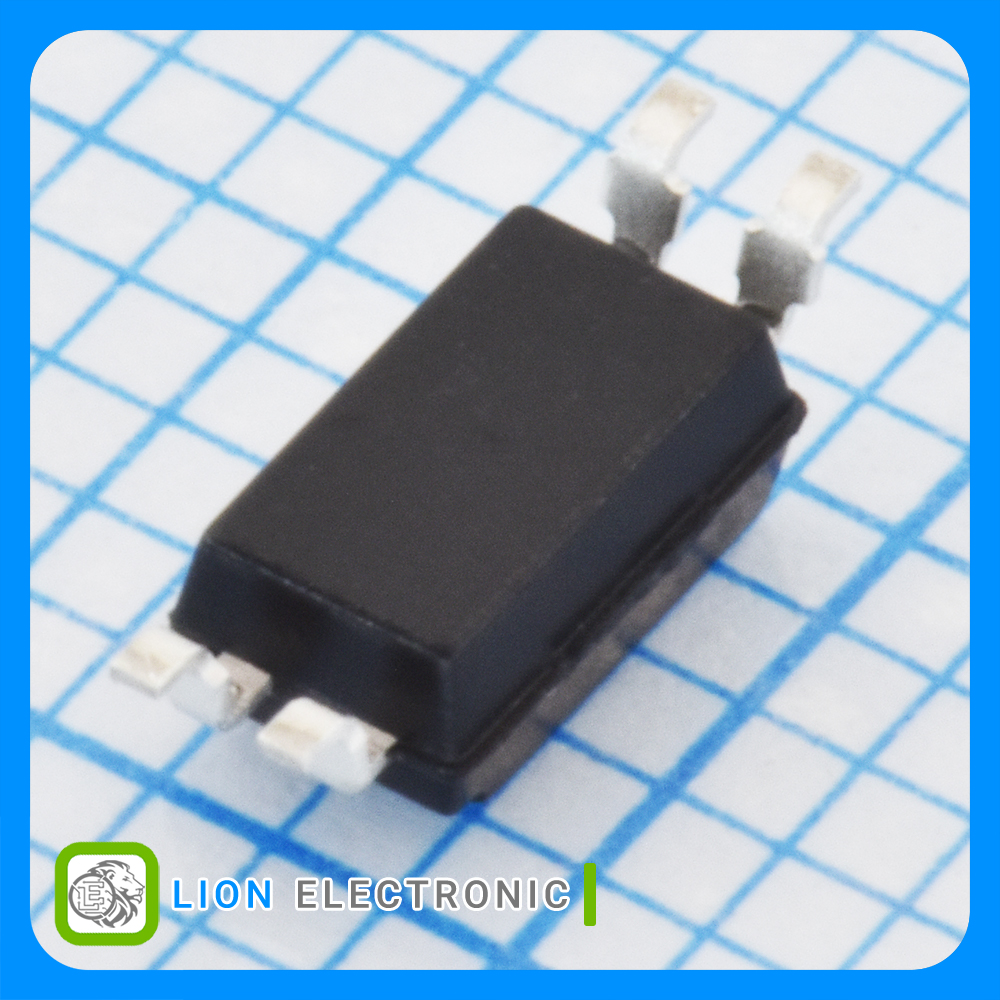

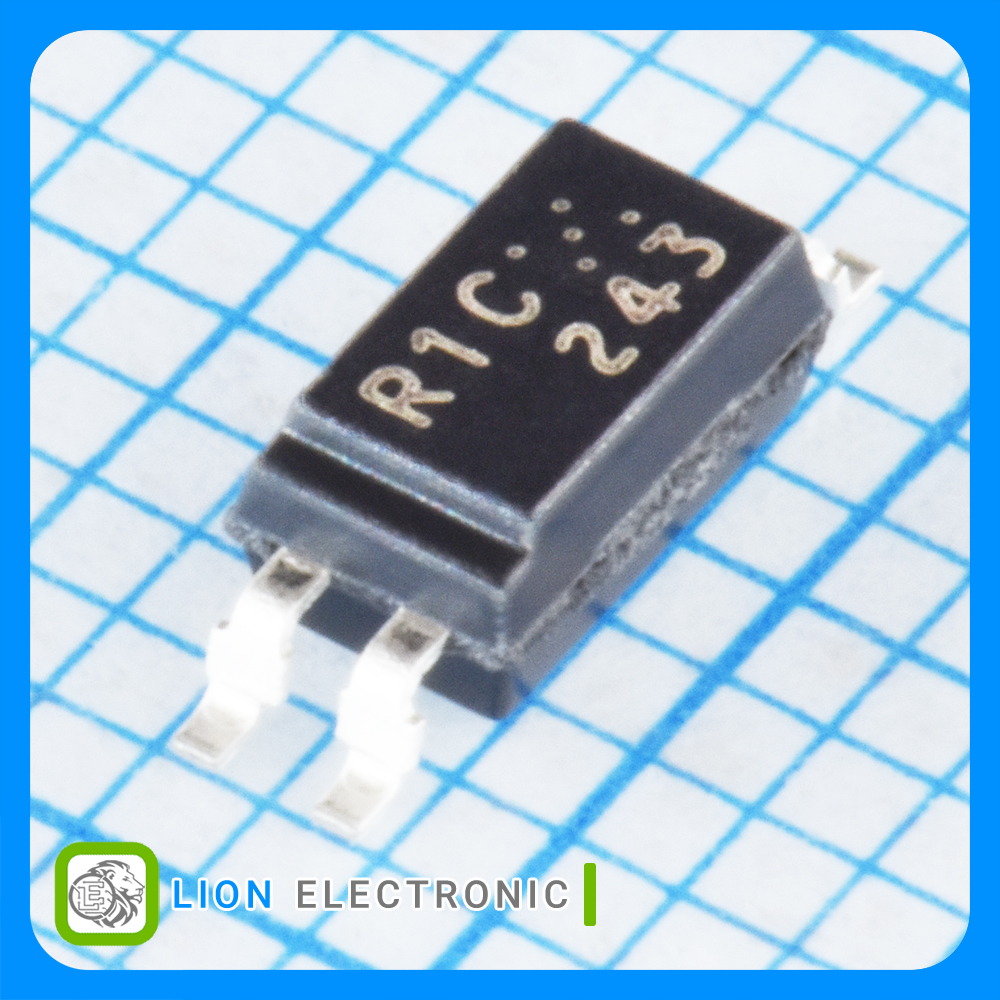

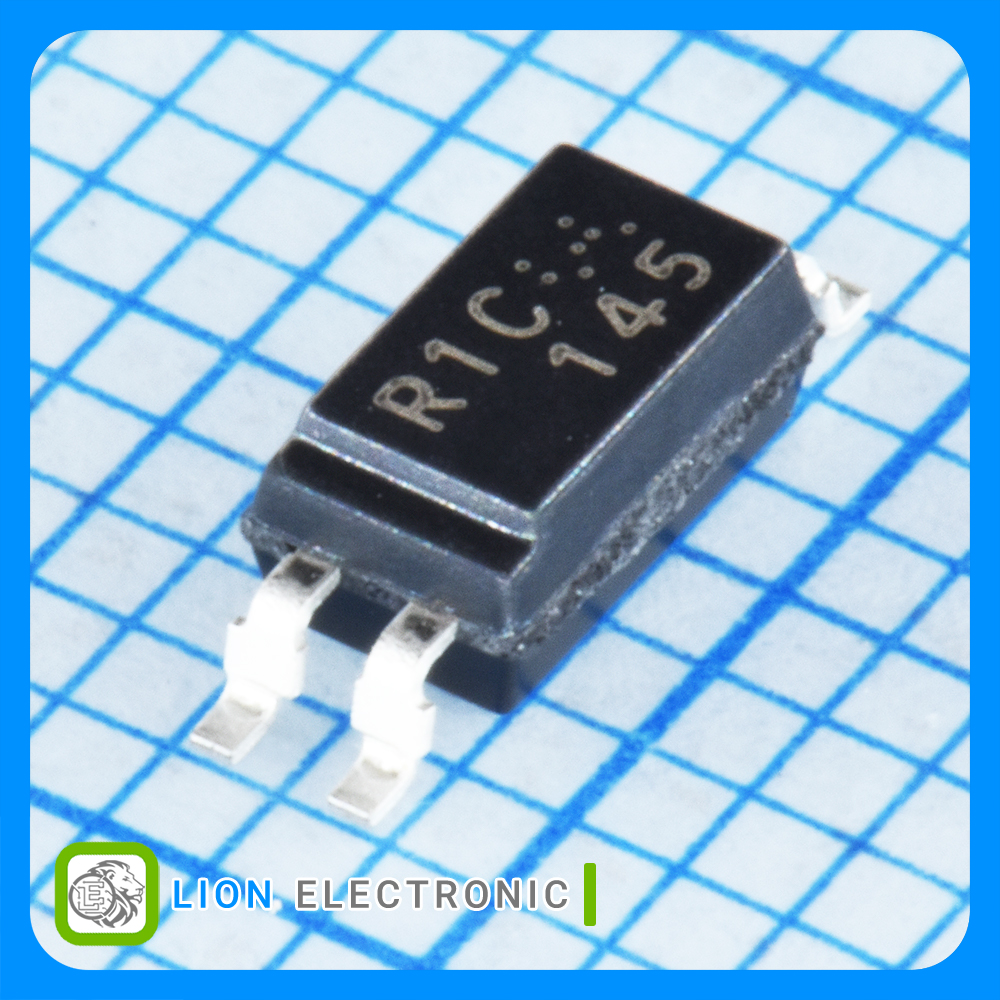

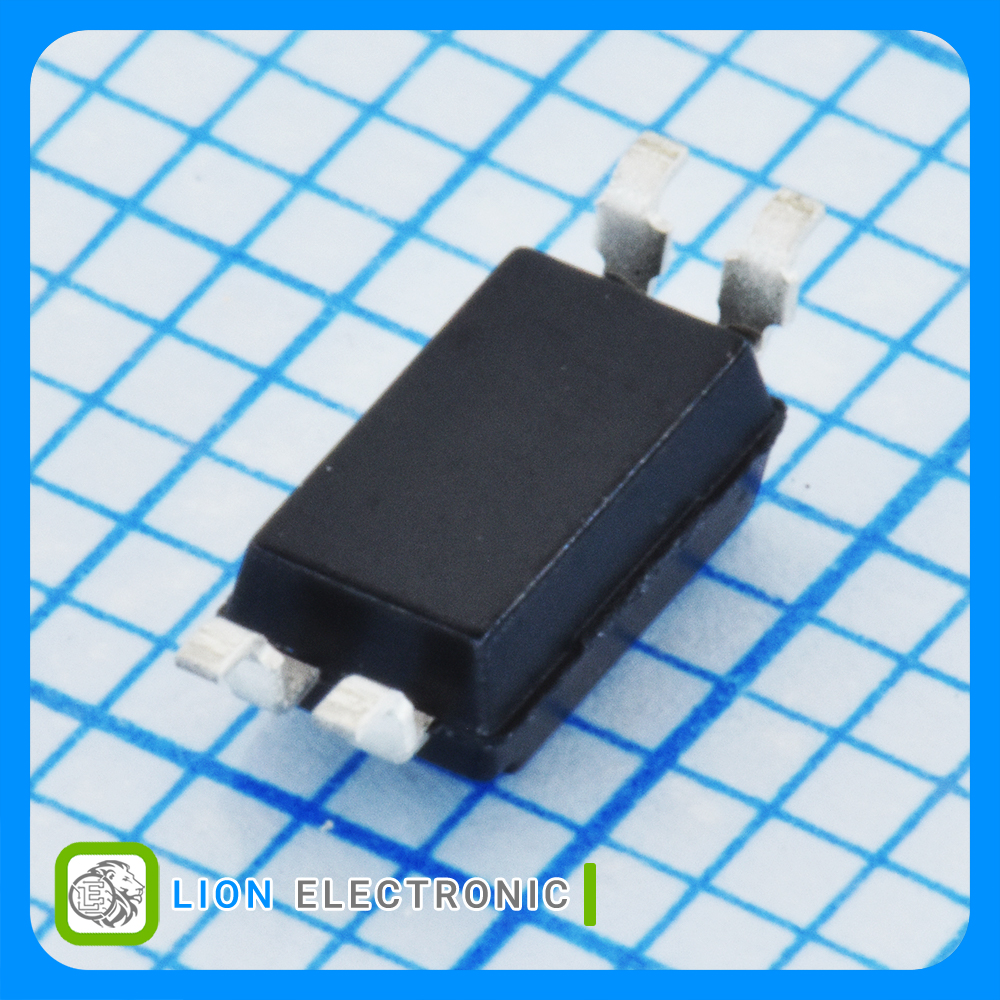

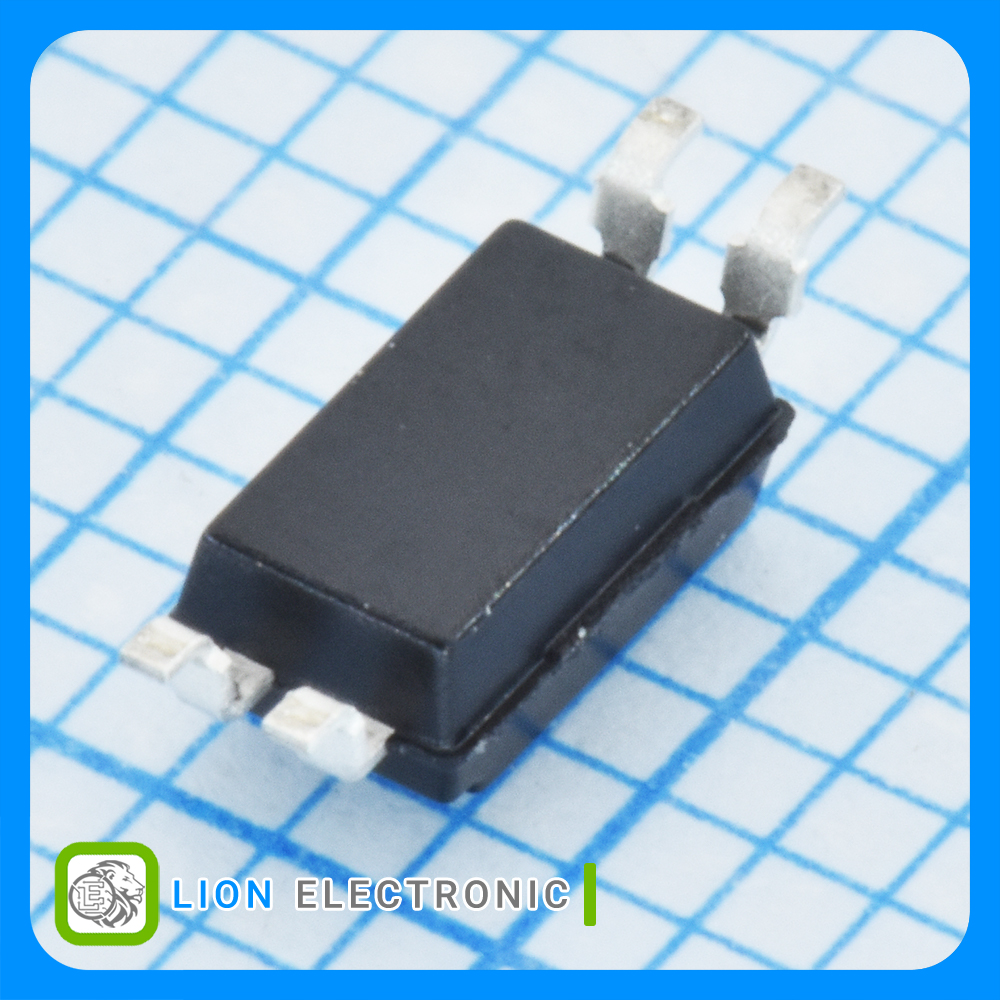

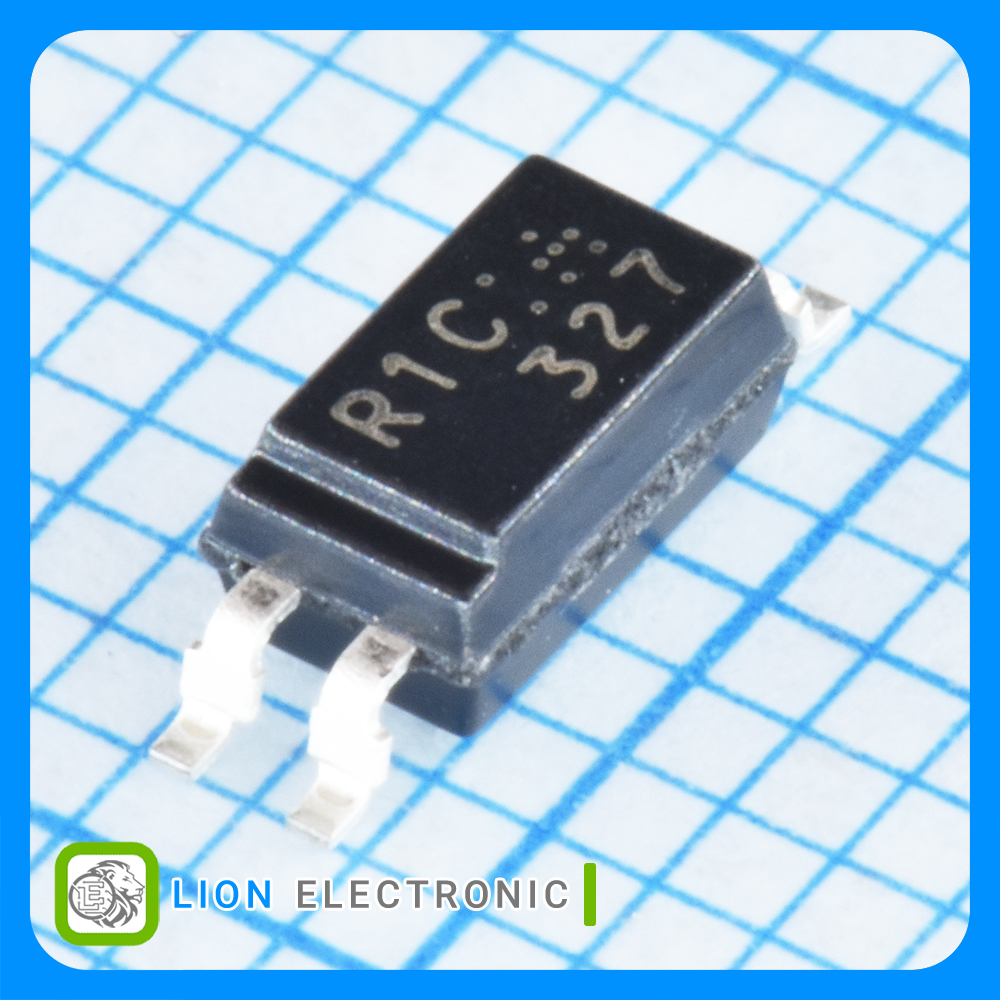

PS2801C-1-F3-A
PS2801C-1-F3-A
Part Number
555
Lion Part
Datasheet
Renesas Electronics Manufacture
اپتوکوپلر فتوکوپلر خروجی NPN فتوترانزیستور 1 کاناله 80 ولت ایزولاسیون 2.5 کیلوولت RMS، 1.4 ولت 30 میلیآمپر 120 میلیوات با پکیج SSOP-4
NPN Phototransistor Output Photocoupler 1 Channel, 80V, 2.5kVrms Isolation, 1.4V 30mA 120mW High Isolation Voltage, with SSOP-4 Package
معرفی
اپتوکوپلر فتوکوپلر خروجی NPN فتوترانزیستور 1 کاناله 80 ولت ایزولاسیون 2.5 کیلوولت RMS، 1.4 ولت 30 میلیآمپر 120 میلیوات با پکیج SSOP-4
NPN Phototransistor Output Photocoupler 1 Channel, 80V, 2.5kVrms Isolation, 1.4V 30mA 120mW High Isolation Voltage, with SSOP-4 Package
Specifications
- Output Type: NPN Phototransistor
- Number of Channels: 1
- Input Type: DC
- Vf - Forward Voltage: 1.4V
- Maximum CTR: 400%
- If - Forward Current: 30mA
- Pd - Power Dissipation: 120mW
- Collector - Emitter Voltage VCEO Max: 80V
- Isolation Voltage: 2.5kVrms
- Mounting Style: SMD/SMT
- Package/Case: SSOP-4
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +100C
- Packaging: Reel
مشخصات PS2801C-1-F3-A
PS2801C-1-F3-A
Part Number
1
Number of Channels
300mV
Maximum Collector Emitter Saturation Voltage
30mA
Maximum Collector Current
80V
Maximum Collector Emitter Voltage
-55C
Minimum Operating Temperature
DC
Input Type
6V
Vr - Reverse Voltage
Reel
Packaging
2.5kVrms
Isolation Voltage
400%
Maximum CTR
SMD/SMT
Mounting Style
30mA
If - Forward Current
120mW
Pd - Power Dissipation
+100C
Maximum Operating Temperature
NPN Phototransistor
Output Type
80V
Collector - Emitter Voltage VCEO Max
1.4V
Vf - Forward Voltage
Transistor Output Optocouplers
Product Type
SSOP-4
Package-Case
