TOSHIBA
معرفی

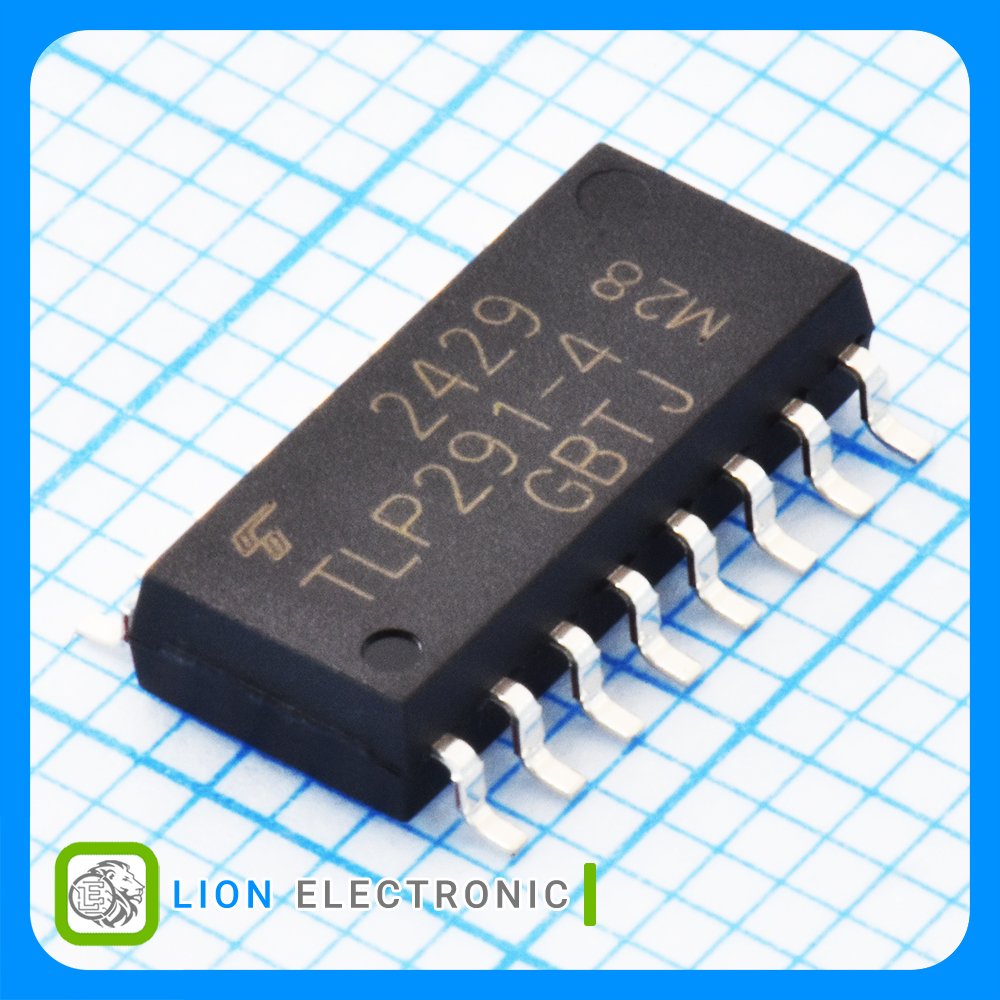

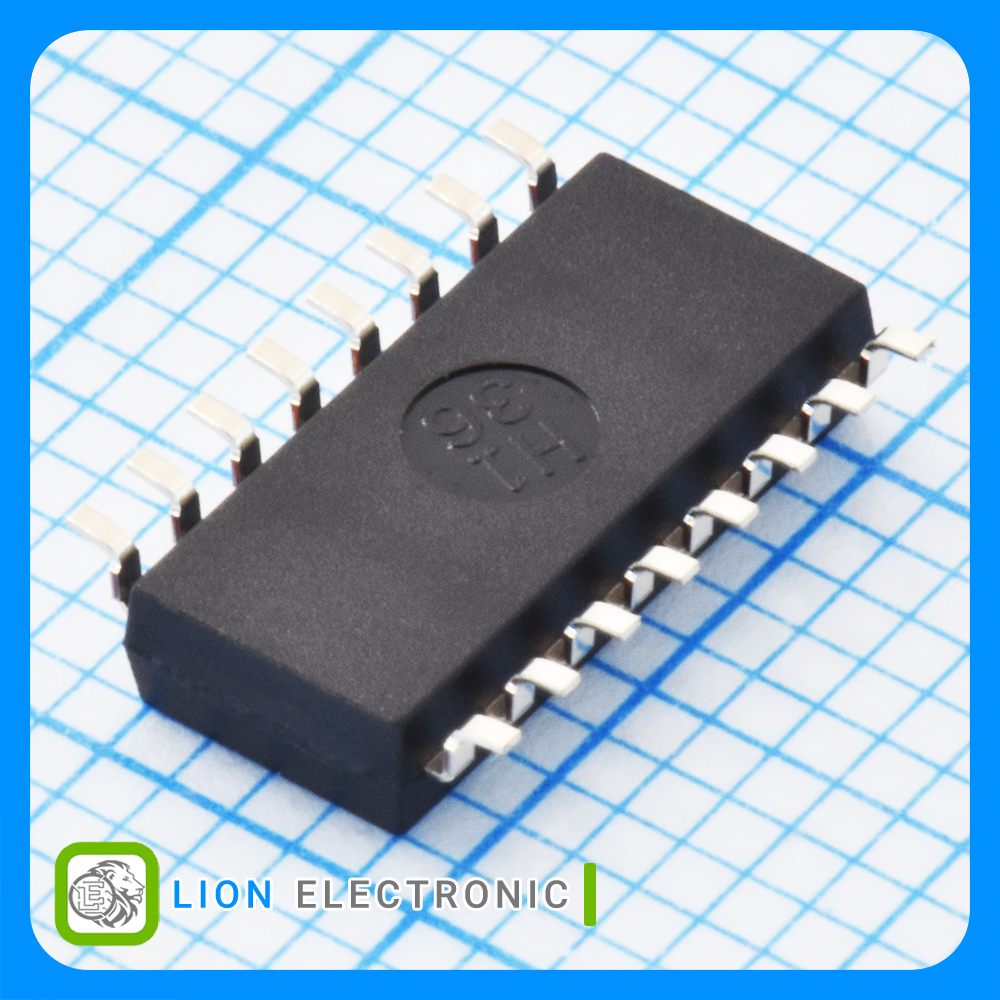

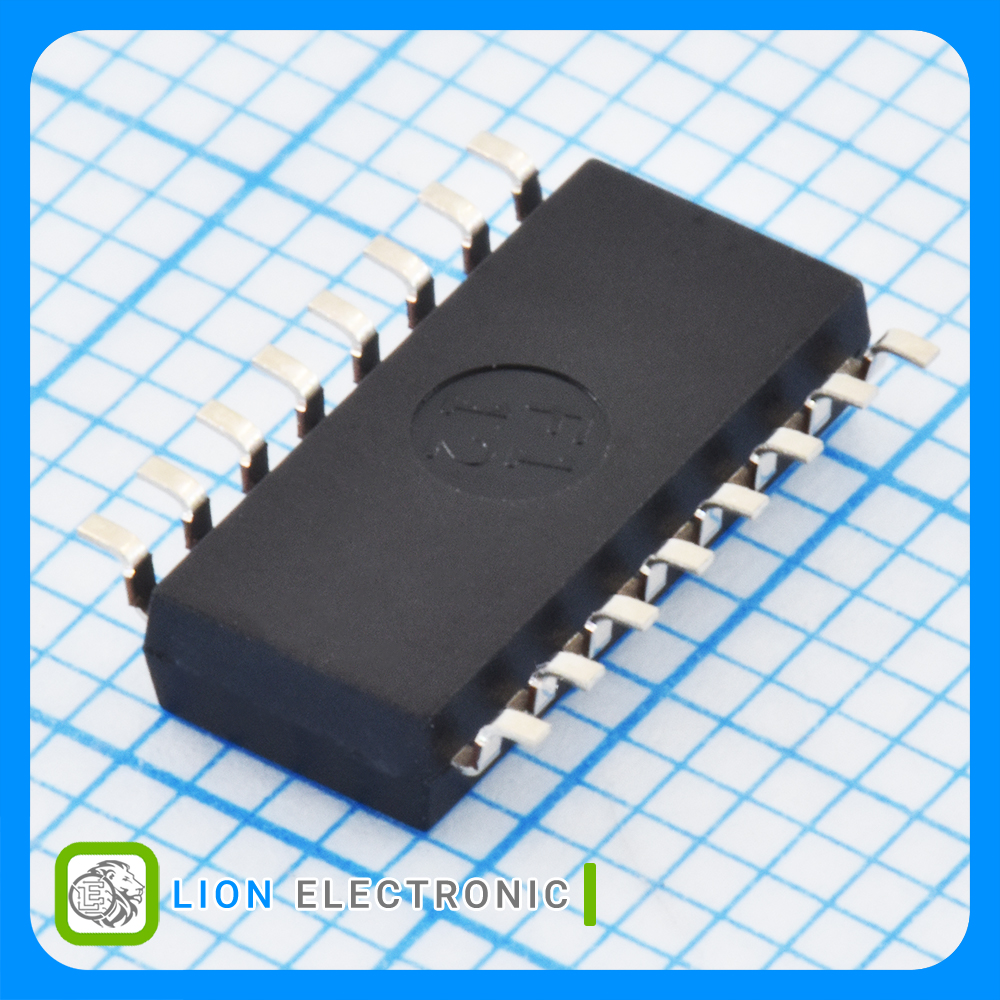

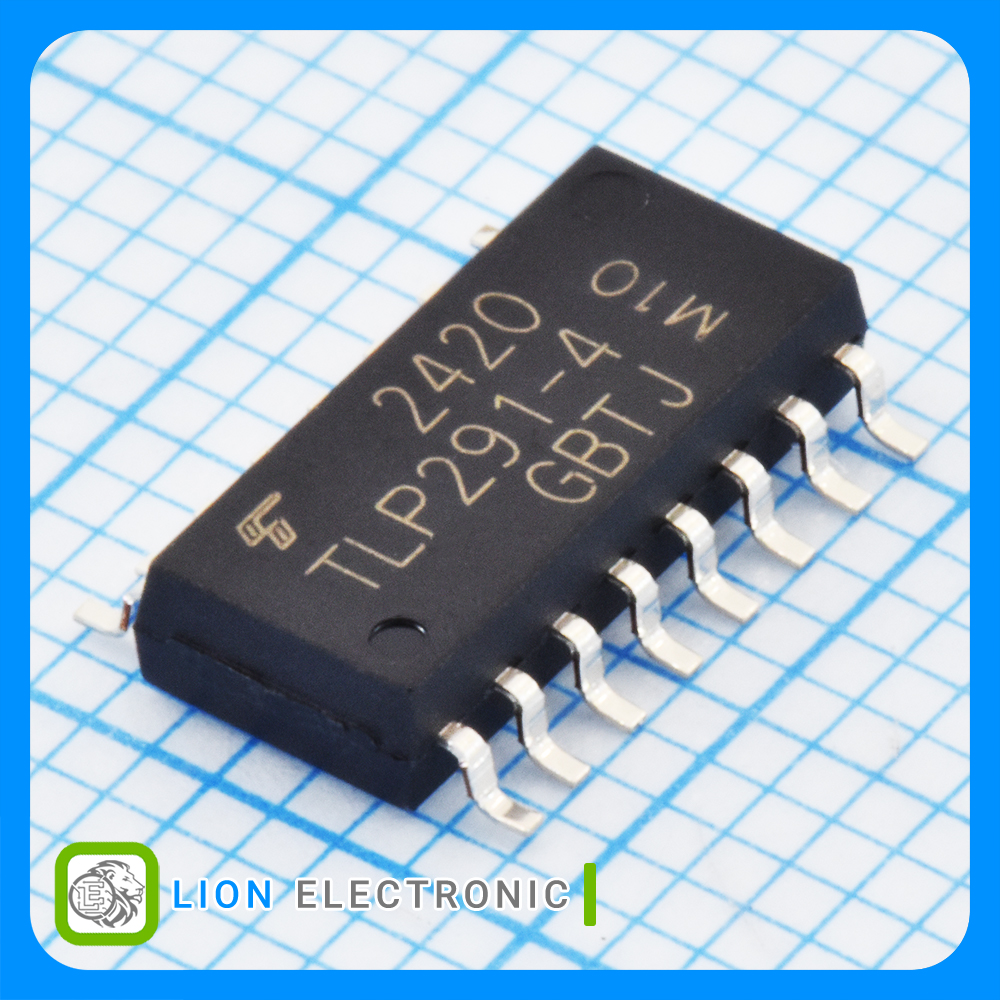

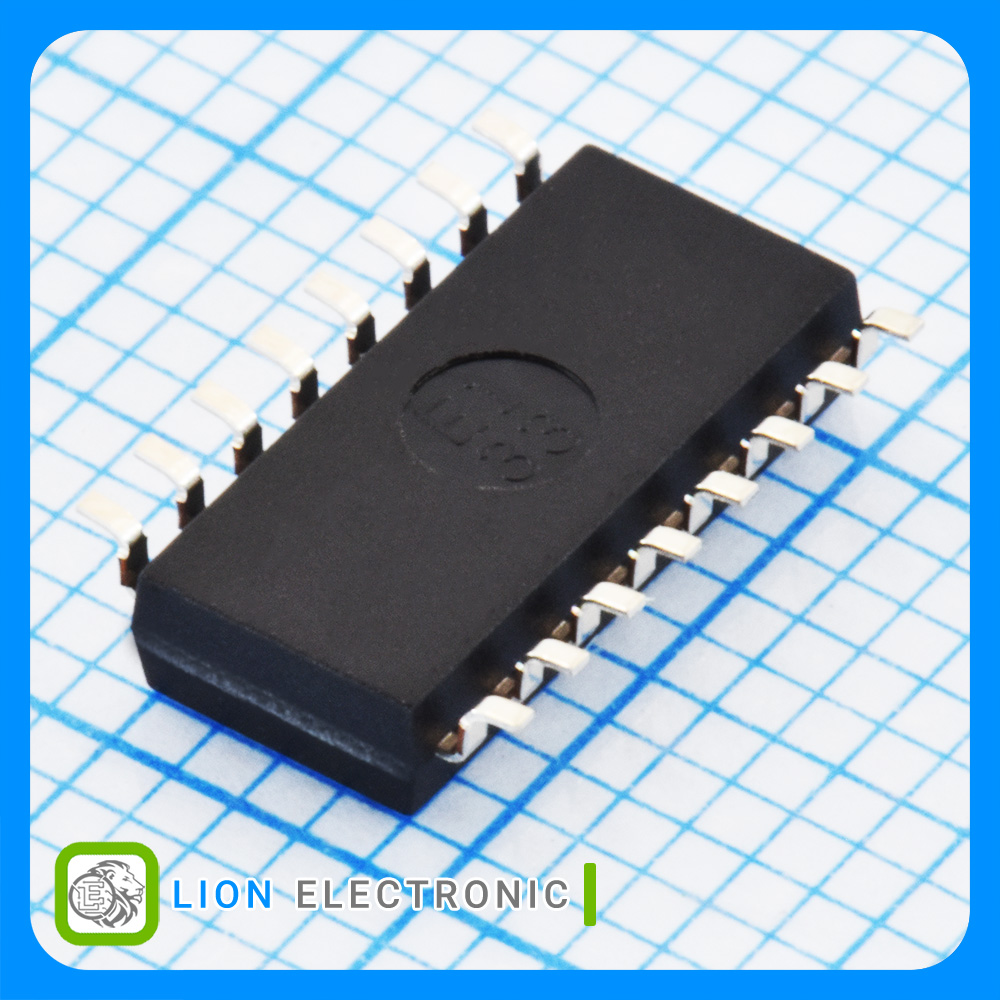

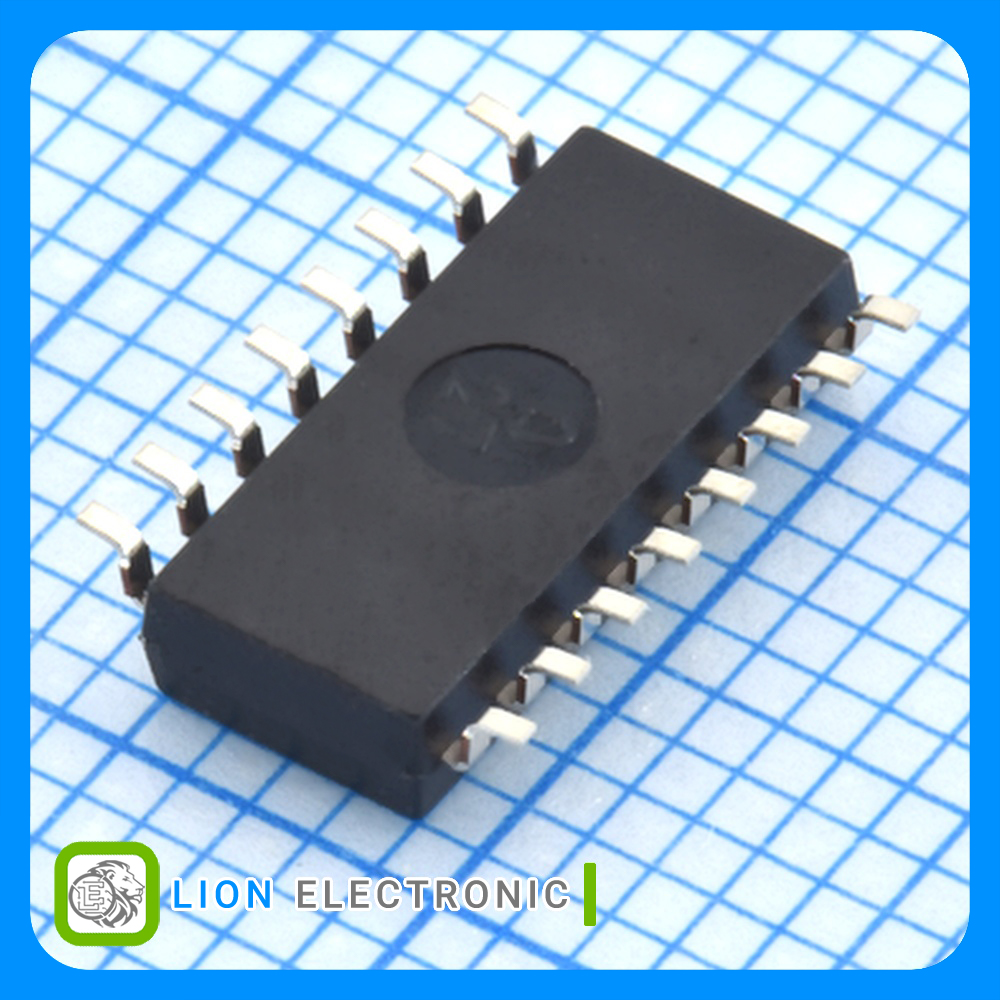

اپتوکوپلر خروجی NPN فتوترانزیستور 4 کاناله 80 ولت ایزولاسیون 2.5 کیلو ولت RMS با پکیج SOIC-16
NPN Phototransistor Output Optocoupler 4 Channel, 80V, 2.5kVrms Isolation with SOIC-16 Package
Specifications
- Output Type: NPN Phototransistor
- Number of Channels: 4
- Input Type: DC
- Vf - Forward Voltage: 1.4V
- Maximum CTR: 400%
- If - Forward Current: 50mA
- Pd - Power Dissipation: 170mW
- Collector - Emitter Voltage VCEO Max: 80V
- Isolation Voltage: 2.5kVrms
- Mounting Style: SMD/SMT
- Package/Case: SOIC-16
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +110C

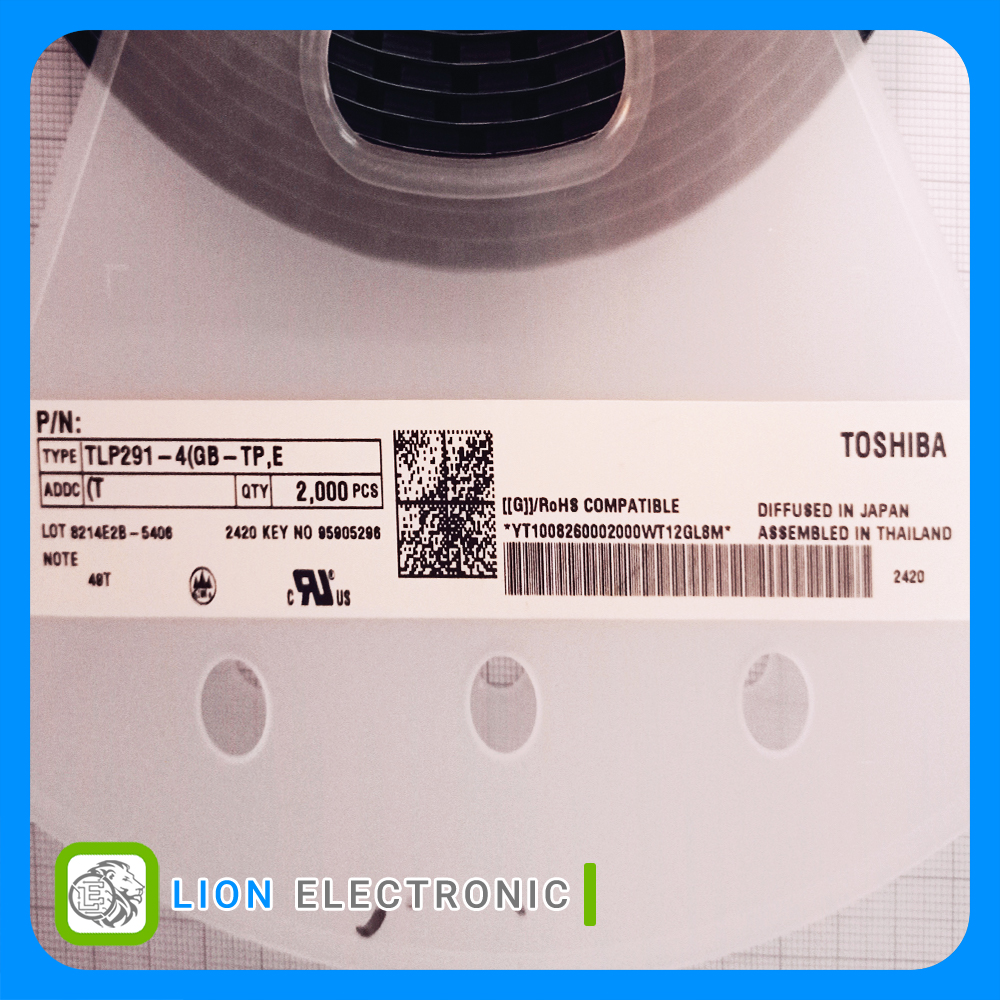

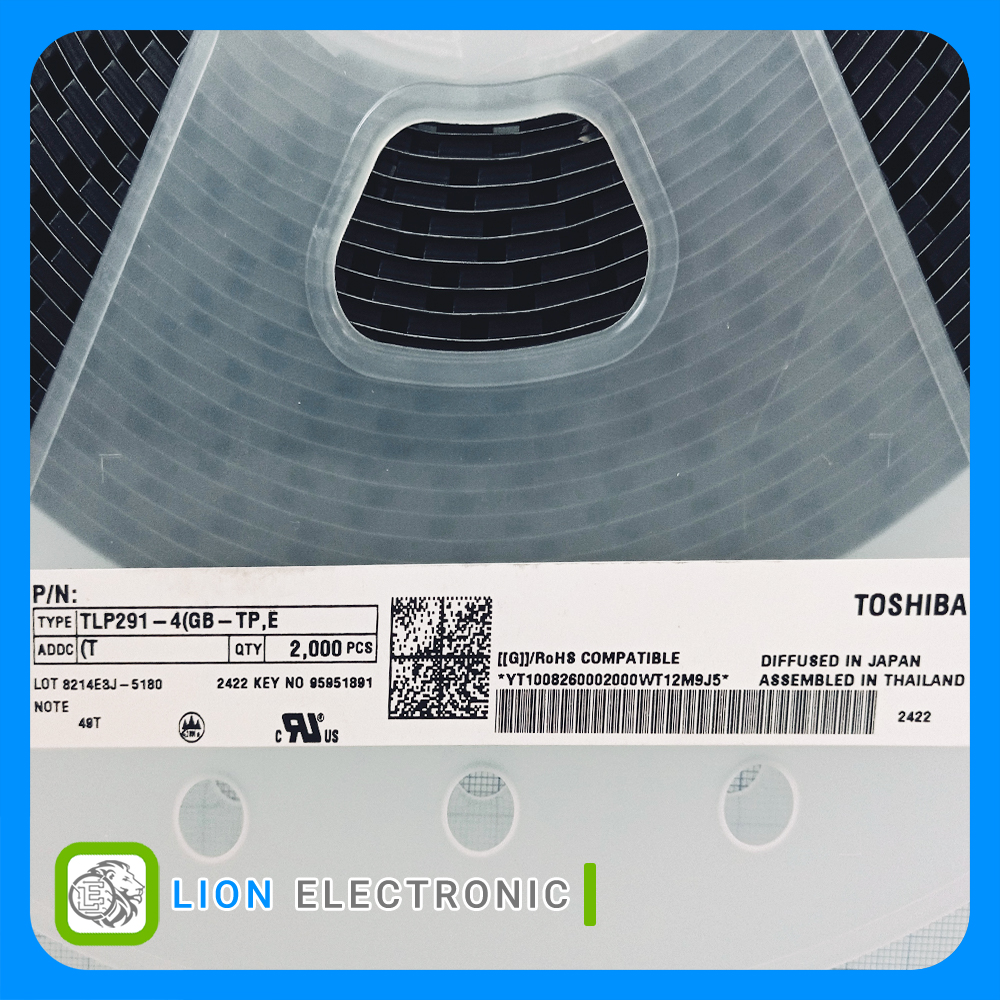

- Packaging: Reel
مشخصات TLP291-4(GB-TP,E)

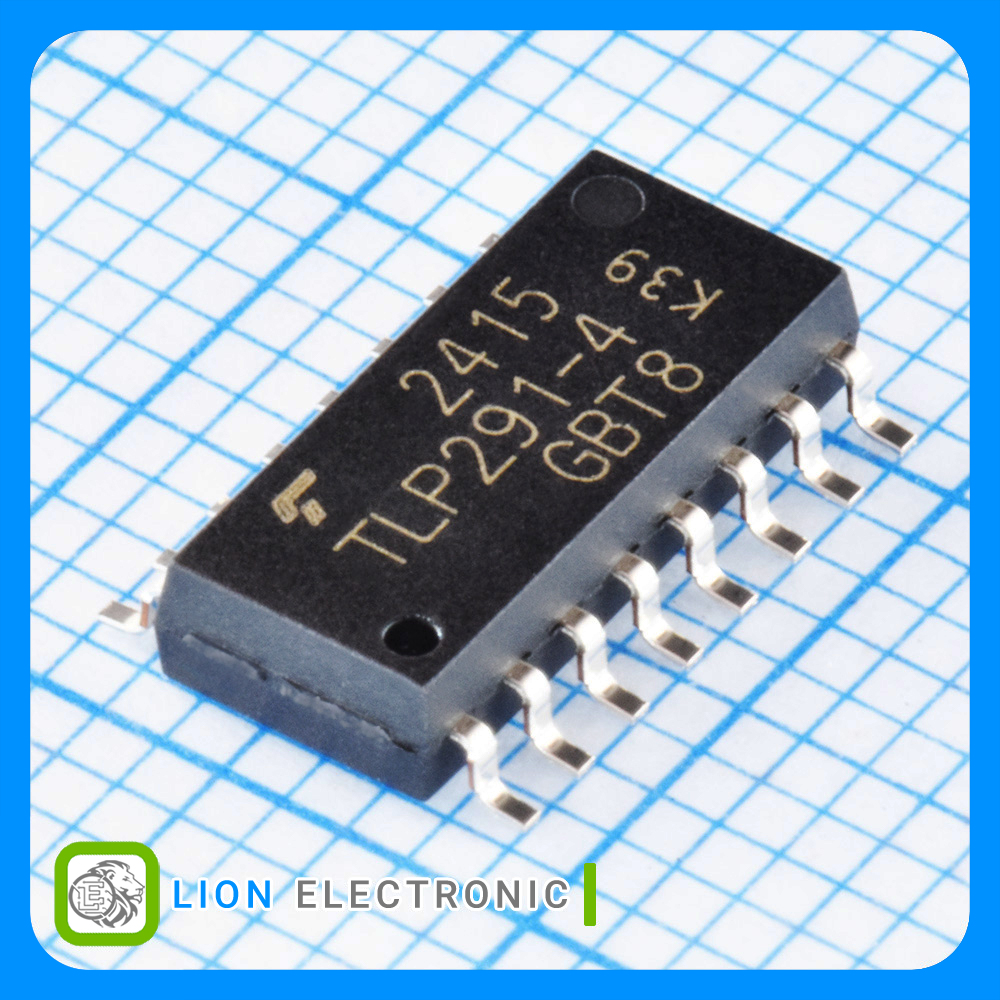

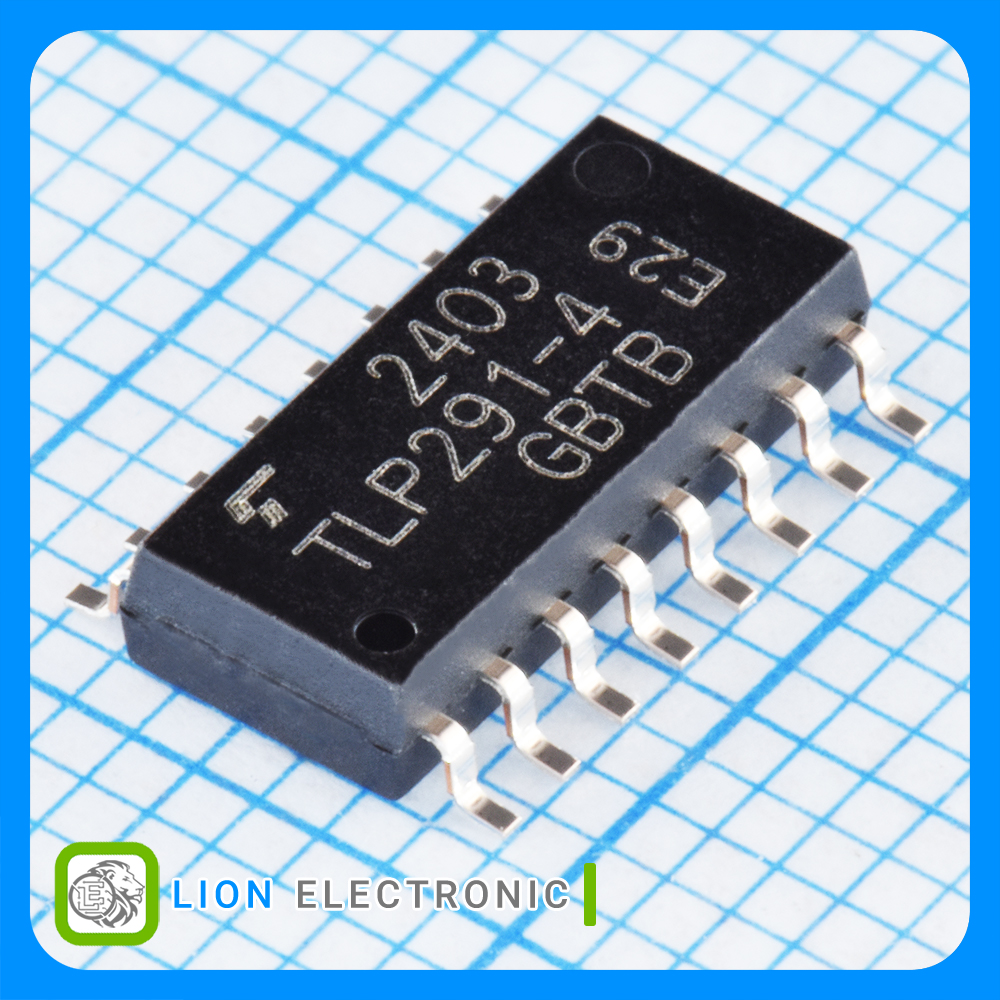

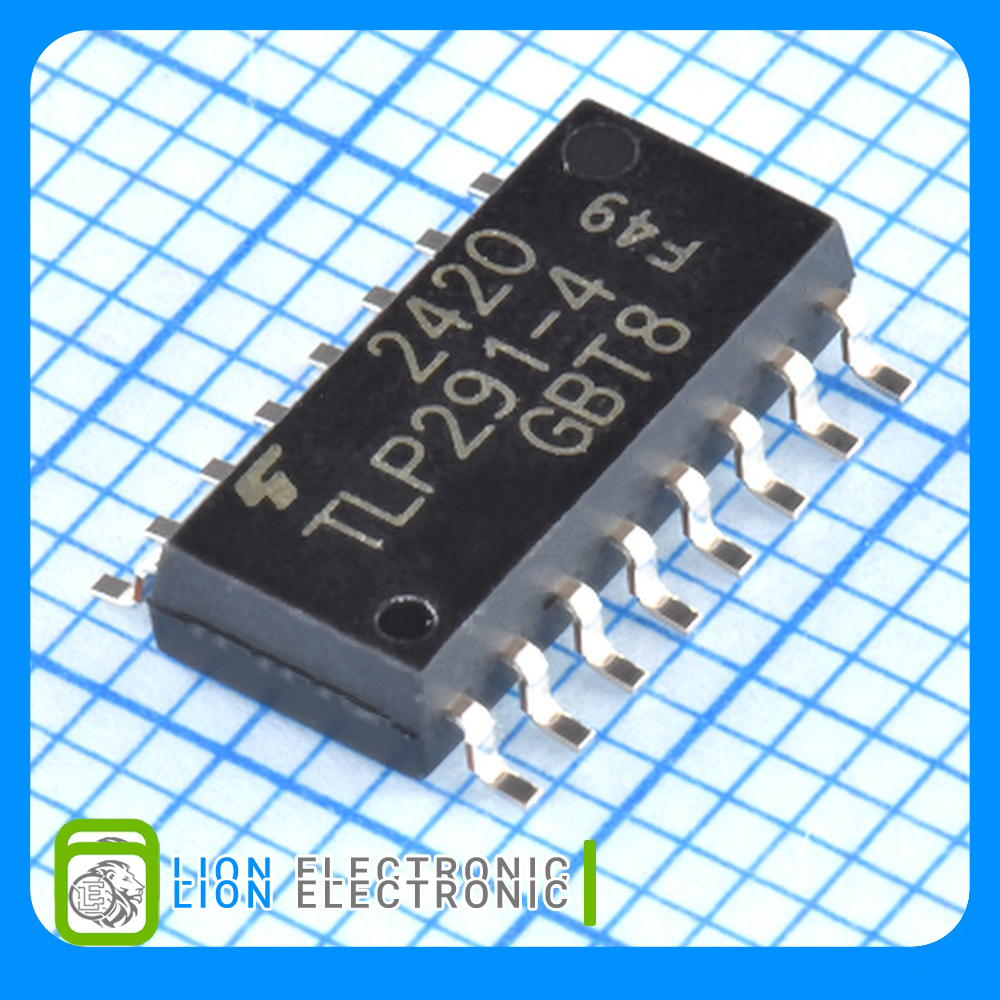

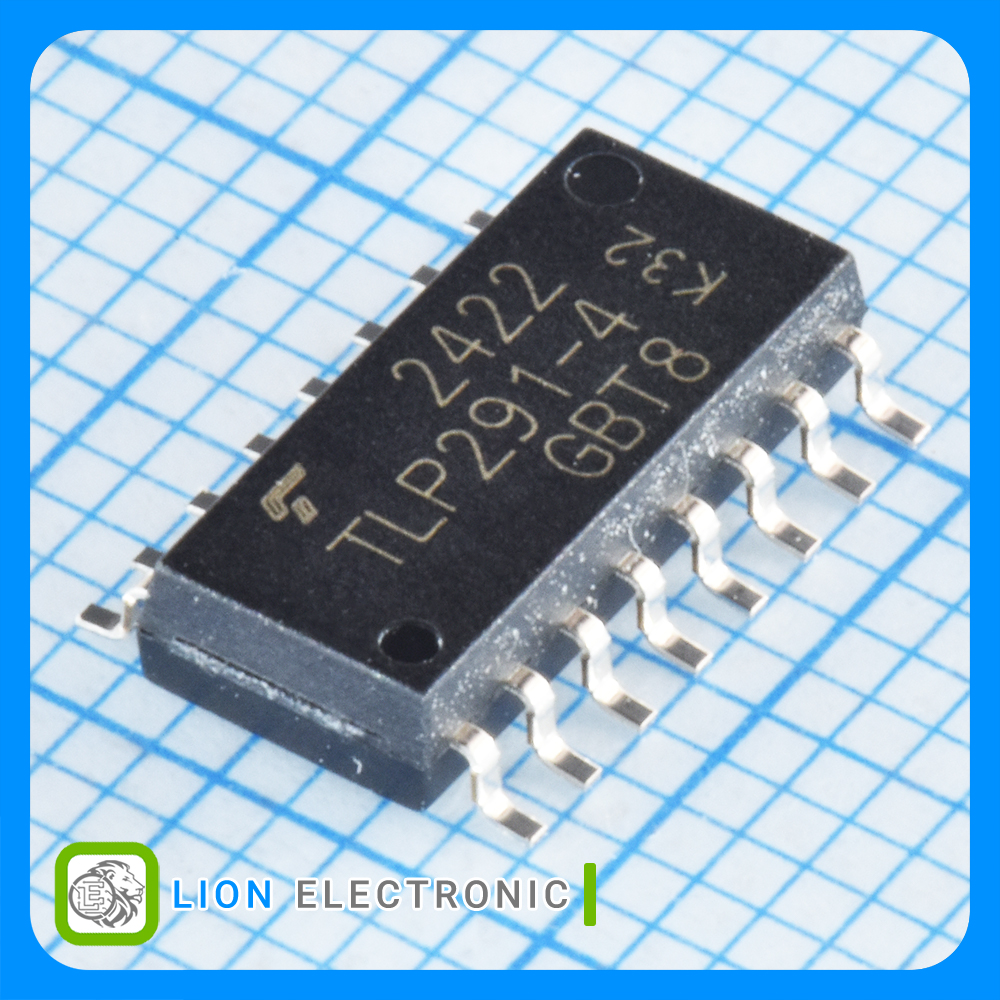

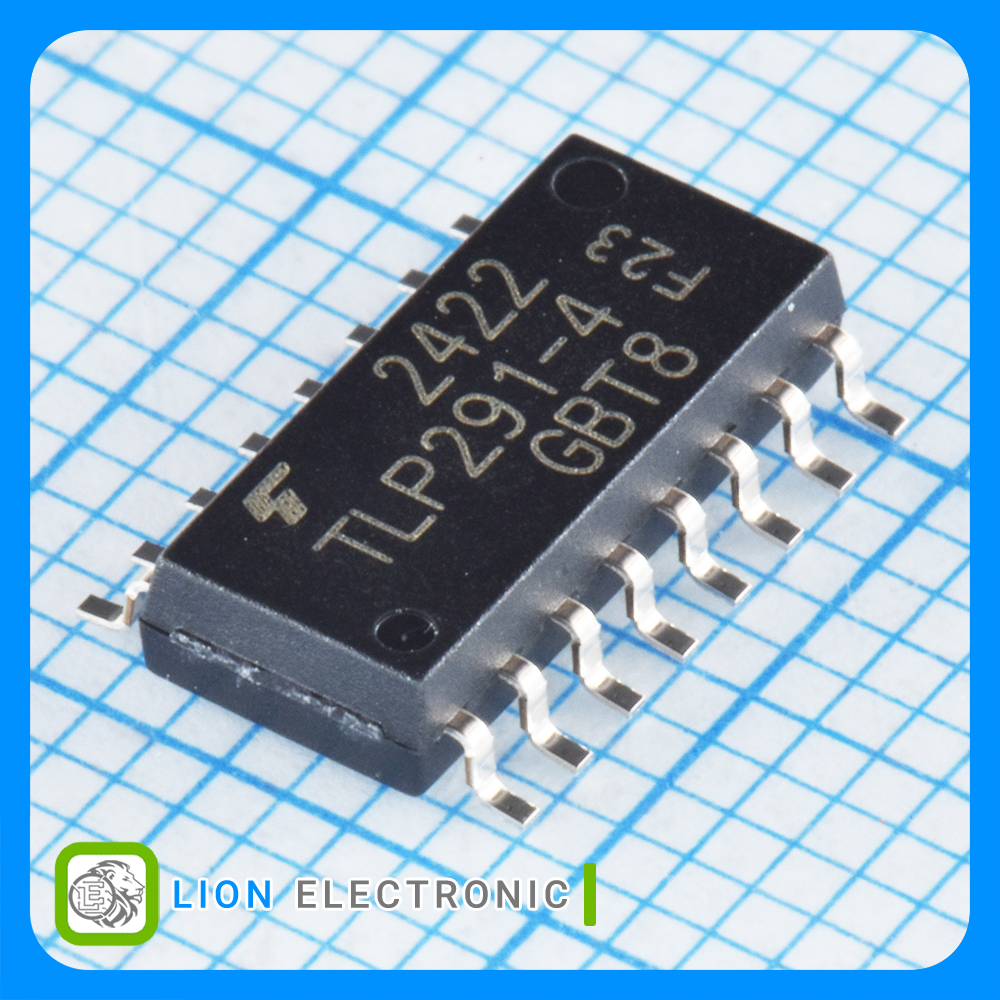

TLP291-4(GB-TP,E)
Part Number
-55C
Minimum Operating Temperature
DC
Input Type
Reel
Packaging
2.5kVrms
Isolation Voltage
4
Number of Channels
SMD/SMT
Mounting Style
400%
Maximum CTR
170mW
Pd - Power Dissipation
+110C
Maximum Operating Temperature
50mA
If - Forward Current
NPN Phototransistor
Output Type
80V
Collector - Emitter Voltage VCEO Max
1.4V
Vf - Forward Voltage
Transistor Output Optocouplers
Product Type
SOIC-16
Package-Case
