SRX882S-315MHz
SRX882S-315MHz
Part Number
5622
Lion Part
Datasheet
G-NiceRF Manufacture
ماژول گیرنده ASK سوپرهترودین SRX882 با فرکانس 315 مگاهرتز، رابط سریال و تغذیه 2 تا 5.5 ولت، جریان مصرفی کم، بدون آنتن

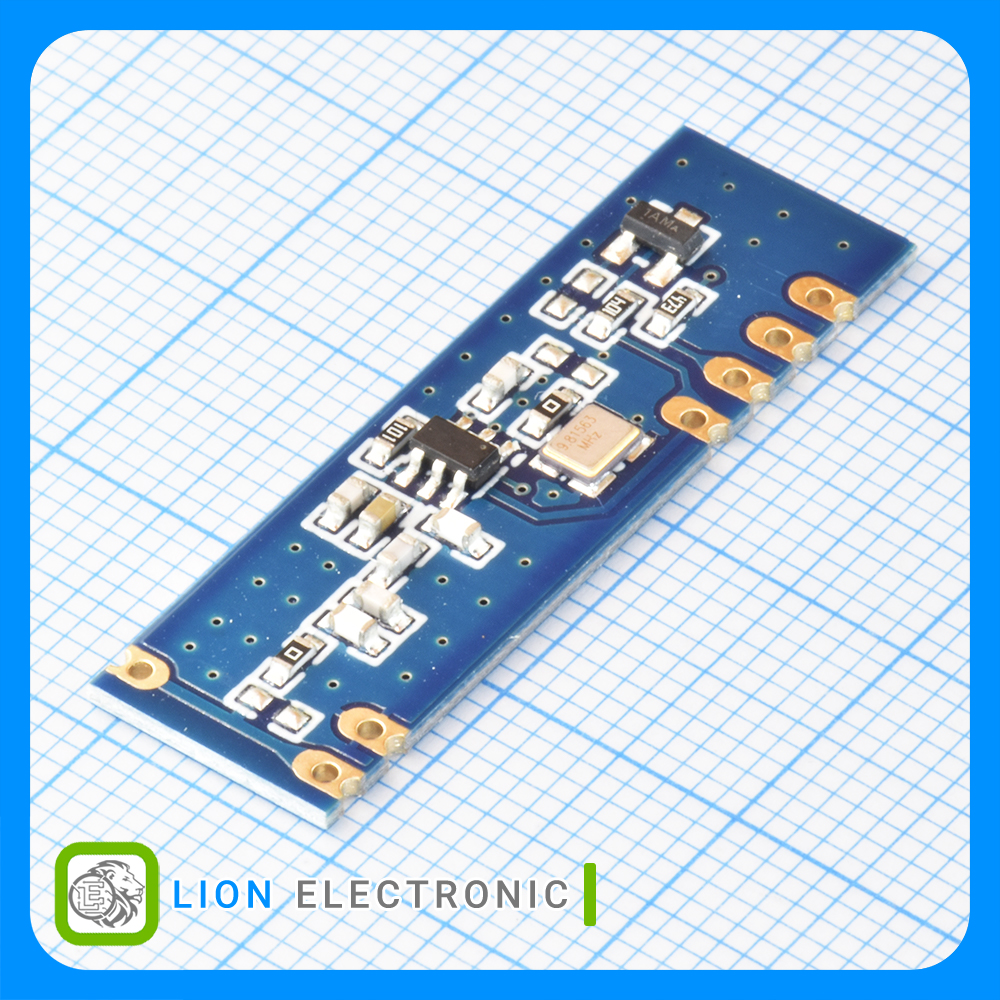

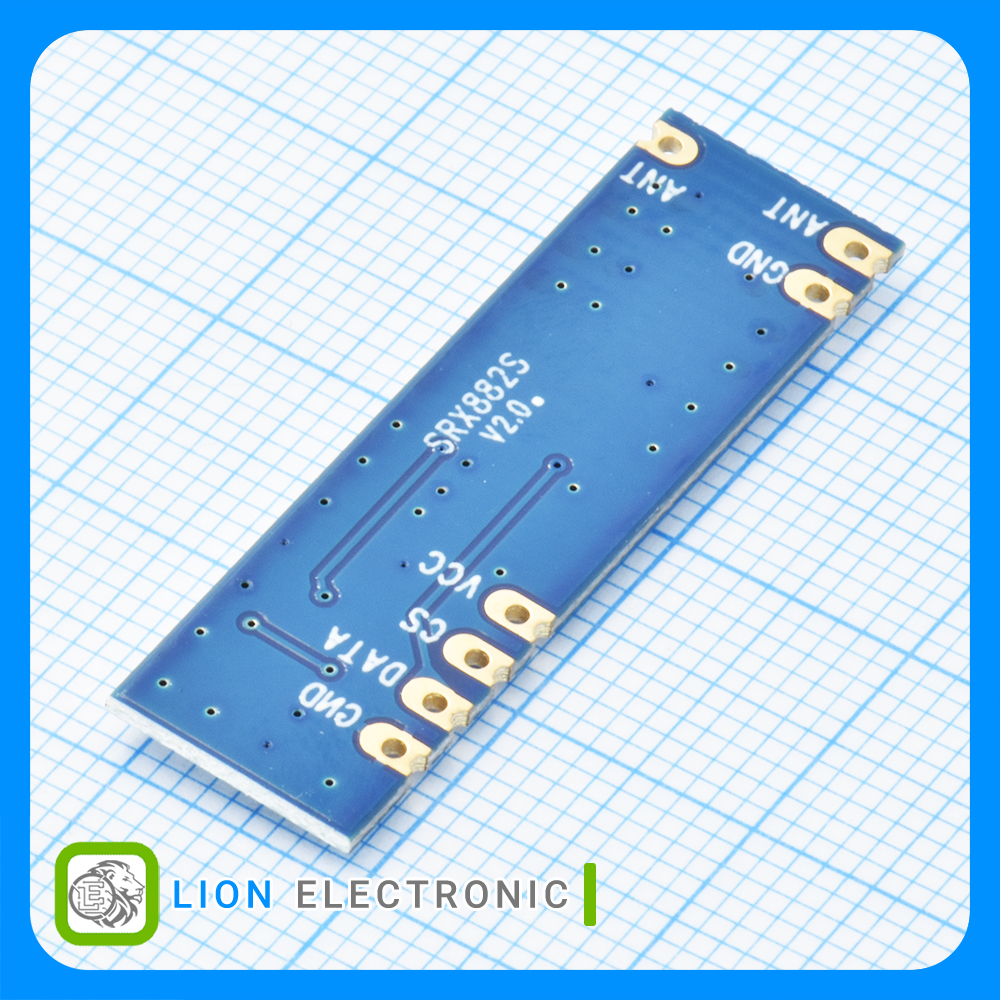

SRX882 Superheterodyne ASK Receiver 315MHz with Serial Interface and 2 - 5.5V Supply Voltage, Low Current Consumption, without Antenna
معرفی
ماژول گیرنده ASK سوپرهترودین SRX882 با فرکانس 315 مگاهرتز، رابط سریال و تغذیه 2 تا 5.5 ولت، جریان مصرفی کم، بدون آنتن
SRX882 Superheterodyne ASK Receiver 315MHz with Serial Interface and 2 - 5.5V Supply Voltage, Low Current Consumption, without Antenna
Specifications
- Product: ASK Receiver
- Interface Type: Serial
- Frequency: 315MHz
- Operating Supply Voltage: 2 - 5.5V
- Supply Current Receiving: 3mA
- Dimensions: 35mm x 10.4mm
- Minimum Operating Temperature: -30C
- Maximum Operating Temperature: +80C
- Packaging: Bag
مشخصات SRX882S-315MHz
SRX882S-315MHz
Part Number
3mA
Supply Current Receiving
Bag
Packaging
ASK Receiver
Product
+80C
Maximum Operating Temperature
-30C
Minimum Operating Temperature
-
Antenna Connector Type
315MHz
Frequency
2 - 5.5V
Operating Supply Voltage
-
Supply Current Transmitting
35mm x 10.4mm
Dimensions
N/A
Output Power
Serial
Interface Type
