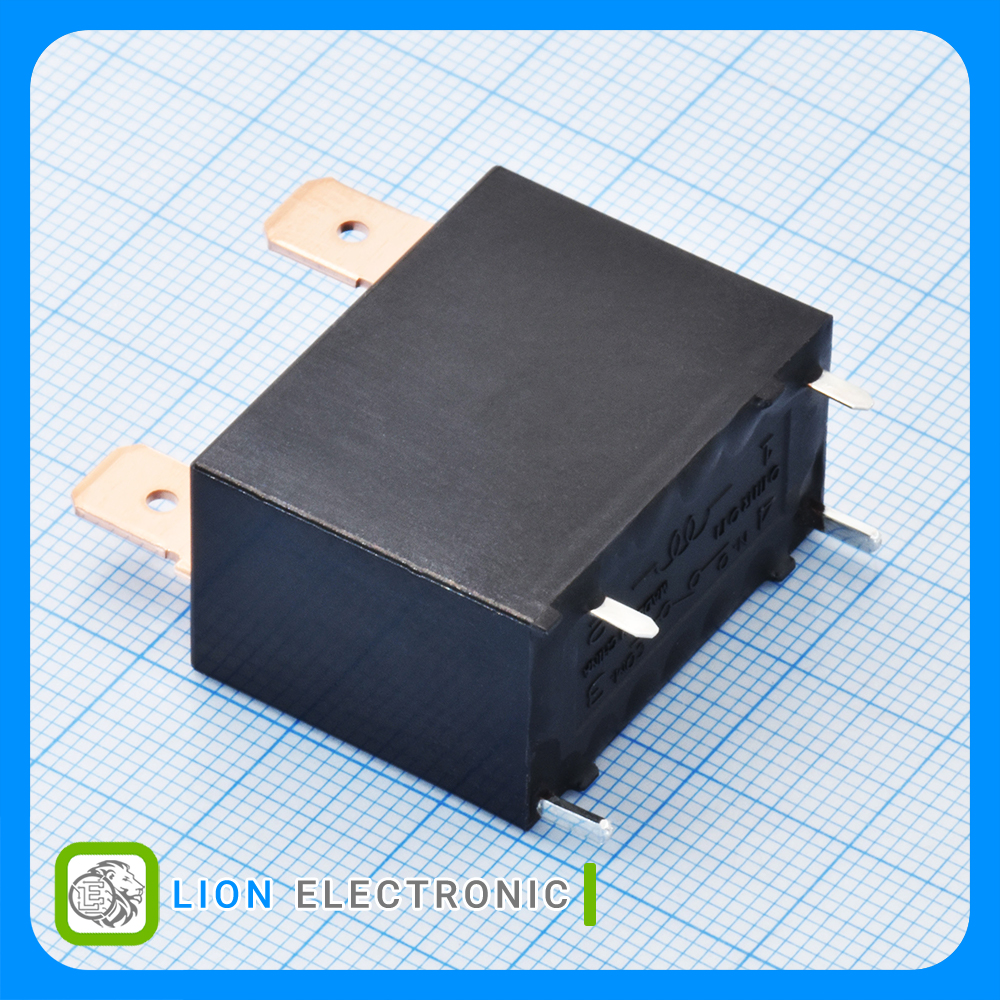

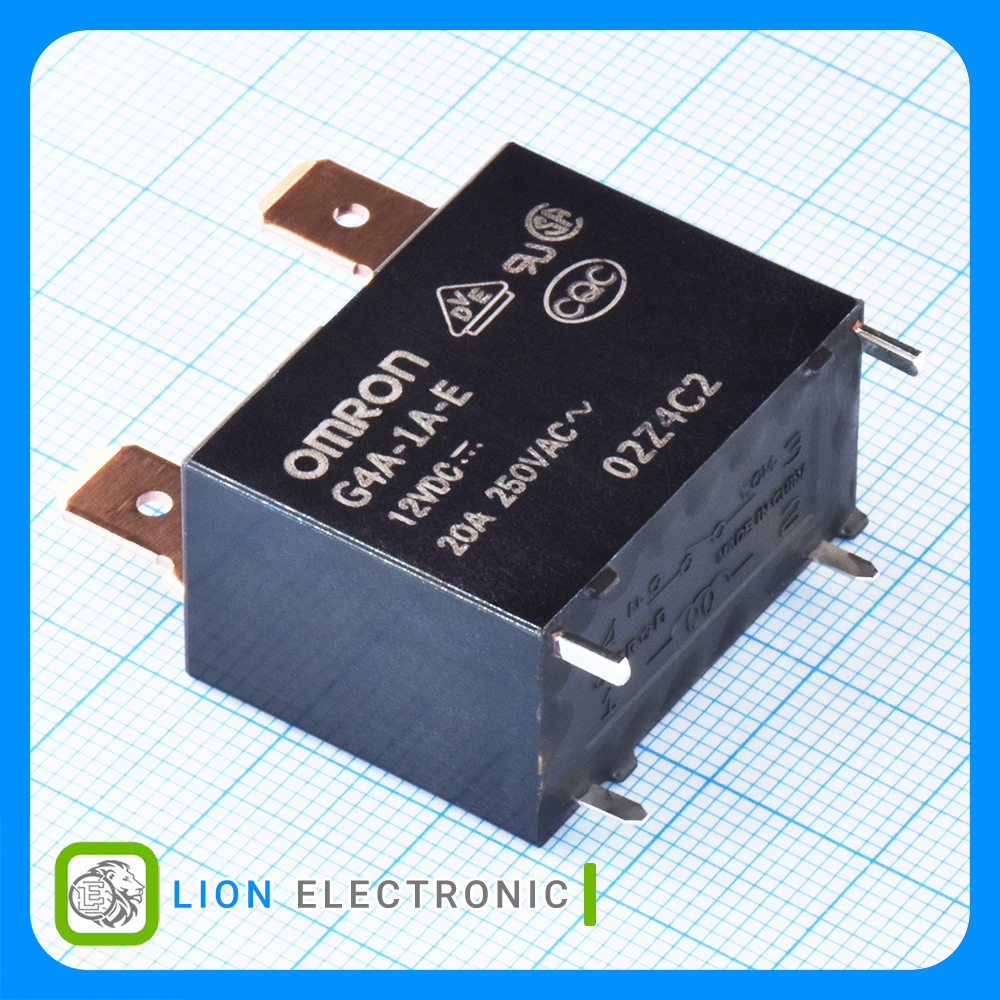

G4A-1A-E DC12V
G4A-1A-E DC12V
Part Number
5753
Lion Part
Datasheet
OMRON Manufacture
رله تک کنتاکت 1 Form A (SPST-NO) با ولتاژ کویل 12 ولت و جریان سوئیچینگ 20 آمپر و جریان ضربه 80 آمپر، نصب پایهدار
General Purpose Relay 1 Form A (SPST-NO), 12V Miniature Single-pole Relay with 80A Surge Current and 20A Switching Current
معرفی
رله تک کنتاکت 1 Form A (SPST-NO) با ولتاژ کویل 12 ولت و جریان سوئیچینگ 20 آمپر و جریان ضربه 80 آمپر، نصب پایهدار
General Purpose Relay 1 Form A (SPST-NO), 12V Miniature Single-pole Relay with 80A Surge Current and 20A Switching Current
Specifications
- Relay Contact Form: 1 Form A (SPST-NO)
- Coil Voltage: 12VDC
- Contact Current Rating: 20A
- Coil Resistance: 160Ω
- Coil Current: 75mA
- Power Consumption: 900mW
- Height: 33.5mm
- Length: 30.5mm
- Width: 16mm
- Coil Type: Non-Latching
- Mounting Style: Through Hole
- Packaging: Tube
- Max Switching Voltage: 250VAC
مشخصات رله G4A-1A-E DC12V
رله G4A-1A-E DC12V
Part Number
Non-Latching
Coil Type
1 Form A (SPST-NO)
Relay Contact Form
12VDC
Coil Voltage
N/A
insulation class
20A
Contact Current Rating
160Ω
Coil Resistance
250VAC
Max Switching Voltage
Tube
Packaging
900mW
Power Consumption
Through Hole
Mounting Style
75mA
Coil Current
16mm
Width
30.5mm
Length
33.5mm
Height
