Slkor
معرفی
ترایاک 800 ولت 25 آمپر با پکیج TO-3P-3

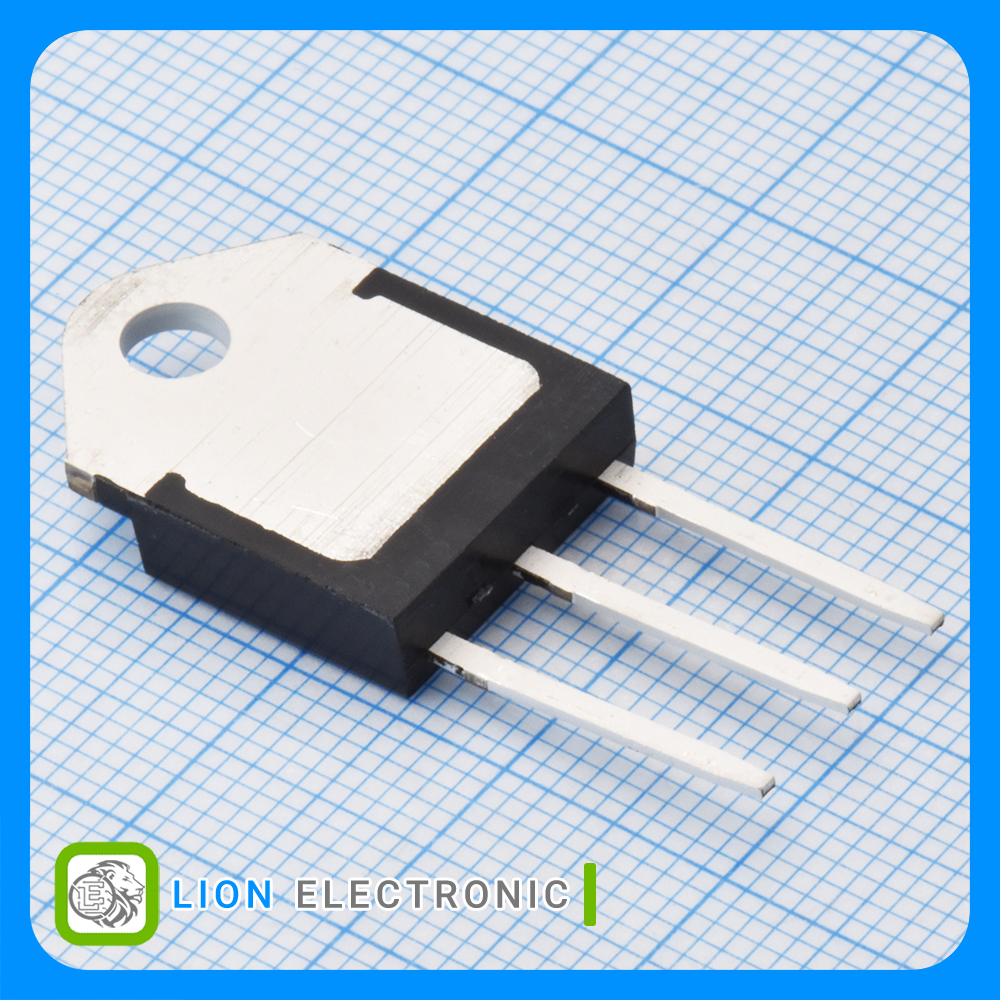

Triac 800V, 25A with TO-3P-3 Package
Specifications
- Rated Repetitive Off-State Voltage VDRM: 800V
- On-State RMS Current - It RMS: 25A
- On-State Voltage: 1.55V
- Gate Trigger Voltage - Vgt: 1.5V
- Gate Trigger Current - Igt: 50mA
- Non Repetitive On-State Current: 250A
- Off-State Leakage Current @ VDRM IDRM: 5uA
- Holding Current Ih Max: 80mA
- Mounting Style: Through Hole
- Package/Case: TO-3P
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات ترایاک BTA26-800B

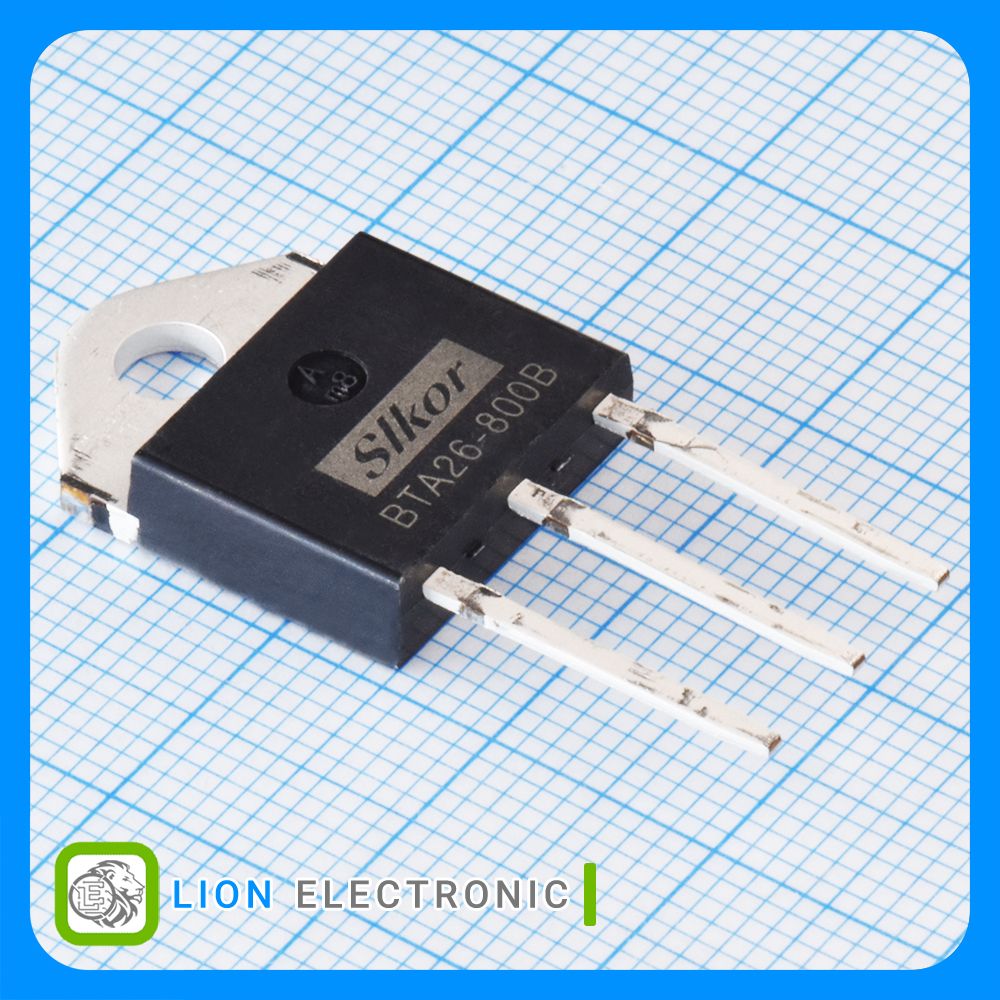

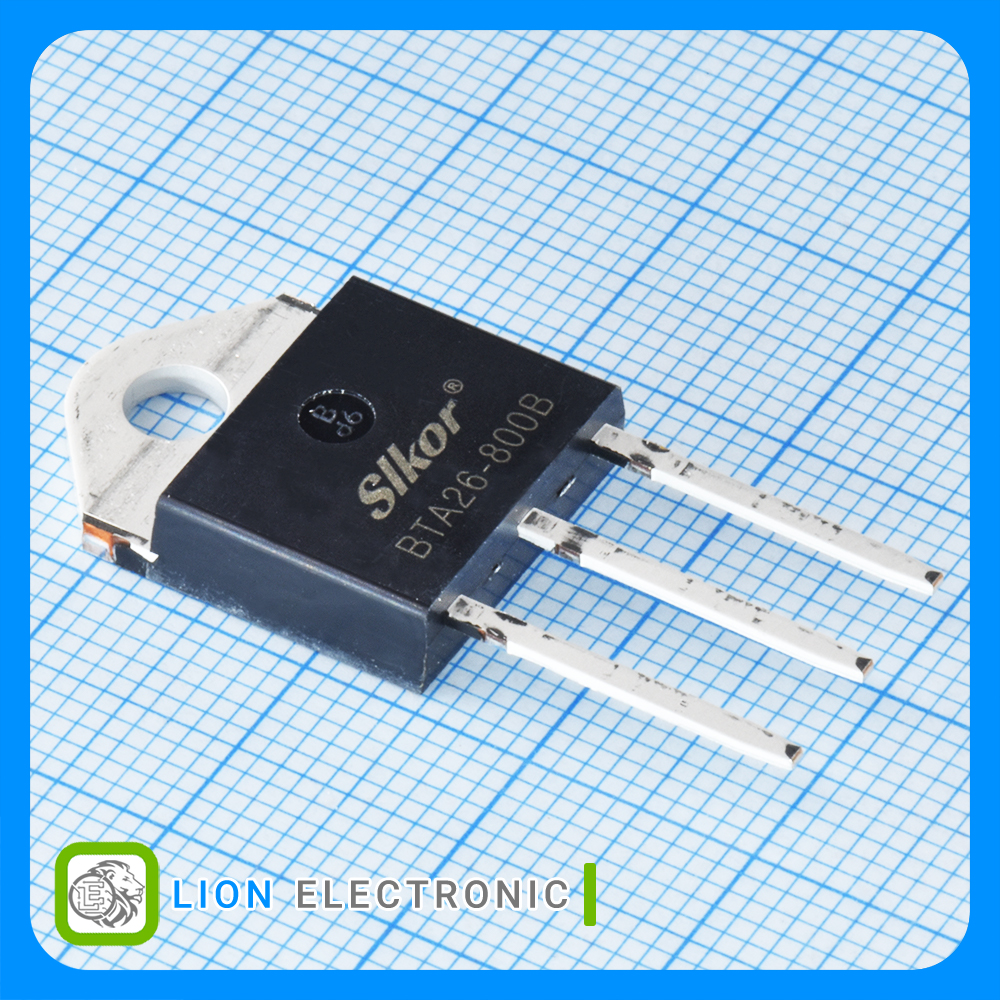

ترایاک BTA26-800B
Part Number
5uA
Off-State Leakage Current @ VDRM IDRM
1.55V
On-State Voltage
1.5V
Gate Trigger Voltage - Vgt
-40C
Minimum Operating Temperature
25A
On-State RMS Current - It RMS
800V
Rated Repetitive Off-State Voltage VDRM
250A
Non Repetitive On-State Current
Tube
Packaging
50mA
Gate Trigger Current - Igt
Through Hole
Mounting Style
80mA
Holding Current Ih Max
+125C
Maximum Operating Temperature
TO-3P
Package-Case
