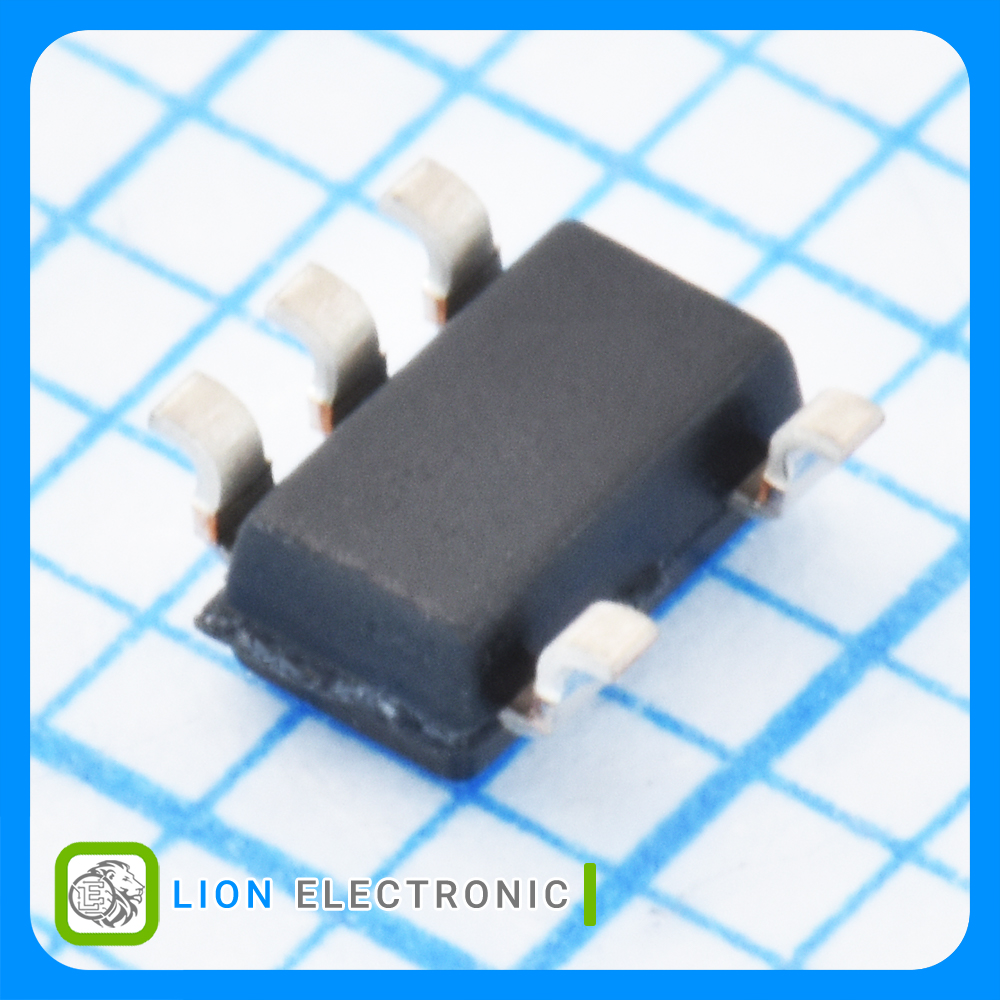

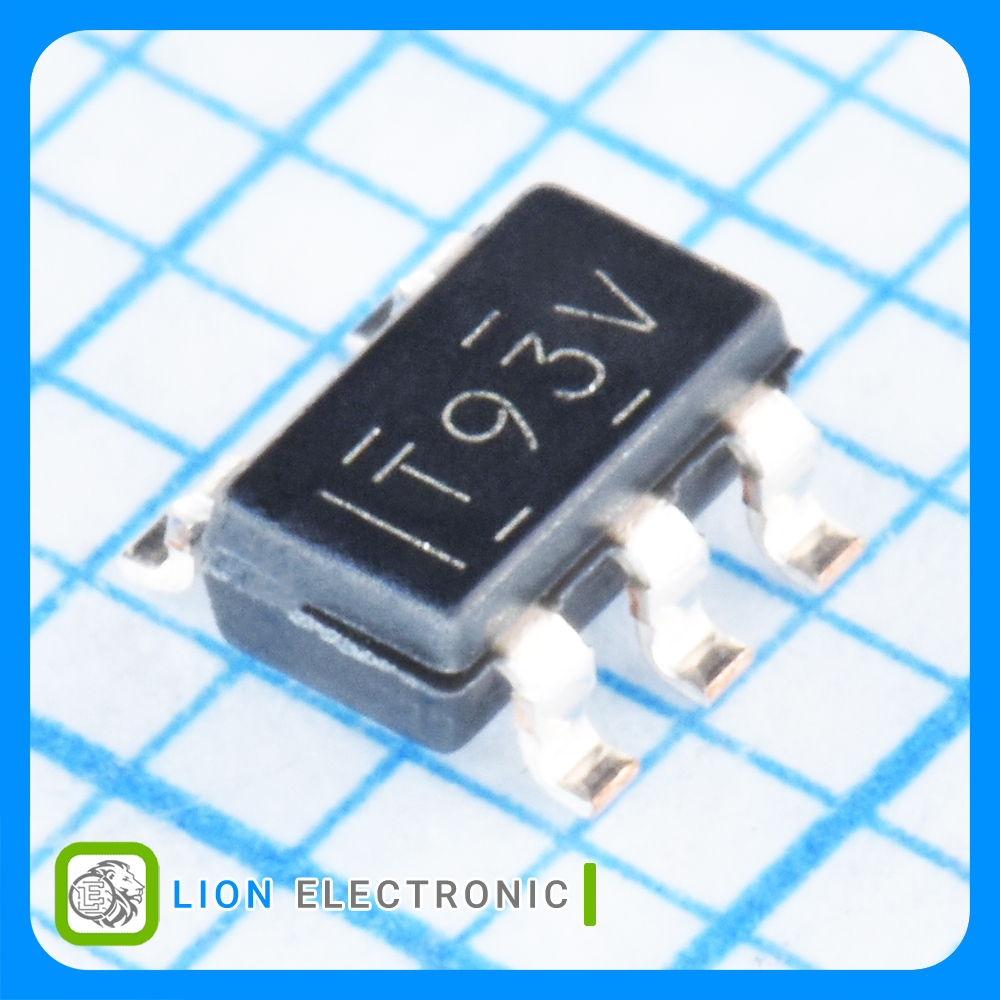

TLV9351IDBVR
TLV9351IDBVR
Part Number
5890
Lion Part
Datasheet
Texas Instruments Manufacture
آپامپ 1 کاناله با پهنای باند 3.5 مگاهرتز و ولتاژ تغذیه 40 ولت، RRO، مناسب MUX، برای سیستمهای حساس به هزینه، با پکیج SOT-23-5
Operational Amplifier 1-Channel, 3.5MHz, 40V, RRO, MUX-Friendly for Cost-Sensitive Systems, with SOT-23-5 Package
معرفی
آپامپ 1 کاناله با پهنای باند 3.5 مگاهرتز و ولتاژ تغذیه 40 ولت، RRO، مناسب MUX، برای سیستمهای حساس به هزینه، با پکیج SOT-23-5
Operational Amplifier 1-Channel, 3.5MHz, 40V, RRO, MUX-Friendly for Cost-Sensitive Systems, with SOT-23-5 Package
Specifications
- Number of Channels: 1
- Output Current per Channel: 60mA
- SR - Slew Rate: 20V/us
- GBP - Gain Bandwidth Product: 3.5MHz
- CMRR - Common Mode Rejection Ratio: 110dB
- Ib - Input Bias Current: 10pA
- Vos - Input Offset Voltage: 350uV
- Supply Voltage - Max: 40V
- Supply Voltage - Min: 4.5V
- Operating Supply Current: 650uA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات TLV9351IDBVR
TLV9351IDBVR
Part Number
1
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
10pA
Ib - Input Bias Current
+125C
Maximum Operating Temperature
60mA
Output Current per Channel
350uV
Vos - Input Offset Voltage
3.5MHz
GBP - Gain Bandwidth Product
20V/us
SR - Slew Rate
110dB
CMRR - Common Mode Rejection Ratio
4.5V
Supply Voltage - Min
40V
Supply Voltage - Max
650uA
Operating Supply Current
SOT-23-5
Package-Case
