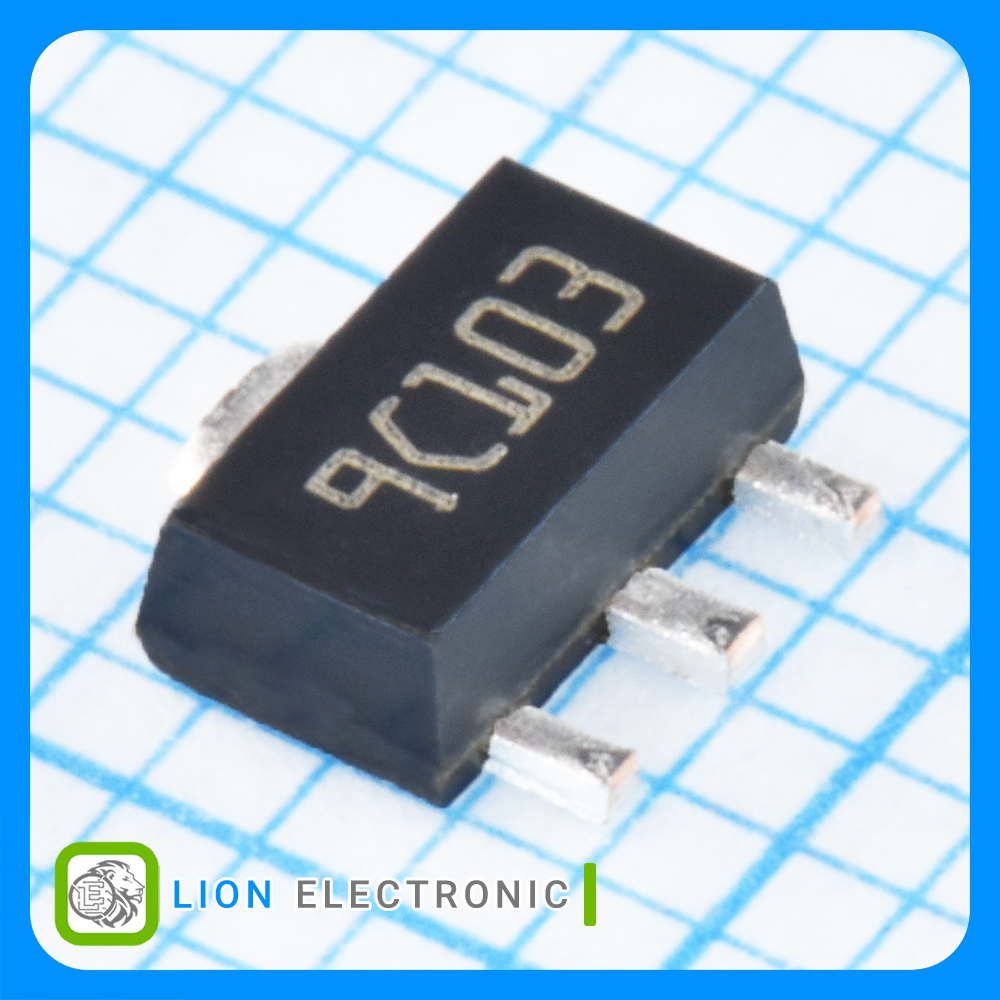

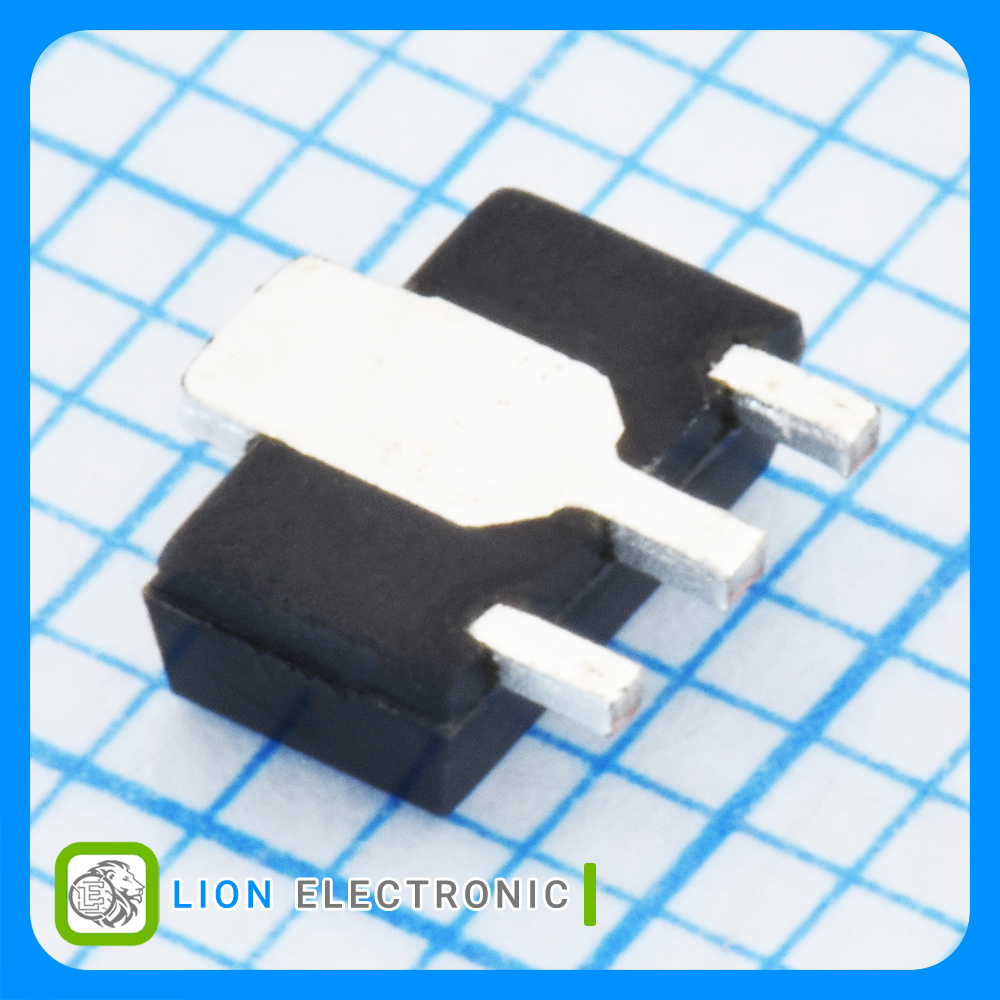

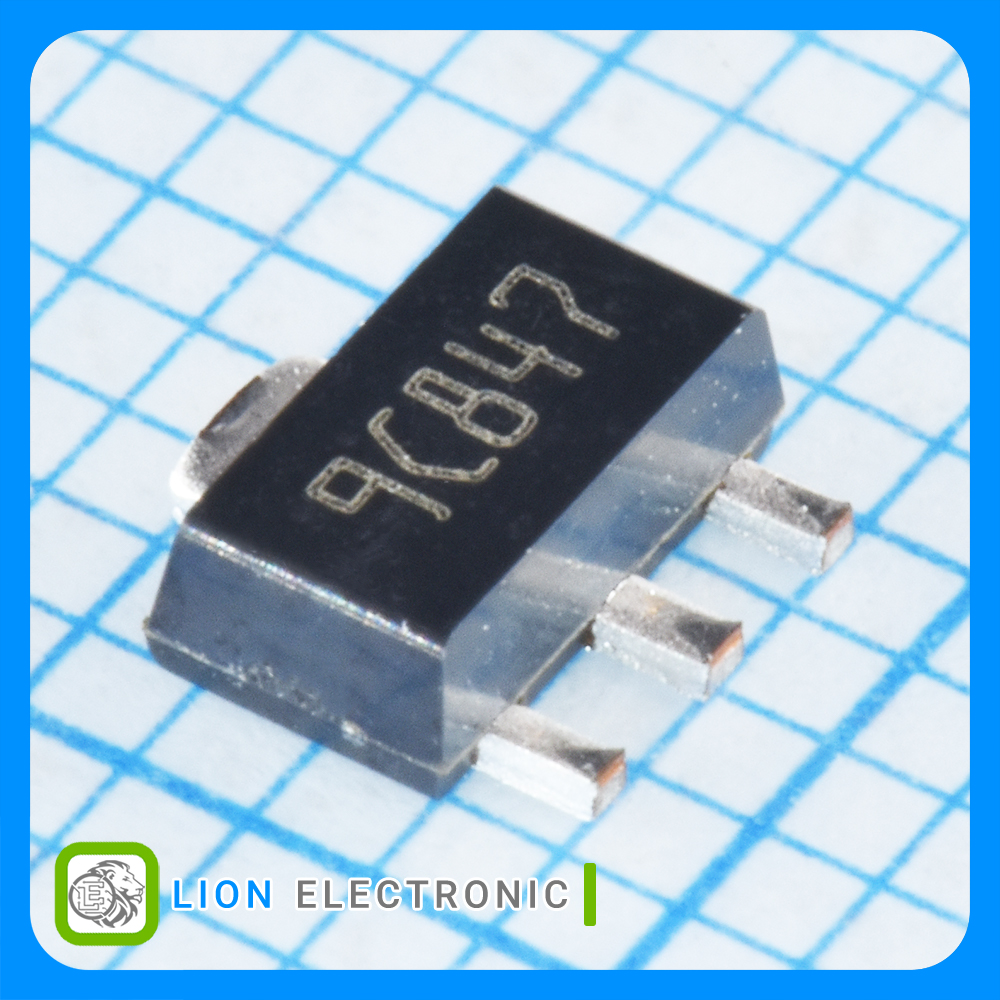

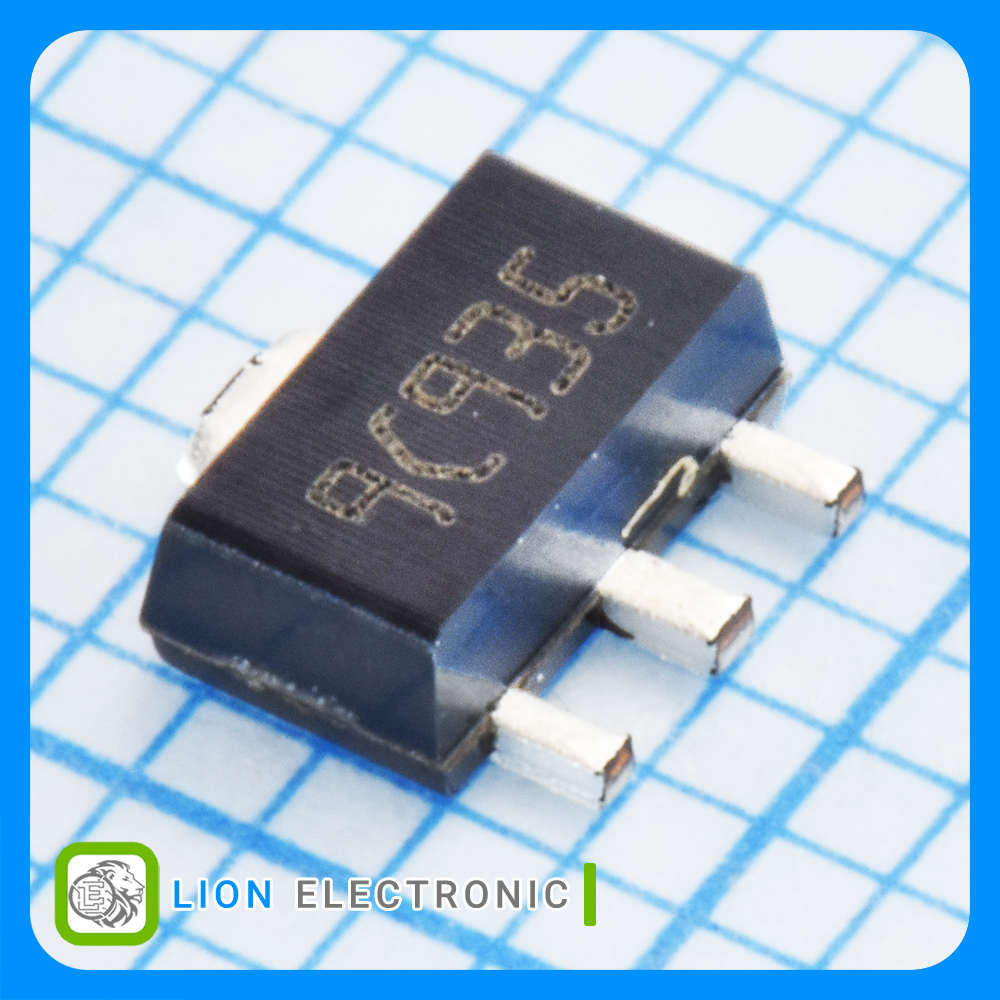

L79L05ACUTR
L79L05ACUTR
Part Number
6159
Lion Part
Datasheet
STMicroelectronics Manufacture
رگولاتور خطی منفی 5 ولت 100 میلیآمپر با پکیج SOT-89-3
Fixed Linear Voltage Regulator -5V, 100mA with SOT-89-3 Package
معرفی
رگولاتور خطی منفی 5 ولت 100 میلیآمپر با پکیج SOT-89-3
Fixed Linear Voltage Regulator -5V, 100mA with SOT-89-3 Package
Specifications
- Polarity: Negative
- Output Type: Fixed
- Number of Outputs: 1
- Output Voltage: -5V
- Output Current: 100mA
- Input Voltage Min: -7V
- Input Voltage Max: -30V
- Load Regulation: 60mV
- Line Regulation: 150mV
- Quiescent Current: 6mA
- Mounting Style: SMD/SMT
- Package/Case: SOT-89
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات L79L05ACUTR
L79L05ACUTR
Part Number
1
Number of Outputs
-30V
Input Voltage Max
Negative
Polarity
-7V
Input Voltage Min
Reel
Packaging
SMD/SMT
Mounting Style
-5V
Output Voltage
0C
Minimum Operating Temperature
60mV
Load Regulation
150mV
Line Regulation
Fixed
Output Type
+125C
Maximum Operating Temperature
100mA
Output Current
6mA
Quiescent Current
SOT-89
Package-Case
