XC6206P302PR
XC6206P302PR
Part Number
6233
Lion Part
Datasheet
Torex Semiconductor Manufacture
رگولاتور LDO ثابت 3 ولت 200 میلیآمپر با پکیج SOT-89-3

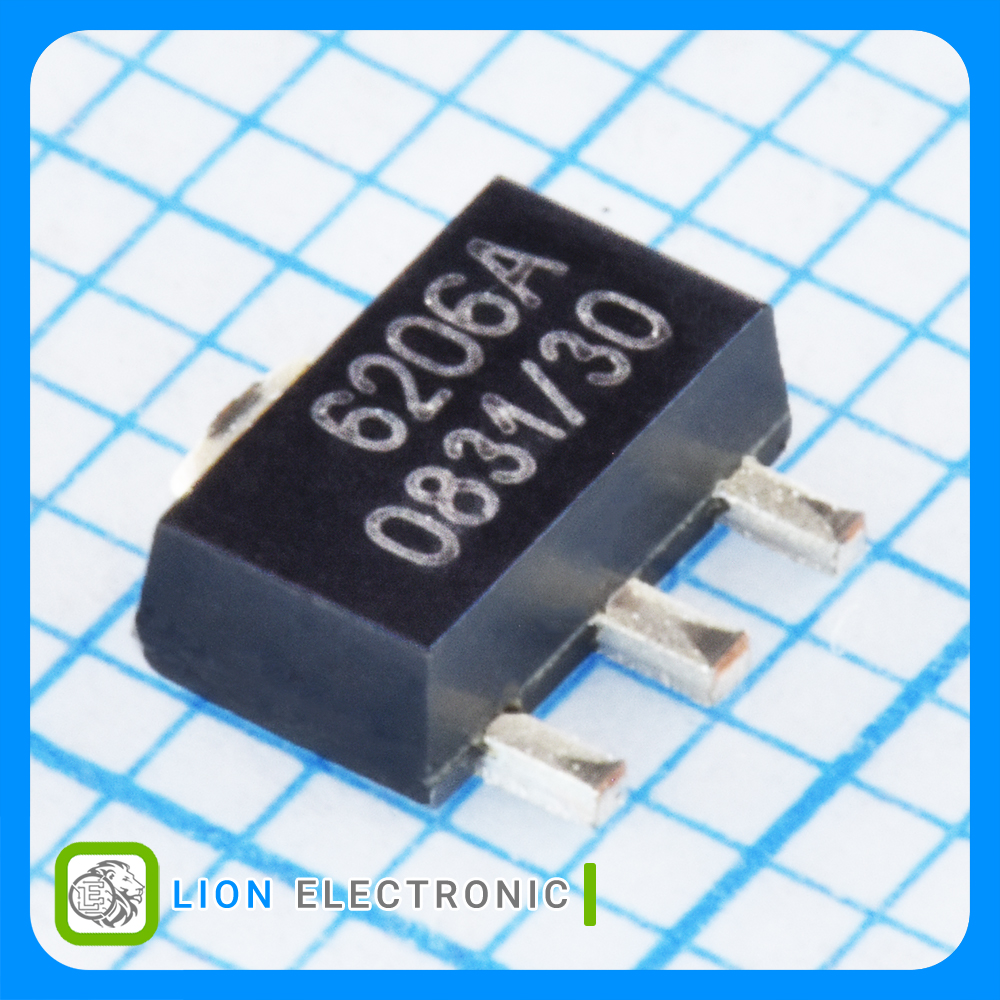

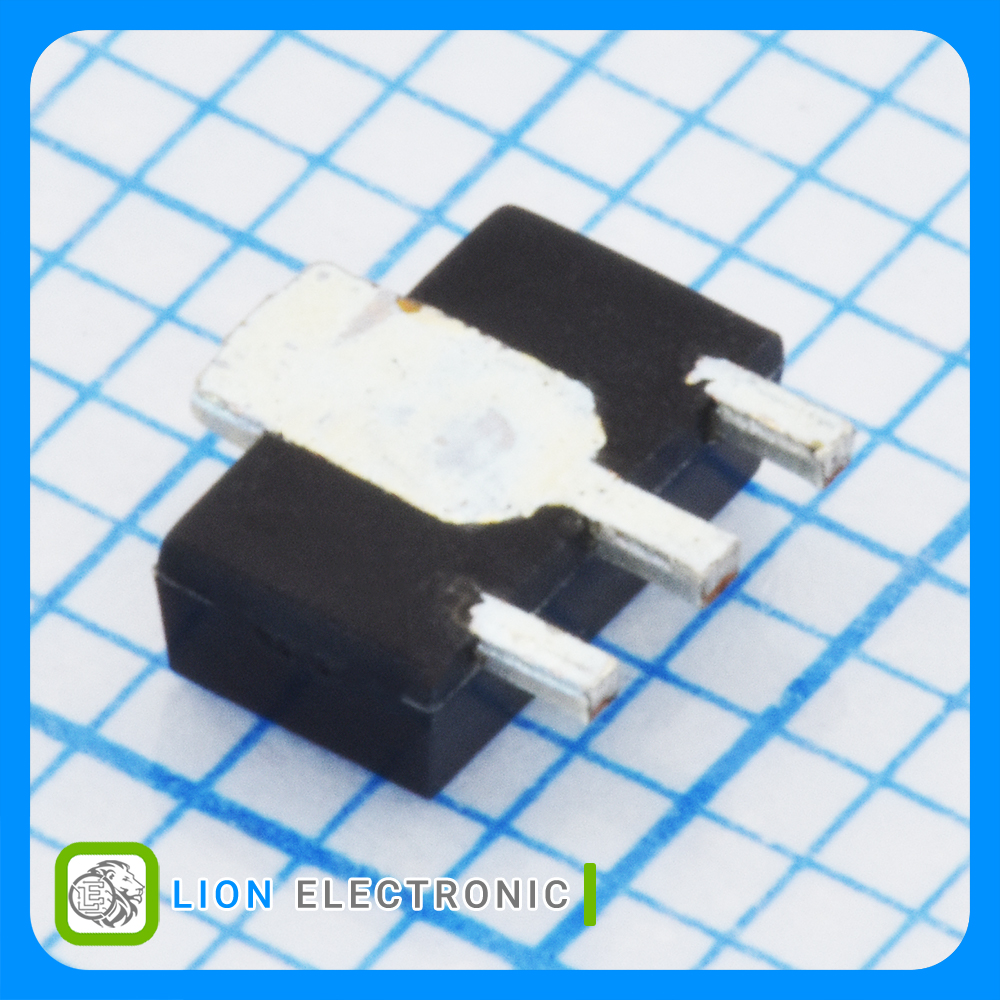

Fixed LDO Voltage Regulator 3V, 200mA with SOT-89-3 Package
معرفی
رگولاتور LDO ثابت 3 ولت 200 میلیآمپر با پکیج SOT-89-3
Fixed LDO Voltage Regulator 3V, 200mA with SOT-89-3 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-89
- Output Voltage: 3V
- Output Current: 200mA
- Dropout Voltage: 250mV
- Input Voltage Min: 1.8V
- Input Voltage Max: 6V
- PSRR / Ripple Rejection - Typ: 60dB
- Quiescent Current: 1uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات XC6206P302PR
XC6206P302PR
Part Number
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
1uA
Quiescent Current
Positive
Polarity
SMD/SMT
Mounting Style
6V
Input Voltage Max
+85C
Maximum Operating Temperature
60dB
PSRR - Ripple Rejection - Typ
Fixed
Output Type
250mV
Dropout Voltage
1.8V
Input Voltage Min
200mA
Output Current
3V
Output Voltage
SOT-89
Package-Case
