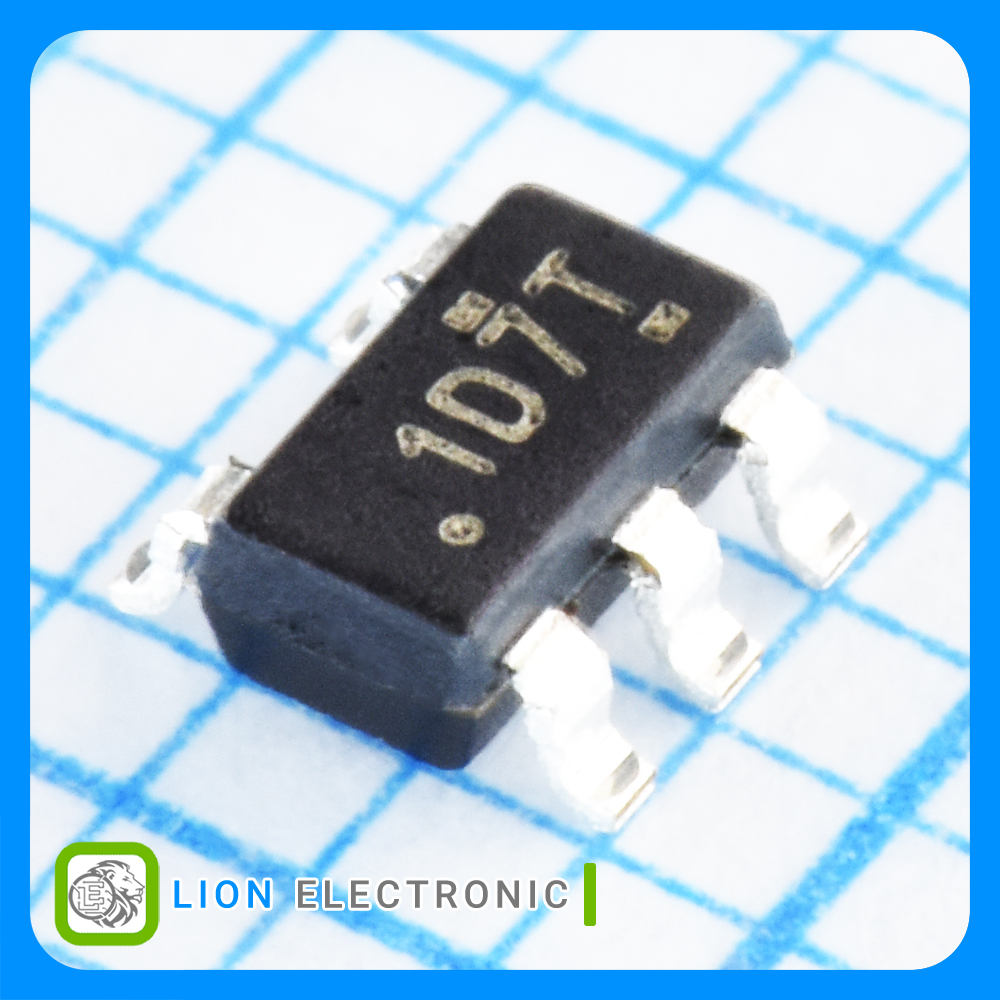

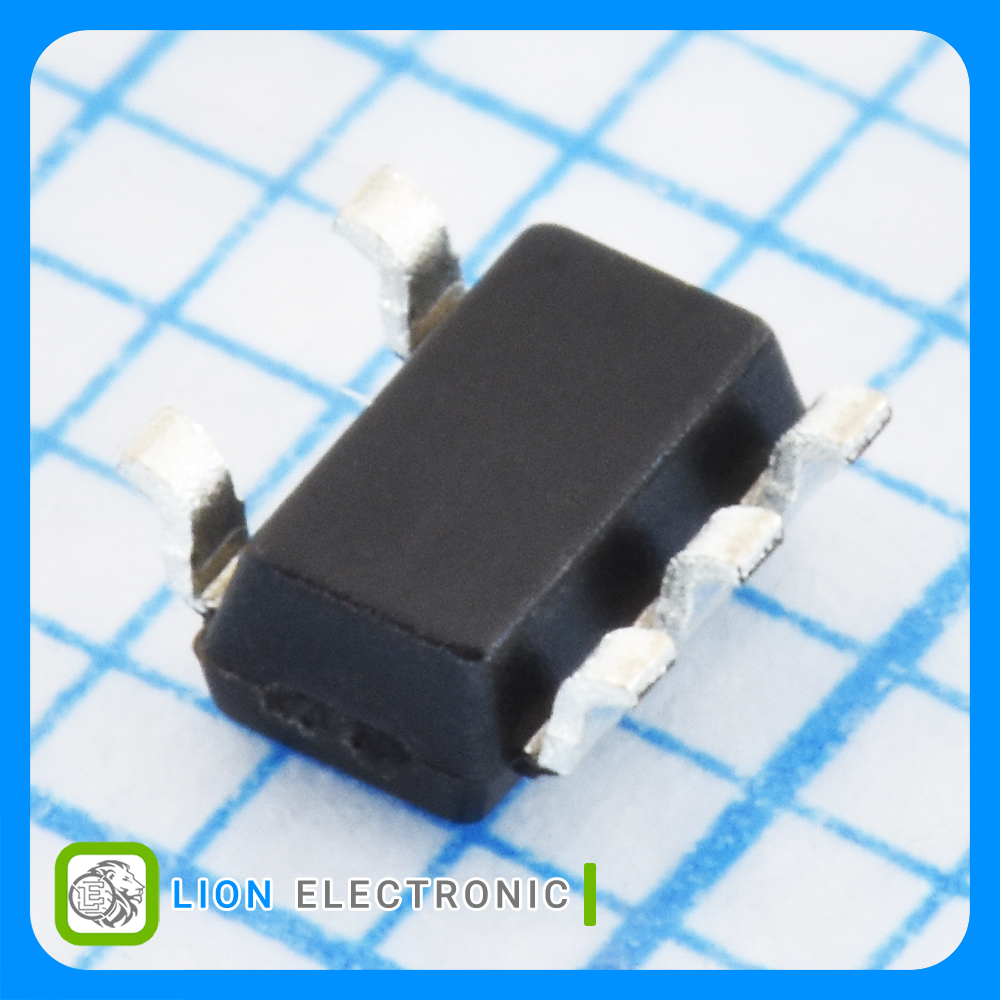

رگولاتور(LDO) TLV74318PDBVR
TLV74318PDBVR
Part Number
5998
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور خطی ۱.۸ ولت، پایدار با خازن خروجی کوچک (1µF)
1.8V low-dropout linear regulator stable with a small output capacitor (1µF) SOT-23-5
مشخصات رگولاتور(LDO) TLV74318PDBVR
رگولاتور(LDO) TLV74318PDBVR
Part Number
1
Number of Outputs

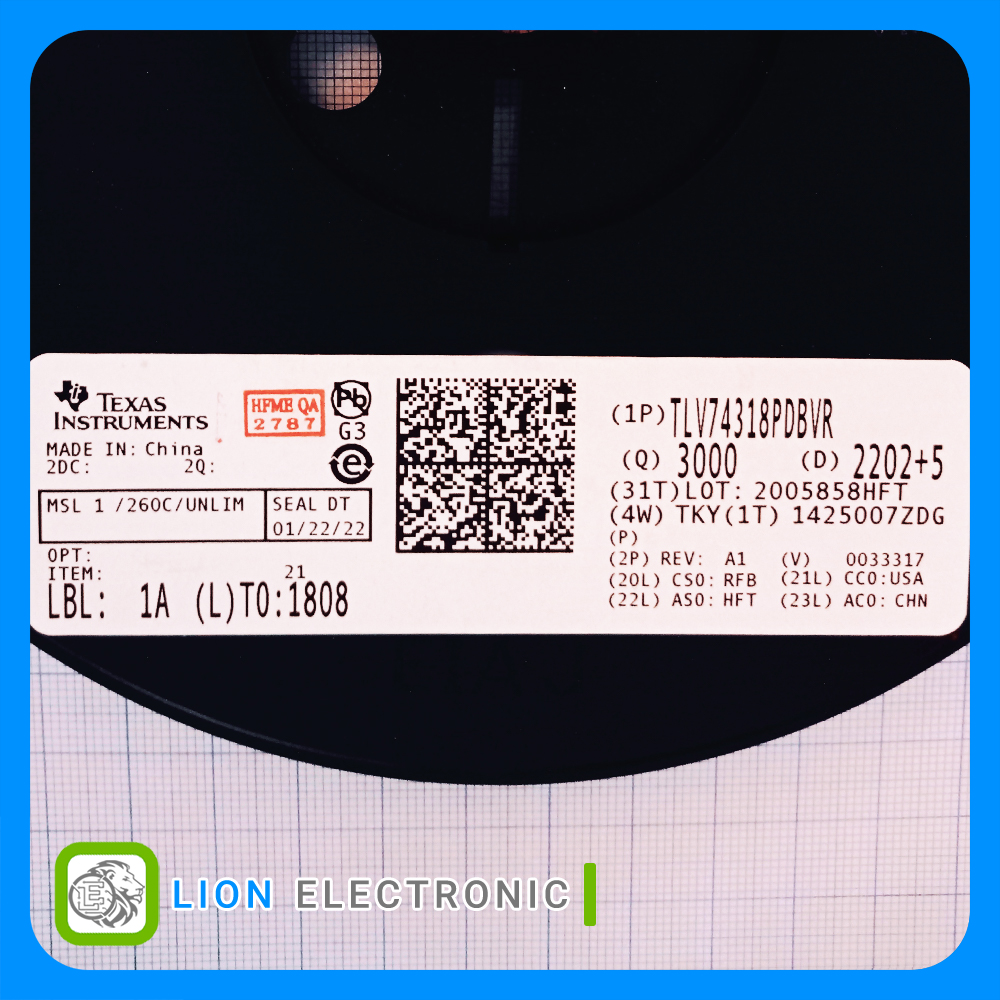

Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
SMD/SMT
Mounting Style
125mV
Dropout Voltage
5.5V
Input Voltage Max
Fixed
Output Type
68dB
PSRR - Ripple Rejection - Typ
1.4V
Input Voltage Min
+125C
Maximum Operating Temperature
34uA
Quiescent Current
300mA
Output Current
1.8V
Output Voltage
SOT-23-5
Package-Case
