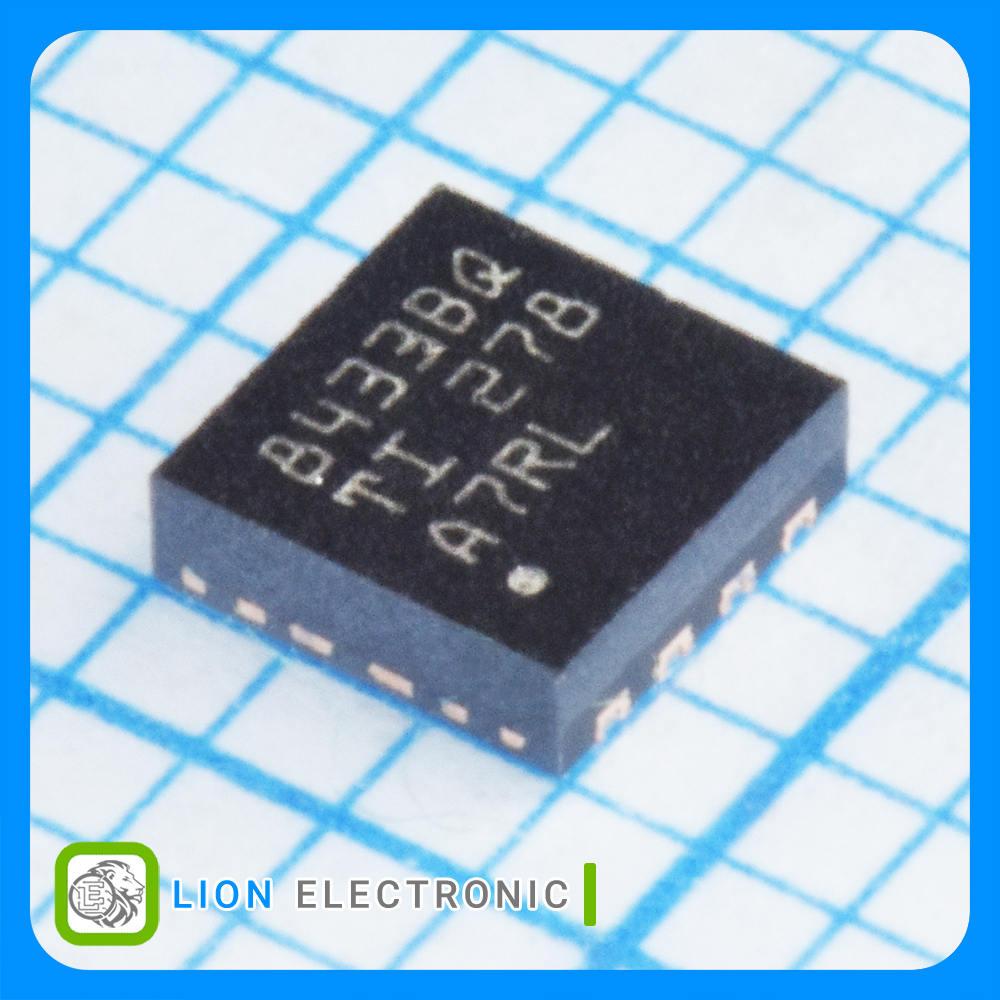

TPS78433BQWDRBRQ1
TPS78433BQWDRBRQ1
Part Number
6689
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور LDO ثابت 3.3 ولت 300 میلیآمپر، اتوموتیو، با جریان کم و PSRR بالا، دقت بالا و پین فعالسازی (enable)، با پکیج VSON-8
Fixed LDO Voltage Regulator 3.3V, 300mA, Automotive, low-IQ, high-PSRR, high accuracy with enable, with VSON-8 Package
معرفی
رگولاتور LDO ثابت 3.3 ولت 300 میلیآمپر، اتوموتیو، با جریان کم و PSRR بالا، دقت بالا و پین فعالسازی (enable)، با پکیج VSON-8
Fixed LDO Voltage Regulator 3.3V, 300mA, Automotive, low-IQ, high-PSRR, high accuracy with enable, with VSON-8 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: VSON-8
- Output Voltage: 3.3V
- Output Current: 300mA
- Dropout Voltage: 115mV
- Input Voltage Min: 1.65V
- Input Voltage Max: 6V
- PSRR / Ripple Rejection - Typ: 60dB
- Quiescent Current: 3.1uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات TPS78433BQWDRBRQ1
TPS78433BQWDRBRQ1
Part Number
1
Number of Outputs
-65C
Minimum Operating Temperature
Reel
Packaging
Positive
Polarity
SMD/SMT
Mounting Style
6V
Input Voltage Max
60dB
PSRR - Ripple Rejection - Typ
3.1uA
Quiescent Current
Fixed
Output Type
+150C
Maximum Operating Temperature
300mA
Output Current
115mV
Dropout Voltage
1.65V
Input Voltage Min
3.3V
Output Voltage
VSON-8
Package-Case
