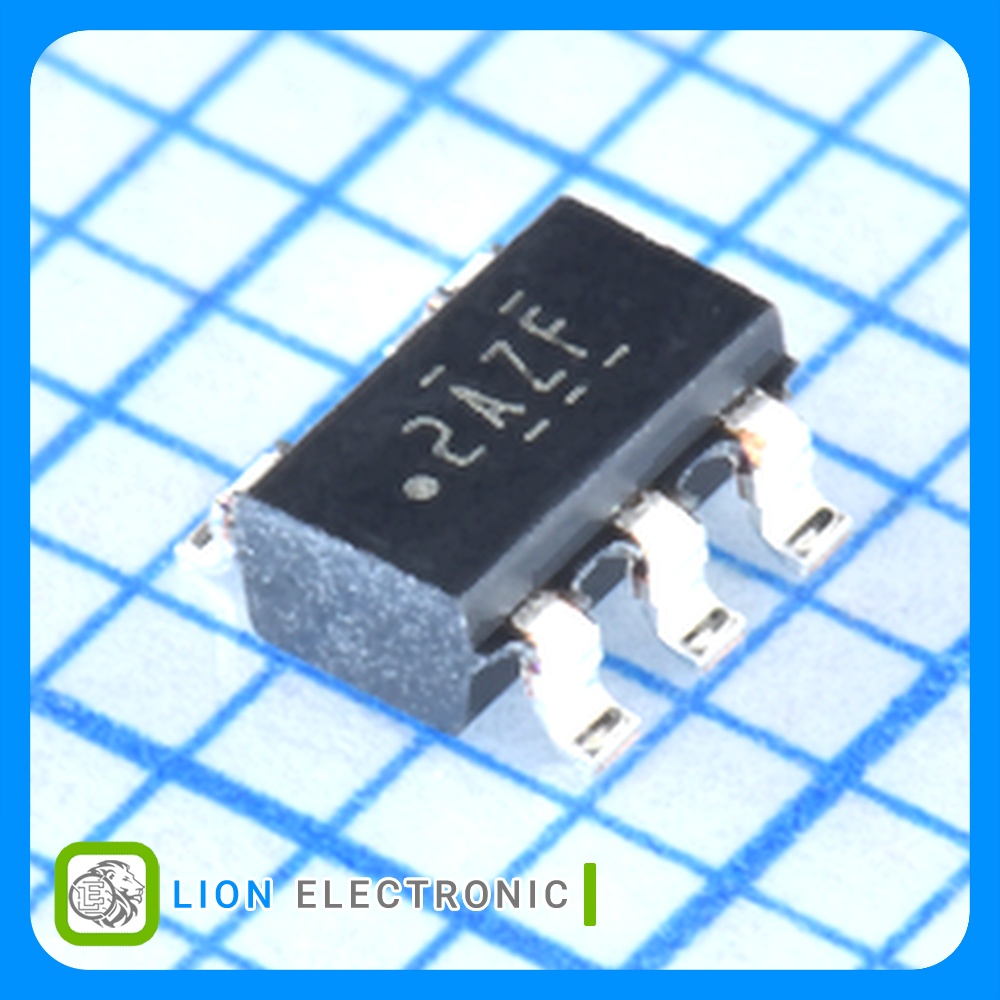

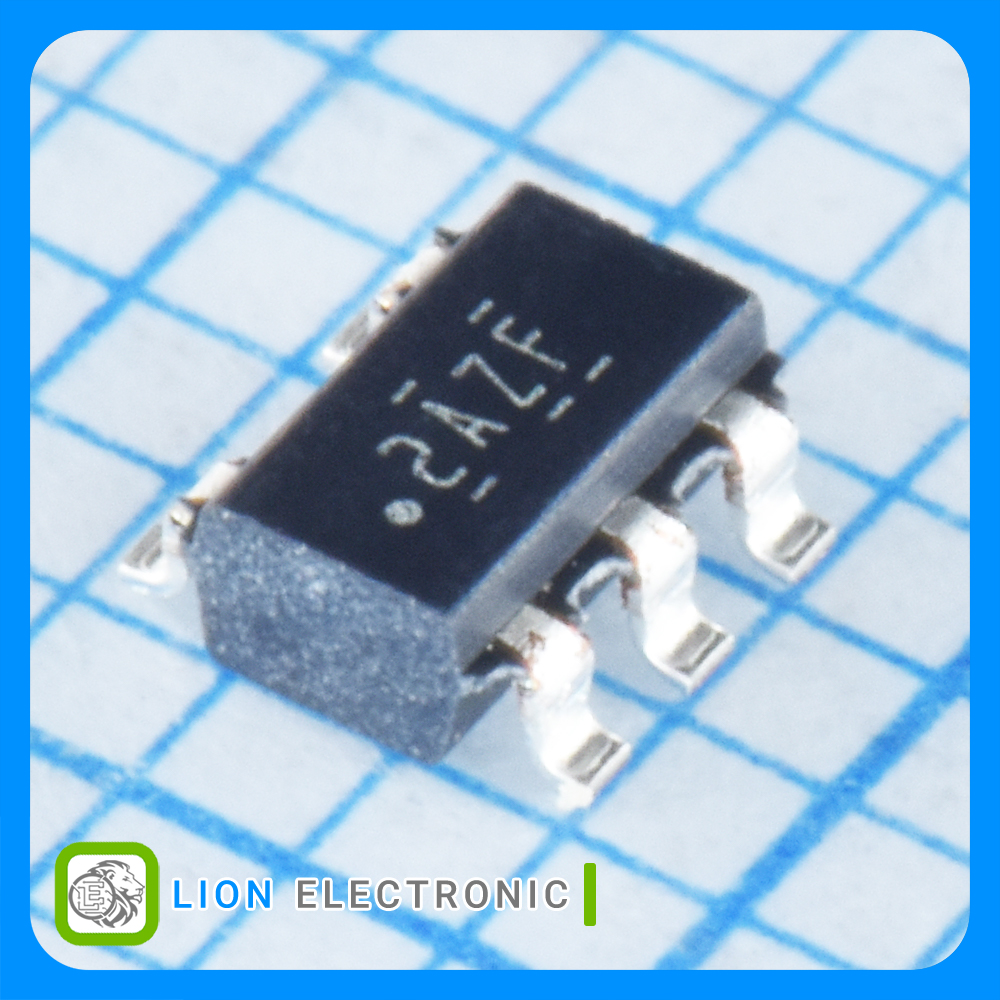

TPS7A2033PDBVR
TPS7A2033PDBVR
Part Number
6469
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور LDO ثابت 3.3 ولت 300 میلیآمپر با پکیج SOT-23-5
Fixed LDO Voltage Regulator 3.3V, 300mA with SOT-23-5 Package
معرفی
رگولاتور LDO ثابت 3.3 ولت 300 میلیآمپر با پکیج SOT-23-5
Fixed LDO Voltage Regulator 3.3V, 300mA with SOT-23-5 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-23-5
- Output Voltage: 3.3V
- Output Current: 300mA
- Dropout Voltage: 140mV
- Input Voltage Min: 1.6V
- Input Voltage Max: 6V
- PSRR / Ripple Rejection - Typ: 95dB
- Quiescent Current: 6.5uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات TPS7A2033PDBVR
TPS7A2033PDBVR
Part Number
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
SMD/SMT
Mounting Style
6V
Input Voltage Max
140mV
Dropout Voltage
6.5uA
Quiescent Current
Fixed
Output Type
+125C
Maximum Operating Temperature
1.6V
Input Voltage Min
95dB
PSRR - Ripple Rejection - Typ
300mA
Output Current
3.3V
Output Voltage
SOT-23-5
Package-Case
