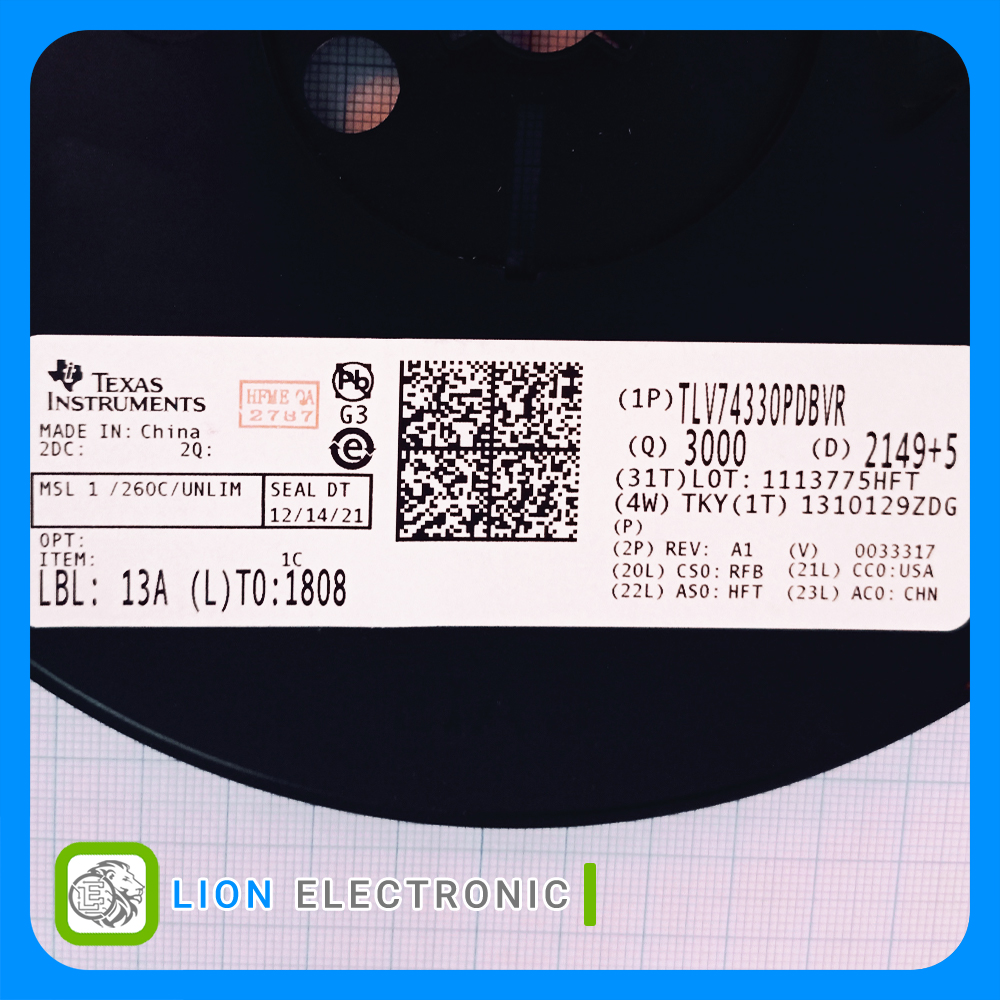

TLV74330PDBVR
TLV74330PDBVR
Part Number
6001
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور خطی LDO ثابت 3 ولت 300 میلیآمپر، پایدار با خازن خروجی کوچک (1 میکروفاراد) با پکیج SOT-23-5

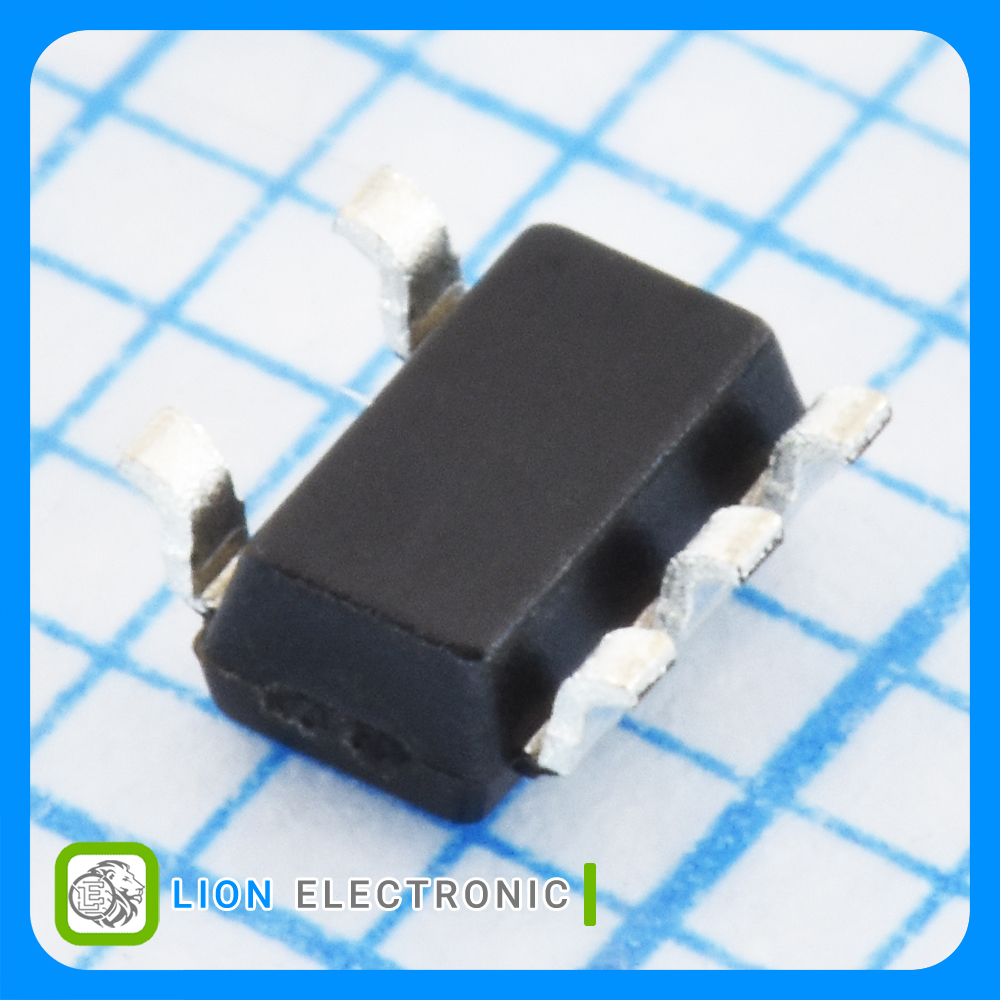

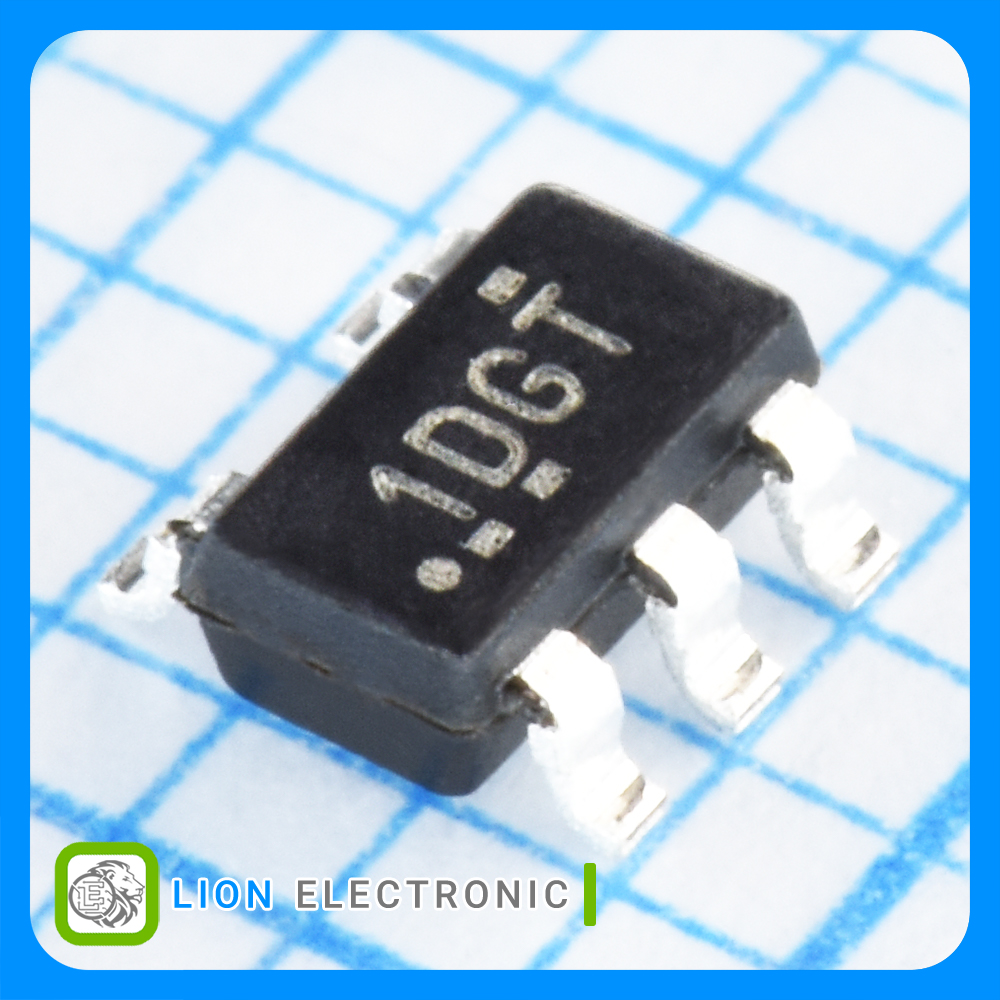

Fixed 3V, 300mA low-dropout linear LDO Voltage Regulator stable with a small output capacitor (1µF), with SOT-23-5 Package
معرفی
رگولاتور خطی LDO ثابت 3 ولت 300 میلیآمپر، پایدار با خازن خروجی کوچک (1 میکروفاراد) با پکیج SOT-23-5
Fixed 3V, 300mA low-dropout linear LDO Voltage Regulator stable with a small output capacitor (1µF), with SOT-23-5 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-23-5
- Output Voltage: 3V
- Output Current: 300mA
- Dropout Voltage: 125mV
- Input Voltage Min: 1.4V
- Input Voltage Max: 5.5V
- PSRR / Ripple Rejection - Typ: 68dB
- Quiescent Current: 34uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور(LDO) TLV74330PDBVR
رگولاتور(LDO) TLV74330PDBVR
Part Number
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
125mV
Dropout Voltage
5.5V
Input Voltage Max
SMD/SMT
Mounting Style
Fixed
Output Type
68dB
PSRR - Ripple Rejection - Typ
1.4V
Input Voltage Min
+125C
Maximum Operating Temperature
34uA
Quiescent Current
300mA
Output Current
3V
Output Voltage
SOT-23-5
Package-Case
