معرفی

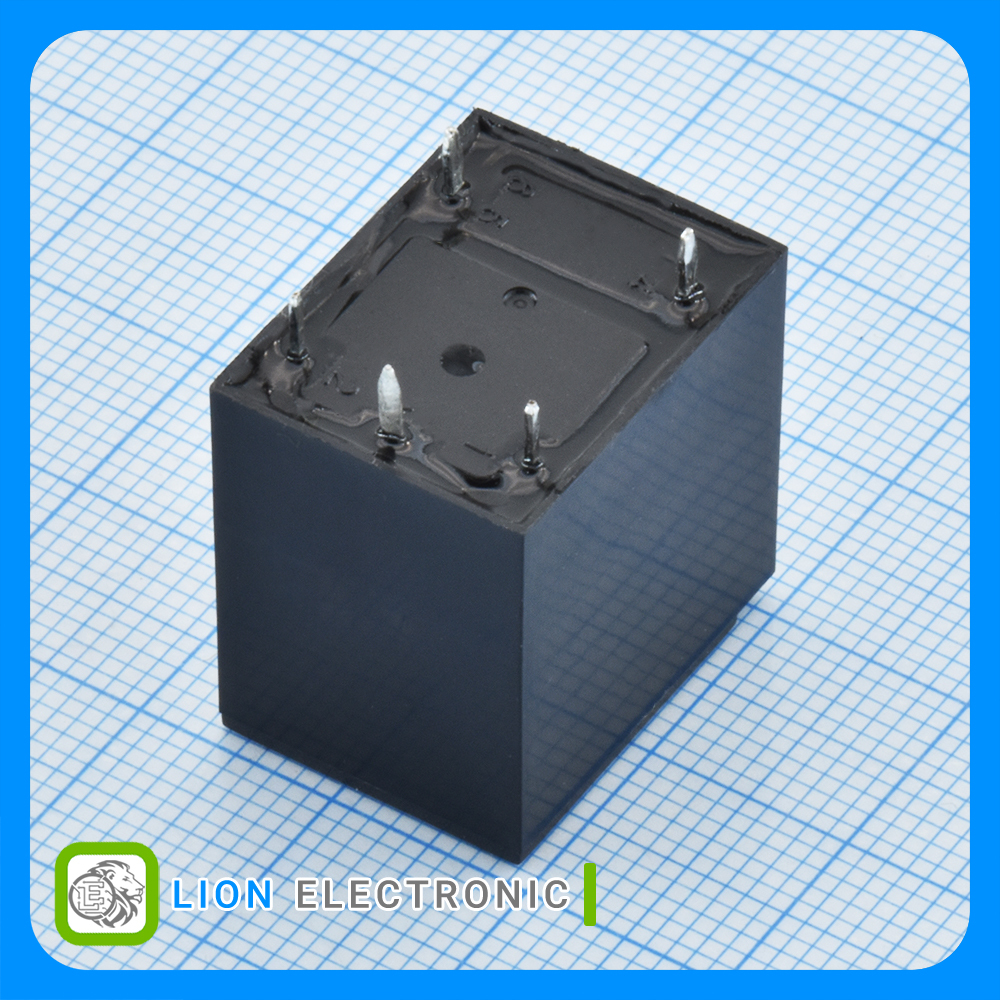

رله 1 Form C (SPDT-NO, NC) ولتاژ کویل 24 ولت DC جریان کنتاکت 20 آمپر با نصب پایهدار
General Purpose Relay 1 Form C (SPDT-NO, NC), 24VDC with 20A Contact Current
Specifications
- Relay Contact Form: 1 Form C (SPDT-NO, NC)
- insulation class: Class B
- Coil Voltage: 24VDC
- Contact Current Rating: 20A
- Coil Resistance: 1.28kΩ
- Coil Current: 19mA
- Power Consumption: 450mW
- Height: 20.2mm
- Length: 20.3mm
- Width: 16.8mm
- Coil Type: Non-Latching
- Mounting Style: Through Hole
- Packaging: Tube
- Max Switching Voltage: 250VAC
مشخصات JZC-22F3FC20DDC24V
JZC-22F3FC20DDC24V
Part Number
Class B
insulation class
Non-Latching
Coil Type
1 Form C (SPDT-NO, NC)
Relay Contact Form
24VDC
Coil Voltage
450mW
Power Consumption
20A
Contact Current Rating
19mA
Coil Current
250VAC
Max Switching Voltage
Tube
Packaging
Through Hole
Mounting Style
1.28kΩ
Coil Resistance
20.3mm
Length
16.8mm
Width
20.2mm
Height
