HI-LINK
معرفی
ماژول مبدل AC به DC سوئیچینگ ایزوله 10 وات خروجی 12 ولت 830 میلیآمپر ورودی 85 تا 265 ولت AC

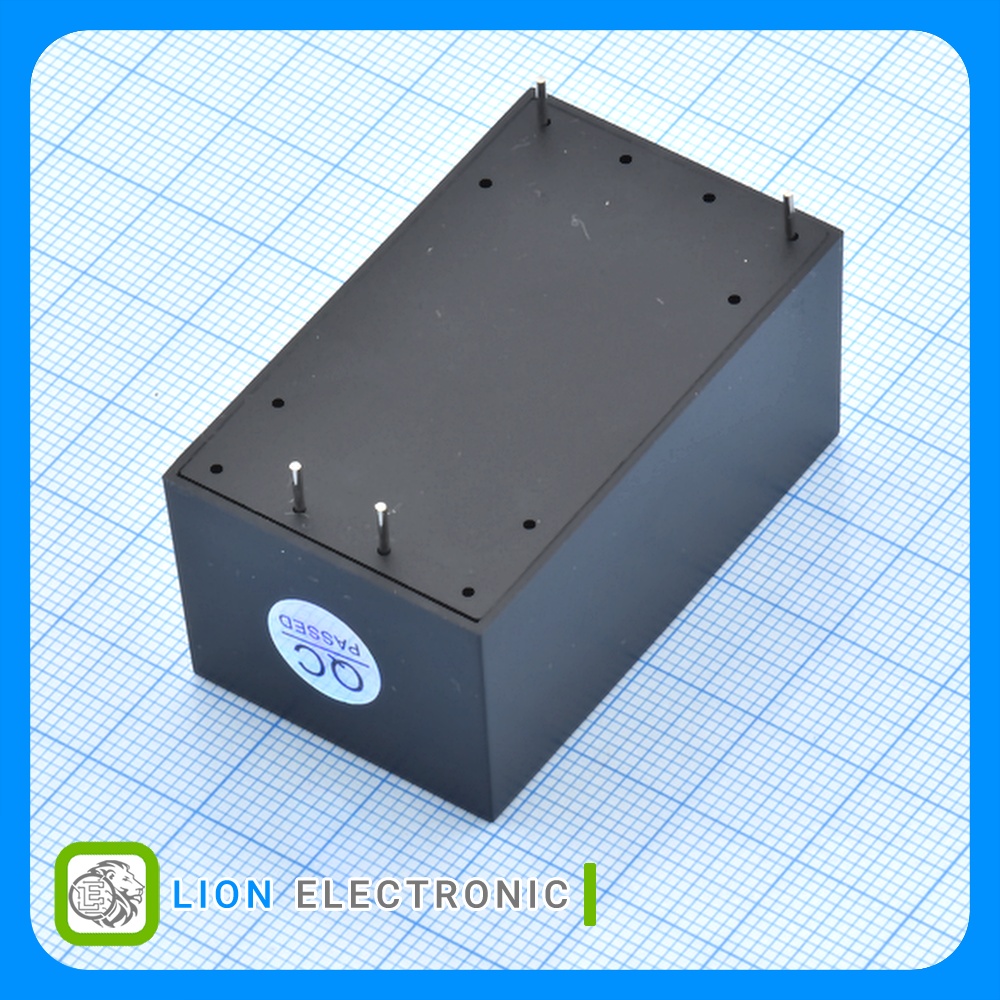

Isolated AC/DC Power Module 10W, 12V 830mA with 85 - 265VAC Input
Specifications
- Input Voltage: 85 - 265VAC
- Number of Outputs: 1
- Output Voltage - Channel 1: 12V
- Output Current - Channel 1: 830mA
- Output Power: 10W
- Open Frame/Enclosed: Enclosed
- Length: 47.5mm
- Width: 28.5mm
- Height: 22mm
- Mounting Style: Through Hole
- Product: AC/DC Power Modules
مشخصات HLK-10M12B

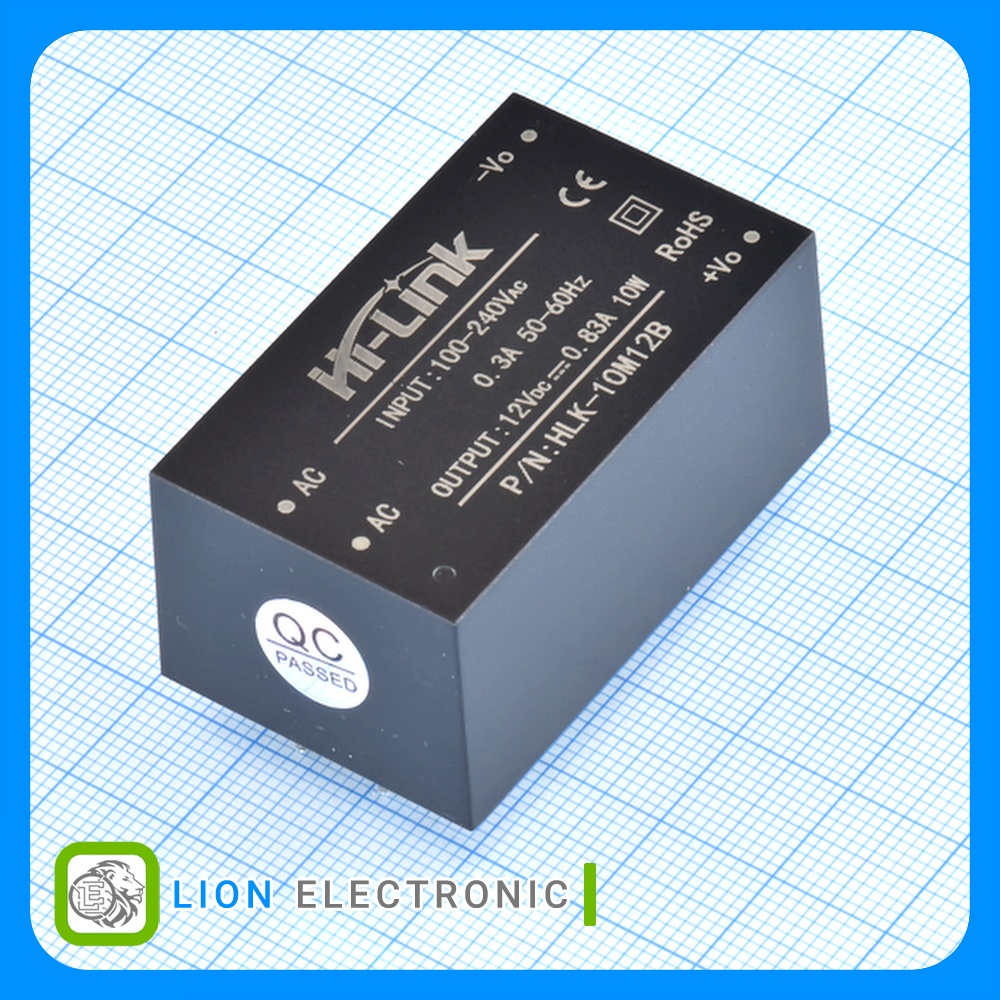

HLK-10M12B
Part Number
1
Number of Outputs
AC/DC Power Modules
Product
Enclosed
Open Frame-Enclosed
12V
Output Voltage - Channel 1
N/A
Output Voltage - Channel 2
Through Hole
Mounting Style
N/A
Output Current - Channel 2
830mA
Output Current - Channel 1
10W
Output Power
85 - 265VAC
Input Voltage
28.5mm
Width
47.5mm
Length
22mm
Height
