HI-LINK
معرفی
منبع تغذیه 5 وات خروجی 12 ولت تا 416 میلیآمپر ورودی 85 تا 265 ولت AC
Power Supply 5W, 12V ~416mA with 85 - 265VAC Input
Specifications
- Input Voltage: 85 - 265VAC
- Number of Outputs: 1
- Output Voltage - Channel 1: 12V
- Output Current - Channel 1: ~416mA
- Output Power: 5W
- Open Frame/Enclosed: Open Frame
- Length: 23.9mm
- Width: 7.3mm
- Height: 17.5mm
- Mounting Style: Through Hole
- Product: AC/DC Power Modules
مشخصات HLK-5LS12

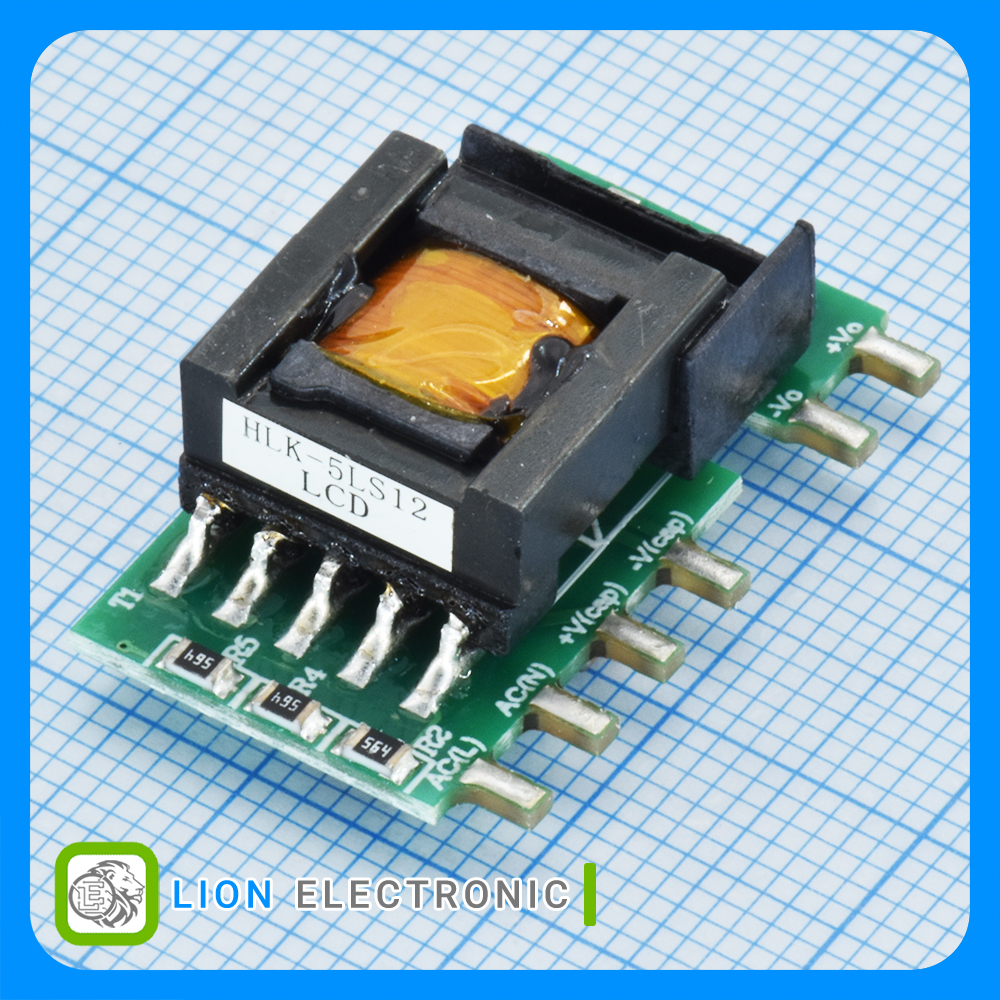

HLK-5LS12
Part Number
1
Number of Outputs
Open Frame
Open Frame-Enclosed
AC/DC Power Modules
Product
12V
Output Voltage - Channel 1
N/A
Output Voltage - Channel 2
Through Hole
Mounting Style
N/A
Output Current - Channel 2
5W
Output Power
7.3mm
Width
~416mA
Output Current - Channel 1
23.9mm
Length
85 - 265VAC
Input Voltage
17.5mm
Height
