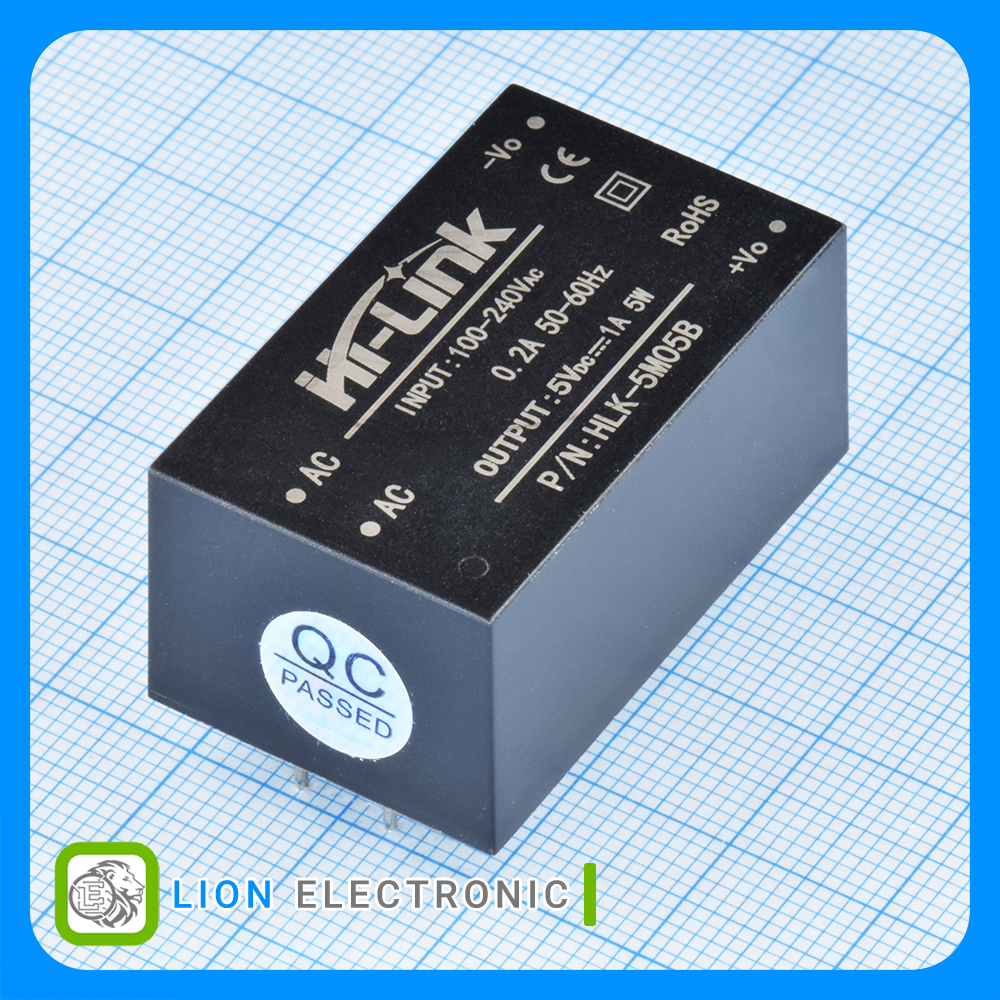

HLK-5M05B
HLK-5M05B
Part Number
6584
Lion Part
Datasheet
HI-LINK Manufacture
منبع تغذیه فوق فشرده HLK-5M05B با توان 5 وات خروجی 5 ولت 1 آمپر ورودی 85 تا 265 ولت AC (با ولتاژ 230 ولت AC به 5V/با توان 5 وات DC)
Ultra-Compact Power Module HLK-5M05B, 5W, 5V 1A with 85 - 265VAC Input (230V AC to 5V/5W DC)
معرفی
منبع تغذیه فوق فشرده HLK-5M05B با توان 5 وات خروجی 5 ولت 1 آمپر ورودی 85 تا 265 ولت AC (با ولتاژ 230 ولت AC به 5V/با توان 5 وات DC)
Ultra-Compact Power Module HLK-5M05B, 5W, 5V 1A with 85 - 265VAC Input (230V AC to 5V/5W DC)
Specifications
- Input Voltage: 85 - 265VAC
- Number of Outputs: 1
- Output Voltage - Channel 1: 5V
- Output Current - Channel 1: 1A
- Output Power: 5W
- Open Frame/Enclosed: Enclosed
- Length: 39mm
- Width: 23.5mm
- Height: 18mm
- Mounting Style: Through Hole
- Product: AC/DC Power Modules
مشخصات HLK-5M05B
HLK-5M05B
Part Number
1
Number of Outputs
Enclosed
Open Frame-Enclosed
AC/DC Power Modules
Product
5V
Output Voltage - Channel 1
N/A
Output Voltage - Channel 2
Through Hole
Mounting Style
N/A
Output Current - Channel 2
5W
Output Power
1A
Output Current - Channel 1
23.5mm
Width
85 - 265VAC
Input Voltage
39mm
Length
18mm
Height
