EBYTE
معرفی
ماژول رادیویی nRF24L01 2.4 گیگاهرتز، دارای حداکثر برد 4 کیلومتر در شرایط ایدهآل
2.4GHz 500mW SPI SMD wireless module , Under ideal conditions, the communication distance can reach 4 km
مشخصات E01-2G4M27SX

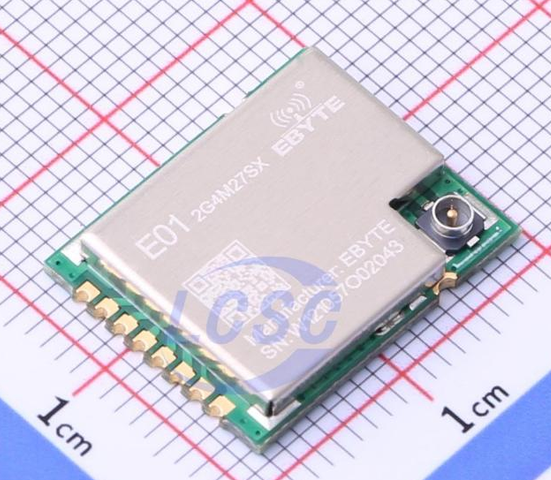

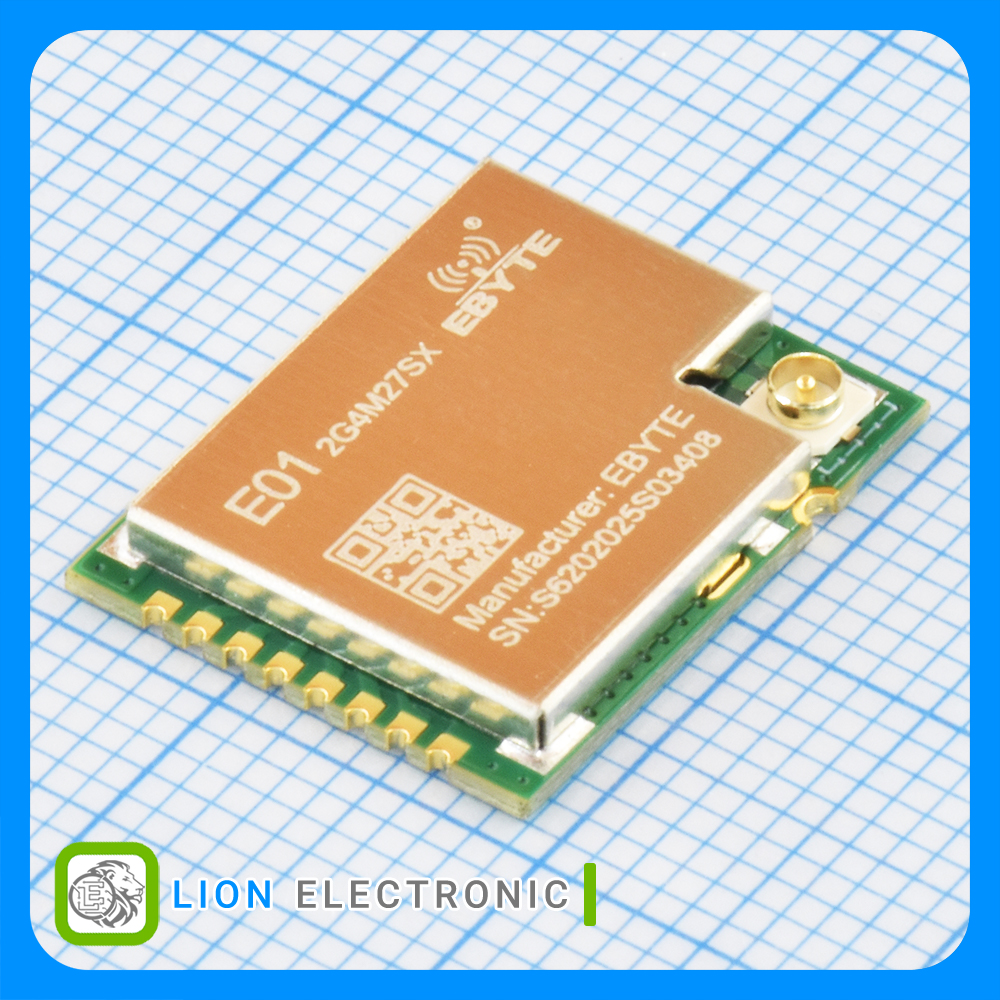

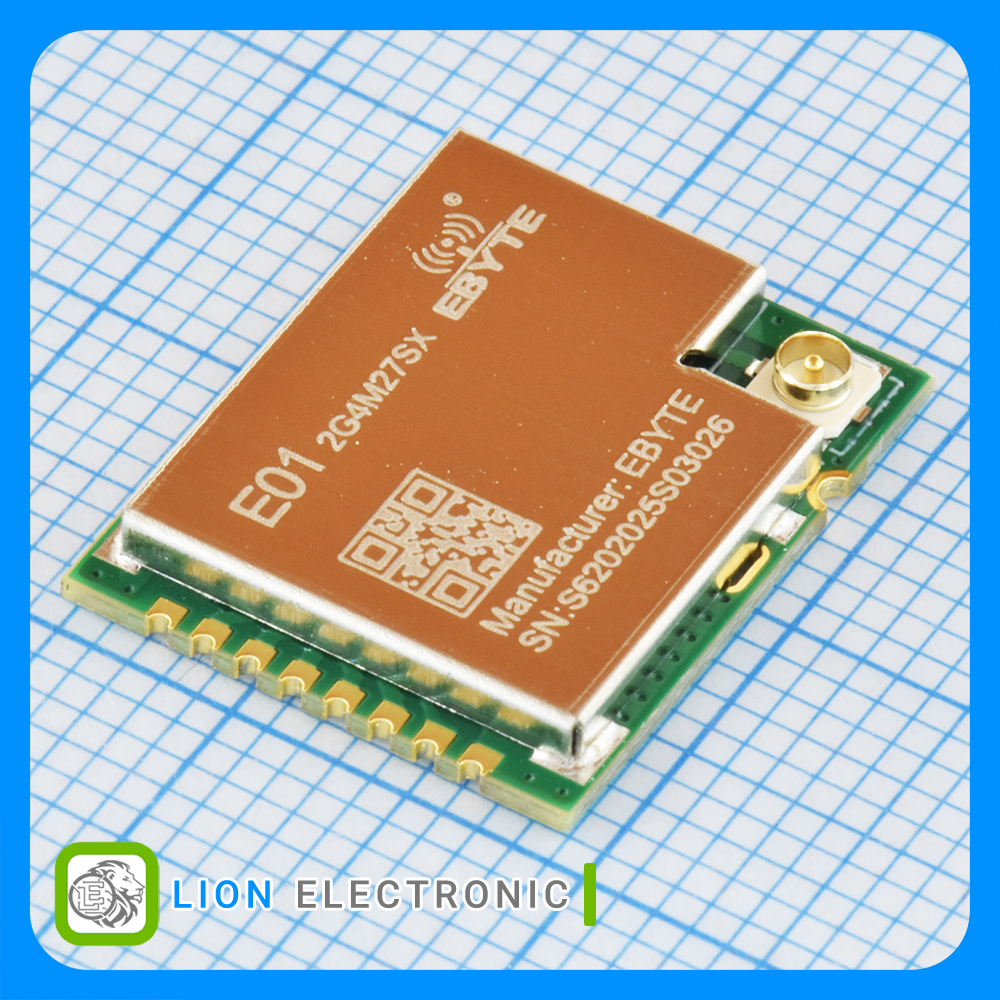

E01-2G4M27SX
Part Number
---
Product
---
Packaging
IPEX
Antenna Connector Type
-40C
Minimum Operating Temperature
+85C
Maximum Operating Temperature
500mW
Output Power
23mA
Supply Current Receiving
720mA
Supply Current Transmitting
2.3 - 3.6V
Operating Supply Voltage
2.4GHz to 2.525GHz
Frequency
18 × 14.5mm
Dimensions
SPI
Interface Type
