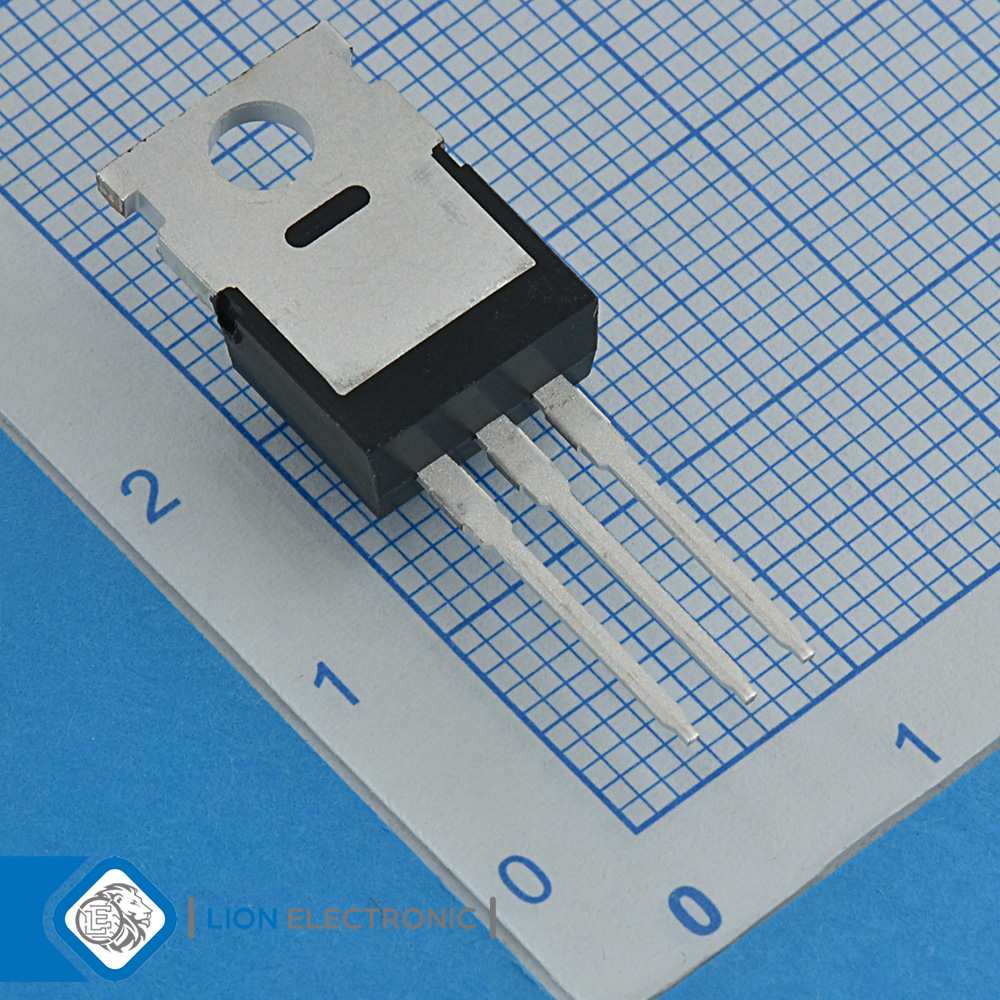

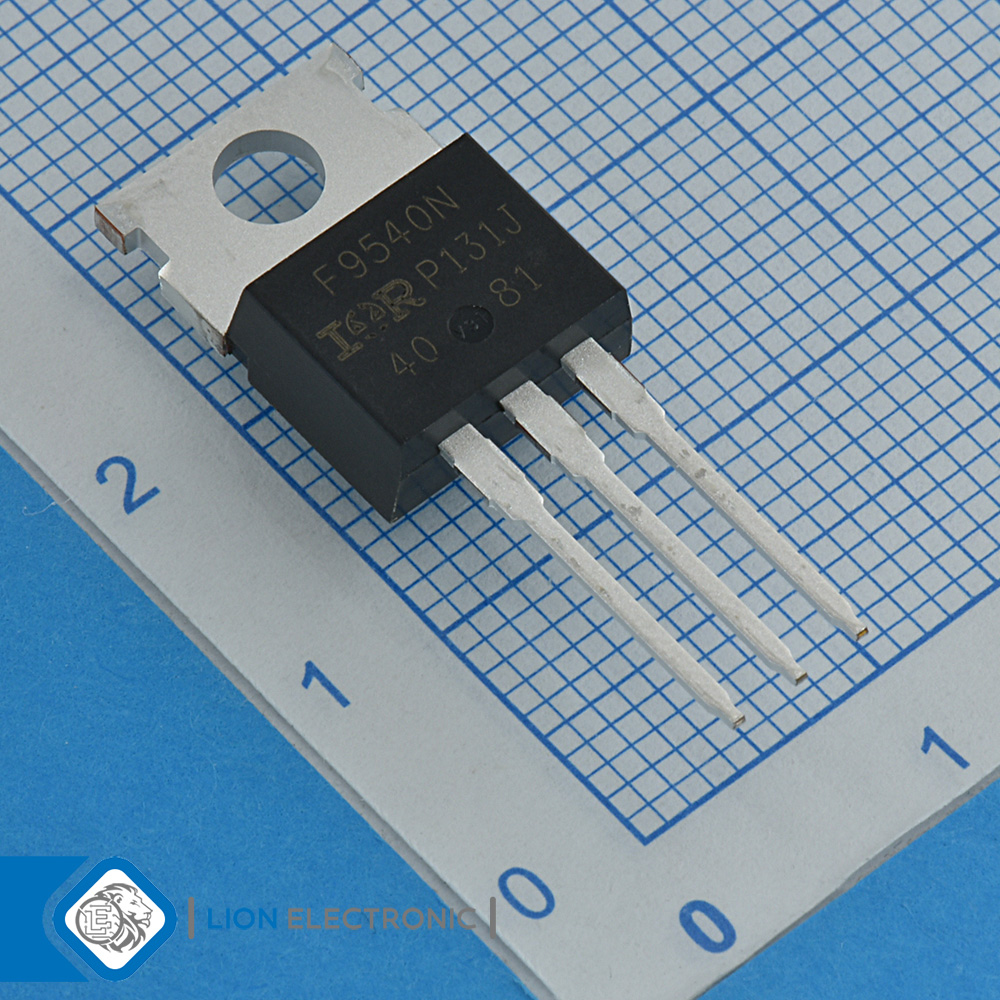

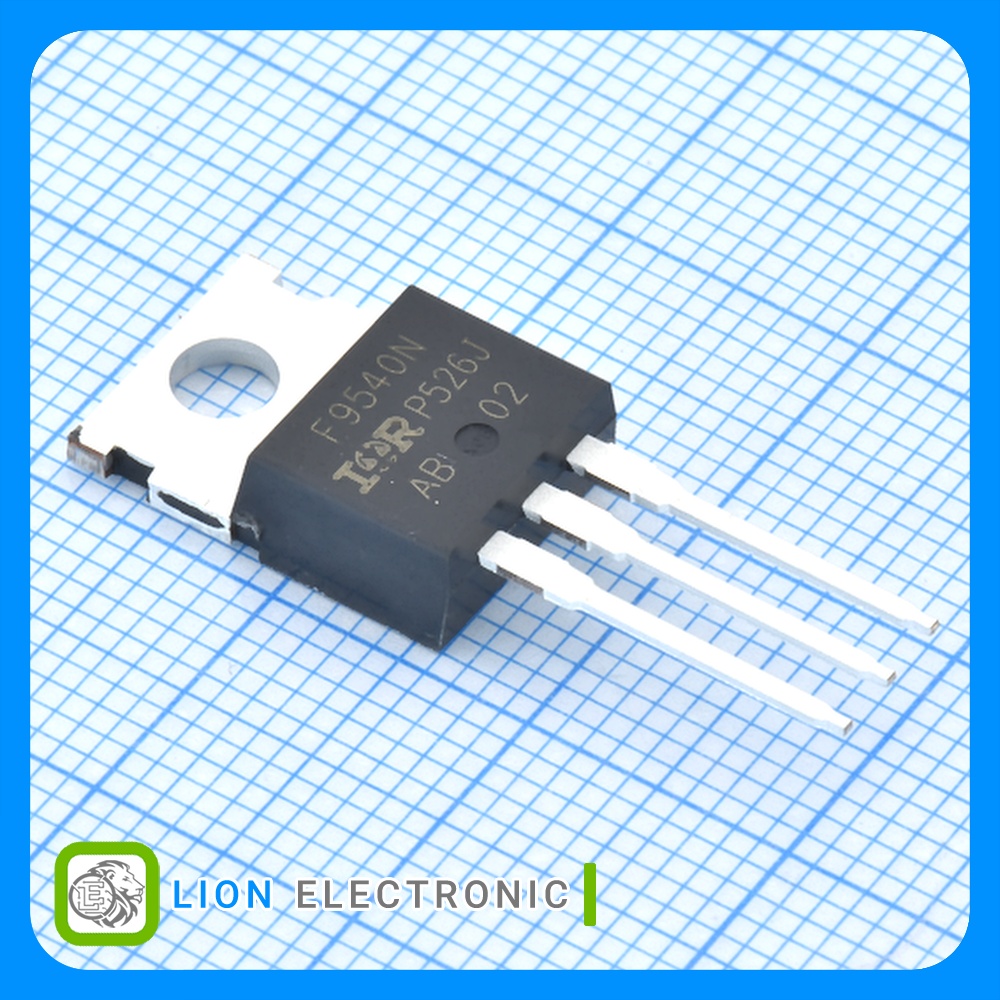

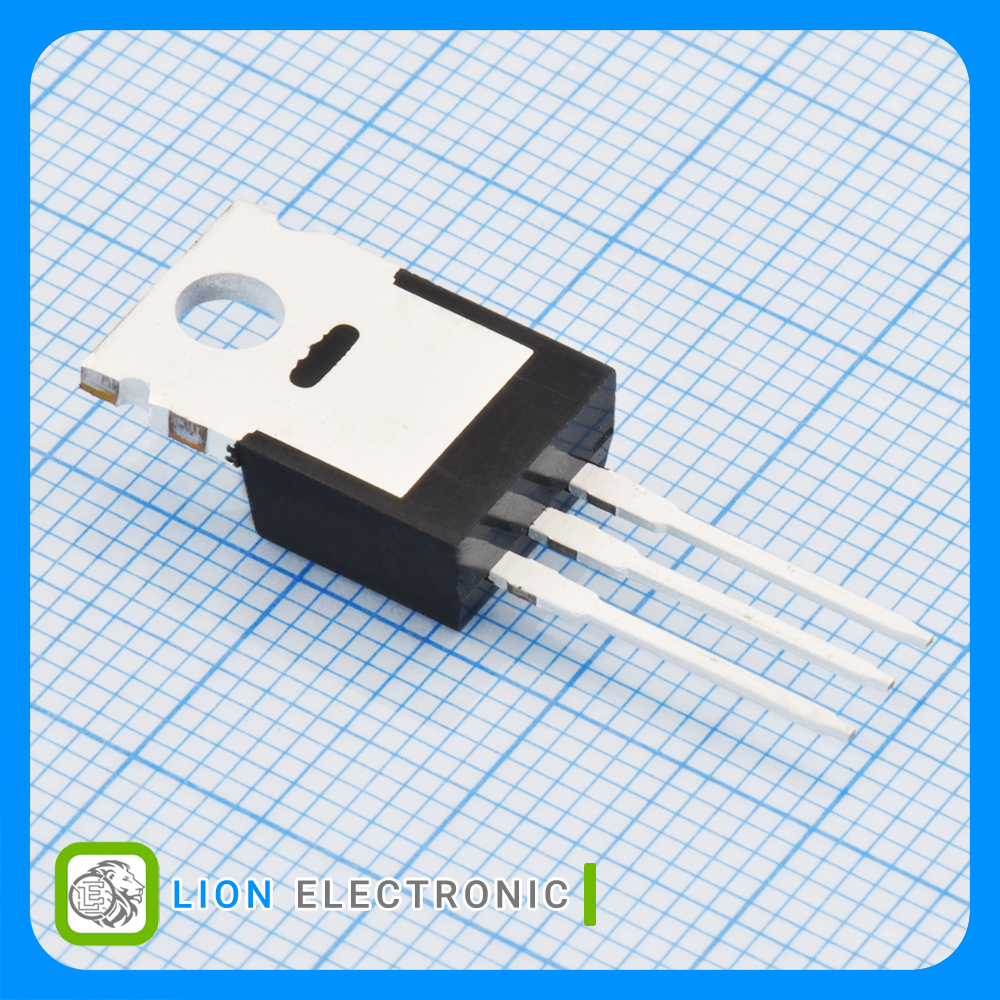

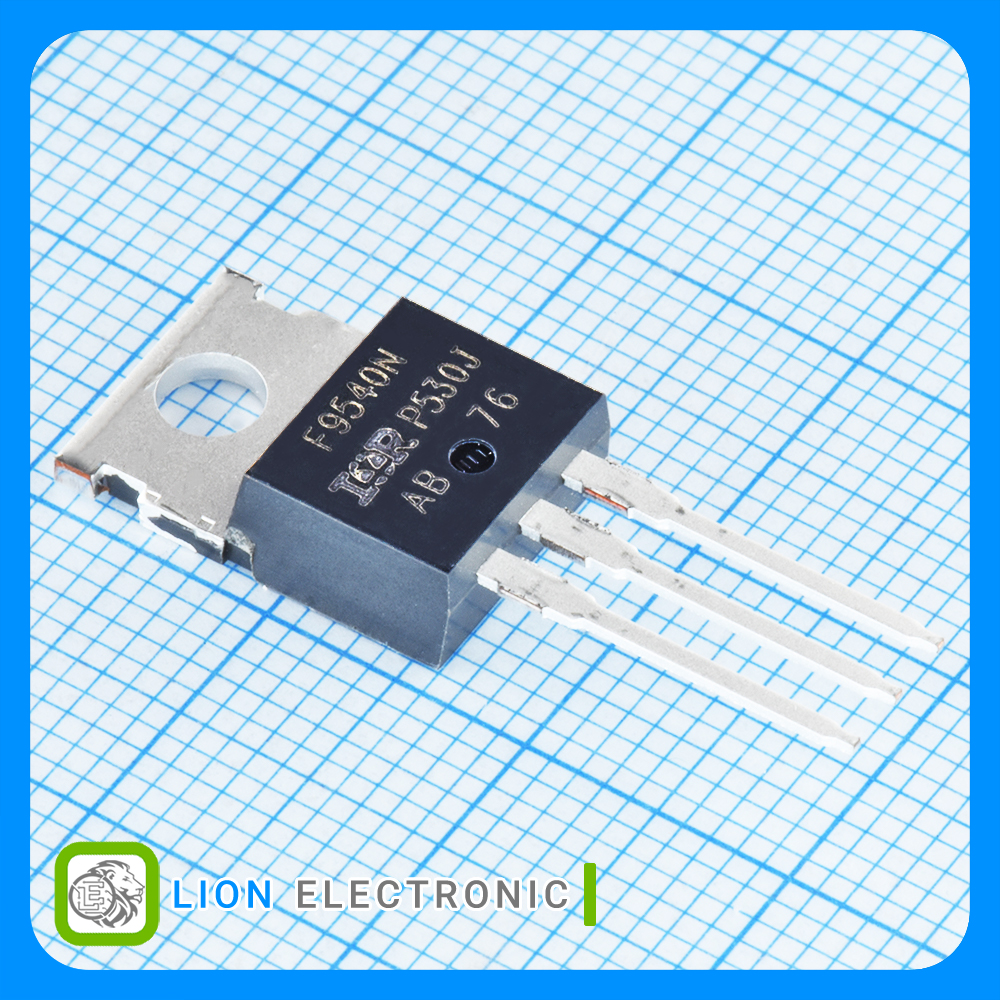

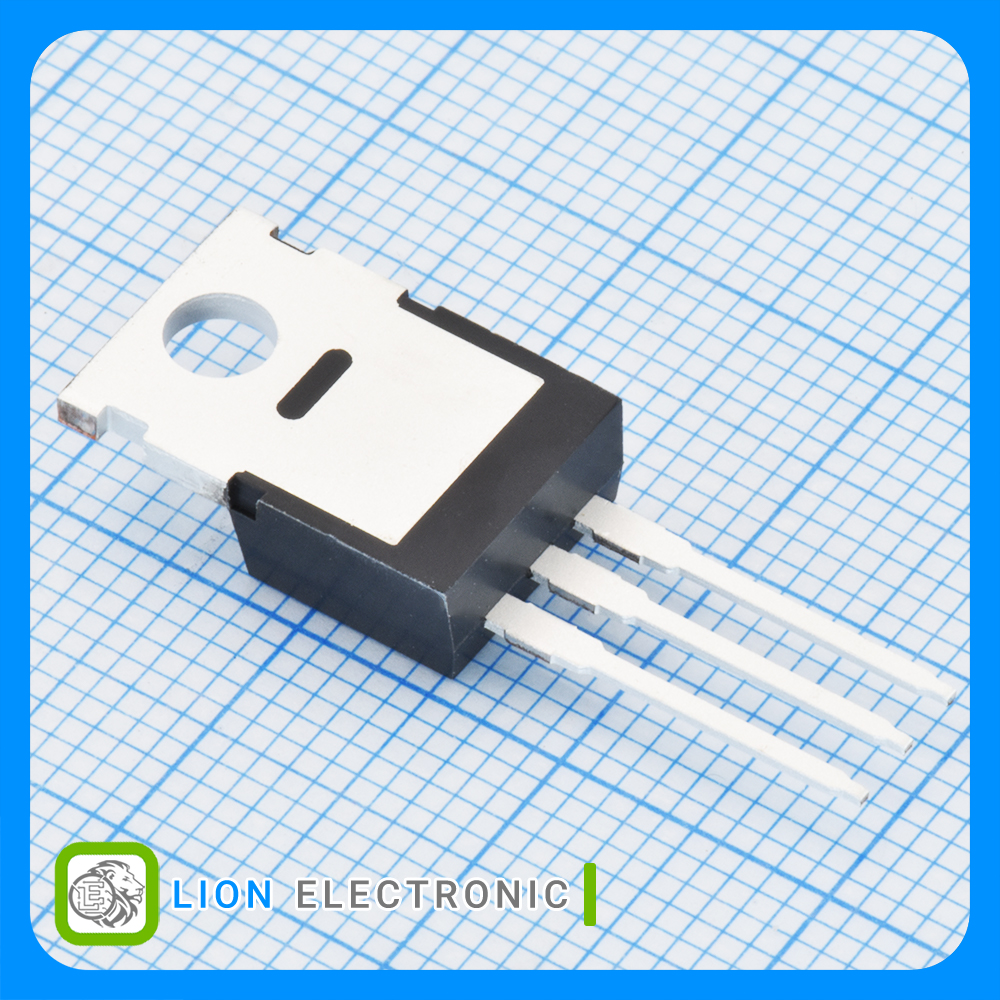

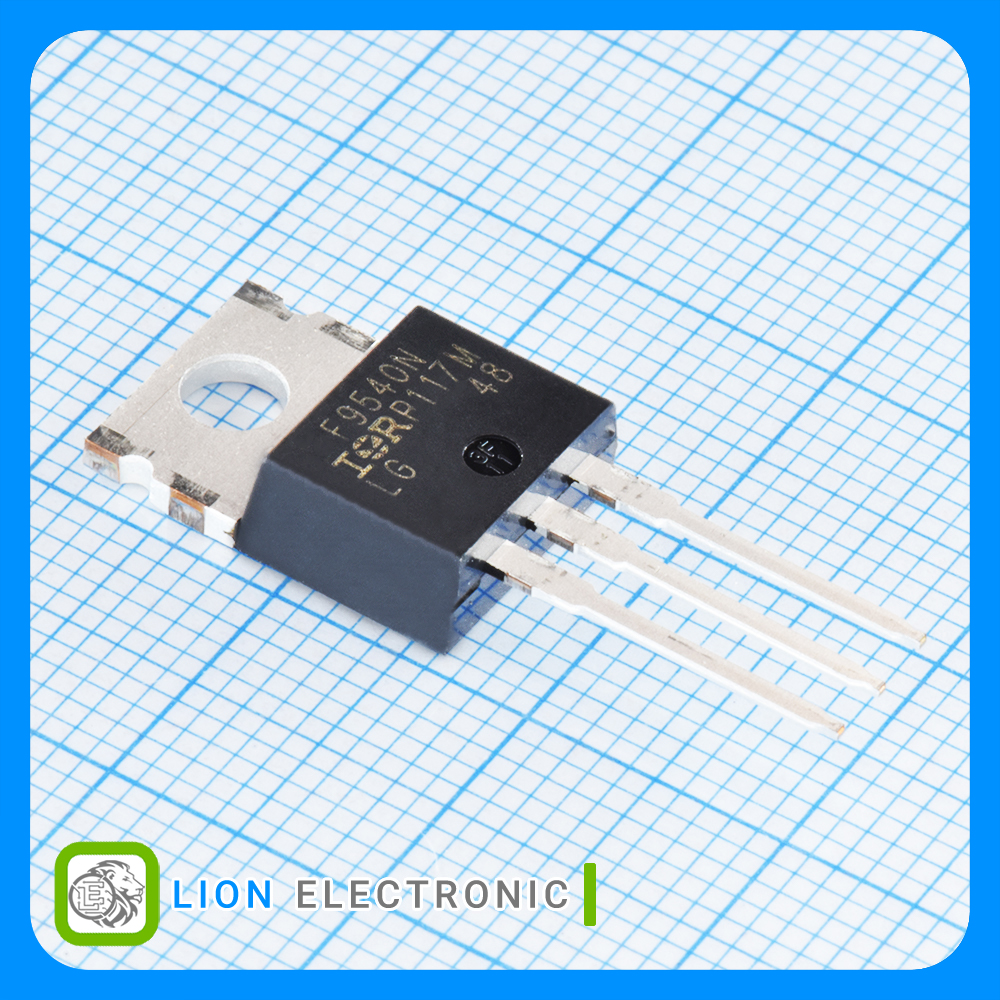

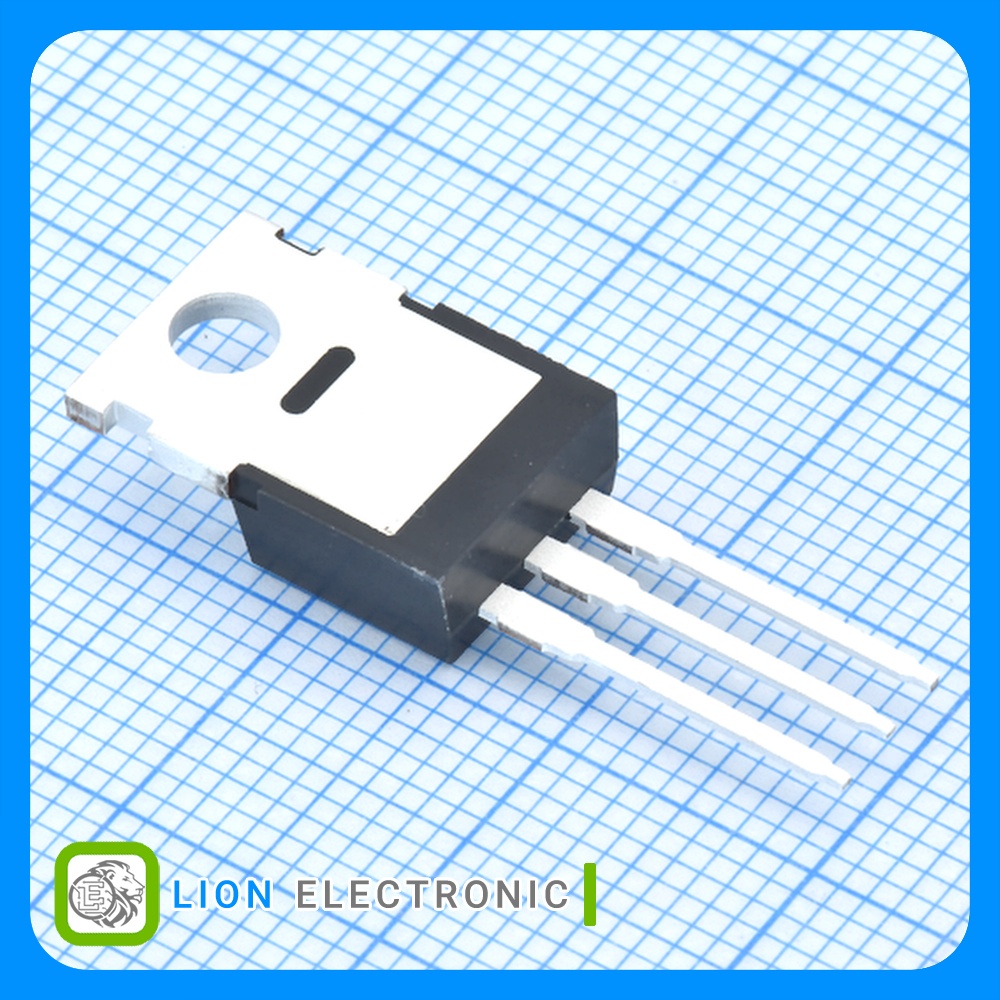

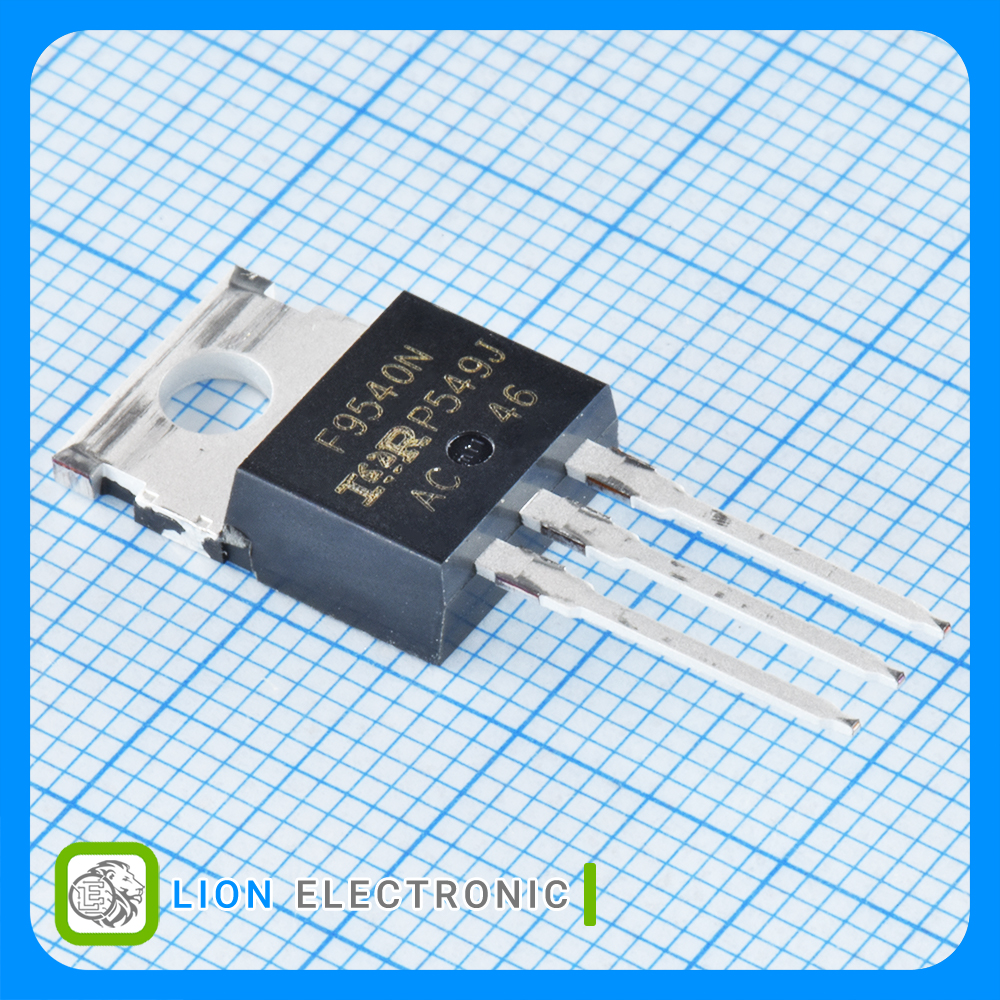

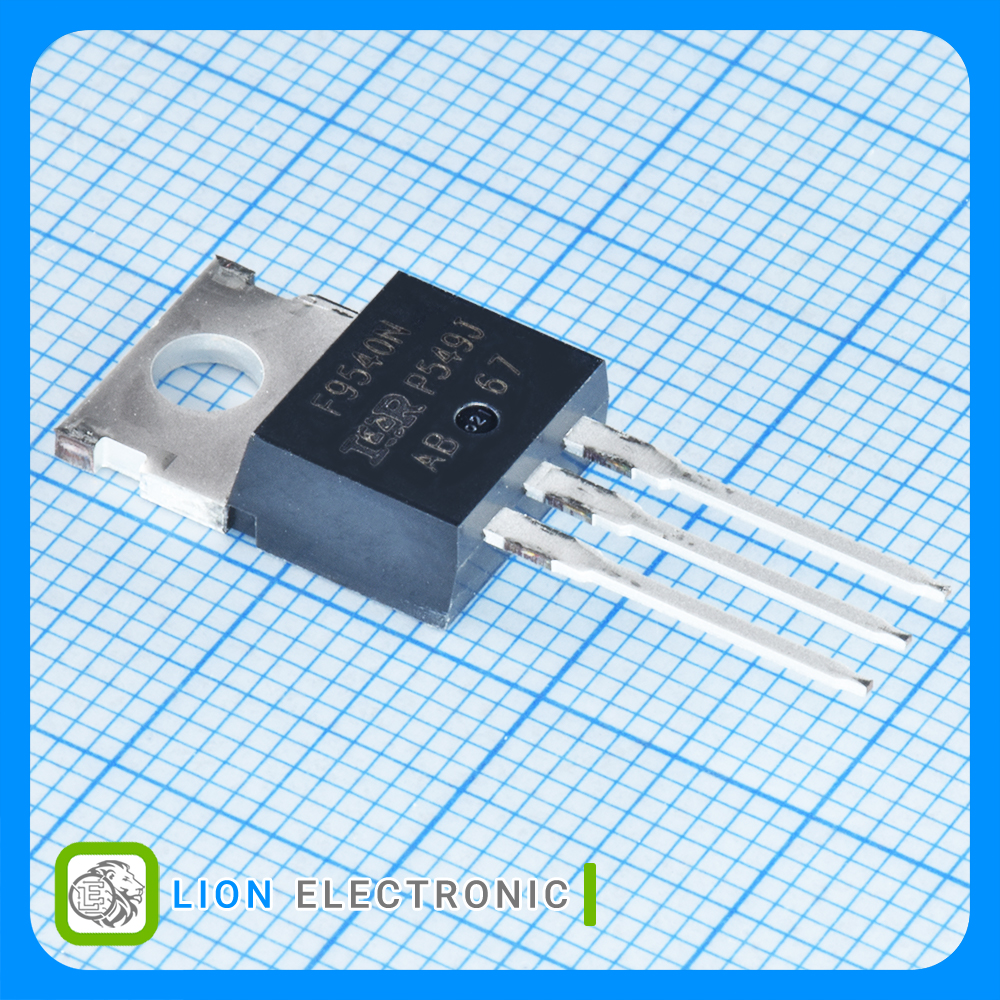

IRF9540NPBF
IRF9540NPBF
Part Number
200
Lion Part
Datasheet
International Rectifier Manufacture
ماسفت P-CH با ولتاژ -100 ولت و جریان -23 آمپر با پکیج TO-220-3
P-CH MOSFET -100V, -23A with TO-220-3 Package
معرفی
ماسفت P-CH با ولتاژ -100 ولت و جریان -23 آمپر با پکیج TO-220-3
P-CH MOSFET -100V, -23A with TO-220-3 Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: -100V
- Id - Continuous Drain Current: -23A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 117mΩ
- Pd - Power Dissipation: 140W
- Qg - Gate Charge: 97nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات ماسفت IRF9540NPBF
ماسفت IRF9540NPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-100V
Vds - Drain - Source Breakdown Voltage
-55C
Minimum Operating Temperature
-2V
Vgs th - Gate - Source Threshold Voltage
P-Channel
Transistor Polarity
Tube
Packaging
-23A
Id - Continuous Drain Current
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
117mΩ
Rds On - Drain - Source Resistance
97nC
Qg - Gate Charge
140W
Pd - Power Dissipation
TO-220
Package-Case
