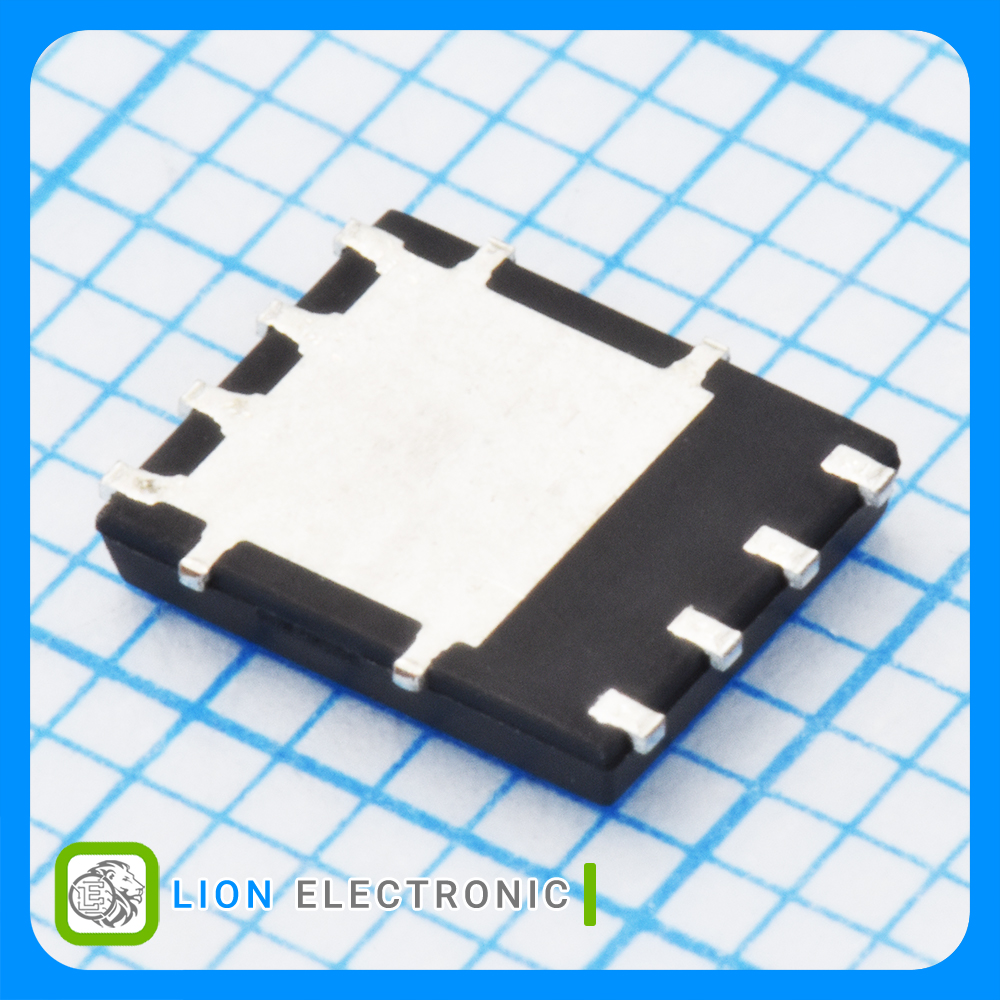

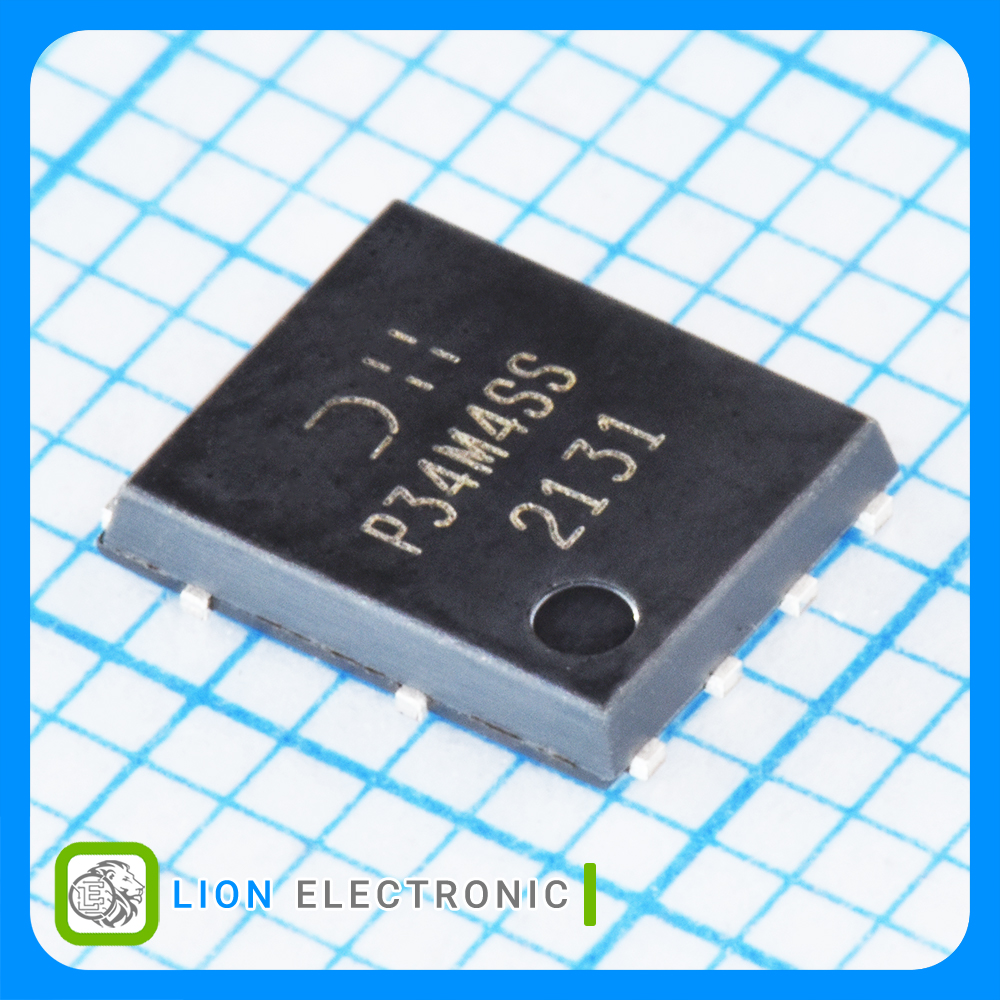

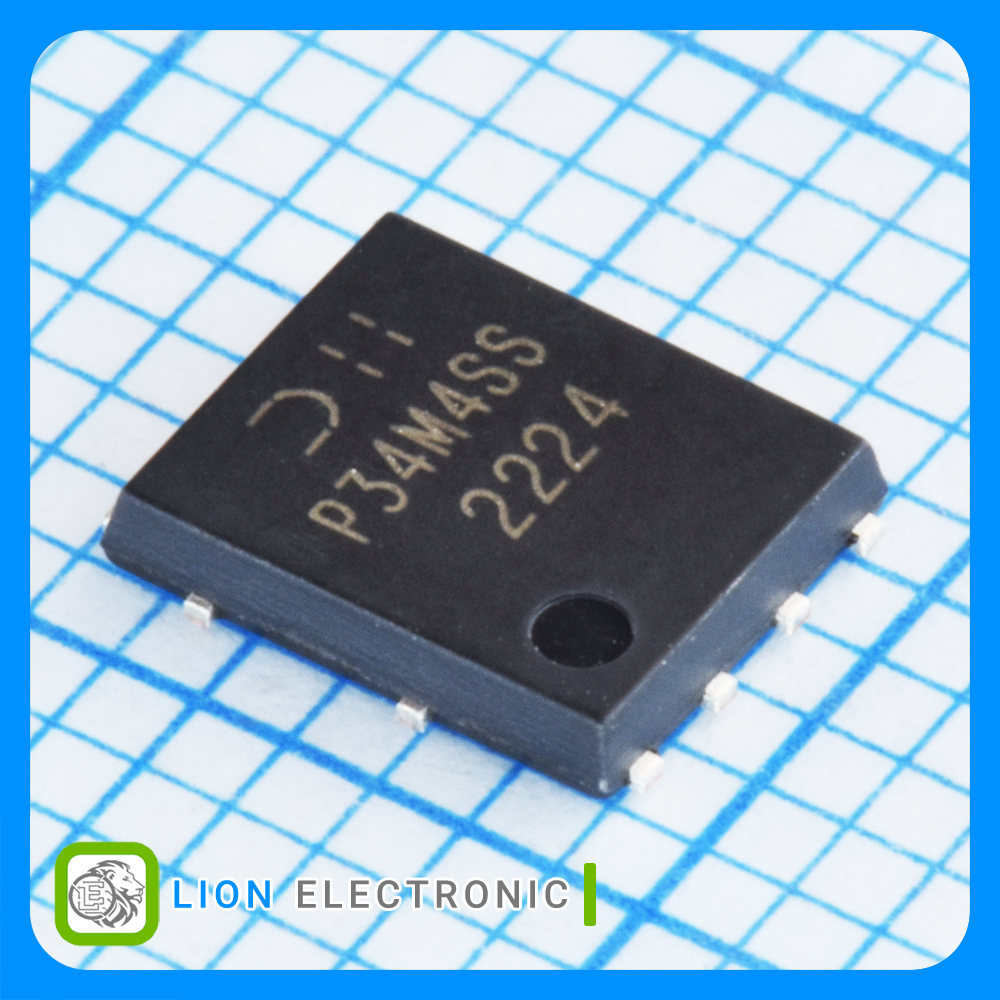

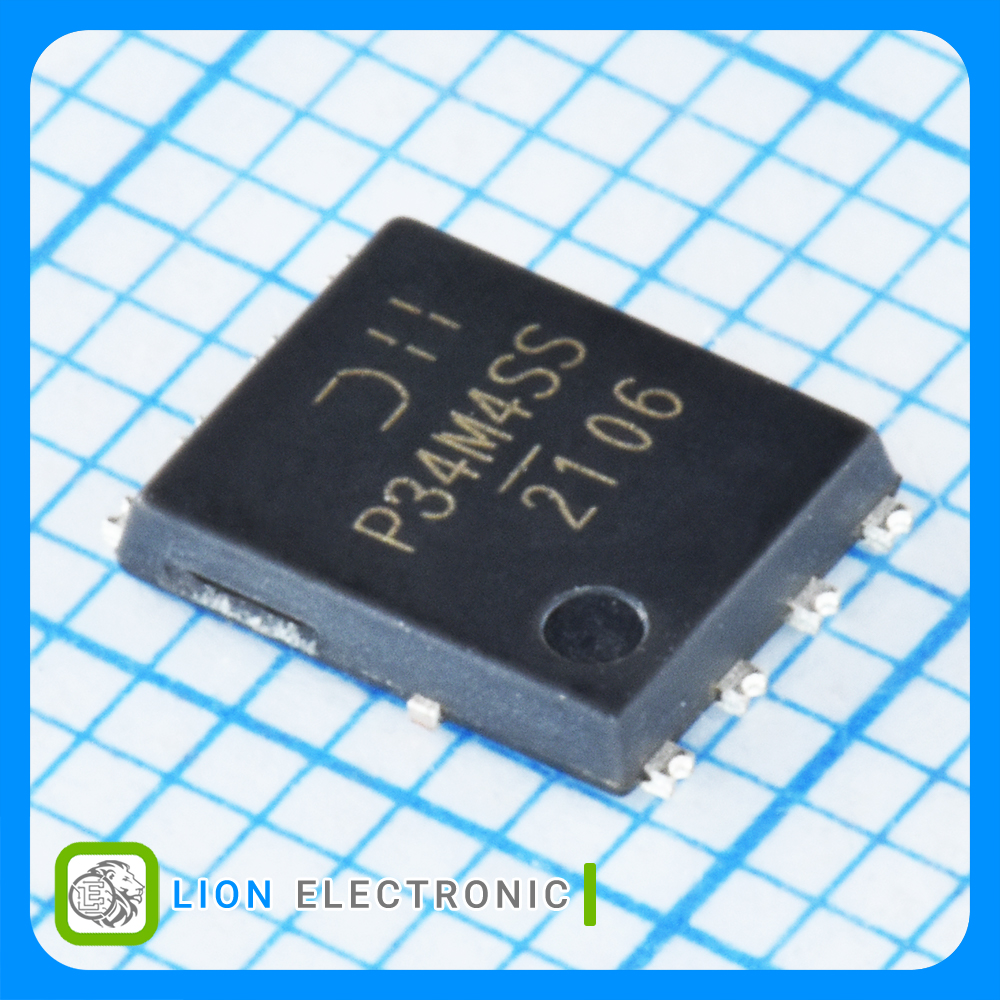

DMP34M4SPS-13
DMP34M4SPS-13
Part Number
5935
Lion Part
Datasheet
Diodes Incorporated Manufacture
ماسفت 30- ولت 87- آمپر نوع P با پکیج PowerDI5060-8(Type K)
MOSFET -30V, -87A, P-Channel with PowerDI5060-8(Type K) Package
معرفی
ماسفت 30- ولت 87- آمپر نوع P با پکیج PowerDI5060-8(Type K)
MOSFET -30V, -87A, P-Channel with PowerDI5060-8(Type K) Package
Specifications
- Package/Case: PowerDI5060-8(Type K)
- Vds - Drain - Source Breakdown Voltage: -30V
- Id - Continuous Drain Current: -87A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -1.6V
- Vgs - Gate - Source Voltage: ±25V
- Rds On - Drain - Source Resistance: 2.9mΩ
- Pd - Power Dissipation: 1.5W
- Qg - Gate Charge: 127nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت DMP34M4SPS-13
ماسفت DMP34M4SPS-13
Part Number
-87A
Id - Continuous Drain Current
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
P-Channel
Transistor Polarity
-1.6V
Vgs th - Gate - Source Threshold Voltage
-30V
Vds - Drain - Source Breakdown Voltage
SMD/SMT
Mounting Style
±25V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
2.9mΩ
Rds On - Drain - Source Resistance
1.5W
Pd - Power Dissipation
127nC
Qg - Gate Charge
PowerDI5060-8(Type K)
Package-Case
