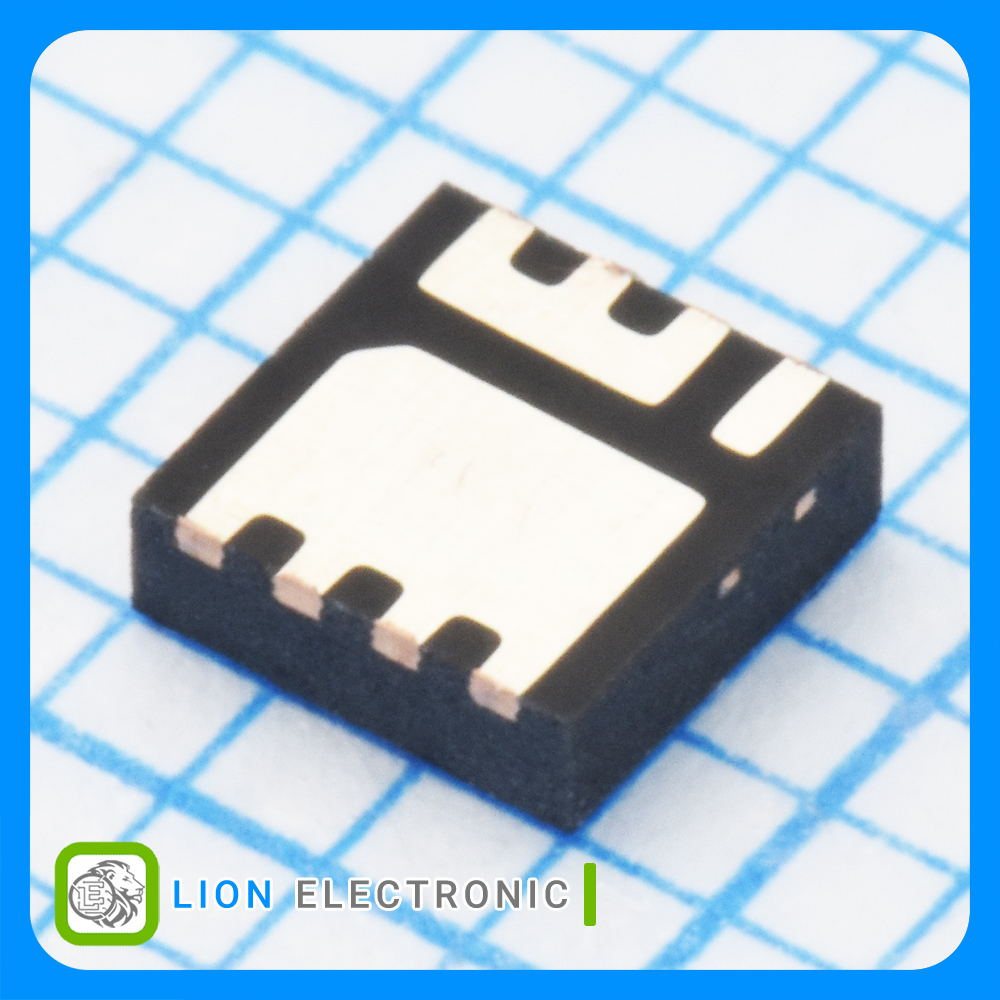

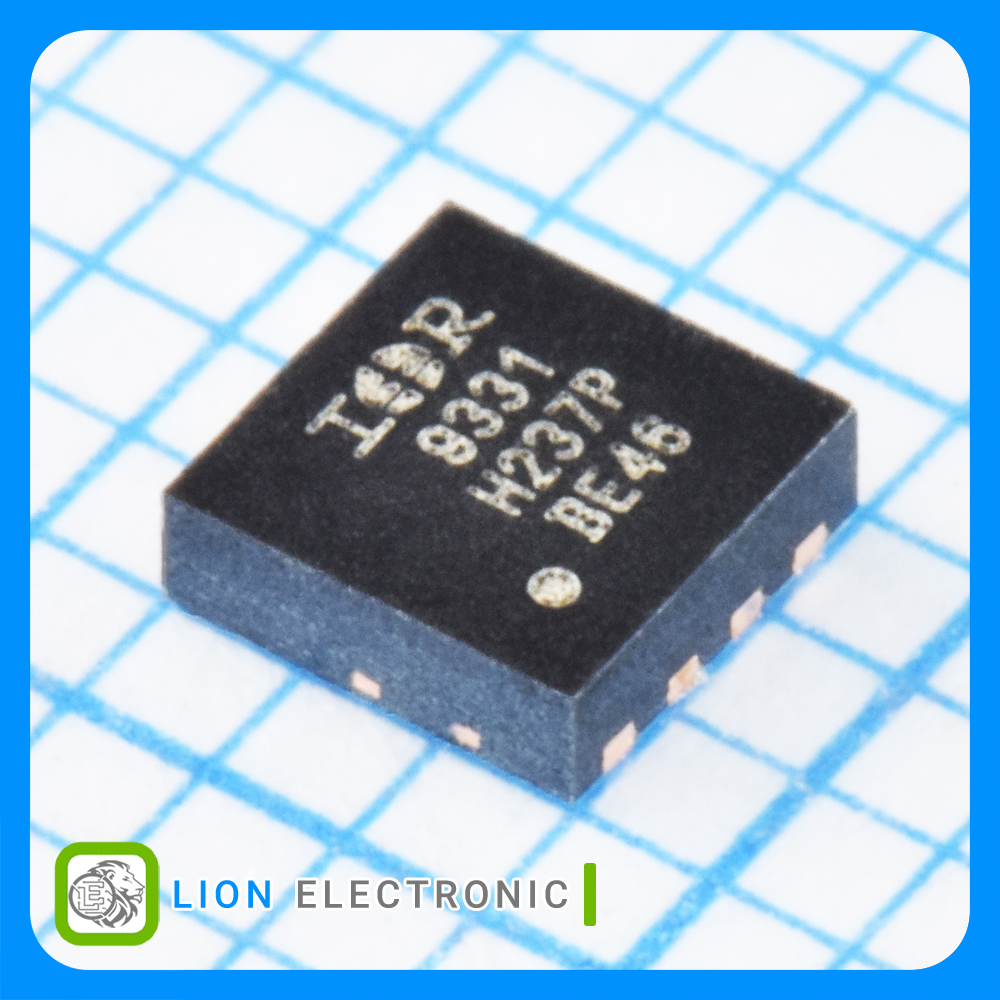

IRFHM9331TRPBF
IRFHM9331TRPBF
Part Number
5946
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت P-Channel نوع P با ولتاژ 30- ولت و جریان 11- آمپر، پکیج PQFN-8
P-CH MOSFET -30V, -11A with PQFN-8 Package
معرفی
ماسفت P-Channel نوع P با ولتاژ 30- ولت و جریان 11- آمپر، پکیج PQFN-8
P-CH MOSFET -30V, -11A with PQFN-8 Package
Specifications
- Package/Case: PQFN-8
- Vds - Drain - Source Breakdown Voltage: -30V
- Id - Continuous Drain Current: -11A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -1.3V
- Vgs - Gate - Source Voltage: ±25V
- Rds On - Drain - Source Resistance: 10mΩ
- Pd - Power Dissipation: 2.8W
- Qg - Gate Charge: 32nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت IRFHM9331TRPBF
ماسفت IRFHM9331TRPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
-30V
Vds - Drain - Source Breakdown Voltage
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
-1.3V
Vgs th - Gate - Source Threshold Voltage
-11A
Id - Continuous Drain Current
±25V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
10mΩ
Rds On - Drain - Source Resistance
32nC
Qg - Gate Charge
2.8W
Pd - Power Dissipation
PQFN-8
Package-Case
