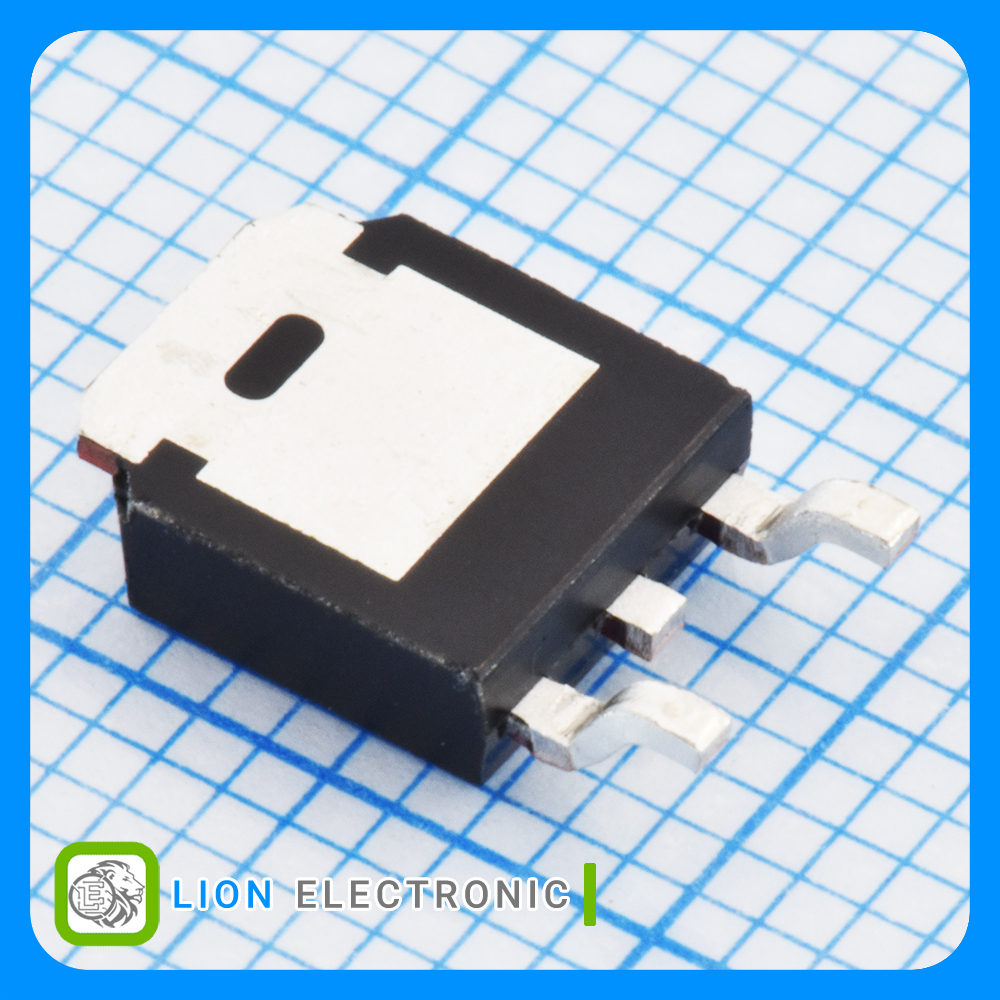

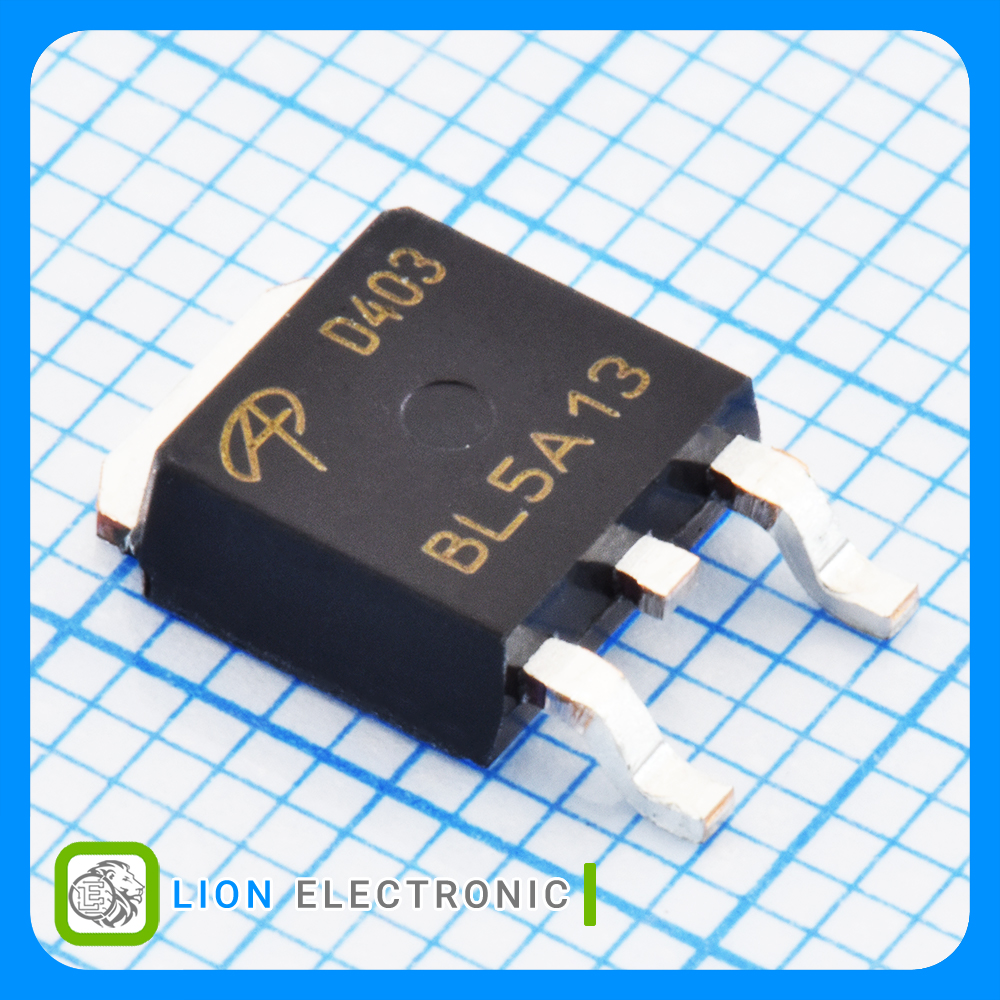

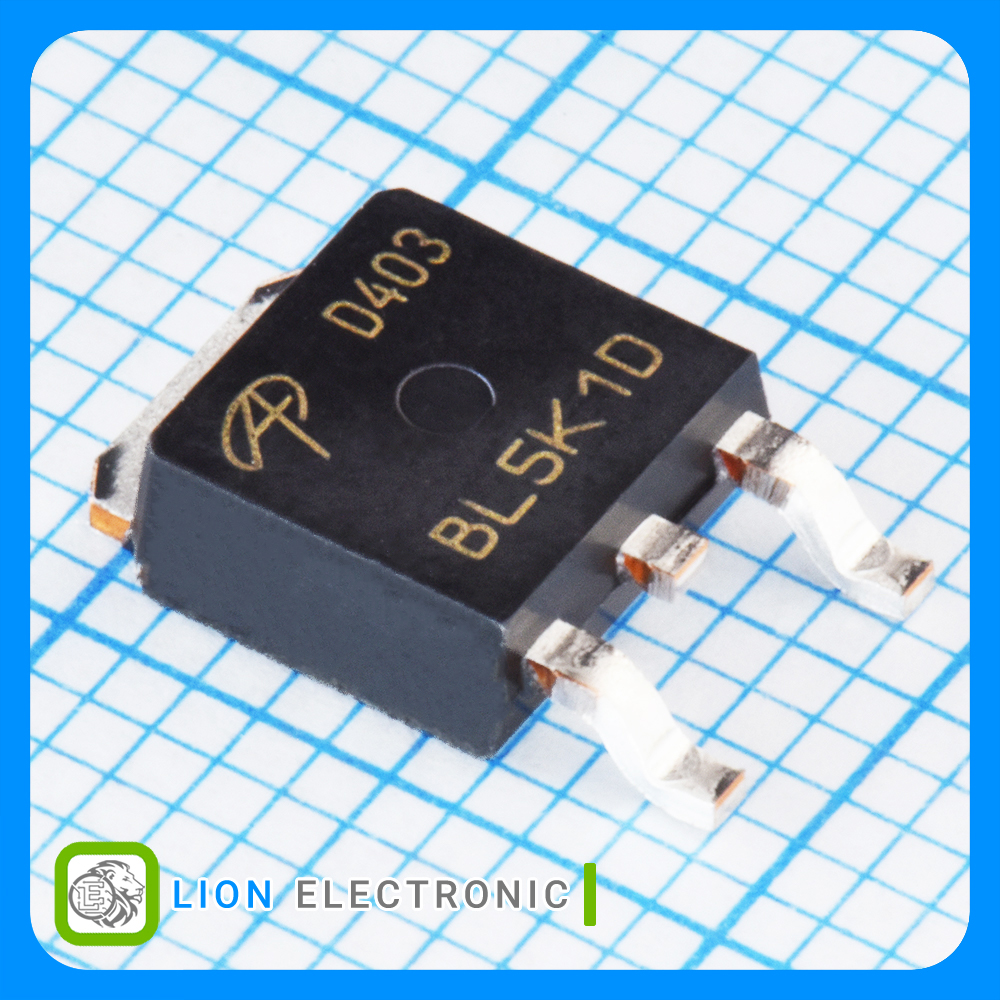

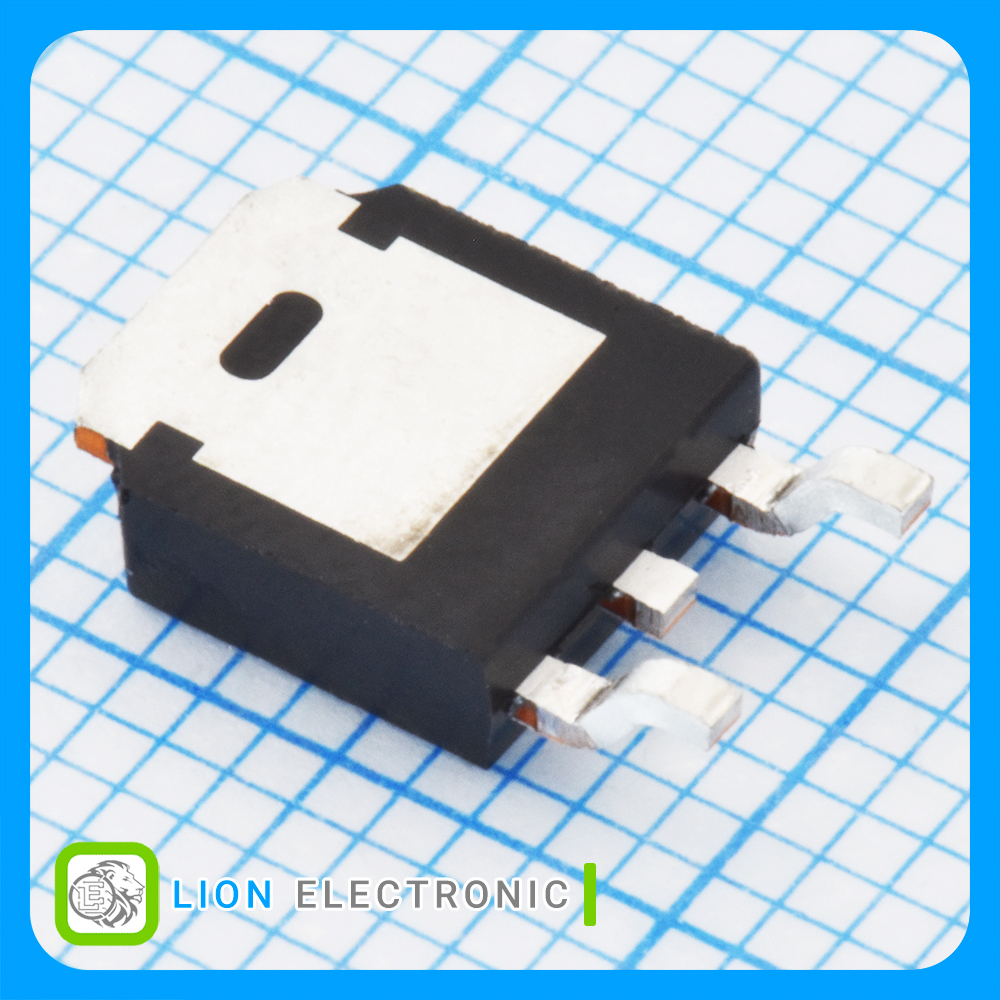

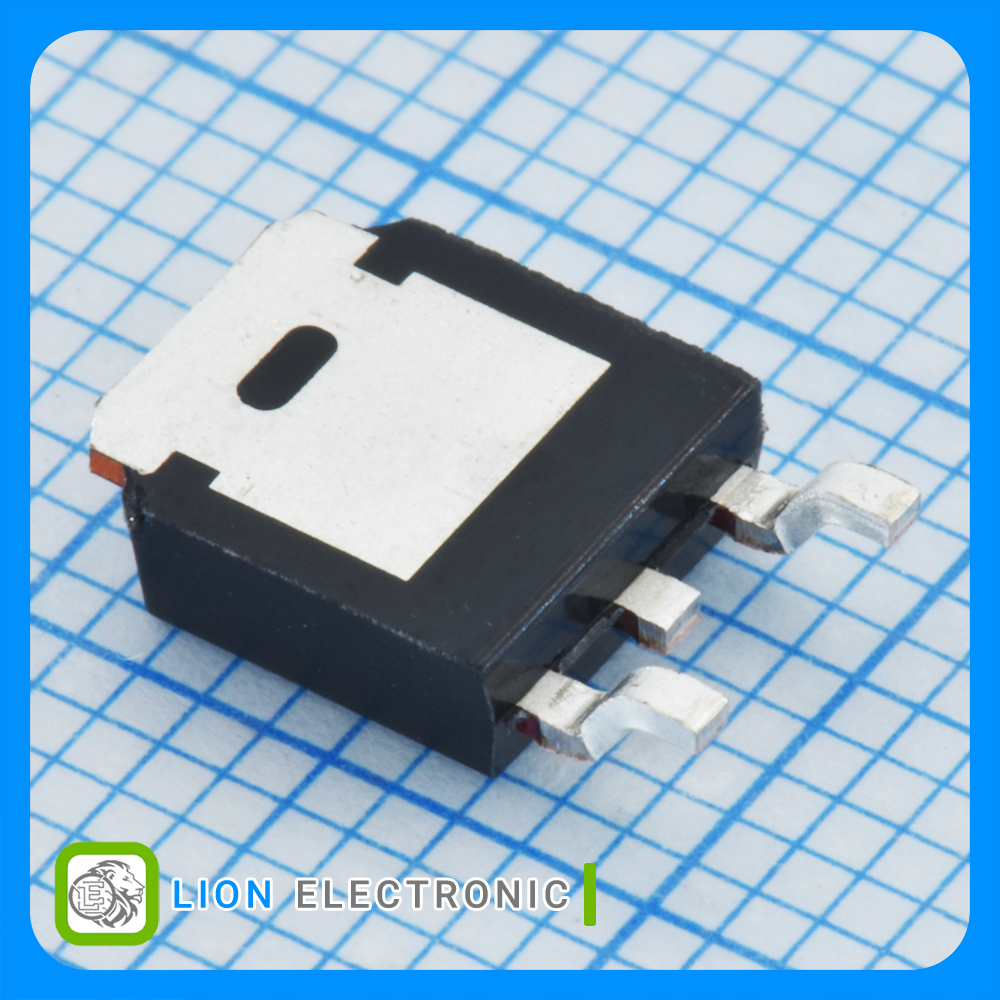

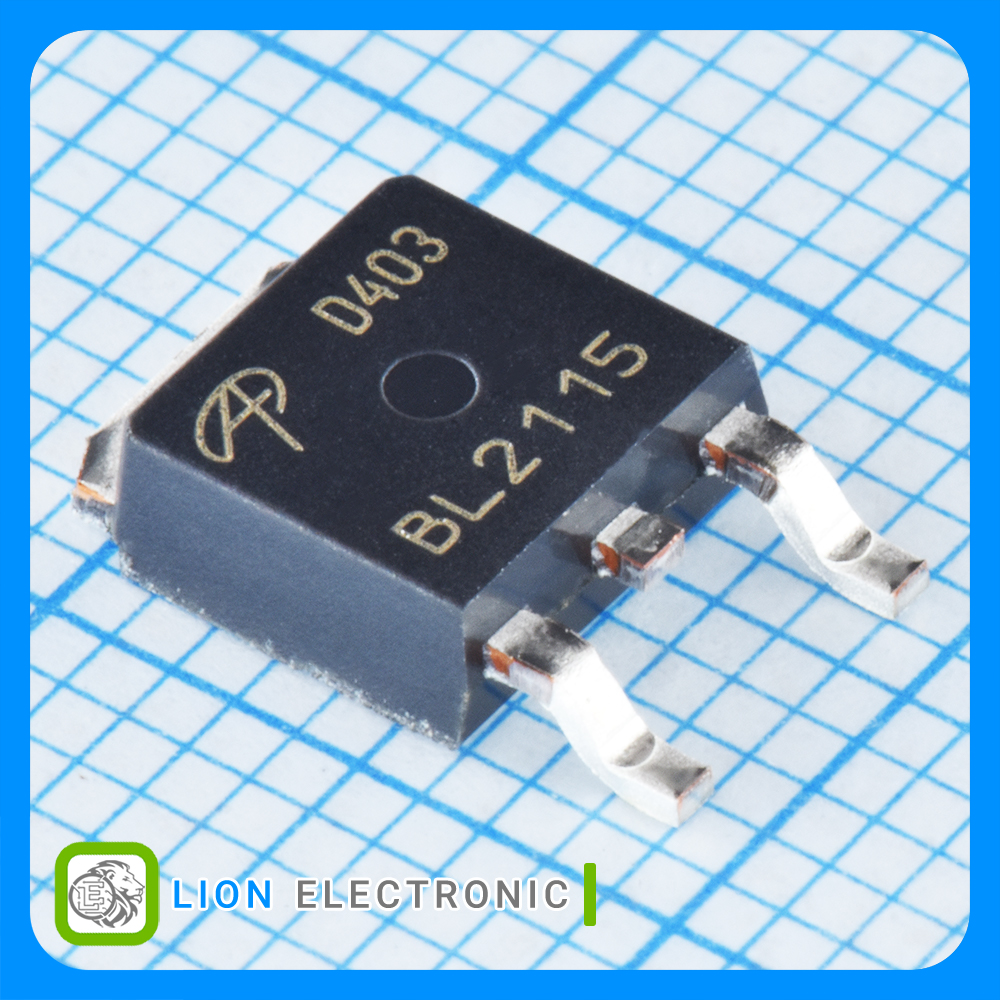

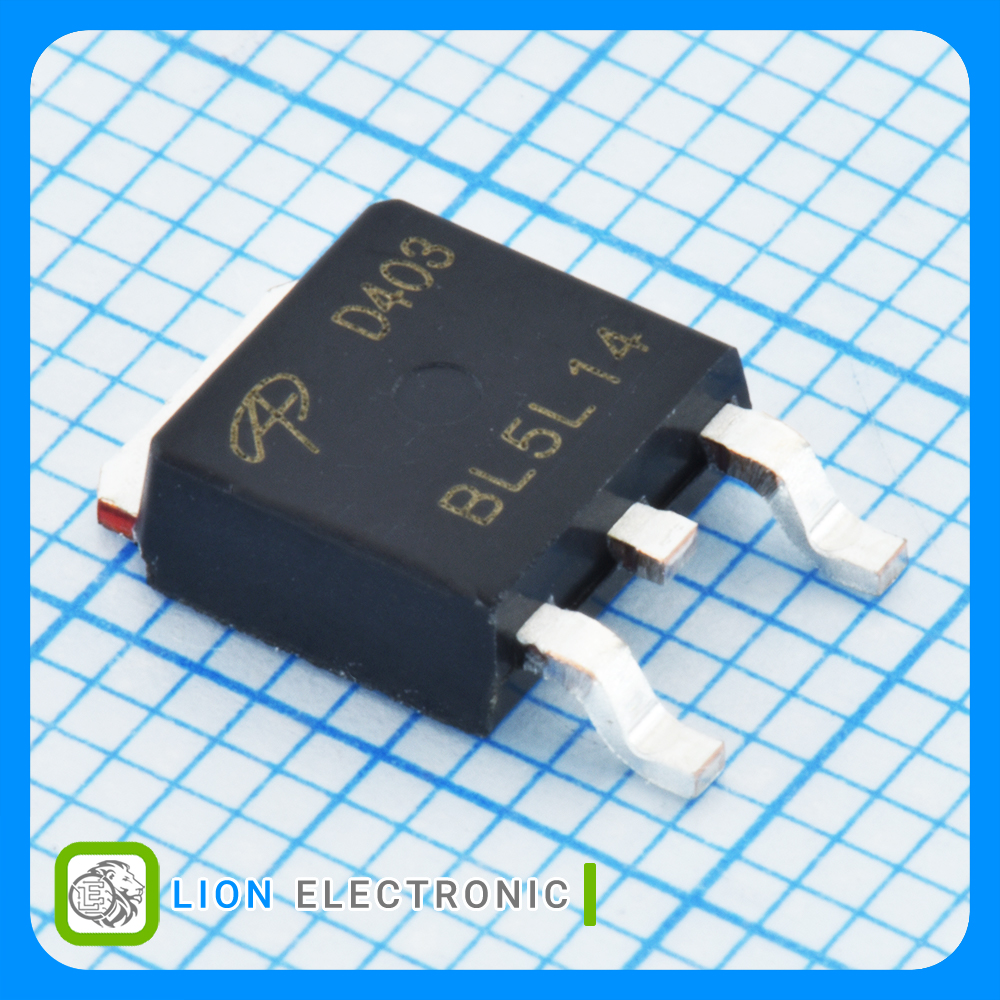

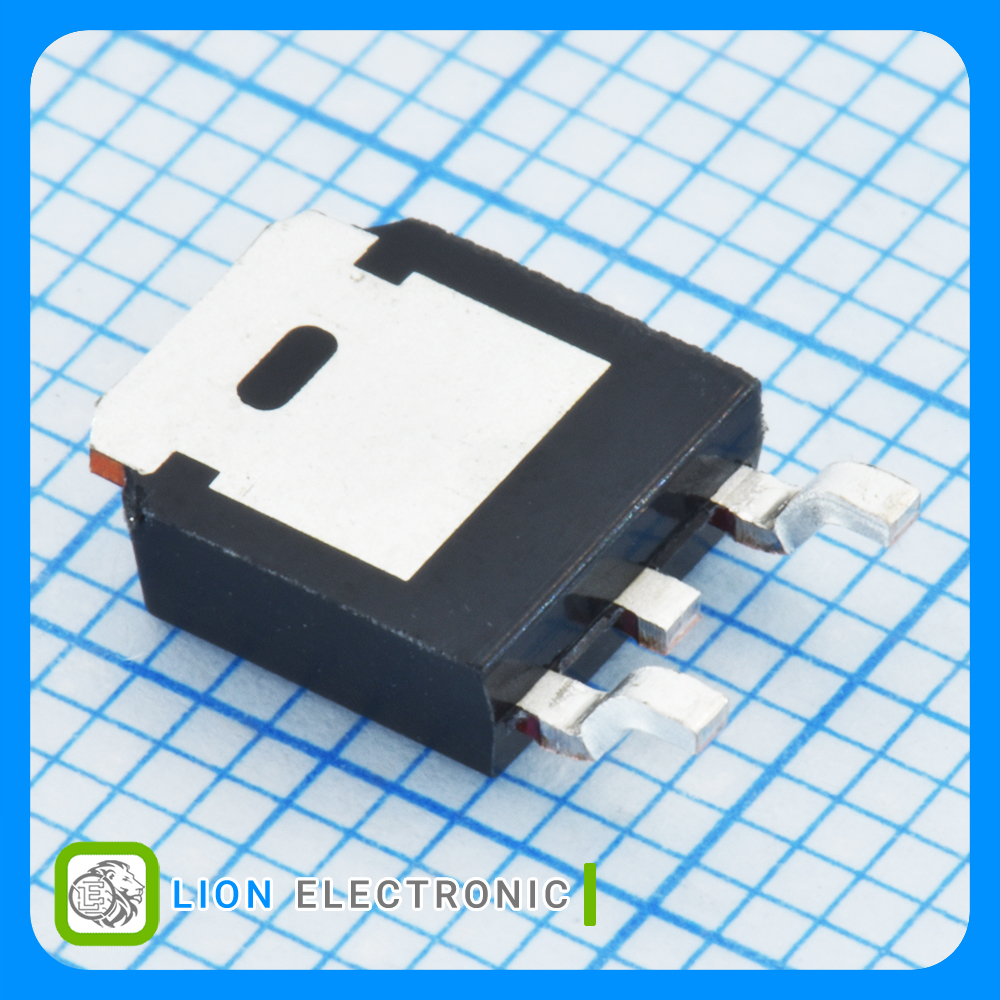

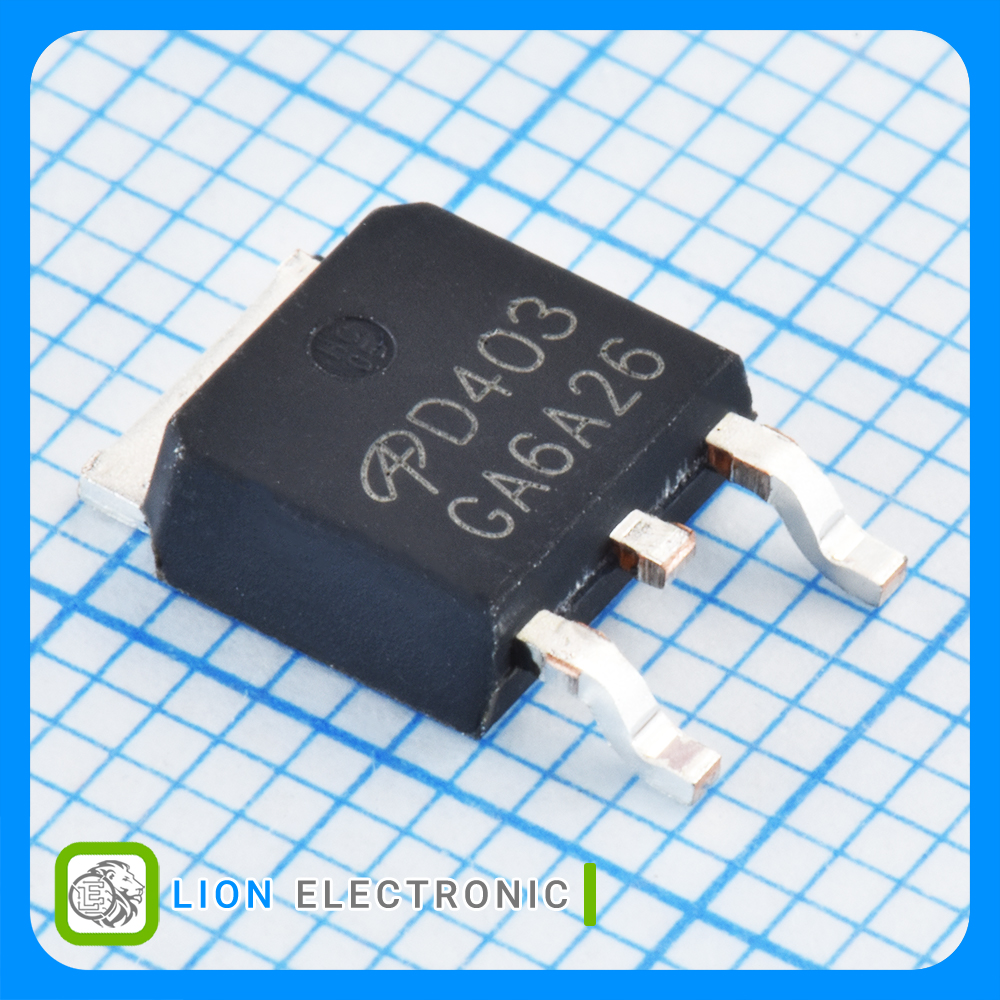

AOD403
AOD403
Part Number
6226
Lion Part
Datasheet
Alpha & Omega Semiconductor Manufacture
ماسفت 30 ولت 70 آمپر نوع P با پکیج TO-252 (DPAK)
P-CH MOS 30V, 70A with TO-252 (DPAK) Package
معرفی
ماسفت 30 ولت 70 آمپر نوع P با پکیج TO-252 (DPAK)
P-CH MOS 30V, 70A with TO-252 (DPAK) Package
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: -30V
- Id - Continuous Drain Current: -70A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -1.5V
- Vgs - Gate - Source Voltage: ±25V
- Rds On - Drain - Source Resistance: 5.1mΩ
- Pd - Power Dissipation: 90W
- Qg - Gate Charge: 51nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات AOD403
AOD403
Part Number
1
Number of Channels
Enhancement
Channel Mode
-70A
Id - Continuous Drain Current
-55C
Minimum Operating Temperature
Reel
Packaging
-30V
Vds - Drain - Source Breakdown Voltage
P-Channel
Transistor Polarity
-1.5V
Vgs th - Gate - Source Threshold Voltage
SMD/SMT
Mounting Style
±25V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
5.1mΩ
Rds On - Drain - Source Resistance
51nC
Qg - Gate Charge
DPAK
Package-Case
90W
Pd - Power Dissipation
