TOSHIBA
معرفی

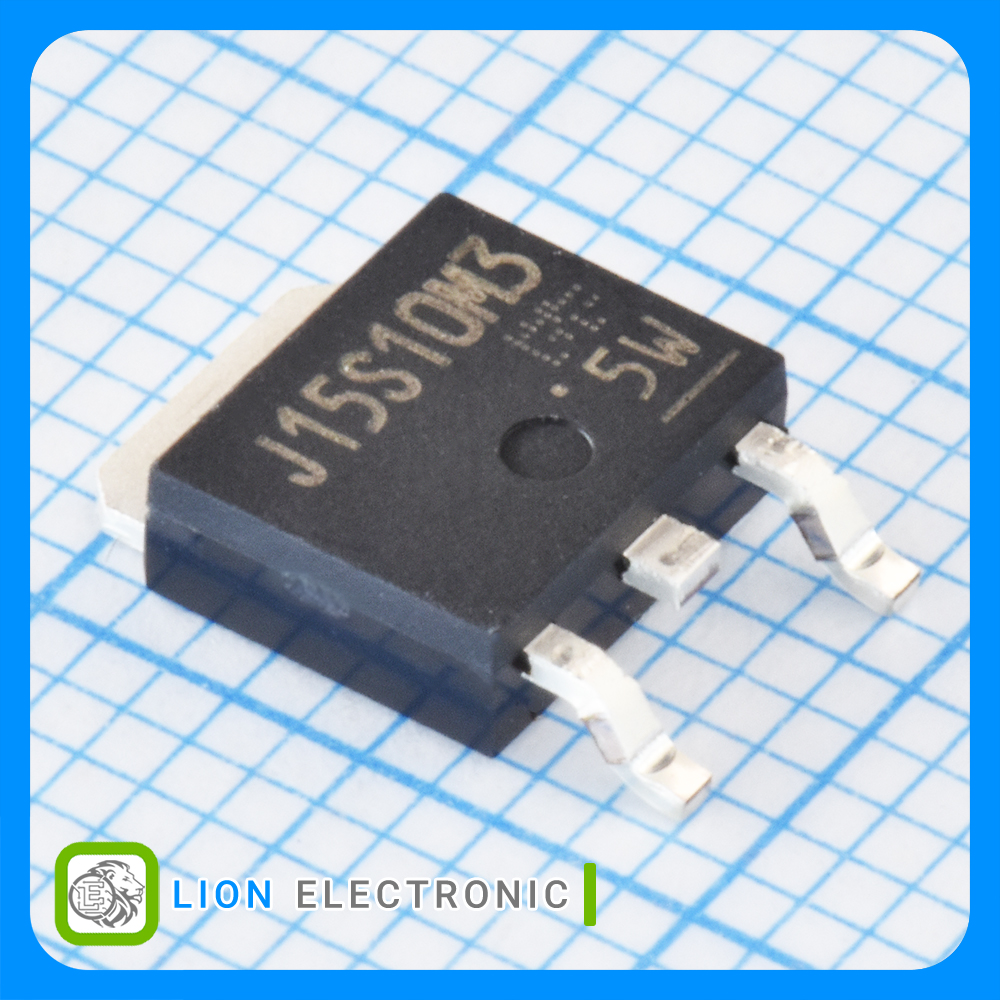

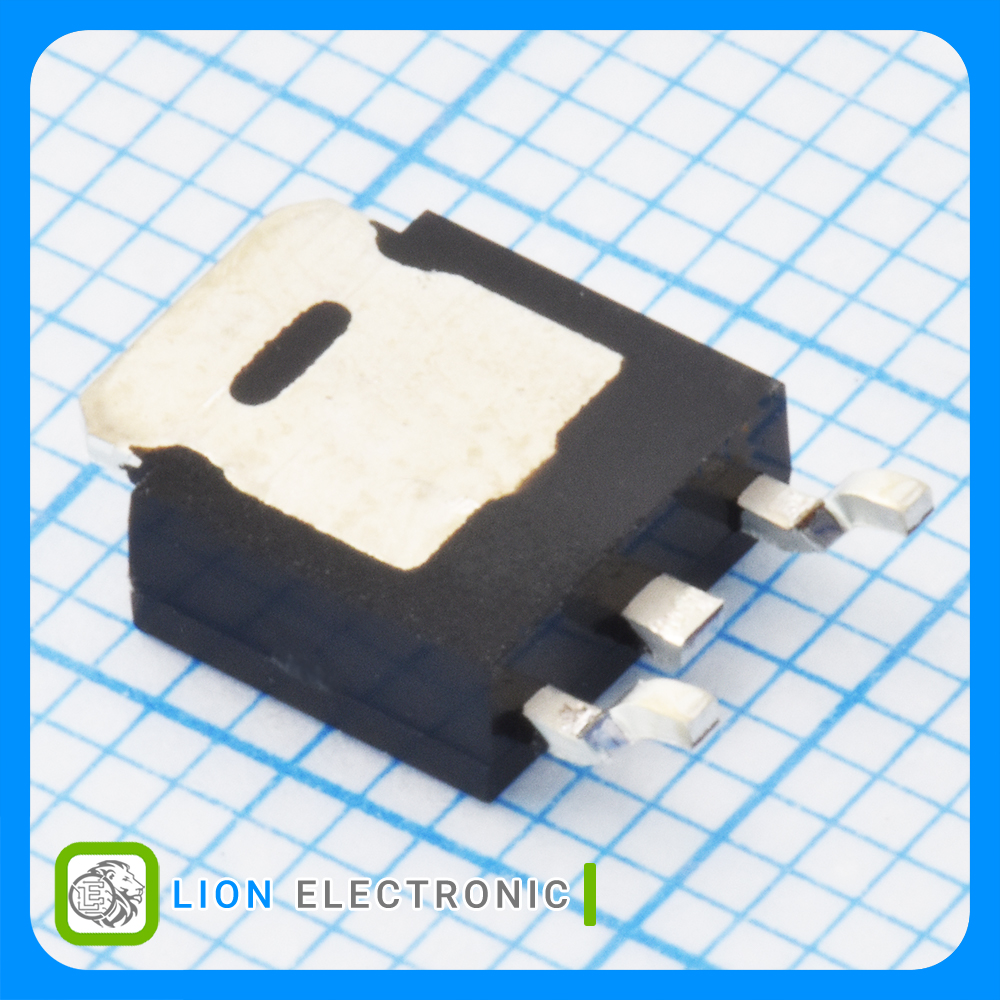

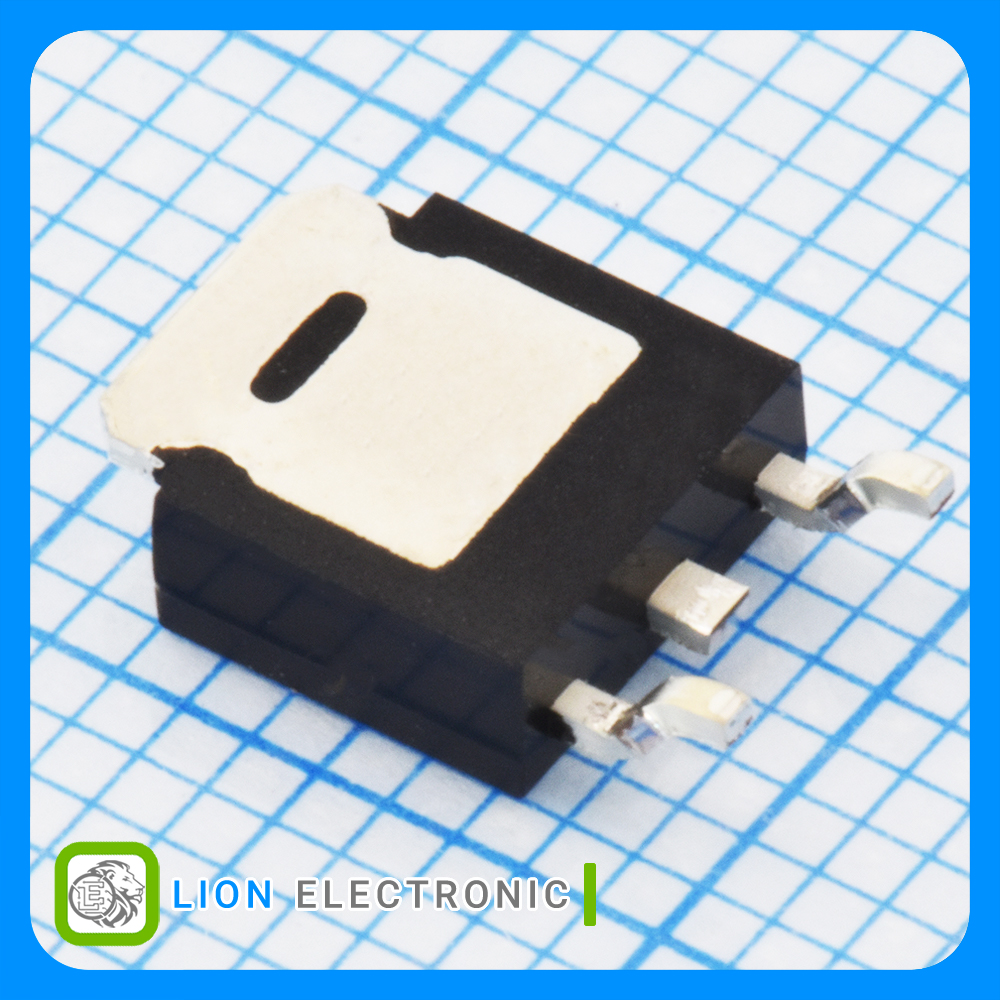

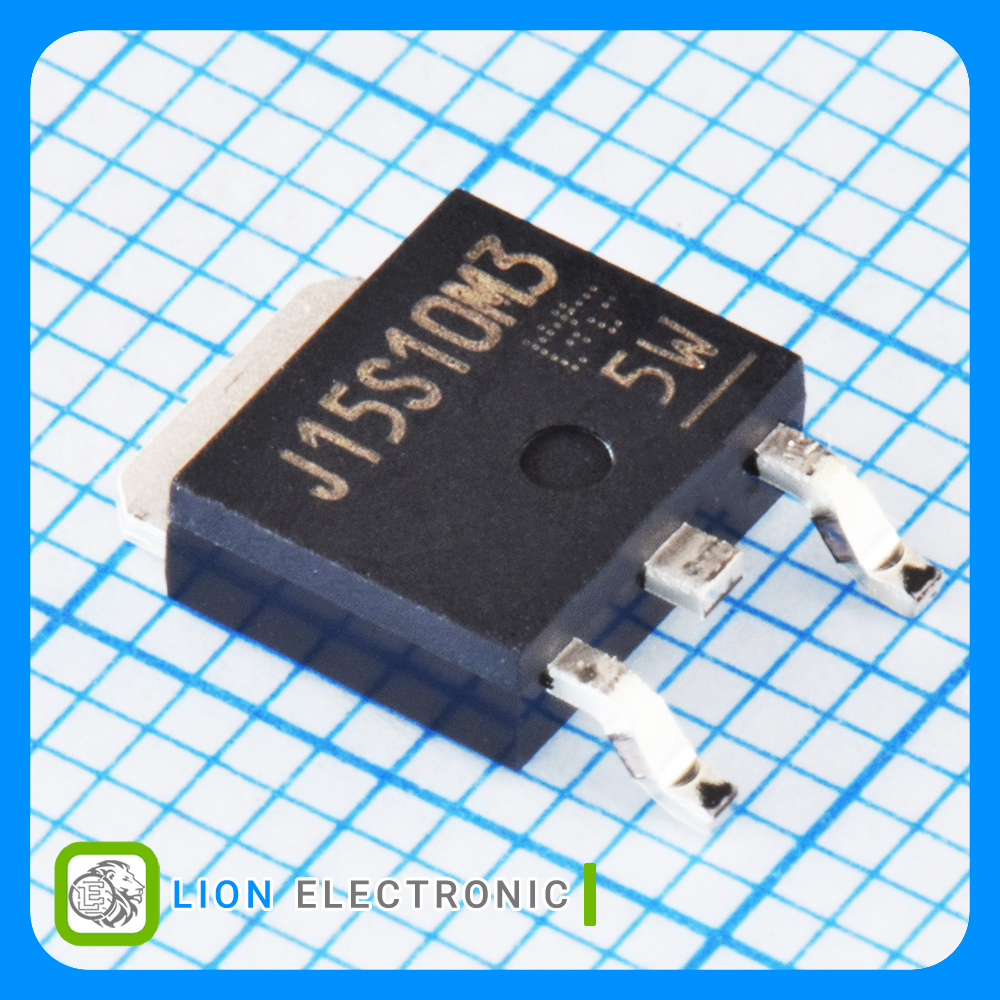

ماسفت 100- ولت 15- آمپر نوع P با پکیج DPAK-3
P-CH MOSFET -100V, -15A with DPAK-3 Package
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: -100V
- Id - Continuous Drain Current: -15A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -2V
- Vgs - Gate - Source Voltage: -20/+10V
- Rds On - Drain - Source Resistance: 100mΩ
- Pd - Power Dissipation: 75W
- Qg - Gate Charge: 69nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
مشخصات TJ15S10M3,LQ
TJ15S10M3,LQ
Part Number
1
Number of Channels
Enhancement
Channel Mode
-100V
Vds - Drain - Source Breakdown Voltage
-55C
Minimum Operating Temperature
-2V
Vgs th - Gate - Source Threshold Voltage
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
-
Packaging
-15A
Id - Continuous Drain Current
-20/+10V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
DPAK
Package-Case
69nC
Qg - Gate Charge
100mΩ
Rds On - Drain - Source Resistance
75W
Pd - Power Dissipation
